Past exam of the quantum, atomic and molecular physics course of the University of Oxford

Source paper: www.whatdotheyknow.com/request/physics_past_exam_papers_2015_16/response/973997/attach/3/Cowell%20Attachment.zip?cookie_passthrough=1

Potassium has a closed 18-electron core and one valence electron. In $3d{}^2{D}_{5/2}$ the orbital label specifies principal quantum number $n=3$ and single-electron orbital angular momentum $l=2$. The term letter D specifies total orbital angular momentum $L=2$, the superscript $2S+1=2$ specifies $S=1/2$, and the subscript is total electronic angular momentum $J=5/2$. The $5p{}^2{P}_{3/2}$ state instead has $n=5$, $l=L=1$, the same spin, and $J=3/2$. The closed electron shell that forms the core contributes no net $L$ or $S$ in this alkali-like approximation. The dash identifies a pair of levels rather than by itself specifying the direction of emission.

The leading electric dipole transition rules for one active electron areThe electronic parity must change, since the electric dipole operator is odd under spatial reflection. The electric-dipole selection rule imposes no general restriction on changing $n$ by more than one. The rule for magnetic sublevels depends on the radiation's polarization relative to the quantization axis: the $q=0$ component couples equal $m_J$, whereas $q=\pm 1$ supplies the other changes. In a many-electron description using LS coupling the total orbital rule is $\Delta L=0,\pm 1$, excluding $L=0\leftrightarrow 0$; for a single active electron the stronger $\Delta l=\pm 1$ applies. Thus the displayed D–P pair satisfies the leading rules. Relativistic mixing and higher-multipole transitions can permit weaker lines outside the approximation of electric dipole transitions.

Use the common ionization continuum consisting of a divalent calcium ion and a free electron as the upper reference, with the singly ionized calcium ground state $4s{}^2{S}_{1/2}$ at zero energy. The resonance doublet isThe higher-$J$ P component is higher in energy because its emission to the common lower level has the shorter wavelength. The full series is $np{}^2{P}_{1/2,3/2}\to 4s{}^2{S}_{1/2}$. As $n\to \infty$, its two upper levels approach the same continuum, so the ground-state ionization energy is approximately $hc/(104.4\mathrm{nm})=11.88$ eV.

The second doublet has a common upper S level and two lower P levels:Both combinations put $5s{}^2{S}_{1/2}$ near $6.47$ eV above the ground state. The series is $ns{}^2{S}_{1/2}\to 4p{}^2{P}_{1/2,3/2}$ with $n\ge 5$. Its two limits measure the ionization energy from each lower P level, giving slightly different limit wavelengths near 142 nm, not two unrelated continua. From the rounded wavelengths, $E(4p_{1/2})\simeq 3.124$ eV and $E(4p_{3/2})\simeq 3.152$ eV, leaving roughly $8.74$ eV to the same continuum. The tabulated level ordering and labels independently agree with these assignments.^[ref]

The quoted wavelengths and limits are rounded; air and vacuum conventions also matter for precision spectroscopy. They justify a labelled schematic and the approximate energy differences, not an artificial claim of exact closure at every printed decimal.

The limit near 121.8 nm lies about $hc/(121.8\mathrm{nm})\simeq 10.18$ eV above its lower term. Subtracting from the approximately $11.88$ eV ground-state ionization energy puts that lower term near $1.70$ eV: the $3d{}^2{D}_{3/2,5/2}$ pair. The first upper levels are the already identified $4p{}^2{P}_{1/2,3/2}$ pair. Their allowed decays areThe fourth possible pairing, $P_{1/2}\to D_{5/2}$, has $|\Delta J|=2$ and is forbidden as an electric dipole transition. The three lines therefore arise from doublet terms, not a spin-triplet term: “triplet series” counts three spectral lines.

For example, the first two wavelengths together with the $4p_{3/2}$ energy give $E(3d_{3/2})\simeq 1.693$ eV and $E(3d_{5/2})\simeq 1.700$ eV. The longer 854.2 nm wavelength from the same upper level places its lower D level higher. The 866.2 nm transition independently returns the lower D energy within the rounding precision. Increasing the upper principal quantum number gives $np{}^{2}P\to 3d{}^{2}D$ triplets with two nearby lower-term ionization limits near 121.8 nm. The arrows are included in b; their emission direction is P to D, not the reverse. The independent tabulation confirms the D-term position and ordering.^[ref]

In the regime of weak-field Zeeman splitting, $J,m_J$ remain good labels and $\Delta E={\mu }_B{g}_J{m}_{J}B$. For the 393.4 nm line, $J_u=3/2$ in $4p{}^2{P}_{3/2}$ and $J_l=1/2$ in $4s{}^2{S}_{1/2}$. The Landé g-factors are $g_u=4/3$ and $g_l\simeq 2$. Apply $\Delta m_J=0,\pm 1$ to the four upper and two lower sublevels. The allowed pairs $(m_u,m_l)$ areTheir frequency displacements in units of ${\mu }_{B}B/h$ are respectively $1,-1/3,-5/3,5/3,1/3,-1$, so none coincide. Looking perpendicular to the field permits both the $\pi$ radiation from $q=0$ transitions and the $\sigma$ radiation from $q=\pm 1$ transitions. ConsequentlyA linear polarizer parallel to the field isolates the two $\pi$ components; a transverse polarizer selects the four $\sigma$ components. Without polarization selection both sets are present. This count assumes a field small compared with fine structure coupling and neglects isotope-dependent hyperfine structure; the strong-field Paschen-Back effect or a resolved nonzero-spin isotope would require a different model. The spectral spacings are unnecessary for the count, but the distinct shifts verify that counting allowed transitions does not inadvertently count degenerate lines twice.

First make the units explicit. Use angular momentum operators in units of $\hslash$, so their squared eigenvalues are $J(J+1)$ rather than ${\hslash }^{2}J(J+1)$; the coefficient $A$ then has units of energy. The operator identitygives, at fixed $J_1,J_2$,Subtracting the expression for the adjacent allowed value $J-1$ leavesThis is the Landé interval rule. Its content is that consecutive gaps grow in proportion to the higher total-angular-momentum quantum number, with the same coefficient within an isolated coupled multiplet. A negative $A$ reverses the ordering of the levels, while positive observed transition frequencies alone measure gap magnitudes.

If the source symbols instead denote physical angular momenta with units of action, the Hamiltonian written literally as $A{\mathbf{J}}_1\cdot {\mathbf{J}}_2$ gives the gap $A{\hslash }^{2}J$. Recovering the printed form then requires absorbing ${\hslash }^2$ into the coefficient or writing $H=(A/{\hslash }^2){\mathbf{J}}_1\cdot {\mathbf{J}}_2$. The convention is essential to dimensional consistency rather than an extra dynamical assumption.

For two valence electrons, the central-field shell structure should be the largest scale, residual electrostatic interactions should establish a reasonably definite configuration and atomic term, and spin-orbit coupling should be weaker than the separations between the relevant terms. Then $L$ and $S$ remain approximately good quantum numbers. Within a well-isolated term the leading fine structure interaction can be represented as $A\mathbf{L}\cdot \mathbf{S}$. Its coefficient must be effectively constant for all $J$ levels in that term. Mixing of neighboring terms, spin-spin interactions, higher-order corrections or strong applied fields can spoil the simple interval rule; hyperfine structure must be negligible or separately resolved.

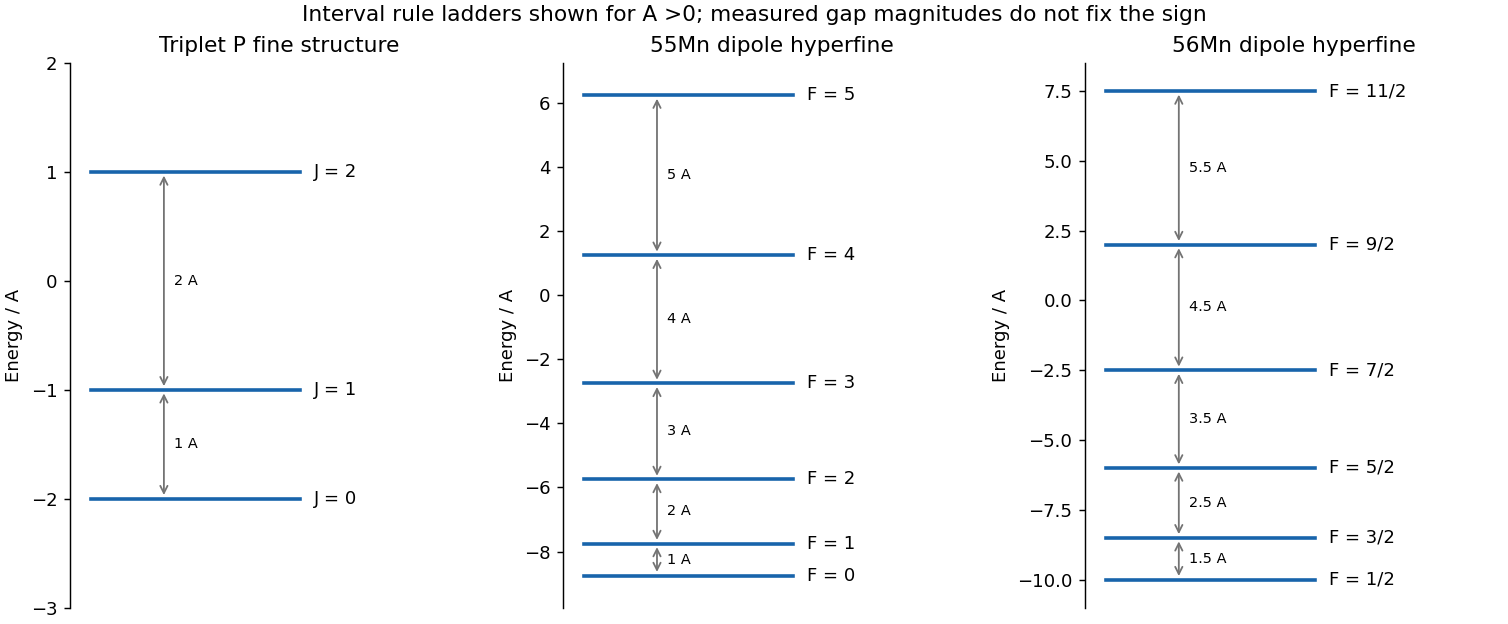

A suitable approximate example is the magnesium $3s3p{}^3{P}_J$ term, with $L=1$, $S=1$ and $J=0,1,2$. The interval-rule prediction isAn arbitrary common term energy may be added. For $A>0$ the levels ascend in the order ${}^3{P}_0,{}^3{P}_1,{}^3{P}_2$, with gap ratio one to two. Each level still contains $2J+1$ degenerate magnetic sublevels in zero external field. The superscript three labels the spin multiplicity $2S+1$, while the different subscripts identify fine structure components of that same term. This is an approximate example of LS coupling, not a claim that every real two-electron atom has exact one-to-two fine splitting.

Within a fixed isolated electronic $J$ multiplet, the electronic field at the nucleus is a vector operator. Rotational symmetry and the Wigner-Eckart theorem imply that its projection into this multiplet is proportional to $\mathbf{J}$:Its detailed orbital, spin-dipolar and contact contributions are included in the reduced coefficient $b_J$. Consequently the projected magnetic-dipole hyperfine interaction becomesin the same dimensionless angular-momentum convention as a. The proportionality is a statement about matrix elements within the chosen electronic manifold, not an identity for the electron field operator on the entire atomic Hilbert space.

Define $\mathbf{F}=\mathbf{I}+\mathbf{J}$. In zero external field the quantum states obtained by addition of angular momentum are labelled $|\gamma J,I;F,m_F⟩$, where $\gamma$ specifies the electron configuration and other fixed labels. The good quantum numbers include $I,J,F,m_F$, with $F=|I-J|,\dots ,I+J$ and $m_F=-F,\dots ,F$. In a description using LS coupling the fixed electronic labels can also include $L,S$. The energies depend on $F$ but not $m_F$:This neglects coupling to other electronic manifolds, electric-quadrupole hyperfine interactions and the Zeeman effect from external fields. Those additions can shift the intervals or change which quantum numbers remain useful.

For a hyperfine multiplet governed by the magnetic-dipole hyperfine interaction, adjacent frequency gaps obey ${\nu }_F=|A|F/h$. The five measured gaps for the first isotope are approximately in the ratios $1:2:3:4:5$. Therefore the six levels have $F=0,1,2,3,4,5$: the first measured gap corresponds to higher $F=1$. In particular $F_{\min }=|I-J|=0$ and $F_{\max }=I+J=5$, givingThis inference uses both the number of intervals and their successive ratios. Merely seeing six levels would specify only $\min (I,J)=5/2$ and would not by itself establish equality.

Solving a linear least-squares problem for a fit through the origin, taking the rounded frequencies as equally weighted, givesThus the scale of the hyperfine structure is about $4.80\times 10^{-26}$ J, or $3.00\times 10^{-7}$ eV. The displayed frequencies have unequal rounding precision, so additional fit digits are not physically warranted. The gap pattern supports a leading dipole interval rule, with small residuals that do not establish higher-multipole constants without uncertainties.

The total width between $F=0$ and $F=5$ is $15|A_{55}|$, about $1.086$ GHz in frequency units. The sign of $A_{55}$, the absolute nuclear g-factor and the electronic field coefficient cannot be separated from these gap magnitudes alone. Measuring the level ordering or using another known magnetic property would supply additional information. The figure in b shows the positive-$A$ ordering as an illustration.

For the second isotope, consecutive gap differences are approximately $56.4$ MHz, but the smallest gap is about $1.5$ times this value. The higher-$F$ values for the five gaps are therefore $3/2,5/2,7/2,9/2,11/2$. The six levels run from $F=1/2$ to $11/2$. The electronic state is unchanged, so $J=5/2$ as in d; the endpoints giveFor example, fitting ${\nu }_F$ to $F|A|/h$ with the same equal-weight convention gives $56.408$ MHz. The nearly constant gap differences are compatible with the same leading model of the magnetic-dipole hyperfine interaction and the printed rounding.

Within an unchanged electronic state, and neglecting isotope-dependent changes of the electronic wave function and hyperfine anomaly, $A\propto g_I$. Thusor the reciprocal magnitude is about $1.284$. This is a ratio of nuclear g-factors, not directly a ratio of nuclear magnetic moments: ${\mu }_I=g_{I}I{\mu }_N$, so the moment-magnitude ratio would additionally contain $I_{56}/I_{55}=3/(5/2)$ and is about $0.935$.

The positive transition frequencies do not fix either coupling sign. If a signed ratio is required, equal signs must be supplied as an additional assumption or determined by an ordering-sensitive measurement. No absolute nuclear g-factor is inferred without a calibrated electronic field coefficient. The second ladder in b illustrates the inferred half-integer $F$ sequence without turning that sign ambiguity into a falsely measured ordering.

In the ideal three-level laser, pumping excites atoms out of the ground state to a higher auxiliary level, rapid relaxation fills a relatively long-lived upper laser level, and the laser transition returns to the ground state. A ruby laser is a standard example of this classification. Since the lower laser state initially holds most atoms, substantial pumping is needed to reverse the population per sublevel. With upper and lower degeneracies $g_2,g_1$ and $N_1+N_2\simeq N_T$, the positive-gain condition isFor equal degeneracies more than half the active atoms must be excited before optical gain is even positive.

In a four-level laser the lower laser level is above the ground reservoir and empties rapidly after laser emission. Pumping again feeds a higher auxiliary level which relaxes into the upper laser state, but the lower laser-state population can remain small. The helium-neon laser provides a multilevel physical realization often represented by this scheme for a four-level laser. Positive population inversion then requires much less depletion of the ground reservoir, giving a much lower laser pump threshold for comparable lifetimes, emission cross sections and cavity losses.

The threshold of a four-level laser is not literally zero. Oscillation requires round-trip optical gain to overcome output coupling and other losses, and competing decay or incomplete lower-level removal raises the required pump. Real laser media contain more atomic states than ideal diagrams for a three-level laser or a four-level laser; the labels describe the relevant pumping and laser-transition cycle rather than the total number of states in the material.

Let $A=A_{21}$ and $r=g_2/g_1$. Before stimulated emission and stimulated absorption are added, the source and decay terms giveThe upper level is fed at a specified rate of addition to the number density, its spontaneous decay feeds the lower level, and lower-level removal leads to states outside this two-level system. This is therefore an open pumped system, not a closed two-level system with conserved population.

At steady state,The degeneracy-weighted population inversion compares population per magnetic sublevel. It is positive only if $rA{\tau }_1<1$; a positive pump rate alone cannot guarantee optical gain if lower-level removal is too slow. A short lower-state lifetime is consequently helpful even when the upper-state pumping is unchanged.

The equations assume finite positive $A$ and ${\tau }_1$, approximately constant pumping and no other specified sources, sinks or branching channels. A finite steady state would not exist for continuous pumping if the lower level had no escape route. The fixed source rate also presumes access to an external reservoir; it does not imply that the two populations can grow beyond all available active atoms in a real finite medium.

Define $\sigma (\omega )$ as the emission cross section for an upper-level atom, averaged over the participating sublevels, and let $W=\sigma I/(\hslash \omega )$. Detailed balance gives the upward stimulated rate per lower-level atom as $rW$, where $r=g_2/g_1$. With $D=N_2-r{N}_1$ the complete laser rate equations areAdding them eliminates the internal transitions. Therefore steady state has $N_1=R_2{\tau }_1$ even when the radiation is strong. Substitution into the upper equation givesOne net stimulated transition changes the beam energy by $\hslash \omega$, so the coefficient of optical gain for intensity is $\alpha (\omega ,I)=\sigma (\omega )D$. At line center, with ${\sigma }_0=\sigma ({\omega }_{21})$,Here ${\alpha }_0$ is the unsaturated intensity optical gain per length, which may be negative, and $I_s$ is the intensity at which its magnitude is halved in this model with homogeneous broadening. The cancellation of ${\tau }_1$ from $I_s$ follows from exclusive upper-to-lower decay and constant upper-state pumping. Keeping $N_1=A{\tau }_1{N}_2$ in the stimulated problem would discard the stimulated feeding term and give an incorrect saturation scale. Other decay branches or different pump constraints lead to different expressions.

For a traveling beam with uniform pump, no additional loss and local steady populations,If ${\alpha }_0>0$ and $I\gg I_s$, the increment becomes $dI/dz\simeq {\alpha }_0{I}_s=\hslash {\omega }_{21}{R}_2(1-rA{\tau }_1)$, approximately constant. Intensity then grows linearly, rather than exponentially, with distance while that strong-saturation regime persists. Negative ${\alpha }_0$ gives saturable absorption and a decreasing beam.

Keep the given emission cross section in square centimetres so that the density remains per cubic centimetre. For the first transition, $r=5/3$ andThusThe separate populations are $N_2^{(0)}=1.667\times 10^{13}$ cm${}^{-3}$ and $N_1^{(0)}=1.00\times 10^{12}$ cm${}^{-3}$. Subtracting $5N_1/3$, rather than $N_1$ alone, reproduces the population inversion used above.

Here $rA{\tau }_1=0.10<1$, so upper-state pumping and sufficiently rapid lower-level removal produce positive small-signal optical gain. This coefficient is an intensity optical gain; a weak field amplitude would grow with half this exponent. A positive single-pass coefficient also does not by itself establish laser oscillation without a cavity-loss budget. No transition wavelength was supplied for this numerical example, so a numerical saturation intensity is not needed or invented to calculate ${\alpha }_0$.

For the second transition, $r=3$ and the much longer lower-level lifetime changes the sign of the available population inversion:If its emission cross section equals the first transition's value, the estimate isThe word “comparable” does not specify exact equality, so the more general answer is ${\alpha }_0=-(0.1133\mathrm{c}{\mathrm{m}}^{-1})[{\sigma }_2/(4\times 10^{-15}\mathrm{c}{\mathrm{m}}^2)]$. The quoted numerical value is an explicitly equal-cross-section estimate, while the negative sign is robust for any positive comparable emission cross section.

In this case $rA{\tau }_1=2.7>1$. At fixed pump, $N_1=1.50\times 10^{13}$ cm${}^{-3}$, so its degeneracy-weighted contribution exceeds the upper population. The medium therefore absorbs a weak beam at this transition. Increasing the radiation saturates the photon absorption magnitude toward zero according to c; it does not convert this fixed-pump model into an optical amplifier with positive gain. Simply inserting the magnitude $|{\alpha }_0|$ into the propagation law for positive optical gain would discard the physically important population balance.

Use an orthonormal basis of stationary states and project the Time-dependent Schrödinger equation onto state 2 after removing its free-evolution phase. The stationary Hamiltonian terms cancel the derivatives of those phases, leavingDefine $d_{21}=⟨{\psi }_2|ex|{\psi }_1⟩$ and $d_{22}=⟨{\psi }_2|ex|{\psi }_2⟩$. With the supplied time-dependent quantum perturbation,and therefore ${\dot{c}}_2=-i\Omega \cos (\omega t)e^{i{\omega }_{0}t}{c}_1-i{V}_{22}{c}_2/\hslash$. The state phases may be chosen so $d_{21}$ and $\Omega$ are real for this single driven pair; otherwise probabilities depend on $|\Omega {|}^2$ and the conjugate matrix element appears in the equation for $c_1$. Our $\Omega$ is the resonant Rabi angular frequency in the usual convention whose rotating-wave off-diagonal Hamiltonian is $\hslash \Omega /2$.

For a field-free atom with symmetry under spatial reflection, each selected nondegenerate stationary orbital can be chosen with definite parity. Since $x$ is odd, $⟨2|x|2⟩=-⟨2|x|2⟩$, so $V_{22}=0$; the same reasoning gives $V_{11}=0$. Being an energy eigenstate alone is not sufficient. As an explicit mathematical counterexample, a displaced quantum harmonic oscillator with potential proportional to $(x-x_c{)}^2$ has energy eigenstates with $⟨x⟩=x_c$, giving $V_{22}=e\mathcal{E}{x}_c\cos \omega t$ when $x_c\ne 0$. The vanishing used in the atomic model rests on its parity assumption, not merely on stationarity.

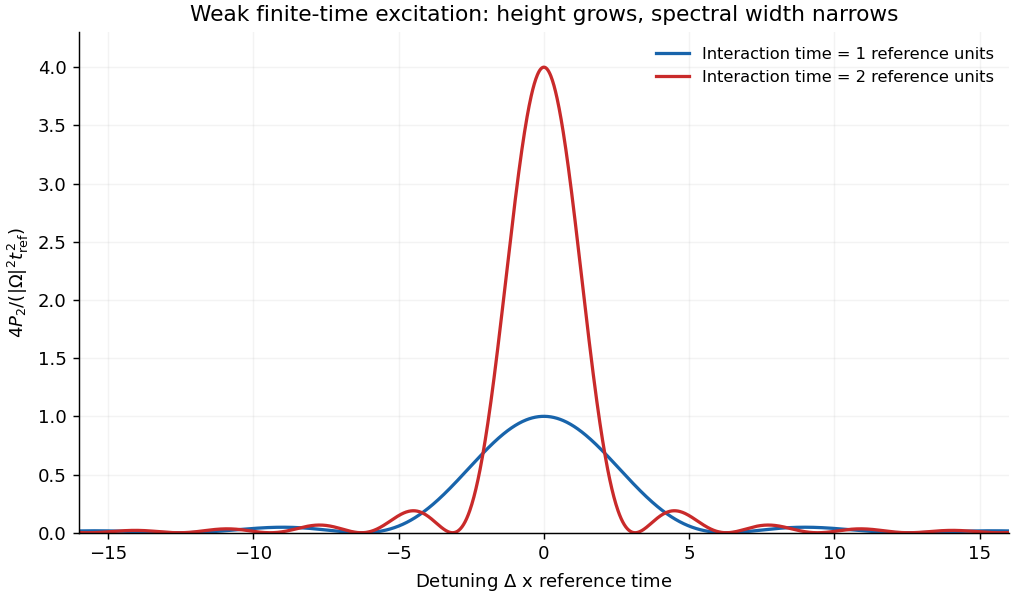

At first order in time-dependent perturbation theory set $c_1\simeq 1$ and use the parity result $V_{22}=0$. Decomposing the cosine into its two exponentials givesBoth exponentials contribute to the exact first-order result:Each apparent zero denominator has a continuous limit. In particular the near-resonant fraction tends to $it$ as $\omega \to {\omega }_0$, while the counter-rotating fraction remains bounded on the optical timescale. One may equivalently write the expression asThis form makes $c_2(0)=0$ explicit and avoids cancellation at resonance. At extremely short time both sinc functions tend to one, so $c_2\simeq -i\Omega t$, agreeing with the initial derivative of the original cosine-driven equation. No rotating-wave approximation has yet been made. The separate assumption of weak excitation remains necessary: the first-order expression must not be extended until it predicts probabilities comparable to or larger than one.

Let $\Delta =\omega -{\omega }_0$. Near resonance, $|\Delta |\ll {\omega }_0$, and for weak enough driving $|\Omega |\ll {\omega }_0$, the term oscillating near $2{\omega }_0$ averages rapidly compared with the slow response. On times long compared with an optical period it contributes a bounded amplitude of order $\Omega /{\omega }_0$, whereas the resonant contribution can accumulate. Dropping that counter-rotating term givesAt exact resonance the continuous limit is $P_2=|\Omega {|}^2{t}^2/4$. This remains a weak-excitation result, requiring $P_2\ll 1$; rotating-wave averaging alone does not justify ignoring depletion forever. Far from resonance or on subcycle timescales, the discarded term may no longer be negligible for the comparison being made.

If one retains the coupled amplitudes instead of fixing $c_1=1$, the rotating-wave propagator is a unitary operator. The resulting population in the Driven two-level Rabi model isIt gives bounded Rabi oscillations and reduces to the weak-excitation expression over its common range. This distinction prevents the resonant quadratic approximation from being mistaken for a population law valid at arbitrary time.

Resolve the weak broadband radiation into narrow frequency intervals whose relative phases are uncorrelated. The transition probabilities, rather than the coherent amplitudes, can then be added after ensemble or time averaging. For the x-polarized field, the energy density in one interval is $\rho (\omega )d\omega ={ϵ}_0{\mathcal{E}}_{\omega }^2/2$, so its squared coupling is $|d_{21}{|}^2{\mathcal{E}}_{\omega }^2/{\hslash }^2$. Inserting this into the weak rotating-wave result givesFor times long compared with the optical coherence time of the field, the narrow resonant kernel samples a nearly constant $\rho ({\omega }_0)$. Provided the resonance is well away from the zero-frequency boundary, extend the Rabi detuning integral to the full real line. Its value is $2\pi t$, yieldingThis is the stimulated absorption rate for the specified polarization and spectral radiation energy density per angular-frequency interval. The averaging window should also satisfy $Wt\ll 1$ while the lower state is treated as undepleted. A deterministic phase-locked broadband pulse would not in general permit adding these probabilities without its interference terms.

For isotropic unpolarized radiation with total spectral radiation energy density ${\rho }_{\mathrm{tot}}$, orientational averaging instead gives $W=\pi |{\mathbf{d}}_{21}{|}^2{\rho }_{\mathrm{tot}}({\omega }_0)/(3{ϵ}_0{\hslash }^2)$. The factor one third is not inserted into the original x-polarized formula. If ordinary frequency is used, ${\rho }_{\nu }=2\pi {\rho }_{\omega }$ and the isotropic coefficient becomes $|{\mathbf{d}}_{21}{|}^2/(6{ϵ}_0{\hslash }^2)$ multiplying ${\rho }_{\nu }({\nu }_0)$. The spectral convention and polarization must be stated together to avoid spurious factors of three or $2\pi$.
