Past exam of the theoretical physics major option course of the University of Oxford / 2017 / 2

Interpret the two displayed exchange components as belonging to the common nearest-neighbour sum with coefficient $-J$. Write $H_f=|h|$ and, for $h\ne 0$, $s=\mathrm{sgn}h$. The source explicitly fixes $J>0$ but does not separately constrain $h$ in this question; keeping $H_f$ covers either field direction.

For classical vectors of length $S$, define ${\mathbf{q}}_j=(S_j^x,S_j^y)$. The Cauchy-Schwarz inequality gives ${\mathbf{q}}_j\cdot {\mathbf{q}}_{j+1}\le |{\mathbf{q}}_j||{\mathbf{q}}_{j+1}|\le S^2$, and $h{S}_j^x\le H_{f}S$. Each term is therefore bounded below, soUniform alignment along the field saturates every bound:Equality requires all planar vectors to be parallel with length $S$, and the nonzero field then fixes their direction. At $h=0$, every uniformly oriented vector in the $xy$ plane is a classical ground state:A nonuniform configuration cannot improve these simultaneously saturated bond bounds, including on the periodic ring.

The Holstein–Primakoff transformation realizes a spin algebra using bosonic creation operators and bosonic annihilation operators. A boson counts a unit of spin deviation from the local positive quantization axis: ${\tilde{S}}^z=S-n$ with $n=a^{†}a$. The square root in ${\tilde{S}}^{+}$ supplies the correct spin-ladder matrix elements. In particular,Their commutator is $2(S-n)$ on every physical number state, reproducing the Spin commutation relations. Although the oscillator Fock space is infinite, the physical subspace is onlyThe order of the square root and oscillator operator matters in obtaining these coefficients.

When the spin deviations are dilute, expand the square root in $n/(2S)$. The leading transverse operators are linear in the bosonic creation operators and bosonic annihilation operators and turn exchange interactions into a quadratic Hamiltonian, which can be diagonalized. Higher powers describe interactions between spin waves. The method therefore organizes corrections by inverse powers of $S$ about an ordered classical configuration. Large $S$ alone is insufficient: the average depletion must remain small compared with $S$. Possible problems include the occupation constraint after truncation, noncollinear order requiring site-dependent axis rotations, zero modes, and infrared fluctuations that destroy the assumed dilute expansion.

Choose the local positive $\tilde{z}$ axis along the classical spin. For nonzero field, a proper rotation isIt preserves the Spin commutation relations and turns the field term into $-H_{f}S{\sum }_j{\tilde{S}}_j^z$. At zero field choose the classical direction $+x$, so $s=1$. Expanding about the original $z$ axis without this rotation would put the reference state away from the classical minimum and would not give a controlled small-deviation expansion.

To the required order,The longitudinal exchange gives $-J{S}^2+JS(n_j+n_{j+1})+O(S^0)$ on each bond. The transverse exchange givesFinally the field contributes its classical constant and $H_{f}S{n}_j$. Each site belongs to two bonds, so after removing the order-$S^2$ constant,These are the order-$S$ terms; the discarded products of number operators and the next square-root terms are order $S^0$ for occupations held fixed as $S\to \infty$. A different transverse-axis phase can reverse the sign of $B$ without changing the spectrum, but the sign above follows from the stated rotation and oscillator convention.

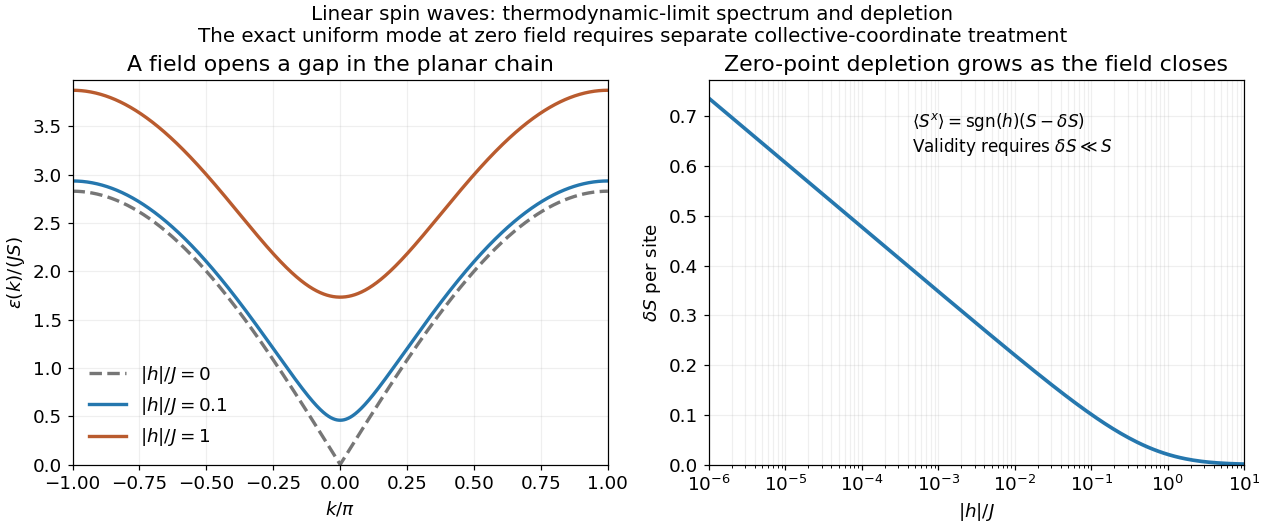

Use the unitary discrete Fourier transformThe transformed operators obey $[a_k,a_q^{†}]={\delta }_{kq}$. The hopping terms contribute $2A\cos k$ to the number coefficient. In the pairing sum, the odd sine part cancels between $k$ and $-k$. ThuswhereThe factor one half in the full momentum sum avoids counting an anomalous pair twice. For $H_f>0$, ${\alpha }_k>|{\Delta }_k|$ for every allowed momentum. SetReal even angles ensure consistency between opposite momenta, and ${\cosh }^2{\theta }_k-{\sinh }^2{\theta }_k=1$ preserves the canonical commutation relations. The anomalous coefficient becomes ${\Delta }_k\cosh 2{\theta }_k-{\alpha }_k\sinh 2{\theta }_k=0$. Normal ordering then giveswithThe field-polarized planar ferromagnetic spin wave has energy gap $ϵ(0)=S\sqrt{H_f(H_f+2J)}$. The momenta run over the whole Brillouin zone once, including the self-inverse momenta $0$ and, for even $L$, $\pi$; these use single-mode squeezing rather than introducing an extra independent partner.

The zero-field case has a zero-mode obstruction to bosonic Bogoliubov diagonalization. Its nonzero-momentum modes have $ϵ(k)=2\sqrt{2}JS|\sin (k/2)|$, but ${\alpha }_0={\Delta }_0=JS$, so no finite squeezing angle exists for the uniform mode. With $Q_0=(a_0+a_0^{†})/\sqrt{2}$, its Hamiltonian is $JS{Q}_0^2-JS/2$, not an identically zero oscillator. For example, its matrix element between the vacuum and the two-boson number state is $JS/\sqrt{2}$, whereas $ϵ(0)b_0^{†}{b}_0$ would vanish. Consequently the requested oscillator diagonalization is literal for nonzero field; at zero field treat the collective orientation separately or introduce a field regulator before taking a limit.

For nonzero field, the spin-wave ground state is the vacuum of all $b_k$. The inverse Bogoliubov transformation gives $⟨a_k^{†}{a}_q⟩={\delta }_{kq}{\sinh }^2{\theta }_k$ and vanishing one-point oscillator averages. Translational invariance therefore gives the depletionRotating back to the physical axes yields, to the retained spin-wave order,The zero transverse components also follow from rotation by $\pi$ about the physical $x$ axis in a symmetry-preserving ground state. The nonzero depletion describes zero-point quantum fluctuations: the original boson vacuum is not the ground state because the anomalous terms create pairs. It is nonnegative and must satisfy $\delta S\ll S$ for the expansion to be reliable. At strong field it tends to zero, with $\delta S\sim J^2/(8H_f^2)$ in the infinite-chain limit.

For fixed $H_f>0$, the momentum sum has a finite thermodynamic limit obtained by $L^{-1}{\sum }_k\to (2\pi {)}^{-1}{\int }_{-\pi }^{\pi }dk$. At zero field the uniform mode already has no oscillator vacuum, as explained in part d. Even after removing that mode, the nonzero modes behave asThus assigning a finite ordered moment by simply setting $h=0$ in the infinite momentum sum is invalid. The divergence indicates failure of this expansion about a fixed planar orientation; it is not a negative physical magnetization. At finite size an exact zero-field state chosen to have definite total $S^z$ has zero planar one-point magnetization by the continuous rotation symmetry. Establishing its full correlations requires a treatment beyond the divergent ordered-state approximation.
