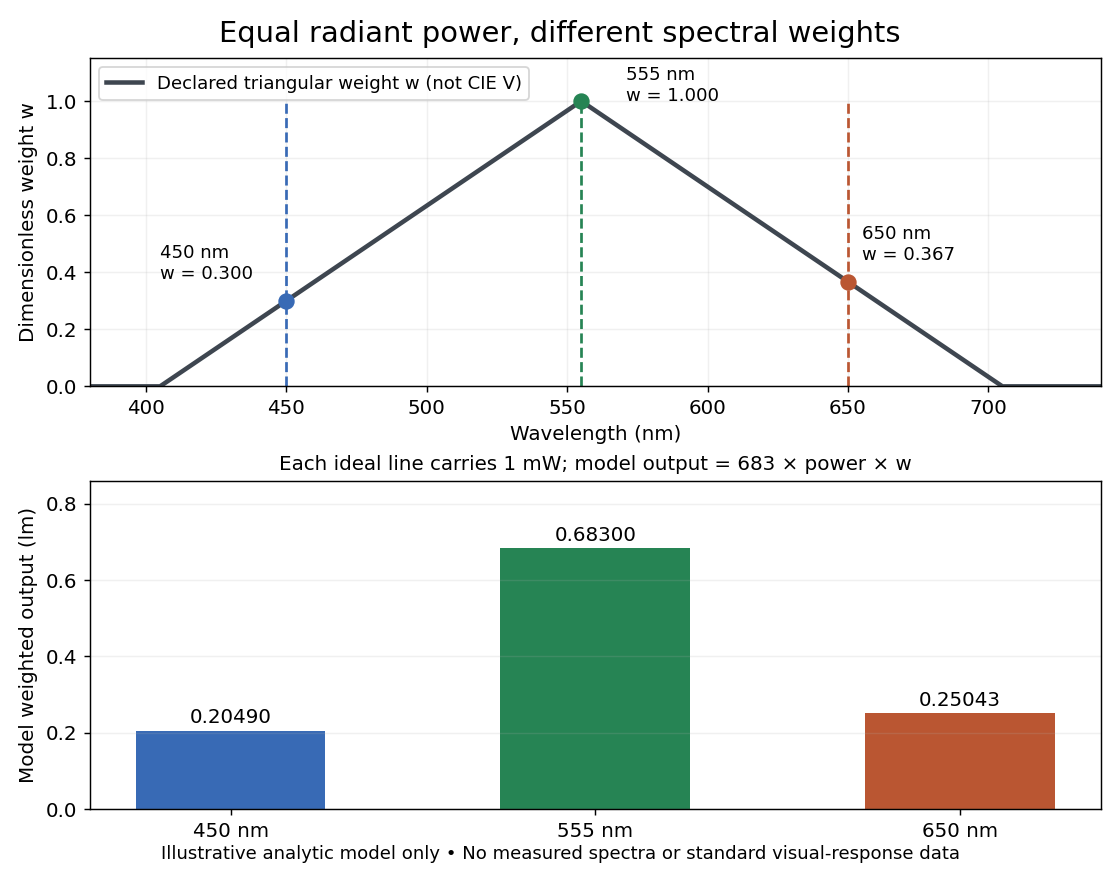

An original declared model makes the distinction visible without substituting invented numbers for the photopic luminous efficiency function. Define a triangular weightThis $w$ is an illustrative function, not a fit or table of $V$. Three ideal spectral lines, each carrying radiant flux $1\mathrm{mW}$, at $450$, $555$ and $650\mathrm{nm}$ have weights $3/10$, $1$ and $11/30$. Their model weighted outputs are respectively $0.2049$, $0.6830$ and approximately $0.25043\mathrm{lm}$. These are model calculations, not standard luminous fluxes or measured data. For mixtures of these lines the model outputs add, just as the integral adds independent spectral contributions.

A photometer measures a visually weighted radiation quantity. A filtered photodiode approximates the photopic luminous efficiency function with its spectral responsivity; calibration establishes how its electric current maps to illuminance or collected luminous flux. NIST's detector-based realization traces the spectral responsivity to a cryogenic radiometer and the aperture area to length measurements. ^[ref]

A photometric matching filter shapes a photodiode's combined spectral responsivity toward the photopic luminous efficiency function. Matching is imperfect, so photometric calibration must retain spectral information. ^[ref]

The photopic luminous efficiency function $V(\lambda )$ is dimensionless and describes standardized relative sensitivity for photopic vision. It is normalized to $V(555\mathrm{nm})=1$ and tabulated over $360$–$830\mathrm{nm}$. The wavelength coordinate is in standard air, rather than vacuum; changing coordinates requires converting the spectral radiant flux density as well. The official prescription uses linear interpolation between the specified 1 nm entries.^[ref]

Write ${\lambda }_a$ for the standard-air wavelength at $540\mathrm{THz}$. With spectral radiant flux ${\Phi }_{e,\lambda }$ in $\mathrm{W}\mathrm{n}{\mathrm{m}}^{-1}$ and $d\lambda$ in nanometres, the luminous flux isThe integral has units of watts, and $K_m$ converts them to lumens. For radiation at a single wavelength ${\lambda }_0$ with total radiant flux $P$, this reduces to ${\Phi }_v=K_{m}V({\lambda }_0)P$. For a sufficiently narrow finite band, this is an approximation requiring nearly constant $V$ across the band.^[ref]

Photopic vision means vision under light-adapted conditions. Standard photometry here uses the photopic luminous efficiency function; scotopic vision uses a different weighting for dark-adapted conditions. The response function and adaptation conditions must be stated when comparing luminous fluxes.^[ref]

Spectral luminous efficacy converts radiant flux at one wavelength to luminous flux. The candela convention fixes $K_{\mathrm{cd}}$ exactly at $540\times 10^{12}\mathrm{Hz}$, not at an exactly specified wavelength of $555\mathrm{nm}$. ^[ref]

In vacuum, that frequency corresponds to $c/(540\times 10^{12}\mathrm{Hz})\simeq 555.1712\mathrm{nm}$, using the speed of light. In standard air it is approximately $555.017\mathrm{nm}$, close to the $555\mathrm{nm}$ maximum of the photopic luminous efficiency function. Thus $K_m$ is slightly larger than $683\mathrm{lm}{\mathrm{W}}^{-1}$; using $K_m\simeq 683\mathrm{lm}{\mathrm{W}}^{-1}$ in ordinary calculations is a rounded convention. The exact anchor is $K({\lambda }_a)=683\mathrm{lm}{\mathrm{W}}^{-1}$. ^[ref]
