Spectral radiant flux (${\Phi }_{e,\lambda },{\Phi }_{e,\nu }$)

Spectral radiant flux resolves radiant flux by wavelength or frequency:Its units are $\mathrm{W}{\mathrm{m}}^{-1}$ per metre of wavelength or $\mathrm{W}\mathrm{H}{\mathrm{z}}^{-1}$ per hertz of frequency. A density quoted per nanometre must be integrated with wavelength intervals in nanometres; its numerical value is $10^{-9}$ times the per-metre density. The frequency and wavelength spectral radiance conversion applies equally to spectral radiant flux, through the change of variables formula:with $c$ the speed of light in vacuum and ${\Phi }_{e,\lambda }$ expressed per metre. The Jacobian determinant preserves integrated power rather than the height or location of an optical spectrum's peak.

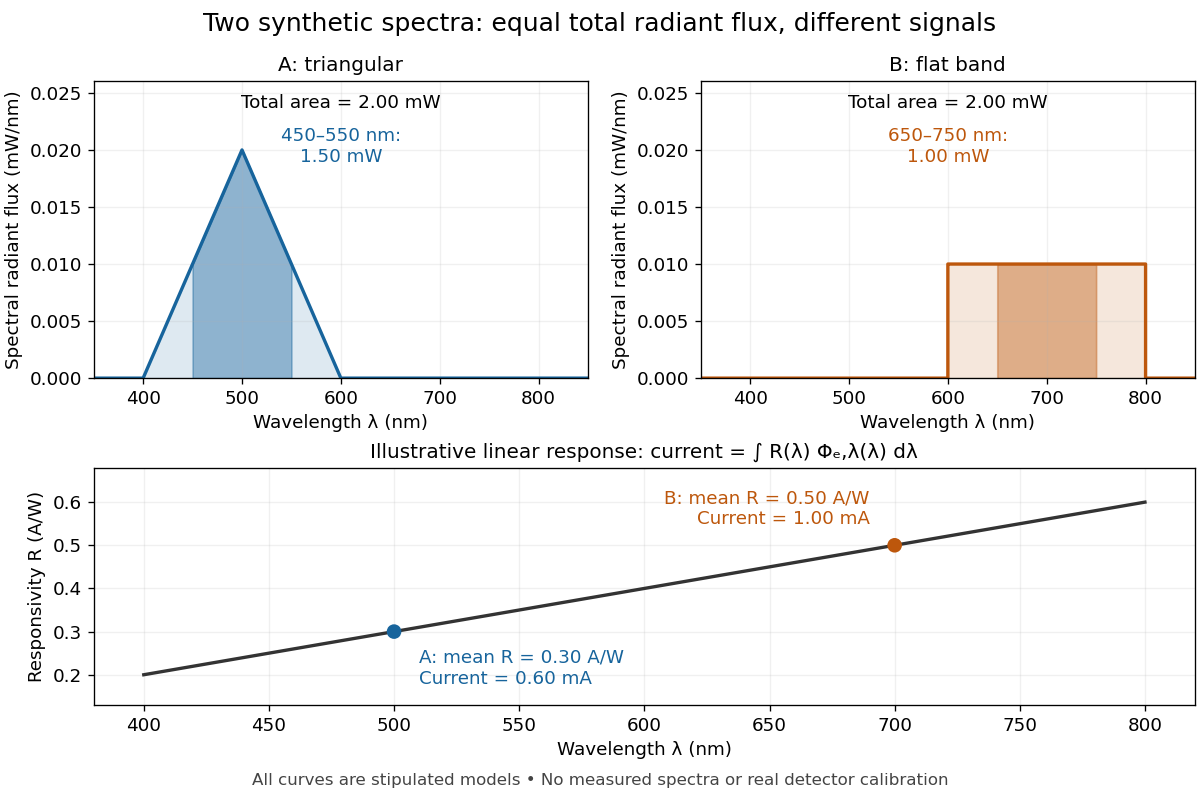

For two explicitly synthetic optical spectra, let $x=\lambda /(1\mathrm{nm})$ and quote the following densities in $\mathrm{mW}\mathrm{n}{\mathrm{m}}^{-1}$:The triangle under $f_A$ and the rectangle under $f_B$ both have area $2\mathrm{mW}$: $200\times 0.020/2=200\times 0.010=2$. Their band radiant fluxes differ: $450$–$550\mathrm{nm}$ contains $1.5\mathrm{mW}$ of $A$, while $650$–$750\mathrm{nm}$ contains $1.0\mathrm{mW}$ of $B$. These are specified functions, not measured source spectra.

The dark-subtracted electric current of a linear photodiode isusing its spectral responsivity. The figure's stipulated $R$ gives $i_A=0.60\mathrm{mA}$ and $i_B=1.00\mathrm{mA}$ despite equal total radiant flux. Symmetry places $A$'s mean wavelength at $500\mathrm{nm}$ and $B$'s at $700\mathrm{nm}$; a linear $R$ averages to its value at that mean. A single electric current therefore cannot determine an unknown broadband radiant flux without additional spectral information or a sufficiently flat calibrated response.
