In an orthonormal basis $({\epsilon }_1,{\epsilon }_2)$, the roots are $\pm ({\epsilon }_1-{\epsilon }_2)$, $\pm ({\epsilon }_1+{\epsilon }_2)$, $\pm 2{\epsilon }_1$, and $\pm 2{\epsilon }_2$. Choose simple roots ${\alpha }_1={\epsilon }_1-{\epsilon }_2$ and ${\alpha }_2=2{\epsilon }_2$, with ${\alpha }_1$ a short root. The fundamental weights are ${\omega }_1={\epsilon }_1$ and ${\omega }_2={\epsilon }_1+{\epsilon }_2$.

For $n\ge 2$, the finite Dynkin diagram has a chain of short roots ${\alpha }_1,\dots ,{\alpha }_{n-1}$ with single bonds, followed by a double bond to the long root ${\alpha }_n$, pointing toward ${\alpha }_{n-1}$. The Extended Dynkin diagram adds the long root ${\alpha }_0=-2{\epsilon }_1$, doubly bonded to ${\alpha }_1$ with arrow toward ${\alpha }_1$. All other bonds remain. For $n=1$, the finite diagram is a single vertex; the affine diagram has two equal-length vertices joined by a double bond without an arrow, with Cartan matrix $\left(\begin{array}{cc}2& -2\\ -2& 2\end{array}\right)$.

For a short root $\alpha$ in the G2 root system, restriction of the Adjoint representation to the sl2 subalgebra associated with a root givesHere $V(n)$ is the irreducible sl2 Lie algebra representation of highest weight $n$ and dimension $n+1$. Every nonzero root vector $x\in {\mathfrak{g}}_{\alpha }$ has $\dim Z_{\mathfrak{g}}(x)=6$: the raising operator has a one-dimensional kernel in each of these six irreducible summands.

The finite Dynkin diagram $G_2$ has two vertices joined by a triple bond, with the arrow toward the short root. The squared root-length ratio is three. It represents the G2 root system.

Write $\bar{i}=2n+1-i$, and let $E_{ab}$ denote a matrix unit. The diagonal Cartan subalgebra consists ofFor a diagonal matrix, $[t,E_{ab}]=(t_a-t_b)E_{ab}$. Substituting into the symplectic relation shows that the following are root vectors:The zero weight space is spanned by $H_i=E_{ii}-E_{\bar{i}\bar{i}}$. The symplectic equation pairs the remaining entries exactly as in this table; the displayed vectors and the $H_i$ are independent and span the algebra. This proves the root-space decompositionThere are $2n^2$ roots of a root system, each with one-dimensional root space, giving $\dim \mathfrak{g}=n(2n+1)$.

The upper triangular root vectors select preciselyThe simple roots of this Cn root system areIndeed, the positive roots of a root system have expansionsThese expansions also identify the highest root:Normalize the coordinate inner product by $({\epsilon }_i,{\epsilon }_j)={\delta }_{ij}$. The simple coroots are ${\alpha }_i^{\vee }={\epsilon }_i-{\epsilon }_{i+1}$ for $i<n$ and ${\alpha }_n^{\vee }={\epsilon }_n$. Solving $⟨{\omega }_j,{\alpha }_i^{\vee }⟩={\delta }_{ij}$ gives the fundamental weightsIn the sum of the positive roots of a root system, the pair $({\epsilon }_i-{\epsilon }_j)+({\epsilon }_i+{\epsilon }_j)$ contributes $2{\epsilon }_i$, and the long root contributes another $2{\epsilon }_i$. Therefore the Weyl vector isThese are the Positive-root data for Cn.

For $n\ge 2$, the finite Dynkin diagram is a chain of $n$ vertices. The bonds between ${\alpha }_i$ and ${\alpha }_{i+1}$ for $i<n-1$ are single. The last bond is double, with its arrow pointing from the long root ${\alpha }_n$ toward the short root ${\alpha }_{n-1}$. For the Extended Dynkin diagram, add ${\alpha }_0=-\theta =-2{\epsilon }_1$ at the other end, doubly bonded to ${\alpha }_1$, with arrow toward ${\alpha }_1$. The following Cn Dynkin diagrams include both ends and the low-rank cases.

At $n=1$, there is just the root ${\alpha }_1=2{\epsilon }_1$ and one finite vertex. The affine Cartan matrix is $\left(\begin{array}{cc}2& -2\\ -2& 2\end{array}\right)$; its two vertices have equal root length, so the double bond has no arrow.

The appropriate abstract object is a finite reduced crystallographic root system $R$ in a real inner product space $E$. Its axioms are: $R$ is finite, spans $E$, and does not contain zero; for $\alpha \in R$, $R\cap \mathbb{R}\alpha =\{\alpha ,-\alpha \}$; each root reflectionpermutes $R$; and every Cartan integer $n_{\alpha \beta }=2(\alpha ,\beta )/(\beta ,\beta )$ is an integer. The restriction to a reduced root system and crystallographic integrality distinguishes roots of complex semisimple Lie algebras from more general reflection configurations.

For any two roots of a root system, the Cauchy-Schwarz inequality givesIf the inner product is zero, both Cartan integers vanish. Otherwise their signs agree, and the absolute value of each is a positive integer. Dividing their product by an integer of absolute value at least one provesFor nonproportional roots the product is strictly less than four. In a reduced root system, proportional roots are just $\pm \alpha$ and have Cartan integers $\pm 2$, so the printed bound is intentionally looser than the resulting bound of three.

A fundamental system of a root system is a basis $\Delta$ of $E$ made of roots, such that each root is an integer combination of $\Delta$ with either all coefficients nonnegative or all nonpositive. Its members are the simple roots. Suppose distinct $\alpha ,\beta \in \Delta$ had $n_{\alpha \beta }>0$. Thenhas a positive coefficient of $\alpha$ and a negative coefficient of $\beta$, contradicting the defining sign condition. Thus $n_{\alpha \beta }\le 0$. Distinct simple roots are linearly independent, so their Cartan-integer product is strictly less than four. Combining integrality and the sign condition givesHere nonpositive is the intended sense of the printed convention that includes zero among “negative” numbers; orthogonal simple roots really do give zero.

To form a Dynkin diagram, place a vertex at each simple root. Join two vertices by $n_{\alpha \beta }{n}_{\beta \alpha }$ bonds, hence zero, one, two or three. A multiple bond has an arrow toward the short root. Indeed $n_{\alpha \beta }/n_{\beta \alpha }=(\alpha ,\alpha )/(\beta ,\beta )$ determines the squared length ratio, and the diagram with the Cartan matrix reconstructs the angles and relative lengths. A single bond joins equal-length roots.

The connected finite Dynkin diagrams are the following. The descriptions include bond multiplicities and arrow directions, so distinguish dual diagrams:

There are no other connected finite Dynkin diagrams. Low-rank conventions also identify $B_1=C_1=A_1$ and $D_3=A_3$; $D_2$ is disconnected, so introduces no further connected type. Affine diagrams are outside this finite classification.

Finally suppose the underlying graph contained a cycle on $m\ge 3$ distinct simple roots ${\alpha }_1,\dots ,{\alpha }_m$. Put $u_i={\alpha }_i/\Vert {\alpha }_i\Vert$. Any bonded pair hasand all other distinct pairs have nonpositive inner products. The cycle contributes at least $m$ bonded pairs, soBut the simple roots, and hence these normalized vectors, are linearly independent, making the displayed sum nonzero. Positive definiteness gives a contradiction. Thus the underlying graph of a finite Dynkin diagram has no cycle. This acyclicity of a finite Dynkin diagram argument also excludes cycles with extra chords or multiple bonds; multiple bonds themselves are not treated as two-edge cycles.

An abstract root system, in the reduced crystallographic convention, is a finite subset $\Phi$ of a finite-dimensional real Euclidean space $E$ satisfying the following conditions:

The root system is irreducible if it is not a union of two nonempty mutually orthogonal root systems. The integrality condition is essential for the finite angle list below; arbitrary finite reflection systems need not satisfy it.

The possible angles are $0$, $\pi /6$, $\pi /4$, $\pi /3$, $\pi /2$, $2\pi /3$, $3\pi /4$, $5\pi /6$, and $\pi$. For roots $\alpha ,\beta$, putBoth are integers, they have the same sign when nonzero, andIf the roots are linearly independent, strict Cauchy-Schwarz inequality gives $0\le ab<4$. Hence $ab\in \{0,1,2,3\}$. These values give, respectively,For the last column, the possible absolute pairs $(|a|,|b|)$ are $(1,1)$, $(1,2)$, and $(1,3)$, up to interchange, and $a/b=(\beta ,\beta )/(\alpha ,\alpha )$. Parallel roots are equal or opposite by reducedness, giving $0$ or $\pi$. Thus the list is exhaustive, and the rank-two root systems realize each nonparallel possibility.

Now suppose two simple roots $\alpha ,\beta$ have angle $5\pi /6$. Distinct simple roots have nonpositive inner product. Here is a proof from their defining sign property: if $(\delta ,ϵ)>0$, then $s_{\delta }(ϵ)=ϵ-n\delta$ with a positive Cartan integer $n$. This would be a root whose coefficients in the root basis include both a positive and a negative coefficient, which is impossible. Therefore, after normalizing the simple roots to unit length, any nonzero off-diagonal inner product is at most $-1/2$, by the angle list.

Let $u=\alpha /\Vert \alpha \Vert$, $v=\beta /\Vert \beta \Vert$, so $(u,v)=-\sqrt{3}/2$. If there were a third simple root with unit vector $w$, write $r=(u,w)\le 0$ and $s=(v,w)\le 0$. Independence of the simple roots makes their Gram matrix positive definite, soIf either $r$ or $s$ were nonzero, its absolute value would be at least $1/2$. Since $rs\ge 0$, the displayed determinant would then be nonpositive. Thus $r=s=0$. Every other simple root is orthogonal to both $\alpha$ and $\beta$: a triple bond isolates a G2 component.

Indeed, the root reflections in $\alpha ,\beta$ preserve their plane and fix its orthogonal complement; the root reflections in the other simple roots preserve that complement and fix the plane. The given facts that these reflections generate the Weyl group and that every root is Weyl group-conjugate to a simple root imply that every root lies entirely in one of those two orthogonal subspaces. If there were any other simple root, this would make $\Phi$ reducible. Therefore irreducibility forces rank two.

Up to interchanging the simple roots, take $\alpha$ short and $\beta$ long. The squared-length ratio is $3$. Choose a scale and orthonormal coordinates so thatThe Cartan integers are $⟨\beta ,{\alpha }^{\vee }⟩=-3$ and $⟨\alpha ,{\beta }^{\vee }⟩=-1$. In coefficient coordinates $m\alpha +n\beta$, the two root reflections areTheir orbits of $\alpha$ and $\beta$ are, respectively,These sets are closed under both displayed reflections; for example $s_{\beta }(\alpha )=\alpha +\beta$, $s_{\alpha }(\alpha +\beta )=2\alpha +\beta$, $s_{\alpha }(\beta )=3\alpha +\beta$, and $s_{\beta }(3\alpha +\beta )=3\alpha +2\beta$. The assumption that every root is conjugate to a simple root now determines all twelve roots, with no further ones possible.

For completeness, this twelve-element set really is a root system. It is finite, spans the plane, and is reduced. The six short roots have length $1$ and directions spaced by $\pi /3$; the six long roots have length $\sqrt{3}$ and interleaved directions, also spaced by $\pi /3$. Their mutual Cartan integers are integral: within either length class they are $0$, $\pm 1$, or $\pm 2$ as applicable, and between the two length classes they are $0$, $\pm 1$, or $\pm 3$. Closure under all root reflections follows by conjugating the two simple reflections, since every listed root lies in a simple-root orbit. The nonorthogonal simple roots make it irreducible. We have therefore proved existence as well as uniqueness, up to isometry and overall scale:

The triple bond in the original Dynkin diagram gives the Cartan integerswhere $\alpha$ is the long root and $\beta$ the short root. Their product is $4{\cos }^2\theta =3$, and the inner product of distinct simple roots is nonpositive. The ratio of the two integers gives the squared-length ratio. ThereforeIt is convenient to normalize $(\alpha ,\alpha )=6$, $(\beta ,\beta )=2$ and $(\alpha ,\beta )=-3$. Scaling the inner product does not affect the root system or the fundamental-weight relations.

For nonproportional roots $\gamma ,\delta$, the root-string theorem states that the root string is consecutive:The endpoints are maximal, and reflection in $\gamma$ reverses the string. The Cartan integer determines $p-q$, not in general the total $p+q+1$ by itself. This result follows by restricting the Adjoint representation to the sl2 subalgebra associated with a root. If the roots are distinct simple roots, $\delta -\gamma$ cannot be a root: its simple-root coefficients have opposite signs. Thus $p=0$ andHere length means number of roots; the number of intervals between them is one less. Distinctness matters. If $\gamma =\delta$, a reduced root system gives the set $\{\gamma ,-\gamma \}$, with a missing zero between them, so the consecutive-string theorem and the displayed simple-root formula do not apply.

In the G2 root system, the initial strings areFor $\delta =\alpha +3\beta$, $⟨\delta ,{\alpha }^{\vee }⟩=-1$. Since $\delta -\alpha =3\beta$ is not a root in a reduced root system, $p=0$ and $q=1$: this generates $2\alpha +3\beta$. The remaining strings explain why the construction stops. The $\alpha$-strings through $\beta$ and $\alpha +\beta$ are the same two-element string; the one through $\alpha +2\beta$ is a singleton since subtracting $\alpha$ gives $2\beta$, and its Cartan integer is zero; the one through $2\alpha +3\beta$ is the string $\{\alpha +3\beta ,2\alpha +3\beta \}$. The $\beta$-strings through $\alpha$, $\alpha +\beta$, $\alpha +2\beta$ and $\alpha +3\beta$ are the initial four-element string. Finally, $2\alpha +3\beta$ is orthogonal to $\beta$; its $\beta$-string is a singleton because $2\alpha +2\beta =2(\alpha +\beta )$ is not a root. Apply the same reasoning to negatives. Using the permitted completeness of this procedure givesThe short positive roots are $\beta ,\alpha +\beta ,\alpha +2\beta$, of squared length two; the other three are long, of squared length six. Each root space is one-dimensional and the Cartan subalgebra has dimension two, soHere the dimension refers to the Lie algebra, with one Cartan generator per rank, not just the number of roots.

Write a prospective weight as $w=a\alpha +b\beta$. The pairings with simple coroots areThe fundamental weights are dual to those coroots. Solving the two linear systems gives, in the long-root-first numbering of this paper,The representation with Dynkin labels $(0,1)$ has highest weight $\lambda ={\omega }_2$, a short root. Numbering the short root first, as some references do, would call this the $(1,0)$ representation instead; the representation itself is unchanged.

The weight set of a finite-dimensional irreducible highest-weight representation is invariant under the Weyl group and lies in the convex hull of the orbit of its highest weight. All weights also differ from the highest weight by an element of the root lattice. The orbit of $\lambda$ comprises the six short roots, so all six are weights. The lowering operators give the chainIn particular zero occurs: at weight $\beta$, its pairing with ${\beta }^{\vee }$ is two, so the lowering operator is nonzero by the finite-dimensional sl2 Lie algebra representation theory. The $\beta$-string through it is the usual three-weight string $\beta ,0,-\beta$; higher weight $2\beta$ would lie outside the highest-weight convex hull.

There can be no further weights. Every point of that convex hull has squared norm at most $\Vert \lambda {\Vert }^2=2$, while a root-lattice point hasThe integer solutions of the bound $\Vert w{\Vert }^2\le 2$ are precisely zero and the six short roots: $a=0$ gives $b=-1,0,1$; $a=1$ gives $b=1,2$; and $a=-1$ gives $b=-1,-2$. ThusThe final dimension uses the stipulated nondegeneracy of the weights. It also agrees with the Weyl dimension formula without that stipulation. The zero weight is not in the Weyl orbit of the nonzero weights, so this is not a minuscule representation.

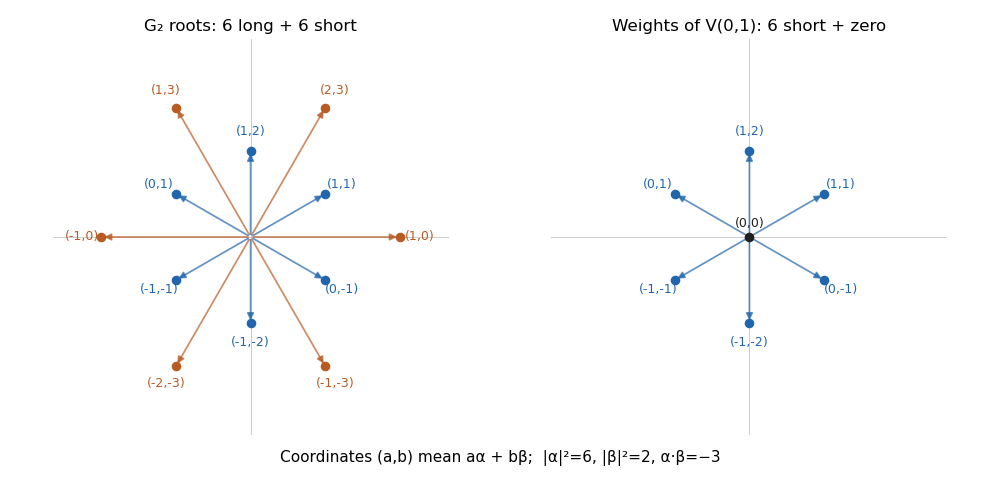

In the diagram above, a coordinate label $(a,b)$ means $a\alpha +b\beta$. The left panel contains all twelve roots of a root system; the right panel contains the six short-root weights and the zero weight. The long-root-first convention is the same as in the calculations.

Choose the given short root $\alpha$ as a simple root, and let $\beta$ be the long simple root. This entails no loss of generality: the Weyl group is transitive on the short roots of the G2 root system. The relevant Cartan integers are $⟨\beta ,{\alpha }^{\vee }⟩=-3$ and $⟨\alpha ,{\beta }^{\vee }⟩=-1$. The positive roots areUnder ${\mathfrak{m}}_{\alpha }\cong {\mathfrak{sl}}_2$, the root space for $m\alpha +n\beta$ has $h_{\alpha }$ eigenvalue $2m-3n$. The subalgebra ${\mathfrak{m}}_{\alpha }$ itself is the three-dimensional irreducible $V(2)$ in the Adjoint representation.

The four root spaces along the root string $\beta ,\alpha +\beta ,2\alpha +\beta ,3\alpha +\beta$ have eigenvalues $-3,-1,1,3$. Consecutive spaces are connected by nonzero raising operators and lowering operators, so their sum is $V(3)$. The negative root string supplies another $V(3)$. The root spaces for $\pm (3\alpha +2\beta )$ have eigenvalue zero, and neither adding nor subtracting $\alpha$ gives a root; they are two copies of $V(0)$. Finally, the one-dimensional space $\ker \alpha \subset \mathfrak{t}$ commutes with ${\mathfrak{m}}_{\alpha }$, giving one more $V(0)$. We have accounted for all $14$ dimensions, and therefore the G2 adjoint branching to a short-root sl2 subalgebra isFor a nonzero root vector $x\in {\mathfrak{g}}_{\alpha }$, its Adjoint representation action is a nonzero scalar multiple of the raising operator on each summand. On each irreducible $V(n)$ this operator has a one-dimensional kernel, including $V(0)$. Since the Lie algebra centralizer is that kernel,

Use the C2 root system realization in an orthonormal basis ${\epsilon }_1,{\epsilon }_2$ with simple roots ${\alpha }_1={\epsilon }_1-{\epsilon }_2$ and ${\alpha }_2=2{\epsilon }_2$. This numbers the short root first, as required. The fundamental weights and half-sum of positive roots areso $\lambda +\rho =(a+b+2){\epsilon }_1+(b+1){\epsilon }_2$. For the four positive roots, the factors of the Weyl dimension formula areMultiplying yields the Weyl dimension formula for C2:As checks, $V({\omega }_1)$ has dimension $4$, $V({\omega }_2)$ dimension $5$, and $V(2{\omega }_1)$ dimension $10$.

Use the wiki's Cartan matrix conventionLabel the long simple root first when the lengths differ. The matrix of an irreducible rank-two root system has the form $A=\left(\begin{array}{cc}2& -a\\ -b& 2\end{array}\right)$, where $a,b$ are positive integers. Integrality and the signs follow from the Cartan integers for distinct simple roots, and irreducibility rules out a zero off-diagonal pair. Its positive-definite symmetrization gives $ab<4$, equivalently $ab=4{\cos }^2\theta <4$. Moreover $a/b=\Vert {\alpha }_1{\Vert }^2/\Vert {\alpha }_2{\Vert }^2\ge 1$. Thus $(a,b)=(1,1),(2,1),(3,1)$, giving the entire classification of rank-two root systems relevant to a simple algebra:These correspond to ${\mathfrak{sl}}_3(\mathbb{C})$, ${\mathfrak{so}}_5(\mathbb{C})\cong {\mathfrak{sp}}_4(\mathbb{C})$, and the exceptional algebra ${\mathfrak{g}}_2$. Here $B_2=C_2$ denotes the Isomorphism between so5 and sp4, not an additional case. The disconnected $A_1\times A_1$ system corresponds to a semisimple but nonsimple algebra and is excluded.

The Dynkin diagrams, with nodes in the same order as the matrices, areThe second and third diagrams have two and three bonds respectively, with the arrowhead pointing to the short root ${\alpha }_2$. In the last diagram $\equiv$ draws the three bonds and $>$ their arrowhead.

To enumerate roots, use the standard root string theorem: for $\beta \ne \pm \alpha$, the roots $\beta +n\alpha$ are consecutive from $\beta -p\alpha$ through $\beta +q\alpha$, with $p-q=⟨\beta ,{\alpha }^{\vee }⟩$. Also use the standard results that the root system is reduced, every root is conjugate under the Weyl group to a simple root, and each root space has dimension one.

Write $m=a\in \{1,2,3\}$. Since a difference of simple roots is not a root, the ${\alpha }_2$-string starting at ${\alpha }_1$ has $p=0$ and $q=m$. It produces ${\alpha }_1,{\alpha }_1+{\alpha }_2,\dots ,{\alpha }_1+m{\alpha }_2$. The ${\alpha }_1$-string starting at ${\alpha }_2$ has $q=1$. In type $G_2$, the further string through $\beta ={\alpha }_1+3{\alpha }_2$ hasand $\beta -{\alpha }_1=3{\alpha }_2$ is not a root, so it also produces $2{\alpha }_1+3{\alpha }_2$. The resulting positive roots areAll roots are these and their negatives. To check completeness, the simple root reflections act on coordinates byEach listed set together with its negatives is stable under both reflections. It contains the simple roots and consists of roots already forced by strings. Since every root lies in a Weyl orbit of a simple root, no other roots can occur. This proves the lists for the A2 root system, B2 root system, and G2 root system. The root-space decomposition then gives

For the restriction to a sl2 subalgebra associated with a root, normalize its Cartan element to be $h_{\alpha }={\alpha }^{\vee }$. On a root vector of root $\beta$, its eigenvalue is $⟨\beta ,{\alpha }^{\vee }⟩$. The classification of finite-dimensional sl2 representations says that $R(\Lambda )$ has weights $\Lambda ,\Lambda -2,\dots ,-\Lambda$ and dimension $\Lambda +1$. A root string of $\Lambda +1$ nonparallel roots therefore supplies one such irreducible module: the raising and lowering brackets connect its consecutive root spaces.

For clarity, the positive-side strings for each simple-root direction are listed below. Brackets denote the whole consecutive string; a single listed root is a string of length one. In every row also include each negative string in reverse order, and separately the triple formed by the root ${\alpha }_i$, its negative, and $h_{{\alpha }_i}$.The root's own triple is always $R(2)$. The one-dimensional subspace of $\mathfrak{h}$ annihilated by ${\alpha }_i$ commutes with this subalgebra and gives $R(0)$. Each singleton root in the table, and its negative, contributes another $R(0)$. Reading the other string lengths now gives the adjoint branching to root sl2 subalgebras in rank two:Their dimensions are respectively $8,10,10,14,14$. The last row agrees with G2 adjoint branching to a short-root sl2 subalgebra. All labels in the table are highest weights, rather than dimensions.
