Velocity selector ($v_0=E/B_s$)

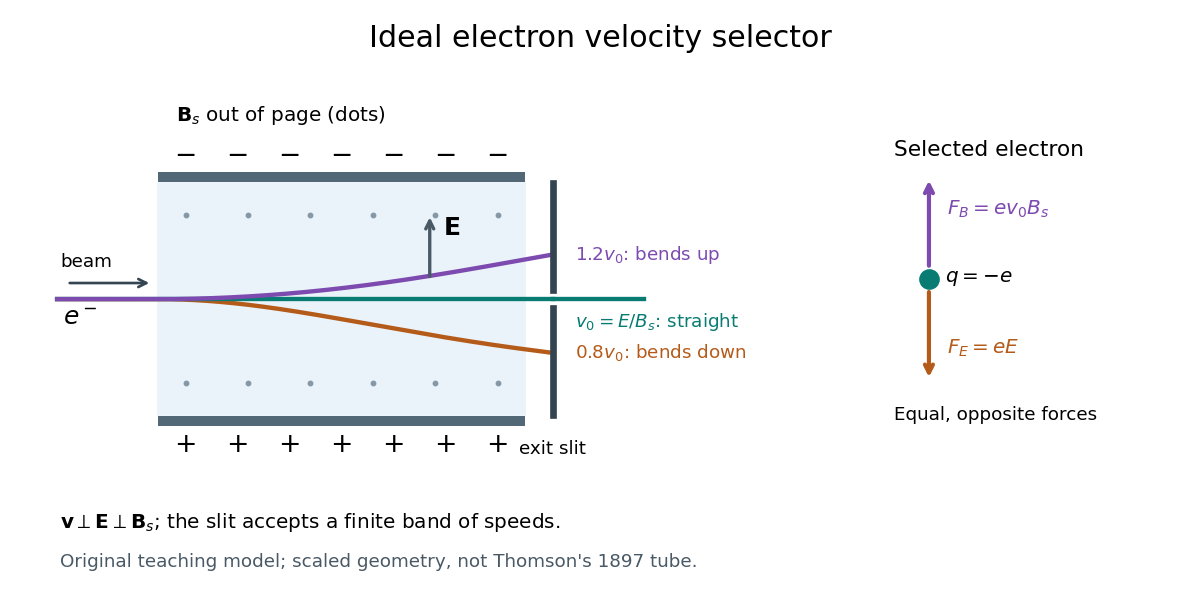

A velocity selector uses perpendicular electric field and magnetic field to transmit a narrow range of speeds along a chosen beam direction. Assume uniform static electric field $\mathbf{E}=E\hat{\mathbf{y}}$ and magnetic field ${\mathbf{B}}_s=B_s\hat{\mathbf{z}}$, with $E,B_s>0$, and an incident velocity $\mathbf{v}=v\hat{\mathbf{x}}$. The cross product gives $\mathbf{v}\times {\mathbf{B}}_s=-v{B}_s\hat{\mathbf{y}}$, so the transverse Lorentz force isFor an Electron, the electric force points downward and the magnetic force upward. A faster Electron initially bends upward; a slower one initially bends downward. At the selected speed, both forces cancel along the whole straight trajectory. The cancellation is independent of mass and nonzero electric charge; it selects velocity, not a particular charge-to-mass ratio. A component of velocity parallel to the magnetic field is not constrained by the cancellation, so the incident beam must also have its direction restricted.

A real exit slit accepts a finite range of speeds and incident directions. A zero displacement at one screen alone does not establish zero force throughout the path: a curved trajectory could return to that screen position. The ideal velocity selector interpretation requires a straight aligned beam, known overlapping electric field and magnetic field, and sufficiently narrow entrance and exit slits. Its useful role in the Thomson charge-to-mass experiment teaching model is to supply speed independently of the subsequent magnetic bending.
