The Airy disk is the central bright region, up to the first dark ring, in the scalar diffraction pattern of a uniformly illuminated, unobscured circular aperture. The whole pattern includes the weaker surrounding rings; its radius is distinct from its full width at half maximum.

For a circular optical pupil of diameter $D$ under normal, uniform monochromatic plane wave illumination, Fraunhofer diffraction givesHere $I_0$ is the on-axis light intensity, $\theta$ is the angle from the optical axis, $\lambda$ is the wavelength in the propagation medium, and $J_1$ is the order-one Bessel function of the first kind. The paraxial approximation replaces $\sin \theta$ by $\theta$, measured in radians. The first positive zero $j_{1,1}=3.831705970\dots$ givesThis is the angular radius of the Airy disk; the angular diameter is twice as large. The Airy disk derivation explains the origin of the Bessel function of the first kind and of the numerical coefficient.^[ref]

The image and both radial curves show the same calculated light intensity, divided by its peak. The image's logarithmic scale makes the weak rings visible; its colour is a display choice. The linear curve shows how small the ring peaks are compared with the centre. A dark ring marks a zero of wave amplitude, produced by cancellation across the optical pupil; it is not the edge of all transmitted light. The first Airy disk contains about $83.78\%$ of the total radiant flux, as calculated in Airy disk normalization and encircled energy.

For an original design example, take an ideal optical lens in air with focal length $f=100\mathrm{mm}$, circular optical pupil diameter $D=5.00\mathrm{mm}$ and wavelength $\lambda =550\mathrm{nm}$. In the focal plane, the radial coordinate $r\simeq f\theta$ givesThe first-zero diameter is $26.8327\mu \mathrm{m}$. Solving $P(u_{1/2})=1/2$ gives $u_{1/2}=1.616339948\dots$, so the diameter measured by full width at half maximum is onlyThus a quoted “spot diameter” is incomplete without its definition. Doubling $D$ halves both widths at fixed wavelength and focal length; increasing magnification alone changes the image scale without improving object-space discrimination.

The Airy disk supplies a calculable reference for a point spread function, allowing diffraction to be distinguished from defocus and optical aberrations. Its beauty is that one circular boundary determines an entire sequence of bright and dark rings through a Fourier transform. The ideal formula assumes an unobscured pupil, uniform illumination, ideal optical focus, a single wavelength, and a scalar description with small output angles. A blocked centre, nonuniform pupil transmission or a significant pupil wave phase error changes the response. High numerical aperture may require polarization of an electromagnetic wave and a vector field description. The circular-aperture diffraction laboratory experiment tests the far-field pattern directly; the Rayleigh criterion uses its first zero to define a two-source convention.

Let $x$ measure position along the line joining two mutually incoherent optical point sources in the focal plane, with equal detected radiant fluxes and separation $s$. Extend the even Airy disk profile $P(u)$ to signed $u$, and put $b=\pi D/(\lambda f)$ as in Airy disk normalization and encircled energy. Relative to the peak of one source carrying the pair's total radiant flux, their summed light intensity isThe two-dimensional point spread functions underlying these line profiles all have the same total radiant flux. The line-profile integrals themselves need not equal one.

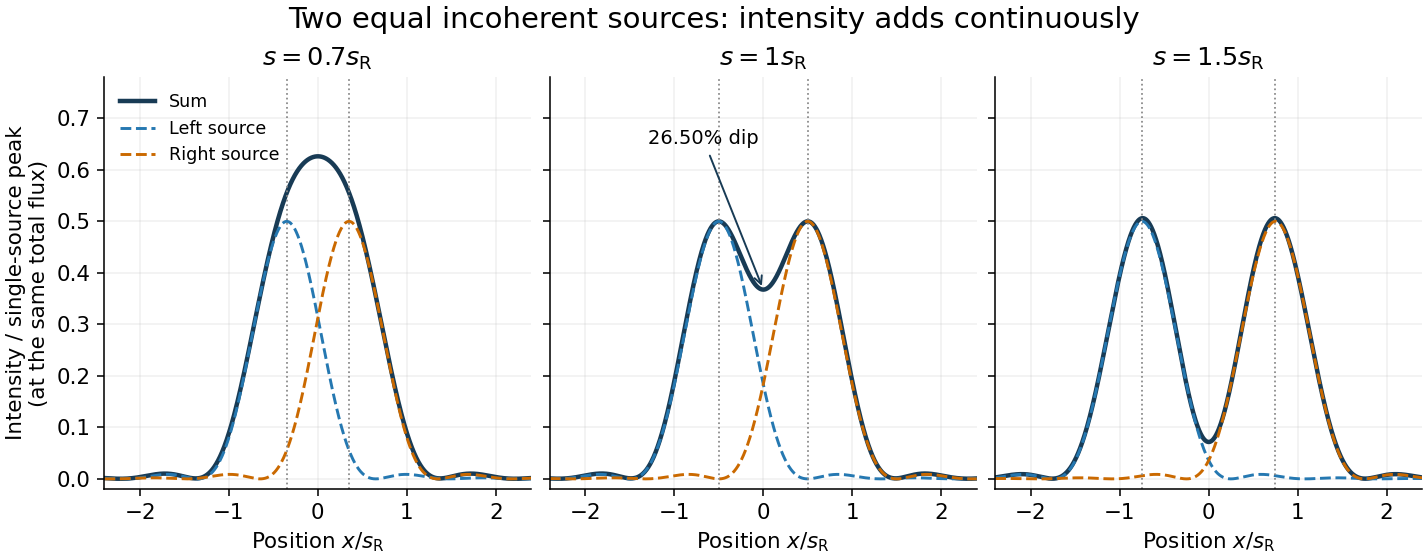

The dashed curves show individual contributions; the solid curve is their sum. All panels use the same brightness scale, and the vertical markers indicate the true source centres. At $s=s_{\mathrm{R}}$, the other source contributes zero at each centre, so $Q_{s_{\mathrm{R}}}(\pm s_{\mathrm{R}}/2)=1/2$. At the midpoint,The midpoint is therefore about $26.50\%$ below the source-centre peak. This is a calculation for this particular Airy disk and equal-incoherent-source convention, not a universal experimental threshold. At $0.7s_{\mathrm{R}}$ the two central peaks merge; at $1.5s_{\mathrm{R}}$ the valley is deeper. Changing separation continuously changes the profile, without a discontinuity at the Rayleigh criterion.

To see how information survives when the central peaks merge, set $z=bx$ and $\delta =bs$. A symmetric Taylor expansion givesThe linear terms cancel because the source positions are symmetric. At the midpoint, the Airy disk derivation gives $Q_s(0)=1-{\delta }^2/16+O({\delta }^4)$. Thus a close pair's shape differs from that of one source, but only quadratically at leading order. Detecting this small change becomes sensitive to noise and response calibration. For unequal flux fractions $\alpha$ and $1-\alpha$, the intensity instead becomes $\alpha P(b(x-s/2))+(1-\alpha )P(b(x+s/2))$; its valley and peak positions need not match the equal-source example.
