Energetic neutron collisions create displacement cascades and Frenkel pairs: displaced atoms become self-interstitials, leaving vacancies. During migration, some opposite defects recombine, while others cluster or reach sinks. Interstitials can condense into extra atomic planes bounded by dislocation loops; vacancy clustering can instead give missing-plane loops. Their subsequent growth is driven by defect absorption and dislocation climb.

Randomly oriented loops do not select a macroscopic shear direction in an initially isotropic polycrystal. That does not prove that every external dimension remains unchanged: interstitial and vacancy loops have opposite relaxation-volume contributions, and an imbalance can change the volume. Macroscopic void swelling requires the additional vacancy-cavity mechanism; it must not be identified automatically with the mere presence of loops. Texture, stress-biased absorption and unequal loop populations can also give anisotropic dimensional change.

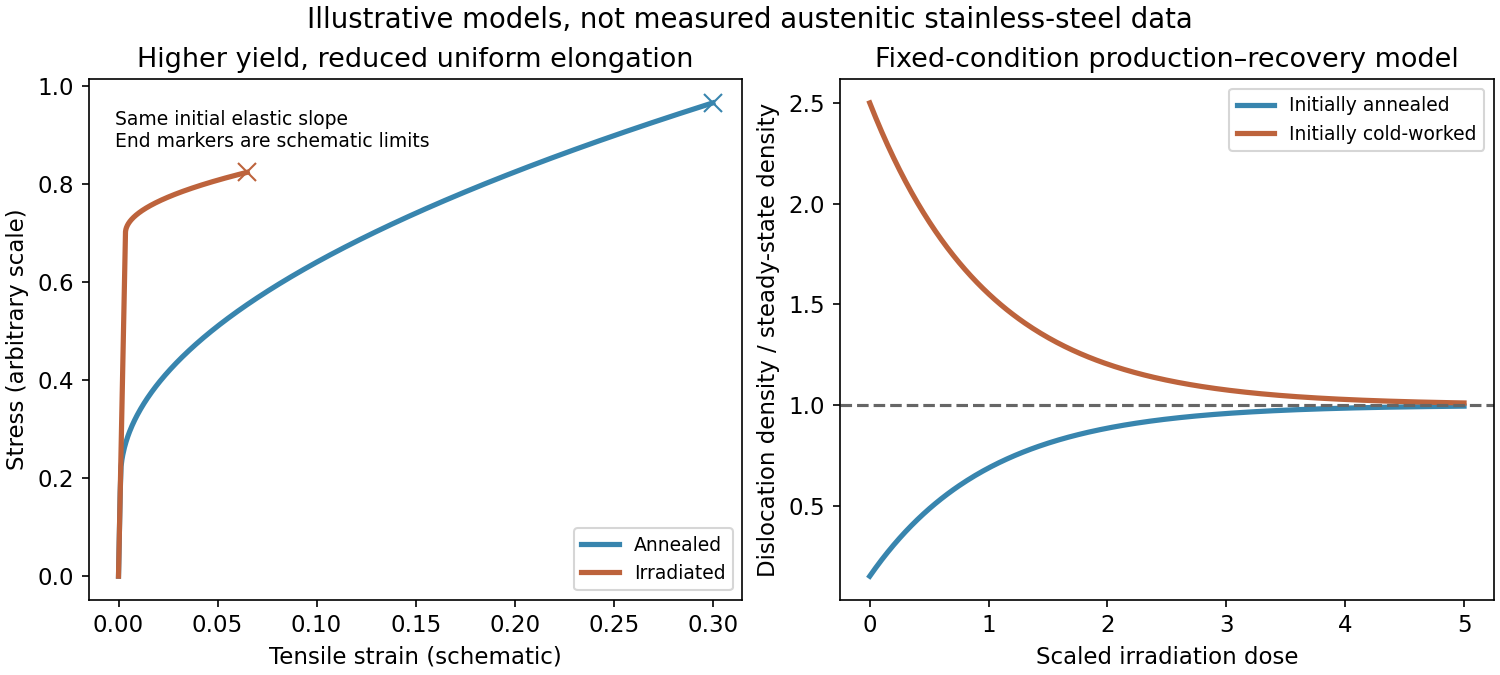

The annealed sample initially has relatively few obstacles to dislocation glide. After its elastic response it yields, undergoes appreciable plastic deformation and develops strain hardening. Irradiation produces dislocation loops and defect clusters that obstruct gliding dislocations, usually raising the yield strength. In a simple dispersed-obstacle model the strengthening scales as $\Delta \sigma \sim M\alpha Gb\sqrt{Nd}$, with obstacle density $N$ and diameter $d$.

Irradiated material often has less uniform plastic elongation and weaker subsequent hardening because slip localizes into channels that have cleared irradiation obstacles. Earlier necking or fracture can then reduce ductility. The elastic slope is much less affected than the yield stress in this schematic comparison; the exact strength and elongation depend on dose and temperature.

The key imbalance is preferential loss of self-interstitials to biased defect sinks, leaving a vacancy supersaturation that can feed void swelling. The initial displacement cascade creates both vacancies and self-interstitials, often in equal net numbers as Frenkel pairs; it need not create more vacancies than interstitials at birth.

Many nearby Frenkel pairs recombine. Others separate, become trapped or form dislocation loops. Surviving self-interstitials are usually much more mobile than vacancies over the relevant range. Dislocations also have an interstitial bias: their elastic interaction with defects makes them more efficient sinks for self-interstitials. Preferential interstitial removal to the dislocation structure can leave the mobile vacancy population above its thermal equilibrium value.

A minimal radiation damage rate theory makes the distinction explicit:Here $c_i,c_v$ are defect number densities, $G$ is the surviving mobile-pair production rate per volume, $K$ the recombination coefficient, $D_i,D_v$ the diffusion coefficients, and $k_i^2,k_v^2$ the respective sink strengths. The vacancy loss term includes thermal emission in an effective form. Equal production terms do not require equal steady populations or equal partitioning among sinks. This simplified model omits an explicit cluster-size distribution.

A stable cavity receiving a greater vacancy influx than interstitial influx and vacancy emission grows. Vacancies therefore condense into voids, producing void swelling. Helium can stabilize small cavity nuclei, but a growing vacancy void need not be a high-pressure gas bubble. Dislocation loops, precipitates and changes in the dislocation density evolve alongside the voids and modify the competing sink strengths.

There is no violation of atom conservation: atoms represented by removed self-interstitials have joined extended defects or surfaces, while the corresponding unfilled lattice volume can accumulate in cavities. The classic electron-microscope observations of cavities in irradiated type316 steel provide direct evidence for this microscopic basis of swelling.^[ref]

Void swelling is generally favored by an intermediate irradiation temperature window. The balance involves defect mobility, stable nucleation, absorption at defect sinks and thermal emission; a larger vacancy population alone does not guarantee a larger void.

At low temperature, vacancy migration is slow. Self-interstitials may migrate and form dislocation loops, and small clusters can cause considerable irradiation hardening, while vacancies cannot readily feed large growing cavities. Defects retained in the matrix can evolve during later heating.

At intermediate temperature, vacancies can migrate far enough to reach stable cavities. Interstitial bias and the competition among defect sinks sustain a net vacancy flux into these cavities. Once the incubation period has produced suitable nuclei and sink populations, substantial void swelling can develop.

At high temperature, the thermal equilibrium vacancy population and vacancy emission from small cavities rise. A small void's curvature further favors emission, so maintaining stable nuclei becomes harder. Recovery changes the dislocation population, and recombination, gas transport and evolving precipitates also change the flux balance. The irradiation-driven vacancy supersaturation can fall, suppressing void nucleation and net swelling. Existing cavities may still coarsen, and gas bubbles, material creep and other damage can remain important.

Thus low-temperature defect retention, intermediate-temperature cavity growth and high-temperature recovery/emission are different regimes. The boundaries depend on alloy composition, initial microstructure, gas production, accumulated displacements per atom and displacement dose rate. No alloy-independent peak temperature can be inferred from the paper's data.

Irradiation creep adds stress-directed, time-dependent strain driven by the irradiation-generated defect population. It can be appreciable where ordinary thermal material creep would be slow, because irradiation maintains mobile point defects far above their equilibrium populations.

Absorption or emission of vacancies and self-interstitials permits dislocation climb. Applied stress can make differently oriented dislocations or dislocation loops absorb defects at different rates: stress-induced preferential absorption then produces a directional strain. Climb can also allow a pinned dislocation to bypass an obstacle and continue dislocation glide, providing a second route to strain.

A useful small-strain empirical form, over a limited range of conditions, isfor constant stress $\sigma$ and approximately constant irradiation-creep compliance $B$. Here $d$ is the accumulated displacements per atom and $\dot{d}$ the displacement dose rate; $B$ is measured per unit stress and per unit dpa. This relation explains why creep can scale approximately with both stress and neutron flux when the damage spectrum is fixed. It is not a constitutive law valid at every dose or temperature.

The total strain can also include thermal material creep, void swelling, irradiation growth and changes due to precipitation or recovery. Stress-free swelling is not itself irradiation creep. Experiments on pressurized type316 tubes separated these contributions and found that correcting stress-enhanced swelling materially affected comparisons between annealed and specimens strengthened by cold working.^[ref]

At sufficiently high temperature, thermal material creep can dominate. Changes in microstructure caused by irradiation hardening, softening, bubbles and cavities can either alter the creep rate or shorten rupture life. Thus enhanced defect-driven creep is the central effect, while the net rate and lifetime remain material- and history-dependent.

Use the same atomic fractions and collision assumptions as in part(c). Let $A$ be the irradiated area. The number of atoms in the sheet is $N_t=ntA$, while the number of incident neutrons is $\Phi A$, where $\Phi$ is the neutron fluence.

Counting one primary knock-on atom for each neutron that scatters and using $\nu =430$ displacements per recoil gives the first-collision estimateHence the nominal damage is about $55$ displacements per atom under the assumed composition. In the thin-sheet approximation the density and thickness cancel:The $1.4\%$ difference comes from using first-collision attenuation rather than the linear approximation. Treating repeated collisions after deflection would require angular and energy information not provided; this correction is already smaller than the precision warranted by the composition assumption.

There is also a counting convention in “other atoms”: $430$ counts secondary displacements, while including the displaced primary knock-on atom itself gives $\nu =431$. The corresponding first-collision result is $54.58$ rather than $54.45$ dpa, an increase of only $0.23\%$. Both conventions round to about $55$ dpa. The numerical estimate is explicitly conditional on assigning the stated displacement yield to each scattering event.

A value greater than one is physically possible. Displacements per atom counts displacement events relative to the initial atom inventory: atoms can be displaced repeatedly, and many vacancies and self-interstitials recombine. It does not mean $55$ surviving vacant sites per original lattice site, or that every atom has moved exactly $55$ times. This is a large nominal exposure for which evolving dislocation loops, cavities and irradiation hardening matter; the surviving microstructure additionally depends on irradiation temperature, displacement dose rate, recombination and defect sinks.

The low-temperature zirconium matrix has a hexagonal close packing structure. Its crystallographic $a$ and $c$ directions therefore have different elasticity, thermal expansion and available slip systems. Producing tubing also develops a crystallographic texture, so averaging over grains does not necessarily remove these directional effects.

Different expansion along the crystal axes produces intergranular thermal stresses during temperature changes. Under load, easy dislocation glide modes may accommodate some strains much more readily than others; additional slip or crystal twinning is needed for general compatibility. Consequently strength and ductility can depend on the axial, circumferential and radial orientation of the tube.

Irradiation creates vacancies and self-interstitials that cluster into dislocation loops with different crystallographic orientations. Their anisotropic accumulation can produce irradiation growth even without external stress. Different directions can elongate or contract while the net volume change remains small. Texture turns these grain-scale strains into macroscopic length and diameter changes, bowing and stresses between constrained components. This mechanism is distinct from the added cavity volume of void swelling.

The crystallographic character of irradiation loops matters: atomistic calculations by Rory Hulse and Christopher P. Race examine several possible loop types and show that loop energy and shape depend on orientation and size. A single generic spherical-defect description therefore misses important aspects of zirconium's dimensional response.^[ref]

Hydrogen also produces direction-sensitive damage. Zirconium hydrides are brittle precipitates whose preferred orientation depends on crystal texture and stress history. Radially oriented hydrides can offer crack paths across a thin tube wall under circumferential tension. Controlling texture, hydrogen pickup and hydride orientation helps manage that risk; changing the hexagonal structure's orientation cannot by itself eliminate corrosion or irradiation damage.

At low accumulated displacements per atom, a stainless steel can undergo substantial microscopic damage while its macroscopic volume changes little. Irradiation-generated vacancies and self-interstitials recombine, reach defect sinks, or form small clusters and dislocation loops. These processes can harden the steel before a large population of growing cavities appears. Thus dimensional stability during this interval does not imply an undamaged microstructure.

Void swelling commonly has an incubation interval, a transition into appreciable swelling, and a later interval with an approximately steady swelling rate per unit dose. The transition reflects the evolution of both stable cavity nuclei and the competing sink population. Gas atoms can help stabilize small cavities, but a vacancy void need not be filled with high-pressure gas.

The driving imbalance is a vacancy supersaturation. Dislocations generally capture interstitial defects more efficiently than vacancies, giving an interstitial bias. Once stable voids exist, the resulting excess vacancy supply can enlarge them. Growing and evolving dislocation structures compete with the cavities for defects. A roughly steady balance can give an approximately linear volume increase with dose over part of the exposure range, rather than proving indefinite linear growth.

If cavities occupy a fraction $f$ of the current volume and the matrix volume is otherwise unchanged, the void swelling volume fraction relation isSince cavity volume scales as radius cubed, numerous tiny clusters and a smaller population of larger voids can have very different dimensional consequences.

The original Cawthorne-Fulton observation of voids in irradiated steel used thin-foil electron microscopy on type316 stainless steel exposed in the Dounreay Fast Reactor. It connected microscopic cavities with the dimensional-instability problem that had emerged during fast-reactor fuel development.^[ref]

An energetic neutron can collide with a lattice atom and create a primary knock-on atom. That recoil transfers energy to other atoms in a displacement cascade. Some atoms leave their normal lattice sites, creating Frenkel pairs: a vacancy and an extra atom at an interstitial position.

Many nearby defects recombine during the cascade and its thermal relaxation. The surviving point defects are therefore fewer than a simple count of all displacement events. Some defects are already clustered within the cascade; others migrate and aggregate later.

A collection of vacancies can collapse into a platelet bounded by a vacancy-type dislocation loop. An aggregation of self-interstitial atoms can create an extra atomic platelet bounded by an interstitial-type dislocation loop. The boundary is a line defect because a circuit around it has a nonzero Burgers vector. The allowed Burgers vectors and habit planes depend on the material's crystal structure and fault energies.

Loops can grow by absorbing mobile point defects, shrink by emitting or absorbing the opposite defect type, and interact with existing dislocations. Some remain faulted, while suitable loops can unfault or become part of a larger dislocation network. Repeated cascades and subsequent defect transport therefore create a population of extended defects even in material with a low initial dislocation density.

This describes the main displacement-damage mechanism. Ionizing energy deposited in a material does not automatically create the same defect population as a neutron recoil cascade; recoil spectrum, displacement thresholds and material response matter.

An irradiation creep mechanism in which applied stress makes differently oriented dislocations or dislocation loops absorb point defects at different rates. The resulting directional strain is distinct from stress-free void swelling.
