The Clapeyron equation connects the slope of a phase coexistence curve to the latent heat and the change in volume during a first-order phase transition. A steep boundary can indicate a large latent heat, a small change in volume, or both. This lets a measured boundary constrain caloric properties and predicts how changing pressure shifts a melting temperature.

For a pure substance in bulk phase coexistence, label the initial and final thermodynamic phases $\alpha$ and $\beta$. Both have the same absolute temperature $T$, pressure $p$, and chemical potential. With $s$, $h$, and $v$ denoting entropy, enthalpy, and volume on one common basis, define $\Delta s=s_{\beta }-s_{\alpha }$, $\Delta h=h_{\beta }-h_{\alpha }$, and $\Delta v=v_{\beta }-v_{\alpha }$. ThenThe derivative follows the phase coexistence curve; it is not a partial derivative within one thermodynamic phase. Use molar volume $v_m$ with molar latent heat $L_m$ in $\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$, or specific volume $v$ with latent heat $L$ in $\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}$. Both give $dp/dT$ in $\mathrm{Pa}{\mathrm{K}}^{-1}$. For molar mass $M$, $L_m=ML$ and $\Delta v_m=M\Delta v$, so the predicted slope is independent of the chosen basis. This formulation assumes a simple compressible system, fixed composition, and negligible interface contributions; a curved interface can instead require the Young–Laplace equation.

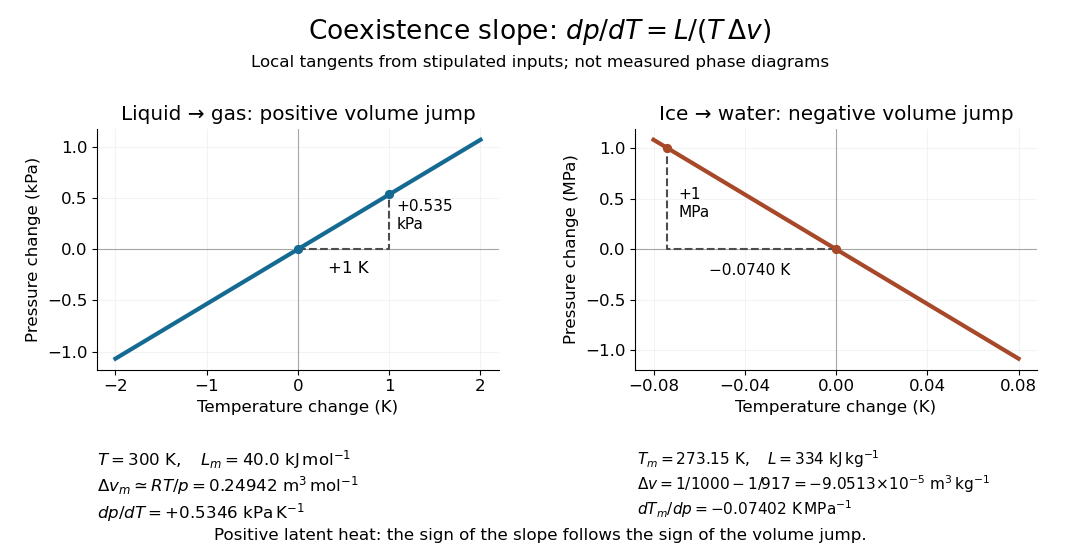

For positive latent heat in the stated conversion direction, the sign of the slope is the sign of $\Delta v$. Converting liquid to gas normally increases volume and gives a positive slope. The negative melting-point slope of water illustrates the opposite sign. At a thermodynamic critical point, the coexisting gas and liquid merge: both $L$ and $\Delta v$ vanish, so their ratio needs a limiting analysis rather than substitution of zero into the Clapeyron equation.^[ref]

A short derivation uses the molar Gibbs free energy $g_m$, equal to the chemical potential for a pure substance. Equality persists along the boundary, so $d{g}_{m,\alpha }=d{g}_{m,\beta }$ with $d{g}_m=-s_{m}dT+v_{m}dp$. Therefore $-\Delta s_{m}dT+\Delta v_{m}dp=0$. Equality of $g_m=h_m-T{s}_m$ also gives $\Delta h_m=T\Delta s_m$. Eliminating $\Delta s_m$ yields the Clapeyron equation.
