Past exam of the options I course of the University of Oxford / 2005 / K

For a material fluid volume, mass conservation yields ${\rho }_t+\nabla \cdot (\rho \mathbf{u})=0$. Constant mass density reduces this to $\nabla \cdot \mathbf{u}=0$. For inviscid flow, the Cauchy stress tensor is $-pI$; its net surface force is the volume integral of $-\nabla p$ by the divergence theorem. Newton's second law for each material volume therefore gives $\rho D\mathbf{u}/Dt=-\nabla p$. Since $D/Dt={\partial }_t+\mathbf{u}\cdot \nabla$, these are exactly the two stated equations.

In two dimensions they readDifferentiate the second momentum equation in $x$ and subtract the $y$ derivative of the first. The pressure terms cancel. For $\omega =v_x-u_y$, collecting terms givesIncompressibility removes the last term, givingThus each fluid parcel retains its scalar vorticity as it moves. In particular an initially irrotational flow remains irrotational in this smooth two-dimensional inviscid evolution. There is no vortex stretching in this two-dimensional setting.

Write the complex potential of a two-dimensional potential flow as $w=\varphi +i\psi$. Its complex velocity is $u-iv=dw/dz$. Hereso the far-field motion has velocity $(U,0)$ and speed $U$. In polar coordinates the stream function, shifted by a harmless constant, isIt is zero on $r=a$, proving the cylinder is a streamline.

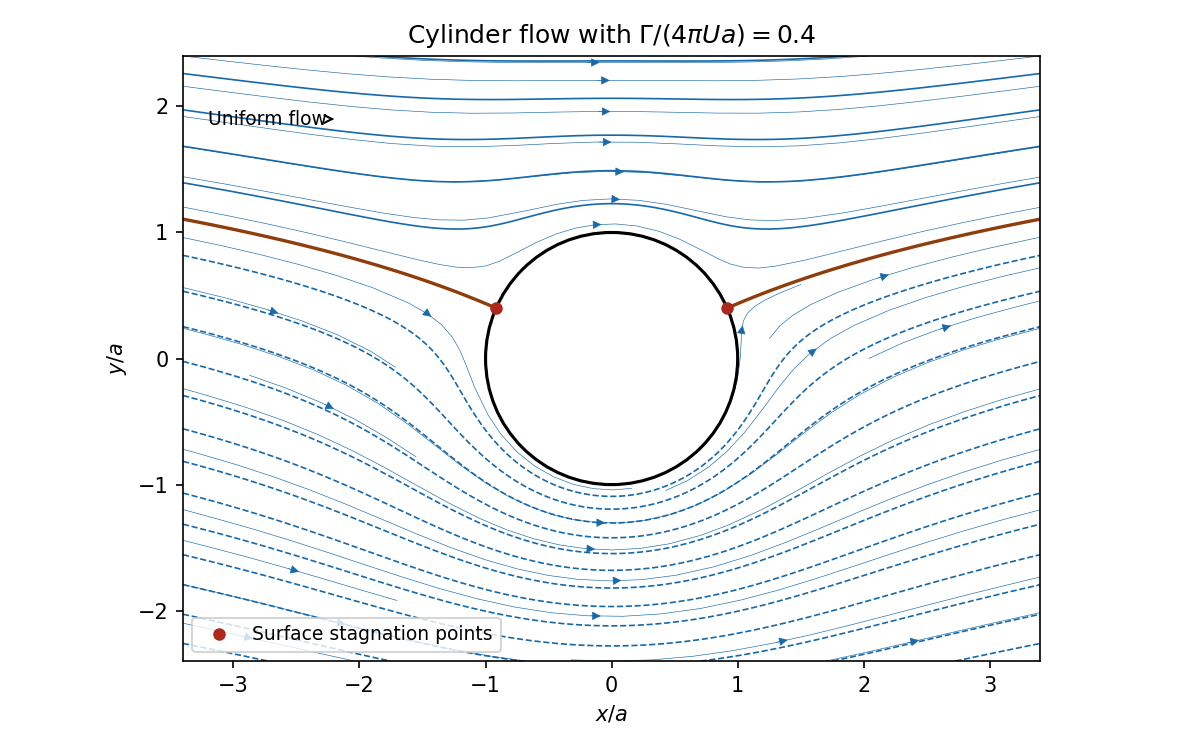

Stagnation points are zeros of $dw/dz$, hence roots of $U{z}^2-i\Gamma z/(2\pi )-U{a}^2=0$. Put $\gamma =\Gamma /(4\pi Ua)\in (0,1)$. The two roots areBoth have modulus $a$ and are distinct. Their angles satisfy $\sin \theta =\gamma$, namely $\arcsin \gamma$ and $\pi -\arcsin \gamma$. The tangential velocity on the cylinder is $-2U\sin \theta +\Gamma /(2\pi a)$, confirming the same zeros. Streamlines are level curves of $\psi$; the positive circulation places both stagnation points on the upper side and increases the flow speed below the cylinder.
