Past exam of the relativistic Astrophysics and Cosmology course of the University of Cambridge / 2016 / Paper 1 / 1 / Solution

An active galactic nucleus is a compact, exceptionally luminous central source powered chiefly by black-hole accretion rather than ordinary stellar fusion. Typical signatures include a broad spectral-energy distribution extending from radio to X-rays, rapid variability implying a small emitting region, strong optical or ultraviolet emission lines and, in some objects, radio jets and lobes. Broad permitted lines indicate rapidly moving dense gas; narrower forbidden lines can arise farther out. Obscuration and viewing orientation can hide the broad-line region, and many active nuclei are radio quiet, so no one signature is required in every object.

For the Schwarzschild circular-ring energy shift, set $r_g=GM/c^2$ and let $E_0$ be the photon energy in the orbiting gas frame. A local static observer in Schwarzschild spacetime measures $E_{\mathrm{stat}}$. For gas receding along the line-of-sight component of its velocity, special-relativistic frequency transformation givesPropagation from that static frame to a distant stationary observer contributes $E_{\infty }=E_{\mathrm{stat}}\sqrt{1-2r_g/r}$. HenceThe factors describe gravitational redshift, transverse time dilation and the longitudinal Doppler shift. Here the emitter is on the maximally receding azimuth of a circular disc ring. A general azimuth has a smaller projected velocity, and a fully ray-traced image must use the photon direction at emission rather than equating that local direction with the distant inclination. The supplied expression is the direct-projection transfer model, not a complete light-bending calculation.

The innermost stable circular orbit is the marginal stable timelike circular geodesic separating stable circular motion from radial instability. In Schwarzschild spacetime,For example, the circular-orbit specific angular momentum satisfies $j_c^2=GM{r}^2/(r-3r_g)$; its radial stability changes where $\mathrm{d}{j}_c^2/\mathrm{d}r=0$, at $6r_g$. This is outside both the horizon at $2r_g$ and the circular photon orbit at $3r_g$.

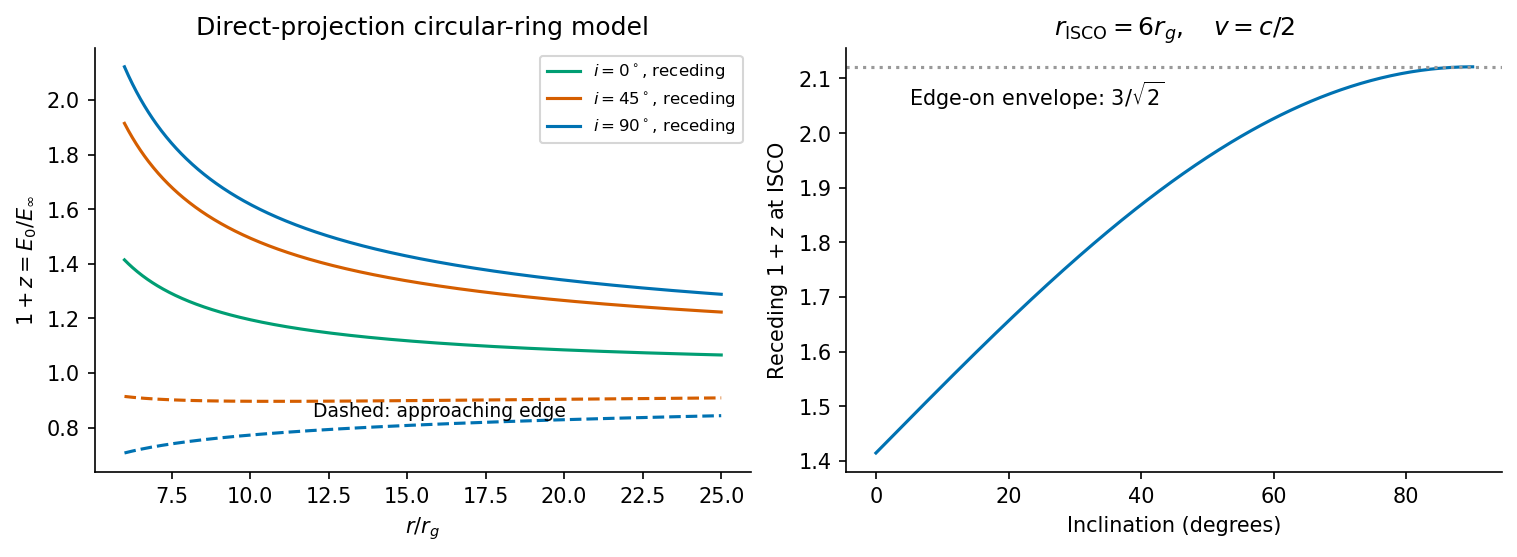

The printed local orbital-speed relation gives ${\beta }^2=r_g/(r-2r_g)$. Combining the gravitational and transverse factors,At the ISCO, $\beta =1/2$, soThe Edge-on Schwarzschild ISCO redshift envelope is reached for an edge-on disc on its receding side:The approaching edge has $1+z=\sqrt{2}(1-\frac{1}{2}\sin i)$. For a fixed inclination below $90$ degrees the maximum is smaller; the quoted number is an upper envelope, not the value for every observer. Within the stated ring model the receding factor increases inward across stable orbits, so the inner edge sets that envelope. Emission from a plunging region, occultation and returning rays are outside this ISCO-emitting model.

The Kerr ISCO efficiency limits follow from equatorial circular orbits in the Kerr metric. Prograde motion has a smaller ISCO than the non-spinning case, while retrograde motion has a larger one. A zero-torque thin disc radiating the orbital binding energy before the gas plunges has efficiency $\eta =1-E_{\mathrm{ISCO}}$, where $E_{\mathrm{ISCO}}$ is energy per unit rest-mass energy at infinity. The ideal limiting values areThus more orbital binding energy is available in the prograde inner disc. The extremal values are formal geodesic limits: photon capture, inner stresses, outflows and finite accretion thickness change the efficiency of real flows. An ISCO inside the ergoregion is not a claim that material or radiation escapes from inside the horizon.

For accretion output relative to galactic binding energy, distinguish accreted rest mass from the mass retained by the black hole. At constant radiative efficiency, building a hole from a negligible seed to $M_{\mathrm{BH}}=\alpha M$ emitsA non-negligible seed replaces $\alpha M$ by the actual mass increase. Let the first use of ${\sigma }_v$ mean the total three-dimensional rms random speed. For an approximately virialized galaxy with negligible boundary term, $K=\frac{1}{2}M{\sigma }_v^2$ and $W=-2K=-M{\sigma }_v^2$. The ratio to the magnitude of its gravitational potential energy is thereforeIf “binding energy” means the net energy needed to unbind the virialized system, $|K+W|=M{\sigma }_v^2/2$, the ratio is twice as large. The widely used order-of-magnitude estimate drops the retained-mass correction and writes $\eta \alpha (c/{\sigma }_v{)}^2$; it should not be confused with a precisely fixed structural coefficient.

For the numerical parameters given,No efficiency is specified, so this function is the numerical result. For an explicitly chosen illustration $\eta =0.1$, it is about $111$, or $222$ relative to the net virial binding energy. The non-spinning zero-torque efficiency gives about $60.6$ relative to $|W|$; the ideal retrograde and prograde limits give about $39.2$ and $731$, respectively. Spin affects the ratio through the adopted efficiency and orbital orientation, not through a universal rule that a larger unsigned spin always means a larger efficiency.

Such large energy ratios make even a modest coupling of the output to galactic gas dynamically important. Radiation and winds can heat or eject gas and reduce star formation or later black-hole feeding. For the $\eta =0.1$ illustration a percent-level coupling is already comparable to $|W|$. Energy available is not energy necessarily deposited: cooling, escape directions, gas geometry, photon opacity and the duration of activity determine the actual feedback. It does not follow that the entire stellar galaxy must be disrupted.

For the swept-shell calculation, the problem now explicitly redefines ${\sigma }_v$ as a one-dimensional line-of-sight dispersion. The specified isothermal profile hasNeglecting central-hole gravity and the shell's self-gravity, the inward force due to the remaining interior component isIn a single-scattering momentum-driven model with the shell intercepting the central luminosity, $F_{\mathrm{rad}}=L/c$. At the hydrogen Eddington luminosity this becomes $4\pi G{M}_{\mathrm{BH}}{m}_p/{\sigma }_T$. Sustained outward acceleration against that weight requiresand henceThe radius cancels because the swept isothermal mass is proportional to $R$. This is the isothermal-galaxy momentum-balance shell threshold, with its fourth-power dispersion scaling.

The coefficient identifies the approximations. Self-gravity in a thin spherical shell expansion adds the shell's inward pressure-equivalent force $G{M}_{\mathrm{sh}}^2/(2R^2)$ and replaces $f(1-f)$ by $f(1-f/2)$. A shell intercepting only a fraction of the photon momentum needs a larger luminosity; Thomson-thin material does not automatically receive $L/c$. Conversely, multiple scattering or an energy-driven hot wind changes the force model. A shell already carrying sufficient outward kinetic energy need not satisfy this instantaneous acceleration condition everywhere to escape. The printed inequality is the stated quasistatic, fully coupled momentum-balance estimate, not an assumption-free lower bound for every possible shell trajectory.
