Chirality means that a molecule cannot be superposed on its mirror image. A carbon attached to four different groups is a common source of chirality; the definition concerns the whole molecule, rather than requiring this particular structural feature.

The test is spatial: apply a translation and a rotation to the entire molecule until corresponding chemical atoms coincide, keeping their identities and chemical bonds. A mirror operation is a reflection; physically turning a model is a rotation. They are different operations. If no such superposition exists, the two forms are enantiomers; if one succeeds, the molecule is achiral. A different-looking flat drawing alone establishes neither conclusion.

For a simple molecule with exactly one tetrahedral stereocenter and four constitutionally different substituents, the mirror forms cannot superpose. Compare entire attached groups, including paths around a ring, rather than just the first chemical atom. Several tetrahedral stereocenters require a whole-molecule check: a meso compound can be achiral. Conversely, axial chirality needs no tetrahedral stereocenter.^[ref]

Why care about this distinction? Two enantiomers can fit differently into an already chiral molecule, just as two opposite hands fit differently into one glove. Thus a protein's spatial arrangement can distinguish a mirror pair even when an achiral measurement cannot. Polarimetry provides a different kind of test: it measures a sample's net optical rotation, which depends on the populations of its enantiomers.

Conformational isomerism concerns spatial arrangements interconverted by internal motion, such as turning about a single chemical bond. Moving the entire molecule or applying a rotation changes its position or viewing direction, not its internal arrangement.

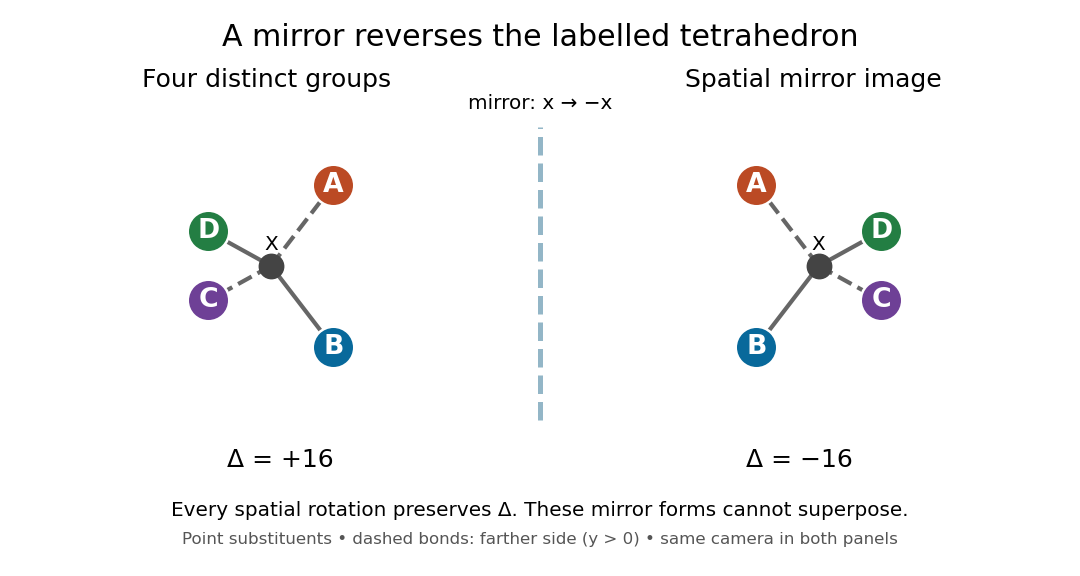

Take a central chemical atom at the origin and four substituents at the vertices of an ideal regular tetrahedron:These dimensionless coordinates describe shape, not measured bond lengths. For distinct labels A, B, C and D, define a signed determinantIt is six times the oriented volume of the labelled tetrahedron. A translation cancels from the differences. A rotation $Q$ has $\det Q=+1$ and preserves $\Delta$, whereas the mirror matrix $S=\mathrm{diag}(-1,1,1)$ has $\det S=-1$ and changes it to $-16$. Consequently no rotation can place every distinct label on its mirror partner. This argument uses three-dimensional coordinates, not clockwise order on a page.

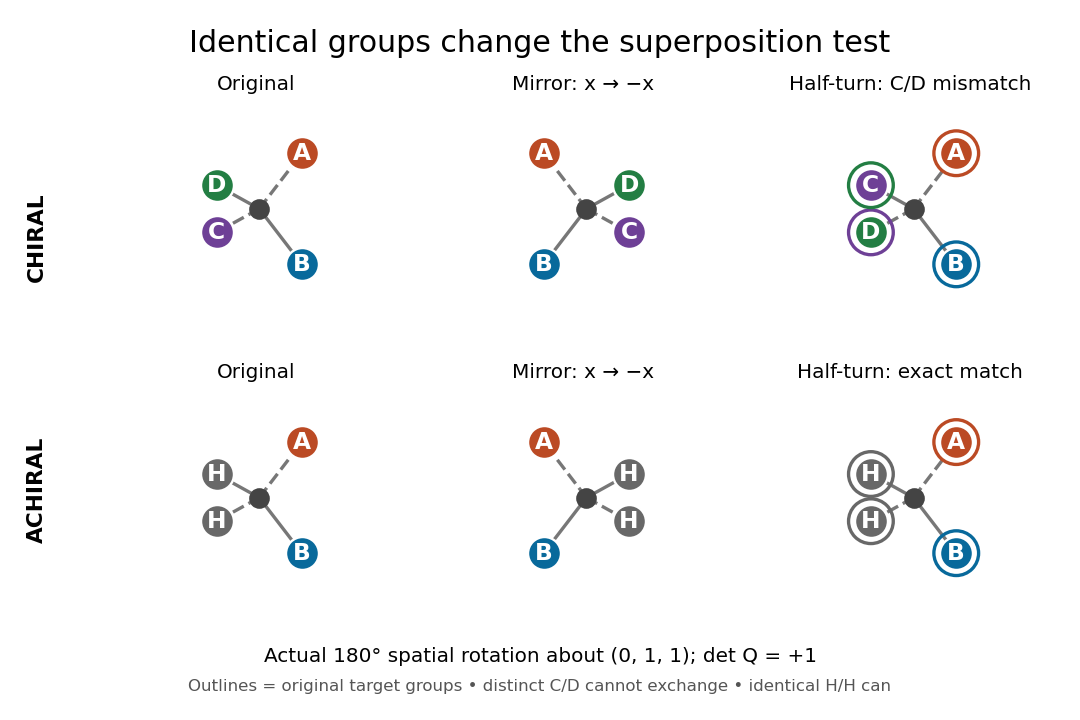

Now let C and D both be the same substituent H. Swapping these identical groups is allowed. For this model the half-turnabout the axis $(0,1,1)$ maps the reflected A and B to their original positions and exchanges the two H positions. The models superpose. With distinct C and D, the same half-turn fails precisely at those two labels; the determinant argument rules out every other rotation as well. This is the local reason two identical hydrogen chemical atoms prevent glycine's amino acid alpha carbon from being a tetrahedral stereocenter.

For a flexible molecule, also distinguish conformational isomerism from a persistent enantiomer pair. A particular frozen shape may be chiral while ordinary internal motions interconvert mirror shapes. Turning the entire model is always allowed in a spatial comparison; an internal motion must be considered with its actual accessibility and timescale.
