Chirped Gaussian wave packet (${\psi }_{\sigma ,\kappa }(x)=(2\pi {\sigma }^2{)}^{-1/4}{e}^{-(1-i\kappa )x^2/(4{\sigma }^2)}$)

A chirped Gaussian wave packet adds a quadratic quantum phase to the zero-mean Gaussian wave packet already evaluated above. Here $\sigma >0$ and $\kappa$ is a real dimensionless parameter. Its probability density function $|{\psi }_{\sigma ,\kappa }(x){|}^2$ is unchanged for every $\kappa$, so $⟨x⟩=0$ and $(\Delta x{)}^2={\sigma }^2$. Nevertheless, applying the momentum operator givesThe sign of the quantum covariance follows directly, without assigning a classical trajectory to the wavefunction:Here $r$ is a normalized symmetrized quantum covariance, analogous to a correlation coefficient. Positive $\kappa$ gives positive $C_{xp}$, and reversing $\kappa$ reverses $C_{xp}$ while leaving both variances unchanged. In the negative-exponent Fourier transform convention used above, the momentum density isConsequently the quantum uncertainty product and the covariance matrix determinant tell different stories:Every member of this pure state family saturates the Robertson-Schrödinger uncertainty relation. Only $\kappa =0$ saturates the Heisenberg uncertainty relation for this fixed pair of position and momentum axes. Thus being a Gaussian wave packet alone does not imply a minimum $\Delta x\Delta p$.

For a concrete comparison, choose a reference length $L$, put $X=x/L$, $P=pL/\hslash$, and set $\sigma =L$. The choices $\kappa =0,+2,-2$ all have $(\Delta X{)}^2=1$, but give $(\Delta P{)}^2=1/4,5/4,5/4$ and $C_{XP}=0,+1,-1$, respectively. The two nonzero cases have $r=\pm 2/\sqrt{5}$ and product $\sqrt{5}/2$; all three covariance matrices have determinant $1/4$.

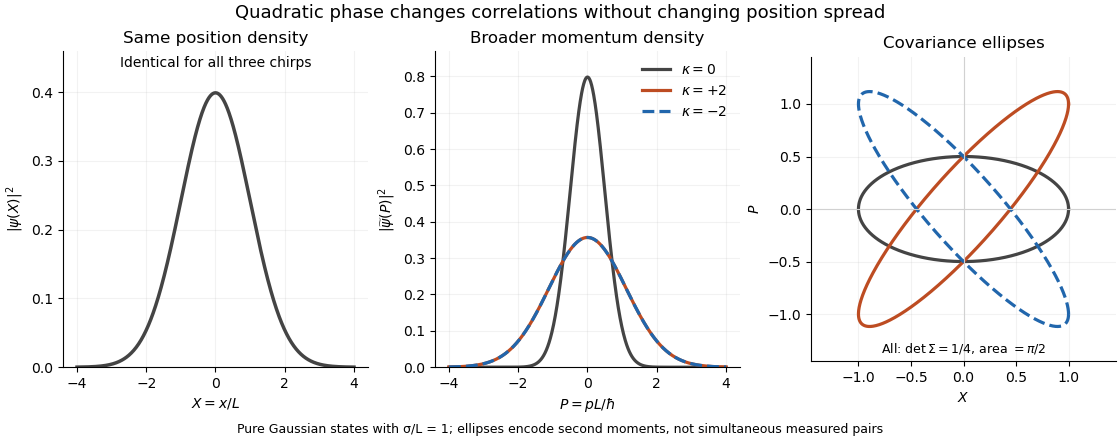

The phase space curves in the figure satisfy $z^T{\Sigma }^{-1}z=1$ in the dimensionless coordinates, where $z=(X,P{)}^T$. They display second moments, not observed simultaneous position and momentum pairs. Their common area is $\pi \sqrt{\det \Sigma }=\pi /2$, although their coordinate projections differ.

This distinction is useful for predicting focusing. Under free particle evolution with mass $m$, $x(t)=x(0)+tp(0)/m$, soA negative chirp initially narrows the position distribution; positive chirp initially broadens it. For $\kappa <0$, the minimum occurs at $t_{\ast }=-2m{\sigma }^2\kappa /[\hslash (1+{\kappa }^2)]>0$ and has variance ${\sigma }^2/(1+{\kappa }^2)$. At that time the quantum covariance vanishes, and the unchanged momentum spread gives $\Delta x(t_{\ast })\Delta p=\hslash /2$. The extra initial product was a usable position-momentum correlation, not extra measurement backaction.
