Normal-mode energy exchange ($\mathrm{KE}=E{\sin }^2(\omega t),\mathrm{PE}=E{\cos }^2(\omega t)$)

For the undamped first normal mode of a fixed string, start at maximum displacement with $u(x,t)=A\sin (\pi x/L)\cos ({\omega }_{1}t)$. In the small-slope wave equation on a string, its kinetic energy and excess potential energy areThe potential energy comes from the extra length under tension: $\sqrt{1+u_x^2}-1\simeq u_x^2/2$. It depends on slope, so a node of a standing wave need not have zero local potential energy density. These are physical energies, with the mass and tension factors restored to the normalized wave energy. ^[ref]

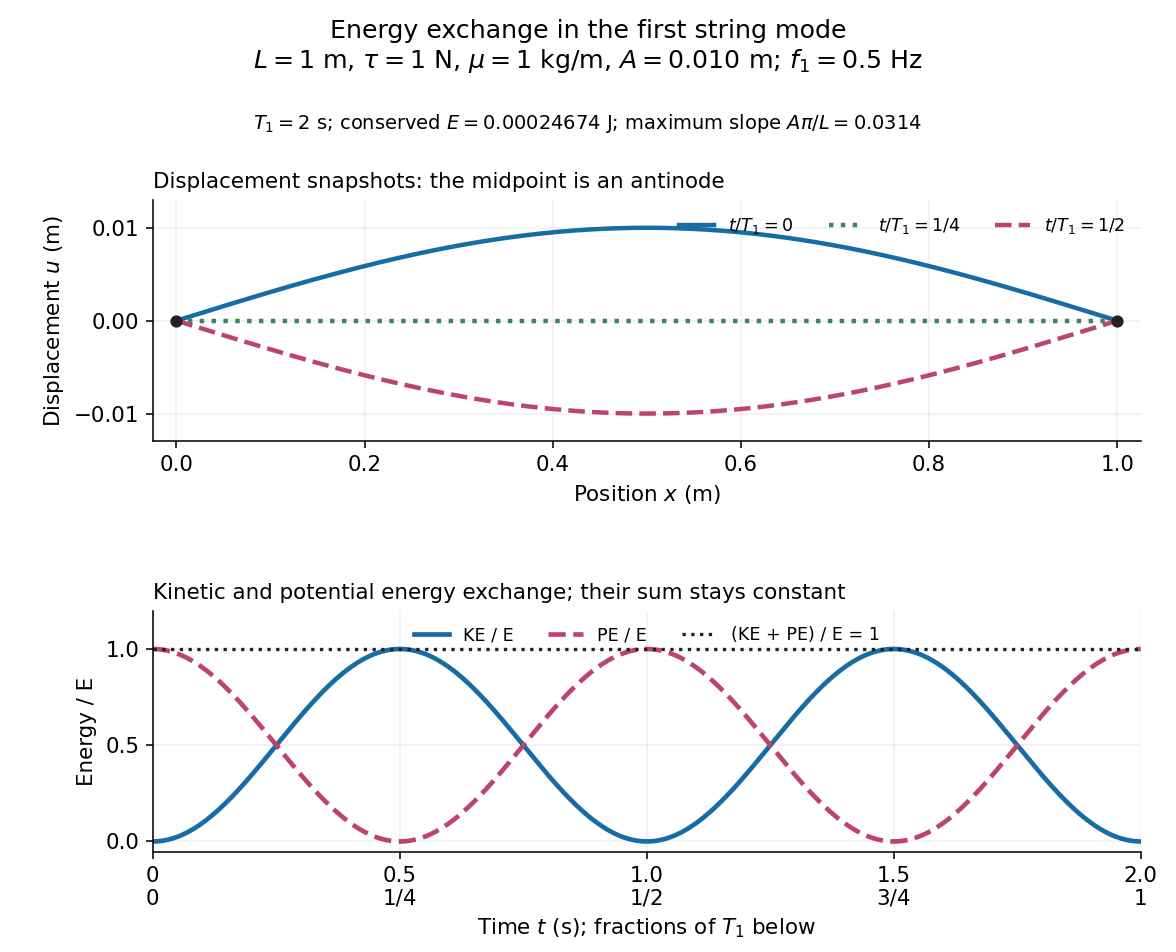

Integrating ${\sin }^2(\pi x/L)$ and ${\cos }^2(\pi x/L)$ over the string gives $L/2$ in both cases. Using $\mu {\omega }_1^2=\tau {\pi }^2/L^2$ yieldsFor the model $\mu =1\mathrm{kg}{\mathrm{m}}^{-1}$, $\tau =1\mathrm{N}$, $L=1\mathrm{m}$, and $A=0.010\mathrm{m}$, the angular frequency is ${\omega }_1=\pi \mathrm{rad}{\mathrm{s}}^{-1}$, the frequency is $0.5\mathrm{Hz}$, and $E\simeq 2.4674\times 10^{-4}\mathrm{J}$. The maximum slope $A\pi /L\simeq 0.0314$ is small. At $t=0$ all the energy is potential energy; at $t=T_1/4=0.5\mathrm{s}$ the string is straight and all the energy is kinetic energy. At $t=T_1/2=1\mathrm{s}$ the displacement is reversed and all the energy is again potential energy. The energy curves repeat twice during one displacement cycle, while conservation of energy keeps their sum constant.
