Osmosis concentration-pressure example

Take two reservoirs separated by a semipermeable membrane that passes water and retains one neutral solute. Stipulate $T=300\mathrm{K}$, $c_A=10\mathrm{mol}{\mathrm{m}}^{-3}$ and $c_B=30\mathrm{mol}{\mathrm{m}}^{-3}$, equivalent to $10$ and $30\mathrm{mmol}{\mathrm{L}}^{-1}$. Treat both chemical solutions as dilute and ideal. These are invented model conditions, not measurements or recommended biological conditions.

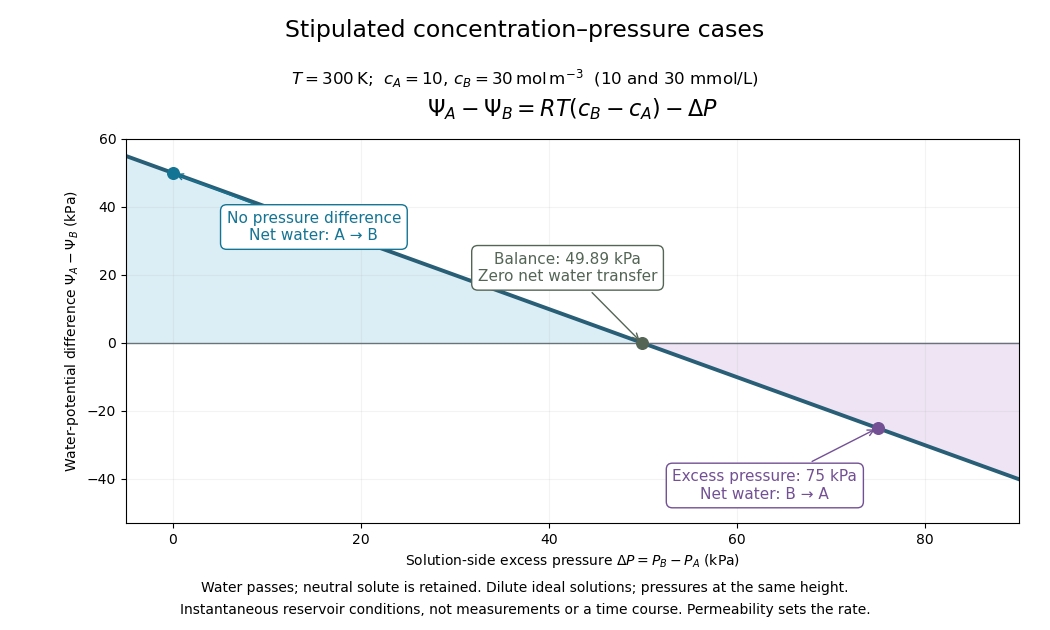

For pressures measured at the same height beside the membrane, define $\Delta P=P_B-P_A$. The model predictsAt $\Delta P=0$, net water transfer favors A to B. At $\Delta P\simeq 49.89\mathrm{kPa}$, the opposing pressure balances the osmotic pressure difference, giving zero net transfer with unequal concentrations. At $\Delta P=75\mathrm{kPa}$, the sign reverses and net water transfer favors B to A, toward the more dilute reservoir. Raising pressure changes the total water potential, rather than changing the membrane into a one-way gate.

Fixed concentrations require large maintained reservoirs or an instantaneous comparison. In a closed membrane osmometer, entering water causes dilution of the receiving chemical solution and changes its volume; the final balance must use final concentrations. A supported cell wall provides another way to develop the opposing pressure, as explained under turgor pressure.
