Past exam of the optics and electrodynamics course of the University of Cambridge / 2017 / 1 / b / Solution

Let $I_0$ be the intensity from either fibre alone at the observation point, assuming equal output intensities, matching polarizations and negligible drift. The screen samples the relative phase $\Phi (X)$ between the two outputs. For an ideal monochromatic laser, first-order optical coherence is complete andThe interference fringes are approximately equally spaced in the small-angle far field, with a slowly varying diffraction envelope. If the output separation is $a$ and the screen distance is $D$, the interference fringe spacing is approximately ${\lambda }_{0}D/a$. Equal phases at the two input ends do not ensure a central bright fringe: the extra fibre contributes carrier phase $2\pi n_{\mathrm{eff}}(l_2-l_1)/{\lambda }_0$ in addition to the free-space optical path difference.

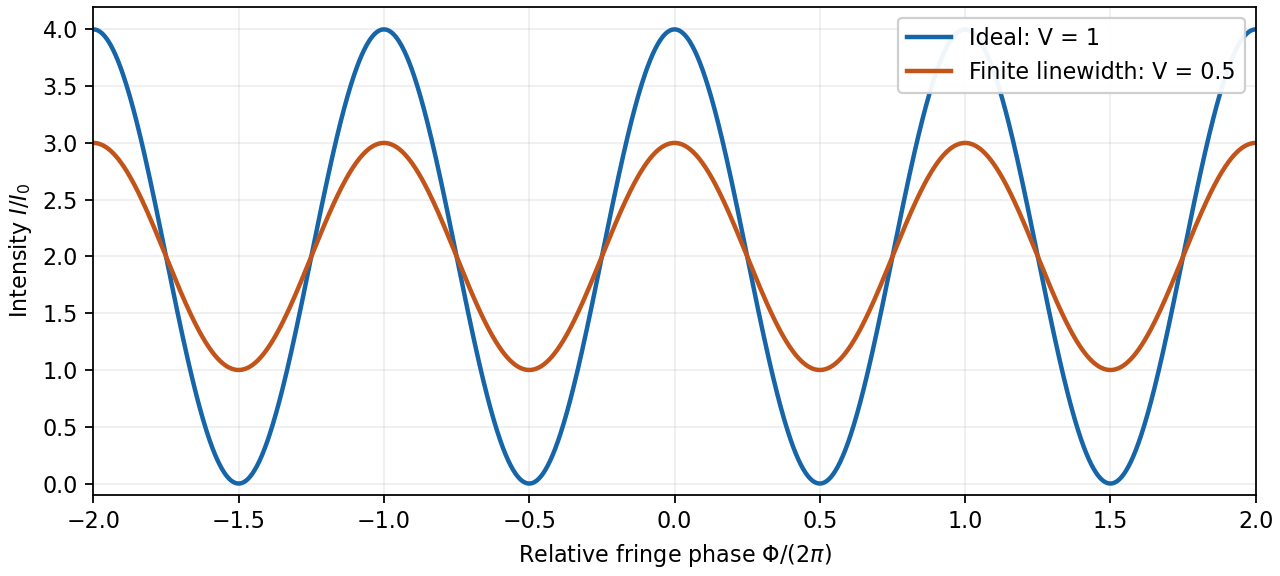

For a finite linewidth, the time-averaged interference signal becomesHere $g^{(1)}$ may be defined for the slowly varying field envelope, with the carrier phase already included in $\Phi$. A realistic laser therefore gives reduced interferometric visibility; for $V=1/2$, its extrema are $I_0$ and $3I_0$.

For a Lorentzian line shape of frequency full width at half maximum $\Delta \nu$, temporal optical coherence givesThe relevant index is the group index. Using the intended nondispersive approximation $n_g\simeq n_{\mathrm{eff}}=2$,This delayed-fibre linewidth measurement assumes the loss of contrast comes from linewidth. Unequal output intensities, polarization mismatch or mechanical phase fluctuations also lower interferometric visibility. If dispersion matters, the stated phase index alone does not specify the necessary group index.
