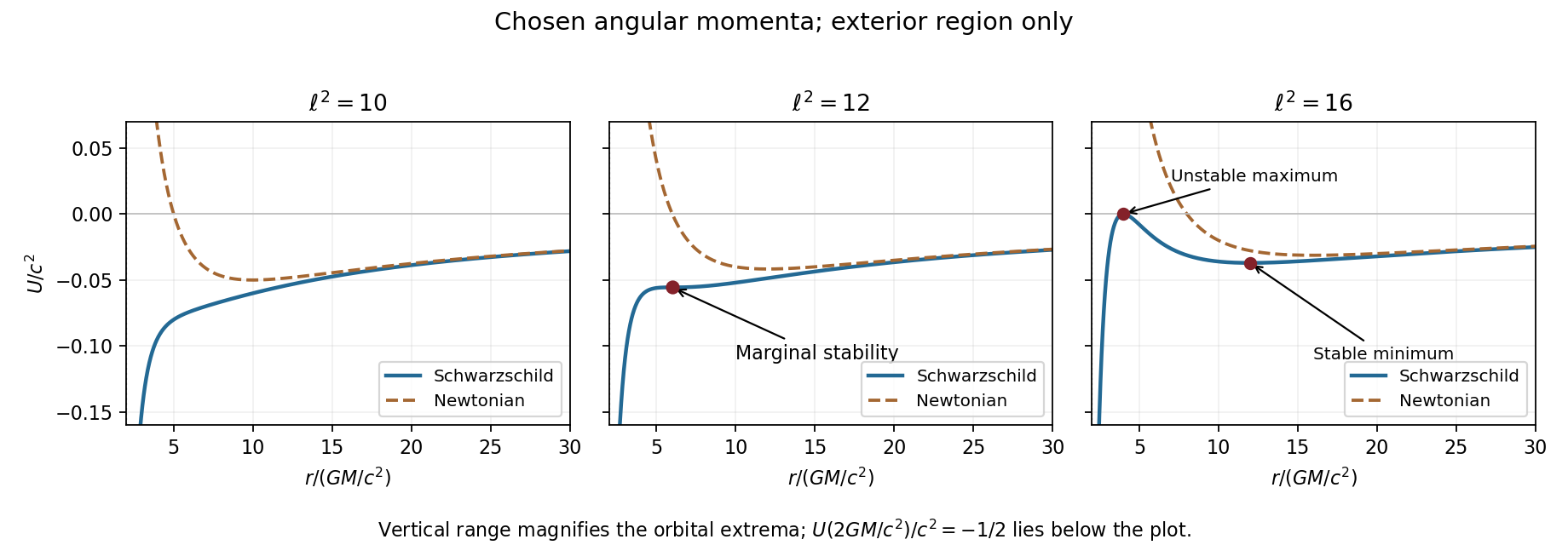

Take overdots in this question to mean differentiation with respect to the orbiting particle's proper time $\tau$. Write $\mu =GM/c^2$, $x=r/\mu$ and $\ell =hc/(GM)$, with $h$ the specific angular momentum. Then the dimensionless timelike effective potential isThe last term is the relativistic correction to the Newtonian centrifugal-plus-gravitational potential. At large $r$ the two agree. Newtonian angular momentum gives an infinite inner centrifugal barrier for nonzero $h$; the relativistic correction lowers that barrier and permits plunge. The exterior problem starts at $r=2\mu$, where $U=-c^2/2$; extrapolating the potential towards $r=0$ is not a static exterior description.

Circular orbits obeyThere are two extrema when $h^2>12(GM/c{)}^2$: an inner maximum representing an unstable circular orbit and an outer minimum representing a stable one. At equality they merge at $r=6\mu$; below it neither exists. More explicitly, evaluate the curvature at a circular orbit:Timelike circular orbits require $r>3\mu$. They are radially stable for $r>6\mu$, so the marginally stable inner limit is $r_{\mathrm{ISCO}}=6GM/c^2$. The Newtonian potential instead has one stable minimum at $r=h^2/(GM)$, without an innermost stable circular orbit.

For the Schwarzschild circular-orbit local speed in the question, $\gamma$ is the Lorentz factor relative to a local Schwarzschild static observer, not $dt/d\tau$. That observer's clock obeys $dT=\sqrt{1-2\mu /r}dt$. Since the particle passes with local speed $v$, $rd\varphi /d\tau =\gamma v$. Circular normalization givesThus $v=c/2$ at the innermost stable circular orbit. Using Schwarzschild time in place of the local clock would give a different speed.

For the conserved particle energy measured at infinity, substitute $h^2$ in the circular energy equation. Setting $y=\mu /r$ givesTake the positive root for a future-directed exterior orbit. It approaches $m{c}^2-GMm/(2r)$ at large radius. The marginally bound circular Schwarzschild orbit solves $k=1$, giving $y(4y-1)=0$ and hence $r_{\mathrm{mb}}=4GM/c^2$ at finite radius. It is unstable; strictly bound circular orbits have $r>4\mu$, with $E<m{c}^2$. The phrase smallest bound orbit here denotes this marginal circular limit, not a prohibition on a bound-energy trajectory plunging below it.

At the innermost stable circular orbit,A radiatively efficient thin disc with a zero-torque inner boundary condition can therefore release about 5.7% of the accreted rest energy before the plunge. energy advection, stress at the inner edge and photon capture can alter the escaping luminosity, so this is a model efficiency rather than a universal emitted fraction.

For the Kerr ISCO spin limits of an equatorial prograde disc around a rapidly rotating Kerr black hole, the innermost stable circular orbit moves inward and its specific energy decreases. In the ideal extremal limit its Boyer-Lindquist radius tends to $\mu$, $E/(m{c}^2)\to 1/\sqrt{3}$, and the corresponding binding-energy efficiency tends to 42.3%. Retrograde rotation has the opposite trend: the extremal limit is $r_{\mathrm{ISCO}}=9\mu$, $E/(m{c}^2)=5/(3\sqrt{3})$, giving about 3.8%. The prograde limiting coordinate radius does not identify a massive orbit with the null horizon generator.^[ref]

Finally $\dot{t}=k/(1-2\mu /r)=1/\sqrt{1-3\mu /r}$. Dividing $\dot{\varphi }=h/r^2$ by this givesIts algebraic form is exactly Newtonian, but $r$ is the Schwarzschild spacetime areal radius and $t$ Schwarzschild time, normalized at infinity. Local clock rates, orbit stability and binding energy remain relativistic. With $G{M}_{\odot }\simeq 1.3271\times 10^{20}{\mathrm{m}}^3{\mathrm{s}}^{-2}$,The marginally bound circular-orbit frequency is about $0.404\mathrm{kHz}$. These Schwarzschild ISCO orbital frequencies and marginally bound frequencies are rotation frequencies per distant stationary observer's time, as intended by using $d\varphi /dt$. A static observer at finite radius $r_o$ instead divides both frequencies by $\sqrt{1-2\mu /r_o}$, leaving their ratio unchanged. Identifying an observed quasi-periodic oscillation with the innermost stable circular orbit orbital frequency is an additional astrophysical assumption.

Take $\tau$ as particle proper time, dots as $d/d\tau$, and $f(r)=1-2\mu /r$ with $\mu =GM/c^2$. In the equatorial plane the geodesic Lagrangian isThe cyclic coordinates give $d(c^{2}f\dot{t})/d\tau =0$ and $d(-r^2\dot{\varphi })/d\tau =0$. Set the resulting constants to $c^{2}k$ and $-h$ respectively. The explicit second-order equations areThe polar equation is satisfied by $\theta =\pi /2$, $\dot{\theta }=0$, consistently with spherical symmetry. The proper-time normalization $d{s}^2=c^{2}d{\tau }^2$ supplies the third first integral:The normalization is $2\mathcal{L}=c^2$; it is distinct from choosing an arbitrary affine tangent's norm.

Stationarity and axial symmetry make the covariant time and azimuthal momenta constant. For physical momentum and coordinate $t$ in seconds, $P_t=m{c}^{2}f\dot{t}=m{c}^{2}k$ and $P_{\varphi }=-m{r}^2\dot{\varphi }=-mh$. Thus $m{c}^{2}k$ is the conserved energy normalized at infinity and $mh$ is the signed axial angular momentum. This is Killing energy with positive time signature; a convention with negative timelike norm uses the opposite contraction sign. The supplied covariant-momentum form of the geodesic equation makes these cyclic constants immediate, but its parametrization must be understood: for $p^{\mu }=d{x}^{\mu }/d\lambda$ it is exactly as written. For physical $P^{\mu }=md{x}^{\mu }/d\tau$, proper-time differentiation instead gives $d{P}_{\mu }/d\tau =({\partial }_{\mu }{g}_{\nu \sigma })P^{\nu }{P}^{\sigma }/(2m)$; equivalently, the displayed mass-free form uses $\lambda =\tau /m$. This affine momentum normalization does not change either conservation law.

Multiply the normalization equation by $f$ and substitute the two cyclic integrals. Rearrangement gives the radial energy equationFor radial marginal escape $h=0$ and the future-directed constant is $k=1$, because the speed at infinity vanishes. Choose the outward root:Hence the marginal escape geodesic in Schwarzschild spacetime hasThe constant $a$ has units of length to the power $3/2$ divided by time. This radius is an areal coordinate, not accumulated local proper distance.

A Schwarzschild static observer at exterior radius $r$ uses local radial rulers $d\ell =dr/\sqrt{f}$ and a local clock $dT=\sqrt{f}dt$. Therefore the local radial speed of a Schwarzschild geodesic isFor the marginal trajectory $k=1$ this givesIts equality to $\dot{r}$ is particular to $k=1$; the local definition, rather than that accidental equality, is the required observer measurement. The Schwarzschild-coordinate velocity is instead $dr/dt=f\sqrt{2GM/r}$.

For nonzero asymptotic speed $0\le u<c$, the same energy constant is $k={\gamma }_{\infty }=(1-u^2/c^2{)}^{-1/2}$. Combining the radial equation with the local-ruler relation gives radial Schwarzschild escape with asymptotic speedThe positive root describes the outward particle, at radii on its trajectory with $r\ge r_0$. Independently, a static observer has four-velocity $U=(1/\sqrt{f},0,0,0)$ in these coordinates, giving relative Lorentz factor $g(U,u_{\mathrm{particle}})/c^2=\sqrt{f}\dot{t}=k/\sqrt{f}$ and the same speed. As $r\to \infty$ it tends to $u$; for $u=0$ it gives the preceding result. Its limiting value approaches $c$ as $r\downarrow 2GM/c^2$, but that is a limit through exterior observers: no static timelike observer exists on or inside the horizon.

A Schwarzschild static observer at a circular orbit measures speed $v_{\mathrm{loc}}=r(d\varphi /dt)/\sqrt{1-2\mu /r}$. Combining the circular geodesic frequency with this clock rate gives the displayed formula. The observer-relative Lorentz factor is $\gamma =\sqrt{(r-2\mu )/(r-3\mu )}$, and $rd\varphi /d\tau =\gamma v_{\mathrm{loc}}$. Thus the local speed is $c/2$ at the Schwarzschild innermost stable circular orbit. Coordinate and locally measured speeds are distinct.
