Thermal transpiration experiment with a glass microtube

Rojas Cardenas, Graur, Perrier and Méolans studied thermal transpiration in helium using a glass microtube of diameter $490\pm 1\mu \mathrm{m}$ and length $3.05\pm 0.01\mathrm{cm}$ in their 2012 experiment. They heated one reservoir, leaving the other near room temperature, and measured tube-end temperatures of $300$ and $351\mathrm{K}$. Three contact thermometers and an infrared camera checked the thermal conditions; the hot reservoir was warmer than the adjacent tube end, so heater temperature was not an adequate substitute for tube-end temperature. Two capacitance diaphragm gauges recorded the reservoir pressures; a third gauge supported calibration. ^[ref]

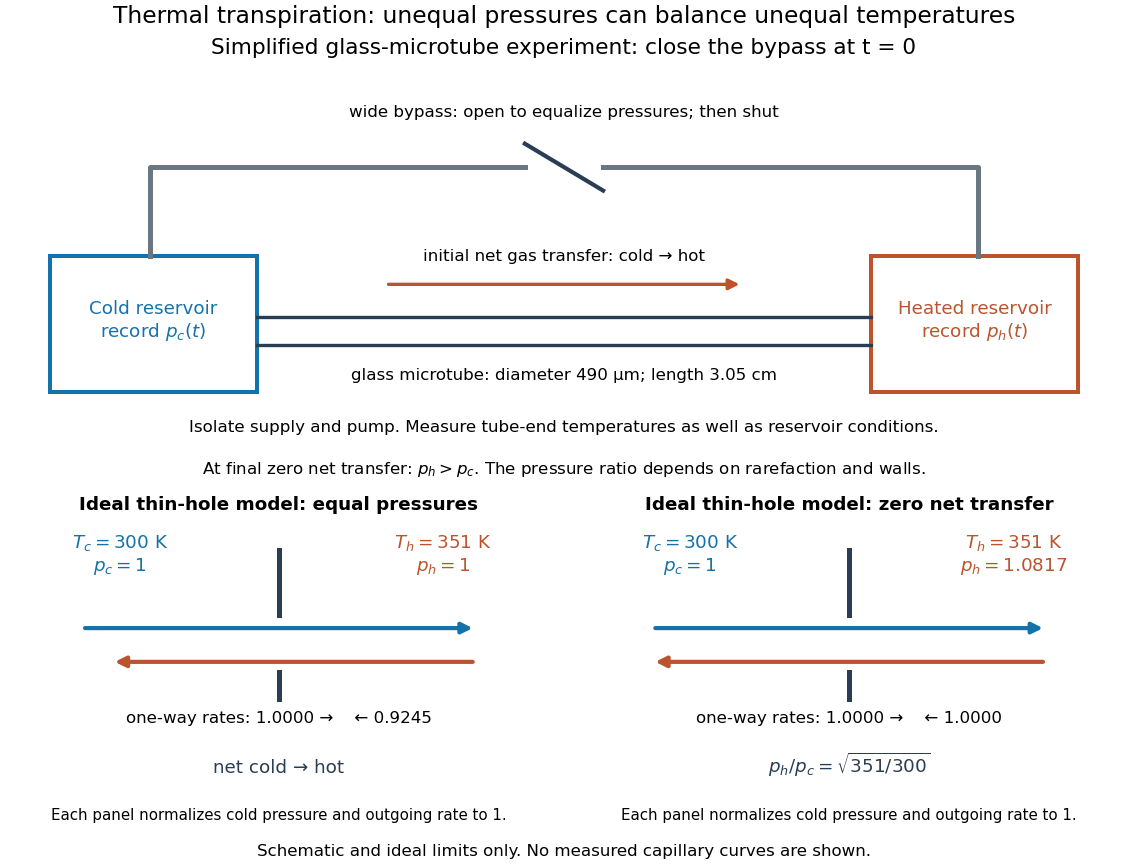

Their earlier 2011 paper explains the measurement sequence. A wide bypass links the reservoirs in parallel with the microtube. After isolating the gas supply and pump, keep the bypass open to equalize pressures with the temperature difference already established. Closing the bypass defines $t=0$. The hot-side pressure rises and the cold-side pressure falls; ultimately their slopes approach zero at unequal pressures. Repeating at different initial pressures changes the degree of rarefaction without changing the microtube. The 2011 study also compared helium and nitrogen and imposed temperature differences of $50$, $60$ and $70\mathrm{K}$. ^[ref]

The quantities to record are both $p_c(t)$ and $p_h(t)$, the reservoir volumes, and the temperatures relevant to their particle inventories. In an idealized reservoir of fixed volume $V_i$ and uniform fixed temperature $T_i$, the ideal gas law gives ${\dot{N}}_i=[V_i/(k_B{T}_i)]{\dot{p}}_i$, so opposite inventory changes test particle conservation. If temperature changes, differentiation instead gives ${\dot{N}}_i=(V_i/k_B)[{\dot{p}}_i/T_i-p_i{\dot{T}}_i/T_i^2]$: a thermal drift can imitate particle transfer. The authors' 2011 presentation explicitly checks this thermal correction when extracting an initial mass flow rate from the pressure slope. ^[ref]

The 2012 paper compares the final pressure ratio across near-free-molecular through slip conditions with a kinetic model and empirical corrections. It does not establish the thin-hole square-root law at every measured pressure. ^[ref] For a replication, useful additional controls follow from the interpretation: remove the temperature difference to test the null signal; reverse it to test the direction; check gauge zero offsets and leaks; and wait for stable temperatures before closing the bypass. These are suggested controls, not claims that the cited paper performed each one. A reproducible pressure split at zero net transfer makes the failure of a single continuum wall model observable, while the Knudsen number organizes which molecular and apparatus scales are competing.

A capacitance diaphragm gauge senses pressure through deflection of a diaphragm that changes a capacitor's capacitance. Its head can have a different temperature from the vessel being measured, allowing thermal transpiration in the connecting tube to change the head pressure. ^[ref]
