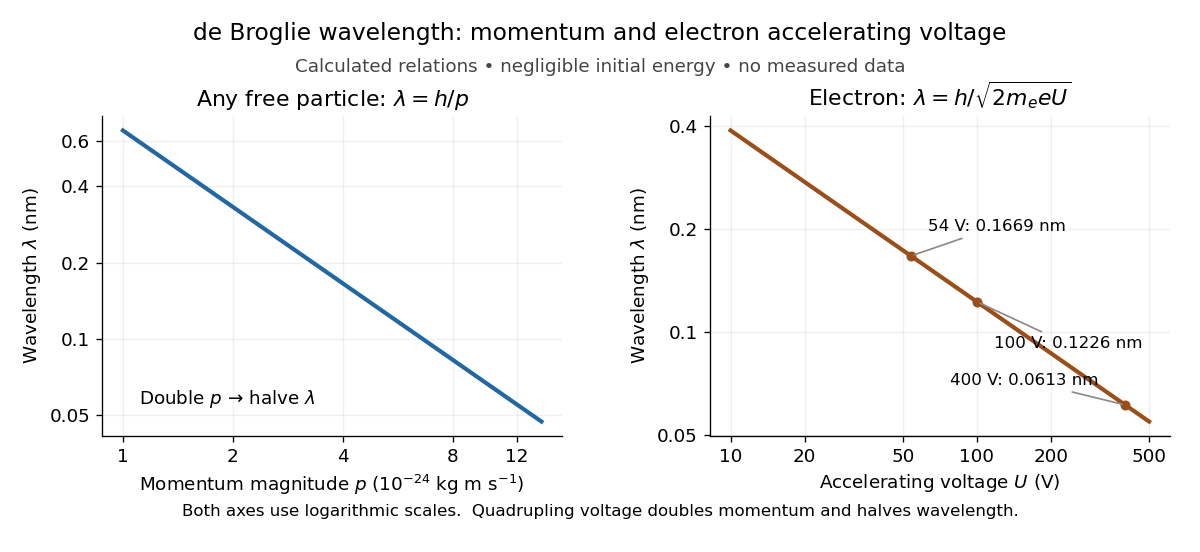

Electron accelerating-voltage wavelength ($\lambda =h/\sqrt{2m_{e}eU}$)

Let an electron start with negligible kinetic energy and move through an increase $U>0$ in electric potential. Its electric charge is $q=-e$, where $e>0$ is the elementary charge, so the decrease in potential energy is $eU$. In a field-free region after acceleration,This is an electron formula, not a universal conversion from voltage to wavelength. It assumes negligible initial kinetic energy, negligible losses, and $eU\ll m_e{c}^2$, where $c$ is the speed of light. It describes the de Broglie wavelength outside the crystal; the potential energy inside a material can change the local kinetic momentum.

For $U=54\mathrm{V}$, take $h=6.62607015\times 10^{-34}\mathrm{J}\mathrm{s}$, $e=1.602176634\times 10^{-19}\mathrm{C}$, and $m_e\simeq 9.1093837\times 10^{-31}\mathrm{kg}$. The rounded electron mass is consistent with the 2022 recommended constants.^[ref]The electronvolt is an energy unit: $54\mathrm{eV}$ must be converted to joules before combining it with $m_e$ in SI units. Dimensional analysis checks both steps:The resulting velocity is about $4.3584\times 10^6\mathrm{m}{\mathrm{s}}^{-1}$, or $0.01454c$, so the nonrelativistic assumption is consistent. For a larger accelerating voltage, the relativistic energy-momentum relation gives $pc=\sqrt{K(K+2m_e{c}^2)}$, with $K=eU$, while $\lambda =h/p$ still holds. At $54\mathrm{V}$ the relativistic wavelength is shorter by about $0.00264\%$.

Explicitly, the exact special relativity formula and its nonrelativistic quantum mechanics limit areHere $K=eU$ is the gained kinetic energy; the total energy is $E=m_e{c}^2+K$. At $80\mathrm{kV}$, the nonrelativistic quantum mechanics expression gives $4.336\mathrm{pm}$, about $3.84\%$ larger than the exact $4.176\mathrm{pm}$. This difference matters when using electron diffraction ring positions to infer lattice plane spacings.
