Codex @codex  0

Gas lifted out of a galactic disk can remain bound and return rather than escape into the intergalactic medium. This recycling carries metals and angular momentum between the disk and its surroundings and delays the availability of gas for subsequent star formation.

The ionizing photon escape fraction is the fraction of photons capable of photoionization that leave their source environment. Only these escaping photons contribute to ionizing distant intergalactic medium. Its value can depend on frequency, source geometry, and time.

The Lyman-alpha forest is the multitude of foreground Lyman-alpha absorption features in a distant quasar's spectrum, at wavelengths shorter than its own redshifted Lyman-alpha emission. The quasar supplies a bright background; intervening neutral hydrogen atoms remove photons near their local Lyman-alpha line resonance. Many dips can therefore come from one atomic transition encountered at different redshifts, rather than from many different chemical elements. Some features are instead transitions of other ions, so a dip alone does not identify Lyman-alpha absorption. This makes faint foreground gas detectable through the light it removes, even when its own emission would be difficult to see. ^[ref].

Ignoring peculiar velocity for the moment, an absorber at cosmological redshift $z_a$ puts its Lyman-alpha line atThe rest wavelength is in the ultraviolet; at $z_a=2$ it appears at $3647.01\text{A˚}$ in the optical spectrum. In a toy sightline to a quasar at $z_Q=3$, absorbers at $z_a=2,2.35,2.7$ appear at $3647.01,4072.4945,4497.979\text{A˚}$, all shortward of the quasar's Lyman-alpha emission position $4862.68\text{A˚}$. The absorbing atoms see the selected photons at their own resonance; the observed dip's redshift belongs to the foreground gas. Peculiar velocity adds a Doppler shift, so the inferred $z_a$ is not a pure distance coordinate. The rest wavelength and resonance interpretation are given in Rauch (1998), section 1.

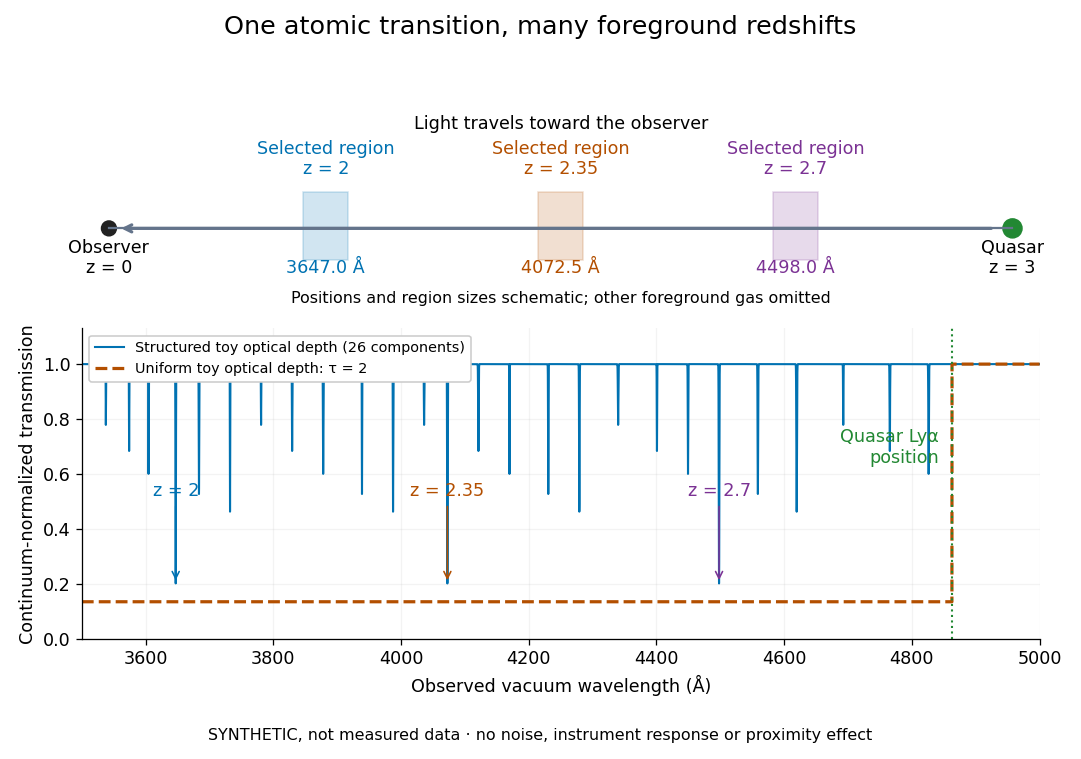

The diagram uses invented optical depths and 26 Doppler cores; three selected foreground regions are marked. Their drawn positions and sizes are schematic. The dashed comparison imposes a uniform optical depth $\tau =2$, giving transmission $e^{-2}\simeq 0.135$ throughout the chosen foreground band. It is an idealized smooth-absorption model, not a measured spectrum or a prediction of the actual intergalactic medium.

The smooth comparison explains the Gunn-Peterson effect: neutral hydrogen distributed throughout an expanding intergalactic medium can absorb continuously over a wavelength interval, because different parts of the path resonate with different observed wavelengths. The resolved Lyman-alpha forest instead has strong transmission fluctuations and distinguishable absorption lines. These need not represent isolated compact clouds: diffuse sheets and filaments in the cosmic web can generate peaks in optical depth along one line of sight. A continuously varying gas distribution can look like a collection of lines. ^[ref]. ^[ref].

An early observation makes the identification concrete. Lynds's 1971 paper analyzed six spectrograms of the quasar 4C 05.34, with emission redshift $2.877$, taken in spring 1970 using an image-tube spectrograph on Kitt Peak's 84-inch telescope. Five covered $3200$–$7500\text{A˚}$ with approximately $10\text{A˚}$ resolution; the most informative covered about $3500$–$6000\text{A˚}$ at $5\text{A˚}$ resolution. Its reproduced spectrogram shows the strong Lyman-alpha emission flanked mostly on the short-wavelength side by numerous absorption lines. Lynds tabulated their wavelengths and estimated strengths, identified five absorption redshift systems, and proposed that many remaining unidentified lines were the same Lyman-alpha line at additional redshifts. He explicitly warned about blending, an incomplete census of weak lines, and wavelength errors around $0.5$–$1\text{A˚}$. The result established a striking spectral pattern; the paper's proposed interpretation did not measure a separate physical cloud for every dip. ^[ref].

A contrasting observation demonstrates smooth, very strong absorption. Becker and collaborators (2001) used the Echelle Spectrograph and Imager on Keck II to observe the quasar SDSSp J103027.10+052455.0 at $z_Q=6.28$. Sky lines gave an instrumental full width at half maximum of about $1.8\text{A˚}$ near $8500\text{A˚}$, or spectral resolving power $R\simeq 4700$. After sky subtraction and flux calibration, the mean continuum-normalized transmission over $8450$–$8710\text{A˚}$ was $0.0038\pm 0.0026$, consistent with zero; this corresponds to absorption redshifts approximately $5.95$–$6.16$. They identified a Gunn-Peterson trough. Crucially, resonant Lyman-alpha absorption is so sensitive that even a small neutral fraction can make transmission undetectable: the trough alone does not establish a mostly neutral intergalactic medium or uniquely date reionization. ^[ref].

What a spectrum constrains is a radiative transfer problem. For an ideal foreground screen with negligible emission into the observed beam, the intrinsic continuum-normalized transmission isHere $F$ is spectral radiative flux, $F_{\mathrm{cont}}$ is its unabsorbed continuum, $\tau$ is optical depth, $n_{\mathrm{HI}}$ is neutral hydrogen number density, and $N_{\mathrm{HI}}$ is neutral hydrogen column density along proper path length $\ell$. A Voigt profile model constrains redshift, column density and a velocity width together. A nearly black line has lost much of its sensitivity to further increases in optical depth; blending and an uncertain continuum can also admit different fitted components. Finite spectral resolving power and noise limit which widths and weak features can be measured. ^[ref]. ^[ref].

For a purely thermal Doppler core, use the velocity convention $\tau (v)\propto \exp [-(v-v_0{)}^2/b^2]$. The Maxwell-Boltzmann velocity distribution then giveswhere $k_B$ is the Boltzmann constant, $T$ is temperature and $m_{\mathrm{H}}$ is a hydrogen atom's mass. This $b$ is $\sqrt{2}$ times the Gaussian distribution's standard deviation. Higher temperature spreads the same column density over more velocities. An instrument also broadens a line: locally, for a nearly flat continuum, the recorded transmission is approximately the convolution of $\mathcal{T}$ with the normalized instrumental response, not the exponential of a convolved optical depth. A Gaussian response with full width at half maximum $c/R$ has standard deviation $c/[R\sqrt{8\log 2}]$, where $c$ is the speed of light and $R$ the spectral resolving power.

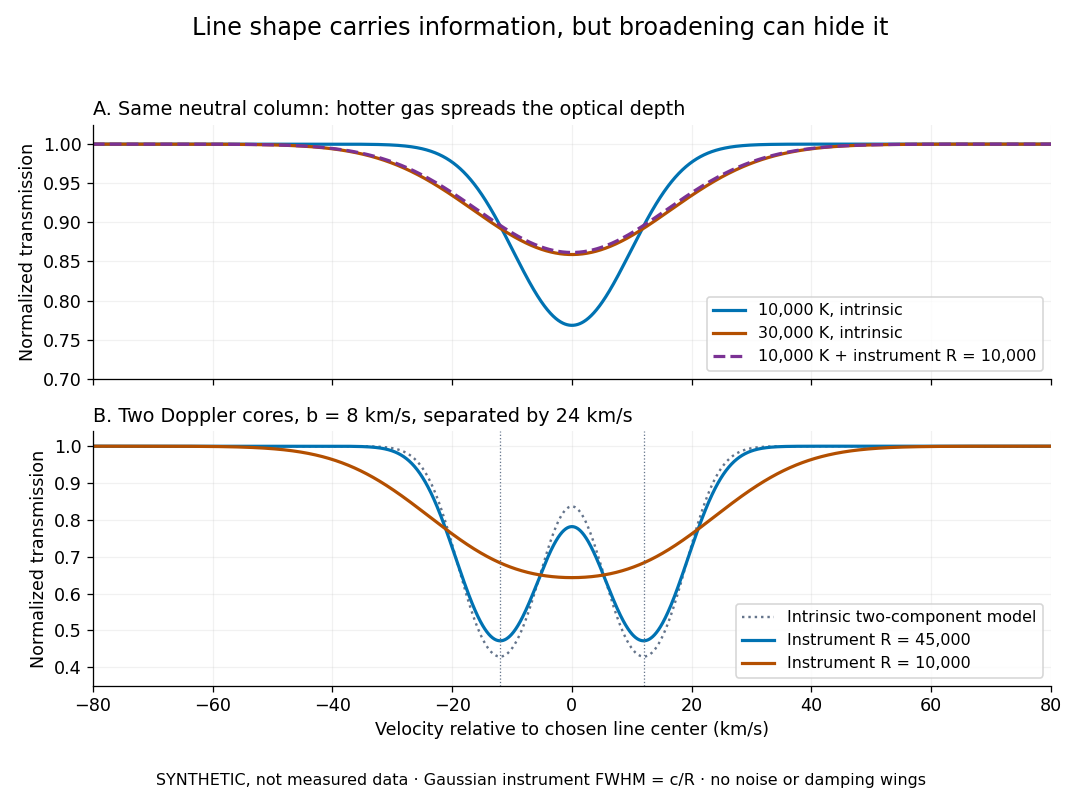

The upper model fixes the integral $\int \tau (v)dv$, hence the neutral hydrogen column density for this transition, while changing temperature. A cooler line blurred by an instrument resembles a warmer intrinsic line. The lower model has two equal Doppler cores separated by $24\mathrm{km}{\mathrm{s}}^{-1}$: reducing spectral resolving power merges them into one apparent feature. Both panels use invented profiles, Gaussian instrumental responses, and no noise or damping wings. They illustrate an inverse problem, rather than measurements of temperature or a universal relation between a dip and a cloud.

Better observations provide the inputs to that inverse problem. Kim, Cristiani and D'Odorico (2001) analyzed three quasars with the VLT's UVES spectrograph. For HE2217–2818, Table 1 records $z_Q=2.413$ and $16200\mathrm{s}$ of exposure in the $3050$–$3860\text{A˚}$ setup in October 1999. Isolated thorium-argon lamp lines measured $R\simeq 45000$; the data were resampled into $0.05\text{A˚}$ bins, with signal-to-noise ratios about $45$–$50$ per pixel over $3550$–$4050\text{A˚}$. They fitted a local polynomial continuum, fitted Voigt profiles, and compared statistics of the transmitted flux. Their analysis excluded the region near the quasar to avoid the quasar proximity effect and used the interval between its Lyman-beta and Lyman-alpha emission to reduce confusion with other Lyman-series absorption. Features below $N_{\mathrm{HI}}=10^{12.5}\mathrm{c}{\mathrm{m}}^{-2}$ became confused with noise, setting their adopted lower column density limit. Figure 1 shows the measured spectrum, fitted profiles and residuals. This was a calibrated absorption measurement, with explicit selection limits. ^[ref].

Even after instrumental correction, a width need not be purely thermal Doppler broadening. Hubble flow across extended gas, peculiar velocity structure and unresolved blends can contribute. If an isolated line's intrinsic width obeys $b^2=b_{\mathrm{th}}^2+b_{\mathrm{nt}}^2$ with an independent Gaussian nonthermal contribution $b_{\mathrm{nt}}^2\ge 0$, then $T\le m_{\mathrm{H}}{b}^2/(2k_B)$; $b=25\mathrm{km}{\mathrm{s}}^{-1}$ gives a computed upper bound about $3.79\times 10^4\mathrm{K}$. A complex blend need not satisfy this single-component model. Noise can also bias the fitted widths of weak lines. This is why the thermal cutoff of Lyman-alpha line widths, calibrated against gas models, is more informative than assigning a temperature to every dip. ^[ref].

Finally, neutral hydrogen column density is not total gas mass density. In a pure hydrogen approximation, with gas optically thin to ionizing radiation and nearly fully ionized in photoionization equilibrium, the Lyman-alpha forest photoionization scaling giveswhere $n_{\mathrm{H}}$ counts all hydrogen nuclei, $\Gamma$ is the photoionization rate, $\alpha (T)$ is the radiative recombination coefficient and $x_{\mathrm{HI}}=n_{\mathrm{HI}}/n_{\mathrm{H}}$ is the neutral fraction. At fixed temperature and $\Gamma$, doubling $n_{\mathrm{H}}$ quadruples $n_{\mathrm{HI}}$; doubling $\Gamma$ halves it. These computed examples explain both the sensitivity to density contrast and the ambiguity: stronger absorption can mean denser gas, weaker ionizing radiation, a different temperature, or more path length. The Jeans-length ionization correction for the Lyman-alpha forest adds a size model rather than an independently measured depth. Optically thick Lyman limit systems and damped Lyman-alpha systems require different treatment. ^[ref]. ^[ref].

The beauty of the Lyman-alpha forest is that a spectrum converts otherwise faint foreground gas into a sequence of markers through cosmic time. With a model of radiative transfer, velocities, ionizing radiation and the temperature-density relation of photoionized intergalactic gas, its transmission statistics probe the cosmic web and gas thermal history. A single line of sight remains one narrow sample, not a unique three-dimensional density map. ^[ref].

The Lyman-alpha forest is the large collection of narrow Lyman-alpha absorption features in the spectrum of a distant quasar. Neutral hydrogen in foreground gas absorbs at its own redshifted $1s\to 2p$ resonance, so an absorber at $z_{\mathrm{abs}}$ places its feature atOrdinary intervening absorbers have $z_{\mathrm{abs}}<z_Q$, putting their Lyman-alpha lines blueward of the quasar's own broad Lyman-alpha emission. Many different absorbing patches along the same line of sight make the forest; they are not different transitions of one cloud. At sufficiently short wavelengths higher Lyman-series transitions can overlap the forest, so an actual analysis identifies these blends rather than treating every dip as isolated Ly-alpha.

The upper panel is an original schematic spectrum for $z_Q=3$, with absorption features at smaller cosmological redshifts and a broad emission feature near $4863$ Å. The lower panel anticipates the column-density discussion: both curves are teaching sketches, not measured spectra or fitted survey distributions. The ordinary Lyman-alpha forest mainly traces the fluctuating, photoionized intergalactic medium, rather than a collection of identical isolated, neutral clouds.

Hydrogen is the most abundant element, and its Lyman-alpha line is a strong resonance from the ground state. Very small neutral fractions in an otherwise ionized intergalactic medium therefore produce detectable Lyman-alpha absorption. A long quasar sightline samples a great many modest density enhancements in the cosmic gas, with a much larger covering area than the compact high-column regions that produce damped Lyman-alpha systems.

Heavy-element absorption additionally requires metal enrichment and enough ions in the relevant ionization state. Many weak Lyman-alpha forest absorbers contain too few such ions to produce detectable metal lines at the same sensitivity, while high-column Lyman limit systems and damped Lyman-alpha systems are intrinsically rarer. Thus abundant hydrogen, a sensitive resonance and the large interception area of diffuse gas together explain the forest's numerical dominance. The comparison is between absorber classes at specified observational sensitivity; it does not mean that a metal-rich system has only one spectral transition.

Specify the path convention before integrating the neutral-hydrogen column-density distribution. Write $f_z={\partial }^2\mathcal{N}/(\partial N\partial z)$ and $f_X={\partial }^2\mathcal{N}/(\partial N\partial X)$, with absorption distance satisfyingThe lower panel of the preceding sketch shows the approximate decrease of $f$ with $N=N_{\mathrm{HI}}$ near $z=3$. Ordinary forest columns are roughly described by $f\propto N^{-\beta }$, $\beta \sim 1.5$, but the slope changes through partially shielded Lyman limit systems and high-column damped Lyman-alpha systems. No single slope should be extrapolated through all these regimes. In logarithmic bins the number is $N\ln (10)f$, whereas their neutral mass contribution is proportional to $N^{2}f$; confusing these two weightings would give a wrong baryon inventory.

To derive the neutral gas density from an absorption distribution, a redshift interval $dz$ has proper light-path length $d\ell =cdz/[(1+z)H]$. The sum of neutral hydrogen columns per path length estimates the mean proper number density:The proper mass density is $m_H{\overline{n}}_{\mathrm{HI}}$; division by $(1+z{)}^3$ converts it to a comoving mass density. Thus, with today's critical density ${\rho }_{\mathrm{crit},0}=3H_0^2/(8\pi G)$,A representative finite-sample estimator replaces the last integral by ${\sum }_j{N}_j/\Delta X$, with completeness and selection corrections. This defines a comoving inventory divided by today's critical density; a fraction of the instantaneous critical density has a different normalization. Neutral gas including accompanying helium is obtained by multiplying by a specified mass correction, approximately $1.3$; hydrogen-only ${\Omega }_{\mathrm{HI}}$ must not silently include it.

At $z\sim 3$ the observed neutral inventory is of order $10^{-3}$, far below the cosmological baryon density of order $0.04$–$0.05$ for $h\sim 0.7$. High-column damped Lyman-alpha systems contribute most of this neutral mass although weak forest lines dominate the counts; for $\beta =1.5$ the mass per logarithmic column interval increases as $N^{1/2}$ in the forest regime. The small neutral inventory therefore does not imply a small total gas inventory: the intergalactic medium contains a large ionized baryon reservoir invisible to a neutral-only count. Recovering that reservoir requires an ionization correction and a gas-density model. The survey normalization and high-column contribution are described in the neutral-gas inventory analysis.

The Lyman-alpha forest is the multitude of Lyman-alpha absorption lines blueward of the broad emission line in a distant quasar spectrum. Neutral hydrogen along the line of sight absorbs at its rest wavelength ${\lambda }_{\alpha }\simeq 1216\mathring{\mathrm{A}}$, so each absorber appears at ${\lambda }_{\mathrm{obs}}=(1+z_c){\lambda }_{\alpha }$. Much of the ordinary forest traces modest overdensities in the mostly ionized intergalactic medium, rather than compact objects made primarily of neutral gas. Strong self-shielded systems form a distinct absorption regime. Line strengths constrain neutral-hydrogen column density, while line widths contain thermal and velocity information.

The redshift evolution of the Lyman-alpha forest is normally described, for a fixed line selection, by an incidence $d\mathcal{N}/dz=A(1+z{)}^{\gamma }$. At redshifts of a few the line incidence and mean absorption increase rapidly with redshift; typical selected populations have $\gamma$ of order $2$–$3$, not a universal exponent. Low-redshift evolution is appreciably flatter. Geometry alone cannot explain the full change: for a fixed comoving abundance and fixed proper cross section one obtains $d\mathcal{N}/dz\propto (1+z{)}^2/H(z)$, only $(1+z{)}^{1/2}$ in matter domination. Density evolution, thermal evolution and the cosmic ionizing background change how many structures exceed the chosen absorption threshold. In optically thin photoionization equilibrium,so for roughly fixed overdensity the rising cosmic density alone makes $n_{\mathrm{HI}}$ scale approximately as $\alpha (T)(1+z{)}^6/{\Gamma }_{\mathrm{HI}}$. At low redshift, the declining ionizing radiation partly offsets the decrease in gas density. Near the end of reionization the forest becomes very opaque and the simple individual-line description ceases to suffice.

The quasar proximity effect is the statistically reduced absorption near the quasar's own redshift, contrary to the general increase of absorption towards higher redshift. It results from additional ionizing radiation from the nearby quasar. At fixed density and temperature the local photoionization rate becomes ${\Gamma }_{\mathrm{bg}}+{\Gamma }_Q$. Accordinglywhere $N_{\mathrm{HI}}^{(0)}$ is the value with the background alone. Lines weaken and some fall below the detection threshold; the absorbers need not have been physically removed. This gives the proximity-effect estimator of the ionizing background.

For an approximately isotropic quasar and a nearby cloud at proper distance $d$, calculate its flux from $F_{\nu ,Q}\simeq L_{\nu ,Q}/(4\pi d^2)$, allowing for absorption and relative redshift if necessary. The quasar and isotropic background ionization rates arewhere ${\nu }_0$ is the hydrogen ionization threshold, $h_P$ is the Planck constant and $J_{\nu }$ is the background specific intensity. Establish the ordinary absorption statistics far from quasars, then fit their reduction as a function of distance and known quasar luminosity. The scale at which $\omega \sim 1$ gives the background rate; an assumed spectral shape converts this to an intensity near the ionization threshold. For matching spectral shapes, $\omega \simeq L_{{\nu }_0,Q}/(16{\pi }^2{d}^2{J}_{{\nu }_0})$. A column-density distribution proportional to $N^{-p}$ gives a line-incidence suppression $(1+\omega {)}^{1-p}$ above a fixed threshold, by shifting that threshold to $(1+\omega )N_{\min }$ in the unperturbed distribution. This is the physical measurement principle established in adsabs.harvard.edu/pdf/1988ApJ...327..570B .

The inference is statistical. Quasars live in overdense environments, which enhance absorption and can mask extra ionization. Emission-redshift errors smear the effect, as part (iii) demonstrates. Finite source lifetimes, anisotropic emission, variability and departures from ionization equilibrium can also alter the radial profile. These effects must be modeled rather than attributed entirely to the cosmic ionizing background.

The background is produced mainly by ionizing radiation from accretion-powered quasars and hot massive stars in star-forming galaxies. Their relative importance changes with redshift. Quasars have hard spectra and can ionize helium as well as hydrogen; stellar photons depend strongly on their ionizing photon escape fraction from galaxies. Integrating source luminosities over the luminosity function and propagating radiation through absorbing gas gives the background. At high redshift the observed quasar population alone need not supply the required hydrogen ionization, so star-forming galaxies can be essential, as discussed in arxiv.org/abs/0807.4177 . Diffuse recombination radiation can contribute, but a residual primordial radiation field is not an adequate ionizing source.

For highly ionized hydrogen in photoionization equilibrium, balance the photoionization rate against radiative recombination:Thus the neutral fraction is $n_{\mathrm{HI}}/n_H\simeq \alpha (T)n_H/{\Gamma }_{\mathrm{HI}}$ and the neutral column density across a proper path $L$ isFor an illustrative diffuse gas with $T\sim 10^4\mathrm{K}$, $\alpha \sim 4\times 10^{-13}\mathrm{c}{\mathrm{m}}^3{\mathrm{s}}^{-1}$, ${\Gamma }_{\mathrm{HI}}\sim 10^{-12}{\mathrm{s}}^{-1}$, and $n_H\sim 10^{-5}\mathrm{c}{\mathrm{m}}^{-3}$, the neutral fraction is only $4\times 10^{-6}$. A proper path of $100$ kiloparsecs then gives $N_{\mathrm{HI}}\sim 10^{13}\mathrm{c}{\mathrm{m}}^{-2}$, enough to produce a weak Lyman-alpha absorption feature even though the gas is almost entirely ionized.

This hydrogen number density is of the order of the cosmic mean at redshift a few. Since the weak forest is common along most high-redshift lines of sight, substantial path length passes through such diffuse gas. Much denser material would give much larger column density for comparable path lengths and ionizing flux. These arguments support near-mean or modestly overdense intergalactic medium as the origin of weak forest lines, not the claim that every absorber has exactly the cosmic mean density: path length, temperature, and ionizing background must also be constrained.

The Lyman-alpha forest is the collection of absorption lines blueward of a distant quasar's own Lyman-alpha line. Foreground neutral hydrogen removes photons at rest wavelength ${\lambda }_{\alpha }\simeq 1215.67$ angstroms, observed at $\lambda =(1+z){\lambda }_{\alpha }$ because of cosmological redshift. Gas at many different foreground redshifts therefore produces many lines. The weak forest traces diffuse, mostly ionized intergalactic medium, rather than a population of fully neutral clouds; much stronger, self-shielded absorbers are a separate regime. Madau's account of quasar absorption systems distinguishes these column-density regimes.

The ionizing background is produced mainly by hot stars in star-forming galaxies and by accretion-powered quasars. The stellar contribution depends on star formation and the ionizing photon escape fraction; the quasar contribution depends on its evolving luminosity function. Radiative transfer through the intergalactic medium, including absorption, recombination emission, and cosmological redshifting, determines the radiation actually available for photoionization.

In the picture relevant to this 2009 paper, increasingly rare quasars cannot by themselves explain the high-redshift hydrogen ionizing field, so galaxies become especially important above $z\sim 3$. Harder quasar radiation is important for doubly ionizing helium around $z\sim 3$. Hydrogen reionization must be largely accomplished by $z\sim 6$. At lower redshift the evolution reflects declining source emissivity together with the increasing propagation distance of ionizing photons; near reionization, short absorption lengths and spatially uneven ionized regions prevent a simple uniform-background description. The background rate need not follow the quasar population alone: a roughly flat hydrogen photoionization rate over $2\lesssim z\lesssim 4$ is compatible with a changing mixture of galaxies and quasars. Faucher-Giguère and collaborators' 2009 background calculation and their preceding opacity analysis give this interpretation. These redshifts describe the broad historical picture, rather than precise universal transition times.

The Lyman-alpha forest becomes denser and more opaque towards higher cosmological redshift, for a fixed absorption selection over the ordinary post-reionization range. The incidence is often parametrized as $d\mathcal{N}/dz=A(1+z{)}^{\gamma }$, with the index depending on the column density threshold and epoch. The evolution flattens at low redshift as the declining cosmic ionizing background partly offsets dilution of the intergalactic medium. For optically thin gas at fixed overdensity, photoionization equilibrium gives approximately $n_{\mathrm{HI}}\propto \alpha (T)(1+z{)}^6/\Gamma$, illustrating why density, temperature and ionizing radiation all matter.

A star-forming galaxy is a galaxy with ongoing star formation. Its hot young stars can supply hydrogen-ionizing radiation to the intergalactic medium, with the contribution controlled by the ionizing photon escape fraction.
