Isotope abundance, nuclear separation energies, spin and nuclear magnetic moments supply complementary tests: abundance concerns which atomic nuclei survive and accumulate, removal energy concerns binding, and magnetic properties test the angular momentum assignments. Agreement across these observables is more informative than fitting one list of numbers.

In her 1963 lecture, Maria Goeppert Mayer recalled excess abundances at $N=50$ and $82$. She contrasted the strong binding of the last neutron in oxygen isotope ${}^{16}\mathrm{O}$ with the weaker extra neutron in oxygen isotope ${}^{17}\mathrm{O}$, and displayed beta decay energies near $N=20$ and $50$. These are compiled empirical patterns, rather than readings from an apparatus she built.^[ref]

Her 1949 letter compared observed spins and nuclear magnetic moments with orbital assignments. For example, lead isotope ${}^{207}\mathrm{Pb}$ was assigned a $p_{1/2}$ neutron hole near $N=126$, whereas bismuth's odd proton began the next shell as $h_{9/2}$. The moments tested orbital character as well as spin.^[ref]

A useful comparison holds $Z$ fixed when comparing neighboring isotopes, and examines odd-even staggering separately from a shell discontinuity. Abundance additionally depends on production and decay history. Neither the abundance pattern nor a successful spin assignment directly images orbiting particles; neither fixes a unique nuclear mean field. The experimental techniques themselves include mass spectrometry and nuclear magnetic resonance, whose preparation and readout differ. The Hofstadter nuclear electron scattering experiment separately constrains nuclear size and nuclear charge distributions, rather than measuring these occupancies.

Writing positive nuclear binding energy as $B(Z,N)$ and nuclear mass as $M(Z,N)$,The two-neutron nuclear separation energy is $S_{2n}(Z,N)=B(Z,N)-B(Z,N-2)$. In an independent-particle example, let the last occupied energy level have ${ϵ}_{-}=-8u$ and the next empty level ${ϵ}_{+}=-3u$, for a chosen positive energy unit $u$. With an unchanged core and no residual interactions, removal from the filled level costs $8u$, whereas removing the first particle added above it costs $3u$: the drop $5u$ equals the one-particle gap. These are invented model inputs, not measured nuclear values. Nuclear pairing, rearrangement of the nuclear mean field, and correlations complicate that identification in real masses; a finite difference of nuclear binding energies is not automatically a bare one-particle gap.

A nuclear drip line marks a boundary beyond which one- or few-nucleon emission becomes energetically allowed. One- and two-particle nuclear separation energies can give distinct boundaries because of nuclear pairing.

Correlations that favor pairs of like nucleons coupled to zero total angular momentum in the simplest spherical picture. They help explain why an unpaired nucleon often dominates an odd nucleus's spin, and why neighboring nuclear separation energies show an odd-even staggering. Nuclear pairing belongs to the residual-interaction physics beyond merely filling independent energy levels. Mixing different occupations and deformation can also be necessary; the closed-core picture is most useful near suitable nuclear shell closures.

Why should adding one neutron be easy for one atomic nucleus and much less favorable for its neighbor? In the nuclear shell model, nucleons occupy discrete energy levels in a nuclear mean field. Filling all available states below a sufficiently large gap produces a nuclear shell closure. This connects nuclear separation energies with the counting of quantum states, and connects the spin of an odd atomic nucleus with its last unpaired nucleon.

The starting point is an approximate Hamiltonian operatorwhere $U_i$ is a confining potential energy, $a_i$ specifies nuclear spin-orbit splitting, and $V_{\mathrm{res}}$ contains interactions left out of the nuclear mean field. This is an effective organization of the nuclear many-body problem, rather than a derivation of the nuclear force. In a spherical approximation, addition of angular momentum combines the orbital angular momentum $l$ with spin $s=1/2$ to give $j=l\pm 1/2$; for $l=0$, only $j=1/2$ exists.

A level labelled $nlj$ has $2j+1$ magnetic substates $m_j=-j,-j+1,\dots ,j$. The Pauli exclusion principle permits one neutron in each such state and, separately, one proton. Thus a $j=7/2$ level holds eight neutrons, or eight protons; it does not hold sixteen identical neutrons. Here $n=1,2,\dots$ counts radial levels of the same $l$, starting with the lowest; it is not the hydrogenic principal quantum number. The letters $s,p,d,f,g,h,i$ mean $l=0,1,2,3,4,5,6$.

The original chart has $Z$ vertically and $N$ horizontally. Thus its region (a) is proton-rich relative to the beta-stable band, whereas (b) is neutron-rich.

Electron capture, $e^{-}+(Z,N)\to (Z-1,N+1)+{\nu }_e$, is the other proton-to-neutron weak process; it remains possible for some neutral atoms whose beta-plus decay lacks the $2m_e$ atomic-mass threshold.The emitted alpha particle contains two protons and two neutrons. Very heavy nuclei can also compete through nuclear fission; the chart alone does not determine each nuclide's branching fractions.

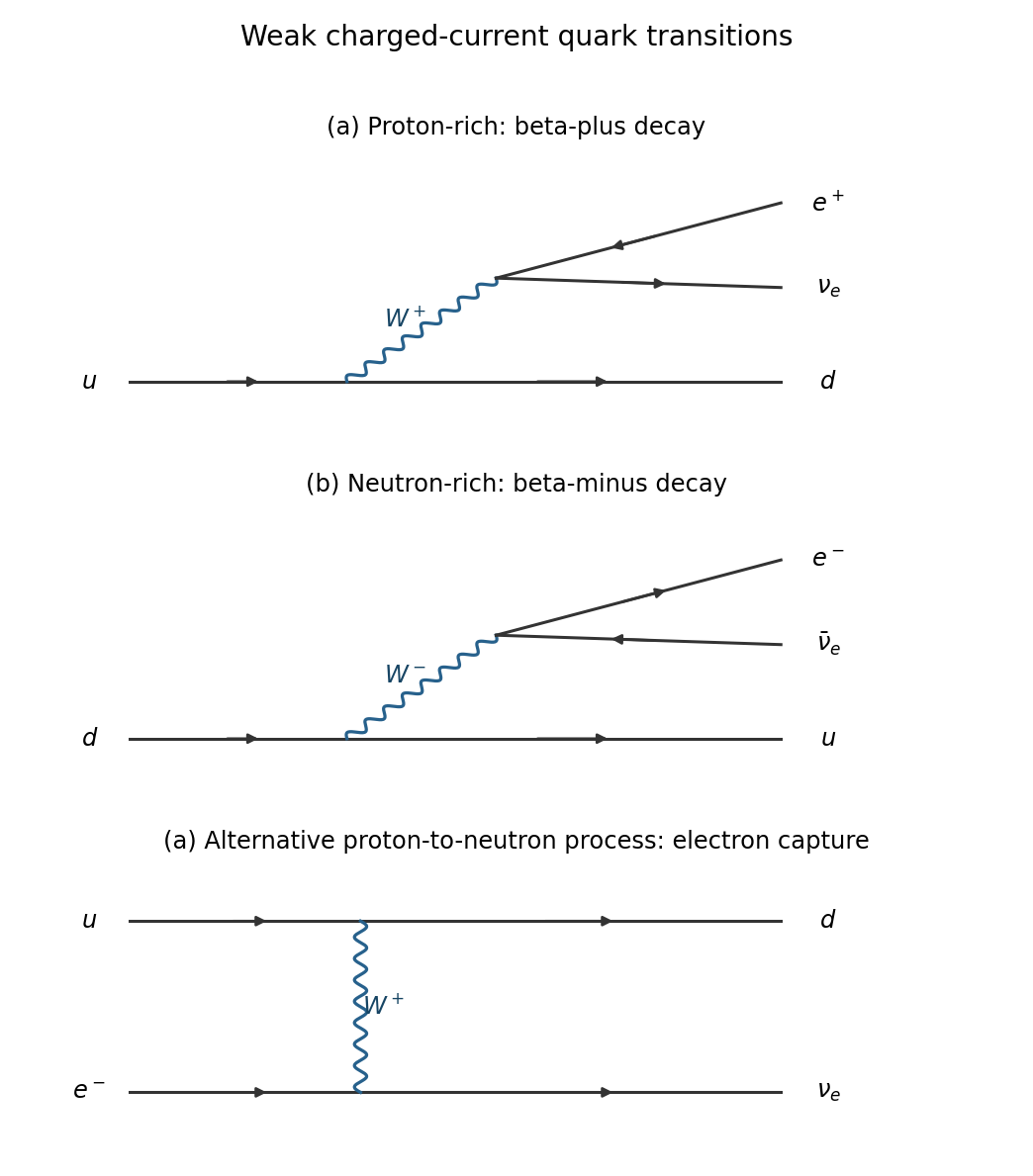

The quark transitions are $u\to d+W^{+}$ followed by $W^{+}\to e^{+}{\nu }_e$ in (a), and $d\to u+W^{-}$ followed by $W^{-}\to e^{-}{\bar{\nu }}_e$ in (b). The additional panel shows electron capture as $u+e^{-}\to d+{\nu }_e$ through W boson exchange. The remaining quarks in each nucleon are spectators.

Regions (c) and (d) lie beyond the proton and neutron binding limits, respectively. In (c), unbound protons can be emitted, $(Z,N)\to (Z-1,N)+p$; in (d), unbound neutrons can be emitted, $(Z,N)\to (Z,N-1)+n$. These are the proton drip line and neutron drip line limits, with one- or several-nucleon emission possible according to the nuclear separation energies. They are not merely more distant points on a beta-decay trajectory.

The valley of stability is the region of nuclear masses near the minima with respect to proton-neutron imbalance. Its beta-stable band bends toward neutron excess for heavier nuclei, as nuclear Coulomb energy competes with the cost of neutron-proton asymmetry. The band is distinct from the particle-emission boundaries set by nuclear separation energies.
