Past exam of the physics 1 paper of the University of Oxford / 2014 / 9 / c / Solution

The supplied PDF labels this equation clarified from original for tutorial purposes. Use the model of an eccentric wheel with missing-mass kinetic energy neglected: neglect the missing disc's contribution to kinetic energy, while retaining its subtraction from gravitational potential energy. Do not silently replace the gravitational mass $W$ by the full-disc mass $D$ as well.

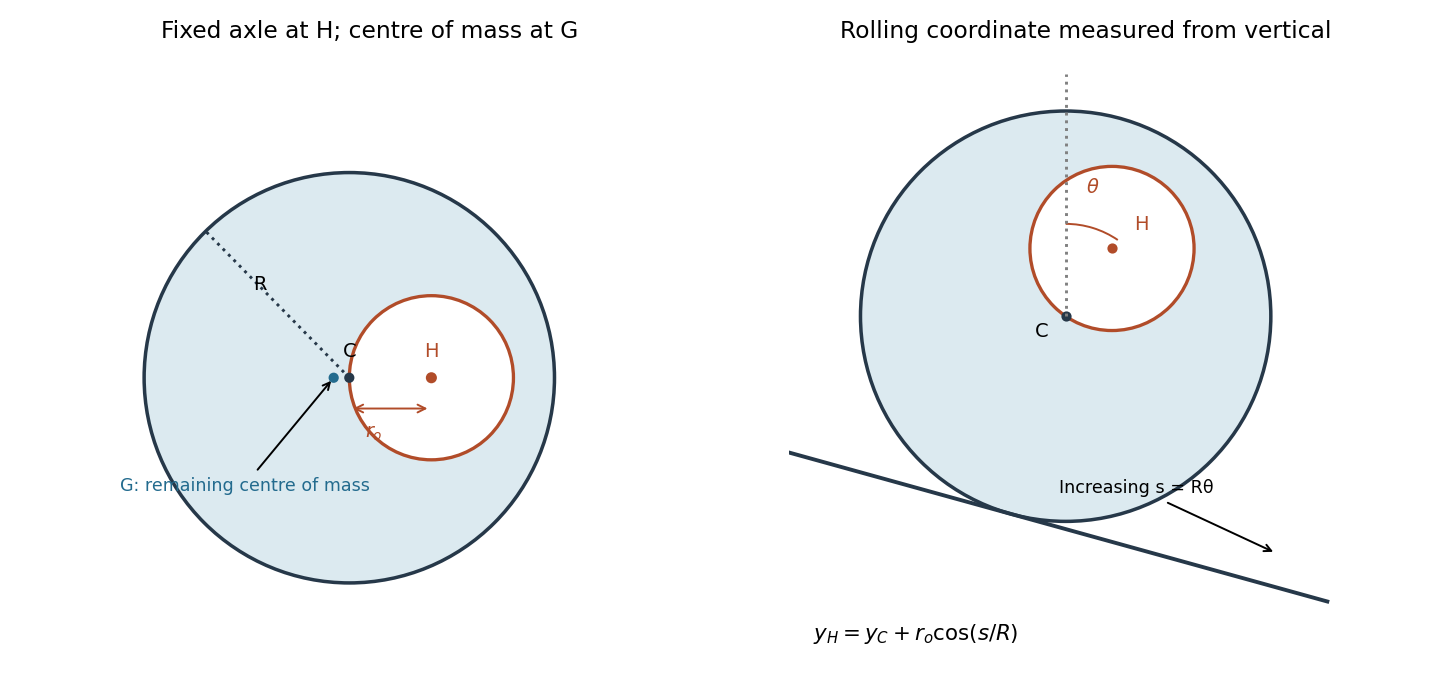

Choose $\theta$ as the clockwise angle of $\overrightarrow{CH}$ from the upward vertical, and set $s=R\theta$. The rolling without slipping constraint makes changes in $s$ equal changes in the distance C travels down the slope. Choose its additive origin so $s=0$ when the hole is vertically above C. Then, up to an irrelevant height constant,The approximate kinetic energy is that of the complete uniform disc rolling at $\dot{s}=R\dot{\theta }$:Subtracting the missing disc's gravitational potential energy givesApply the Euler-Lagrange equation to $\mathcal{L}=T-U$:ThereforeHere $K_1,K_2$ have dimensions of acceleration and $\gamma$ has dimensions of inverse length. The initial conditions are $s(0)=\dot{s}(0)=0$ under the vertical-above interpretation. If an initial orientation is instead specified relative to the slope normal, the same coordinate convention produces a different initial $s$, not different constants. With $r_o\to 0$ the equation becomes $\ddot{s}=(2/3)g\sin \alpha$, the familiar solid-disc result. Retaining the hole's exact kinetic energy would introduce coordinate-dependent inertia and extra ${\dot{s}}^2$ terms; the printed neglect is what permits the requested constant-coefficient form.
