The Zeeman effect connects a laboratory magnetic field to the frequencies and wave polarization of light emitted by chemical atoms. Its experimental history makes the viewing direction and spectral resolving power essential to the inference.

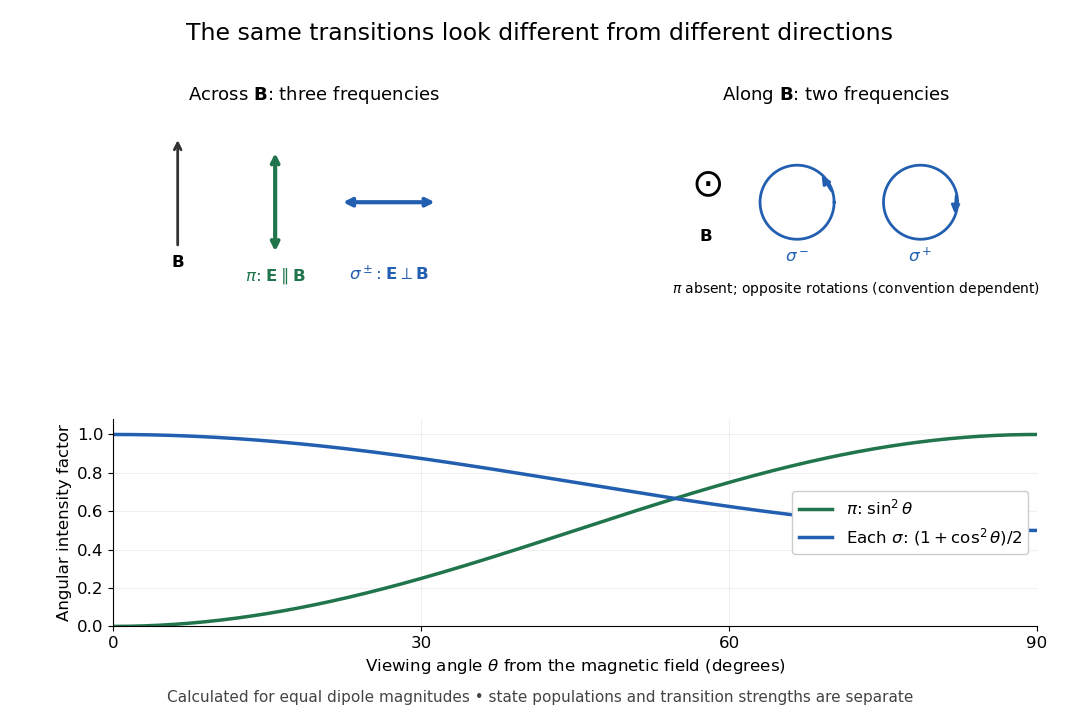

Viewed perpendicular to the magnetic field, the normal Zeeman effect has a $\pi$ component with linear polarization parallel to the magnetic field and two $\sigma$ components polarized perpendicular to it. Along the magnetic field, $\pi$ vanishes and the $\sigma$ pair has opposite circular polarizations. Pieter Zeeman described these geometry-dependent patterns in his lecture.^[ref]

The geometry can be derived from electric dipole radiation. Let the observation unit vector be $\mathbf{n}=(\sin \theta ,0,\cos \theta )$, with $\theta$ measured from the magnetic field. Radiation retains only the transverse part of the oscillating electric dipole moment $\mathbf{d}$:For $\pi$, take $\mathbf{d}\parallel \hat{\mathbf{z}}$; its angular light intensity factor is ${\sin }^2\theta$, so it vanishes on axis. For ${\sigma }^{\pm }$, use normalized complex dipoles $(\hat{\mathbf{x}}\pm i\hat{\mathbf{y}})/\sqrt{2}$. Their angular factors are $(1+{\cos }^2\theta )/2$. Projection gives circles on axis, lines at $\theta =\pi /2$, and generally elliptical polarization between. These factors assume equal dipole magnitudes; actual line light intensities also depend on initial quantum state populations, transition strengths and collection geometry. No absolute handedness name is needed: it depends on the viewing and phase conventions.

A transverse polarizer can separate $\pi$ from $\sigma$ even before the spectral line components are fully resolved. Along the magnetic field, a quarter-wave plate followed by a polarizer converts the two opposite circular polarizations into distinguishable linear settings. This explains why polarization analysis carried information beyond a small increase in line width.

In August 1896, Pieter Zeeman observed broadened sodium spectral lines at Leiden, initially without resolved components. His lecture describes a slit and concave diffraction grating, then compares the broadening with the sodium doublet separation: about one thirtieth, roughly $0.2$ ångström. This supplied a spectral reference scale, not an absolute magnetic field calibration. Later cadmium photographs displayed resolved transverse triplets and axial doublets.^[ref]

The fuller report specifies a concave diffraction grating of ten-foot radius with 14,438 lines per inch, an adjustable slit and a micrometer eyepiece with vertical crosswire. Salt in a flame between electromagnet poles supplied the sodium spectral lines. Repeated switching broadened and restored them. To test changes in flame temperature or vapour density, Pieter Zeeman examined photon absorption through a heated porcelain tube with water-cooled glass windows. The arc lamp was displaced from the magnet and its light redirected by a mirror to avoid disturbing the arc. Rotating a narrower tube made the absorption spectral lines equally broad at different heights; the magnetic field still broadened their whole length.^[ref]

For the axial test, pierced electromagnet poles let the light travel along the magnetic field. A quarter-wave plate and polarizer selected one broadened edge; rotating the analyser by $90^{\circ }$ or reversing the magnet current exchanged the visible edge. The crosswire made its displacement detectable. This tested electromagnetic polarization as well as line width. For its rough estimate the report compared each side's widening with the sodium doublet separation, obtaining about one fortieth, and stated an approximate magnetic field intensity in historical units. These passages give no absolute field-calibration procedure; the inferred charge-to-mass ratio was explicitly a first approximation.^[ref]

Hendrik Antoon Lorentz's charged-oscillator theory connected the observed splitting to moving electric charge. In modern language, a line-position measurement needs a wavelength or frequency calibration and an independent magnetic field calibration before it determines a magnetic dipole moment. Resolving the individual components adds the transition information used in the worked example below.
