Electromagnetic radiation is a propagating disturbance of the electric field and magnetic field that carries energy and momentum away from its source. It can be a sustained electromagnetic wave or a finite wave packet: periodic oscillation is not required. In vacuum the disturbance travels at the speed of light. A receiver responds to fields arriving now from an earlier source event, as expressed by retarded time. This is how electrical activity at one place can deliver energy and information elsewhere without a connecting wire.
Stored electromagnetic energy alone does not establish outgoing electromagnetic radiation. A stationary electric charge in electrostatics, or a steady localized electric current in magnetostatics, can store electromagnetic energy with zero Poynting vector. Static combinations can have circulating energy flux without net outward power. Near a changing source, reactive energy can return later. The near and far field distinction separates these contributions from outgoing radiation zone fields.[ref]
Chapter 27: Field Energy and Field Momentum. §27-5, Fig. 27-6: static fields with circulating energy flux
A single traveling vacuum plane electromagnetic wave obeying the Maxwell equations has . Its Poynting vector gives the energy density and flux of a plane electromagnetic wave:Here is wave intensity; and are vacuum permittivity and vacuum permeability. For a monochromatic wave with linear polarization and peak amplitude , squared cosine averages to . Pulses require the instantaneous Poynting vector; arbitrary incident-and-reflected superpositions need not obey this relation.[ref]
Chapter 27: Field Energy and Field Momentum. §27-5, Eqs. (27.16)–(27.18): traveling-wave energy flux
The electromagnetic momentum density is . Completely absorbing a unidirectional vacuum pulse of energy transfers momentum ; see radiation pressure on a perfectly absorbing surface. A calculated pulse transfers . Symmetric emission can lose energy without net recoil because opposite momenta cancel.[ref]
The direction of emission matters as much as its total power. For an oscillating electric dipole moment along , the angular distribution of electric dipole radiation is strongest across the axis and vanishes along it. Its origin is geometric: the electric dipole radiation field is the transverse projection of the second time derivative of the electric dipole moment, so its magnitude contains . Squaring this electric field to obtain wave intensity gives . The electric-dipole approximation for radiation requires a source much smaller than its wavelength and observation in the radiation zone. [ref]
Chapter 28: Electromagnetic Radiation. Feynman, Leighton and Sands, Electromagnetic Radiation, §§28-2–28-3: transverse acceleration and dipole geometry
Normalized angular pattern of electric dipole radiation
. Calculated radiation zone model, not measured data. The polar curve's radial coordinate is normalized power per solid angle, , rather than physical distance or a field line. The angle is measured from the dipole axis. Rotating this meridional pattern about that axis gives the three-dimensional angular distribution. Details.For example, the power per solid angle at is one quarter of its equatorial value, while the electric field amplitude is one half. To normalize the angular distribution to total power, use spherical coordinates with :The integral follows by substituting , giving . This is a probability-like normalization over direction, with units of inverse steradian; it does not make the dipole an isotropic radiator. The same angular integral underlies the Larmor formula for nonrelativistic accelerated electric charge.
Detection requires the incident electromagnetic field to do something observable. An antenna develops an electrical response; a thermopile converts absorbed energy into a thermal and then electrical signal; a photodetector can respond through photon absorption. Hertz spark transmission and detection experiment makes this conversion visible as a tiny spark. Detector orientation, sensitivity, and surrounding reflections all matter: failure to see a signal does not prove that no electromagnetic radiation reached the receiver.
Emission is the production of electromagnetic radiation by a physical system. Mechanisms include accelerated charges, transitions between quantum states and thermal fluctuations.
For an isolated atomic transition, a photon carries energy . In thermal emission, a macroscopic distribution of microscopic motions and states produces a spectrum controlled by temperature and material response. Emission must be distinguished from scattering of incident radiation, though a measured signal can contain both contributions. The process and observation geometry determine the relevant spectrum and angular distribution.
The electromagnetic spectrum organizes electromagnetic radiation by frequency or wavelength. In vacuum, and the photon energy is . Radio waves, microwaves, infrared, visible light, ultraviolet, X-rays and gamma rays belong to the same physical field, with conventional band boundaries.
Different bands couple differently to matter and require different sources and detectors. The visible band is only a small portion of the full range. Frequency remains unchanged at a stationary interface, while wavelength generally changes with propagation speed, so a quoted wavelength needs a medium convention when that distinction matters.
Ultraviolet radiation is electromagnetic radiation at shorter wavelengths than visible violet light and longer wavelengths than the neighboring X-ray band. Its photons have higher energies than visible photons because .
Its interaction with matter depends strongly on wavelength. A material that transmits visible light can absorb ultraviolet radiation, converting excitation into fluorescence, chemical change or heat. To measure transmission, compare the sample with a reference path at the same wavelength and account for the detector's spectral responsivity. Visible transparency is therefore an unreliable test of an ultraviolet window.
Radiation with appreciable spectral content over a range of frequencies. A broad spectrum alone does not specify the relative phases: incoherent radiation and a coherent broadband pulse can have different transition probabilities despite similar spectral intensities.
Reduction of transmitted intensity by absorption or scattering out of the accepted beam. For constant linear coefficient , a narrow unscattered beam follows .
A radiation pattern specifies emitted power per solid angle as a function of direction. For a slowly moving point electric charge with acceleration , . Its integral over directions is the Larmor formula; its fore-aft symmetry implies zero net radiated three-momentum in the instantaneous rest inertial frame. Directional detector power includes the distinction between source emission time and arrival time.
The distribution of emitted or received electromagnetic power, radiative flux or specific intensity across frequency or wavelength. The spectral quantity and interval convention must be specified: and differ by the change-of-variable factor, while gives energy flux per logarithmic frequency interval. This physical spectrum is distinct from the spectrum of a linear operator or a spectrum in topology.
A radiation spectrum whose spectral flux density follows a power law over a stated frequency range. For , the spectral energy distribution satisfies . Thus gives equal energy flux in equal logarithmic frequency intervals. A spectral break invalidates extrapolation with a single index.
The local logarithmic slope with the displayed sign convention. Other fields sometimes use the opposite sign, so an index should be accompanied by its defining power-law spectrum.
Radiation reaction is the influence on a source's motion of its own electromagnetic field, including the balance of radiated energy and momentum with changes of the near field. For sufficiently weak radiation loss, an averaged power balance can give the leading damping law without solving the full self-field dynamics. Replacing a constant-frequency radiation formula by its instantaneous slowly varying value requires an additional time-scale assumption; it is not an exact treatment of arbitrarily rapid motion changes.
For , use the zeroth-order equation inside the small third-derivative term, givingFor positive this reduced equation has a stable retarded response with no high-frequency runaway. Its response agrees with the unreduced oscillator to first order at fixed nonresonant frequency. Order reduction deliberately removes the singular fast mode outside the assumed low-frequency regime; it is an approximation rather than an exact alternative boundary condition for the third-order equation.
For positive , the real-axis frequency response of the radiation-reaction oscillator pole structure excludes future runaway growth but retains an upper-half-plane pole. Closing its inverse Fourier transform upward at gives a nonzero response before the force. The fast pole contributes approximately for negative . A strictly causal retarded prescription instead includes an exponentially growing term for positive and requires a Laplace transform contour. The pre-response is a consequence of imposing boundedness at future infinity, not an unavoidable property of all initial-value solutions of the differential equation.
For and the convention, the frequency response is . At small nonzero real , its poles areFor positive the slow oscillations decay but the fast mode runs away; for negative the fast mode decays but the slow oscillations grow. Thus no nonzero sign makes all modes stable. A causal initial-value response and a bounded response free of runaways impose different boundary conditions.
A radio wave is electromagnetic radiation in the radio portion of the frequency spectrum. In vacuum its frequency and wavelength obey the vacuum frequency-wavelength relation.
A microwave is a short-wavelength radio wave, commonly on millimetre-to-centimetre scales. Like other electromagnetic waves, it carries energy through coupled electric fields and magnetic fields; its scale makes conducting waveguides and resonant cavities practical.
A source, conducting guide, movable probe and detector can map a standing wave produced by reflection. Neighboring amplitude maxima are separated by half the guide wavelength, which need not equal the free-space wavelength because guided propagation has its own dispersion relation. Microwaves also drive suitable molecular or spin transitions, linking cavity apparatus to spectroscopy.
A monochromatic wave in vacuum has frequency and wavelength related by , where is the speed of light. During one oscillation period , a constant-wave phase surface travels one wavelength, so . Equivalently, the plane electromagnetic wave relation with angular frequency and wavenumber gives the same result.
As a calculated example, a vacuum radio wave with has using . Doubling frequency halves wavelength, independently of wave amplitude and wave intensity. The frequency spectrum of a pulse contains multiple frequencies; the relation applies to each vacuum component, rather than assigning one exact wavelength to the whole pulse. In a homogeneous medium replace by the appropriate phase velocity; the vacuum equation does not assert that all media have the same wavelength at a given frequency.
An outgoing radiation pulse carries a finite amount of electromagnetic energy through successively larger enclosing spheres. In vacuum, far from a localized source and without absorption or additional reflections, let be the emitted power. The retarded time at radius is . Define as the angular average of the radial Poynting vector over the sphere, not a cycle average:Here is the angularly averaged energy density in the leading radiation zone approximation. Multiplying by shell area removes geometric dilution: the energy per unit radial thickness translates outward without losing its shape. These angular averages do not assume that an actual electric dipole emits equally in all directions. Nor do they specify an exact spherically symmetric transverse solution of the Maxwell equations.
For an explicitly stipulated model, emitAfter emission ends, , the pulse lies between and , provided this shell is in the radiation zone. Its radial thickness remains . Substituting in the shell integral gives at every such time. The same substitution in the time integral of at any enclosing sphere gives that same total crossing energy. This is conservation of energy in two different views.
Along any fixed direction with nonzero outgoing power, compare the same part of the pulse at two radii, hence at different arrival times. The leading electric field amplitude falls as , while its squared wave intensity falls as . At the field is one half and the energy flux one quarter; the signal arrives later. A small fixed area receiver therefore intercepts less energy at greater distance even though every enclosing sphere receives the same total pulse energy. The inverse-square law expresses spreading over area, rather than destruction of energy. Close to the source, the neglected near and far field terms prevent extrapolating these formulas down to .
In his 1888 reflection experiments, Heinrich Hertz excited a straight conductor with a central spark gap driven by an induction coil. The receiver was a wire circle of radius with an adjustable small spark gap; tiny sparks were observed in darkness. There was no connecting transmission wire. [ref]
Electric Waves: Being Researches on the Propagation of Electric Action with Finite Velocity through Space by Heinrich Hertz. Hertz, Electric Waves (1893 translation), VII, pp. 108–109; VIII, pp. 125–127
He removed hanging metal fixtures, installed a by zinc reflecting sheet, and moved and rotated the receiver. Spark strength alternated with position and gap orientation, supporting specular reflection and wave interference. He checked observations from farther away because the observer's body perturbed the response. Changing oscillator dimensions changed the spatial pattern. [ref]
Electric Waves: Being Researches on the Propagation of Electric Action with Finite Velocity through Space by Heinrich Hertz. Hertz, Electric Waves, VIII, pp. 125–127 and 135–136: preparations and controls
These tests supported propagating electromagnetic waves, rather than mere detection of nearby induction. They did not establish unlimited reception distance. His wire-versus-air wave interference experiment addressed finite velocity; he later judged its quantitative velocity comparison doubtful because of room effects. [ref]
Electric Waves: Being Researches on the Propagation of Electric Action with Finite Velocity through Space by Heinrich Hertz. Hertz, Electric Waves, VII, pp. 107–108; Introduction, pp. 9–12: retrospective limitations
The physical inference combines transmission with a spatially structured response to a reflected disturbance. In an ideal monochromatic incident-and-reflected model, standing wave nodes are separated by ; combining a reliable wavelength with independently known frequency gives phase velocity . A spark is a threshold event, however: its presence or length is not a calibrated wave intensity or a direct arrival-time measurement. The actual loop also responds to its orientation and finite size, so the simple standing-wave model is an explanation of the test's logic, rather than a reconstruction of Hertz's measured points. Poynting theorem explains how source energy can reach and drive the receiver's discharge.
X-rays are high-frequency electromagnetic radiation, conventionally with wavelengths of roughly to . The precise wavelength convention varies with context. Hot accreting gas and energetic electronic processes can emit X-rays, whose short wavelengths make them useful probes of compact objects and electron shells.
For a photon, , where is the Planck constant and is the speed of light. As a calculated example, gives , using . The same wavelength can describe different production mechanisms: bremsstrahlung produces a continuous frequency spectrum, whereas Characteristic X-rays arise from discrete electronic changes in chemical atoms. Measuring transmitted X-rays gives radiography; measuring their frequency spectrum gives spectroscopy.
Wilhelm Conrad Röntgen's 1895 first communication describes an induction coil driving an evacuated gas-discharge tube, enclosed in black cardboard in darkness. A paper screen coated with barium platinocyanide showed fluorescence even with its uncoated side facing the tube, visible two metres away. The covering excluded ordinary illumination.[ref]
On a New Kind of Rays by Wilhelm Conrad Röntgen. Röntgen, On a New Kind of Rays, §§1–2; inspected reprint p. 153
He interposed materials: a thousand-page book transmitted; lead was practically opaque. A stepped stack of foil produced a photographic plate record. Different materials were not equivalent at equal density and thickness. Photographic plates checked visual observations while remaining covered against ordinary illumination.[ref]
On a New Kind of Rays by Wilhelm Conrad Röntgen. First communication, §§2–6; reprint pp. 153–154: absorption tests and photographic controls
Section 14 lists photographs of hand bones, wire on a bobbin, boxed weights, an enclosed compass, and a lead-painted door. It does not identify the hand's owner. Magnetic deflection moved the cathode ray impact point and thus the source, without bending the emerging X-rays. Their nature remained unsettled.[ref]
On a New Kind of Rays by Wilhelm Conrad Röntgen. First communication, §§11–14 and 17; reprint pp. 156–157
The observations belong to 1895; the contemporary English translation appeared in Nature on 23 January 1896.[ref]
On a New Kind of Rays by Wilhelm Conrad Röntgen. Catalogue, On a new kind of rays: notes identify the Nature translation and its publication date
The experimental logic separates production, transmission and detection. A visibly opaque covering can transmit X-rays; fluorescence then converts deposited energy into visible light. A shadow measures a difference between paths through an object, rather than a direct view of its surface. Neither a screen's brightness nor photographic darkness alone measures an absolute X-ray energy or establishes the X-ray attenuation law below.In 1924–1925, Walther Bothe and Hans Geiger tested event-level Compton scattering correlations against the statistical conservation proposed by BKS theory.[ref]
The Coincidence Method by Walther Bothe. The coincidence method, pp. 271–273
Needle Geiger counters shared a wall. X-rays passed beside it through hydrogen; recoil electrons registered in one counter and scattered photons triggered electron release in the other. Photographic records resolved approximately .[ref]
The Coincidence Method by Walther Bothe. p. 272: apparatus and timing
Two detection channels in the Bothe-Geiger coincidence experiment
. Original functional schematic based on Bothe's account; dimensions, angles and trace marks are illustrative. The common wall separates the counter regions; the direct beam avoids it. The drawing specifies neither wall material nor chamber shape. Photon detection requires electron release. Both records share a time coordinate. Details.The coincidence excess matched paired-emission expectations. Bothe distinguishes a later directional test from this timing experiment.[ref]
The two channels have different physical roles. The first responds to the local recoil electron's ionization. The second converts a scattered photon into an electron response, as in the photoelectric effect. A large counter signal is an amplified indication of an interaction, not a direct measurement of the incoming photon's energy. The detection efficiency and accepted directions determine how many genuine partners can be seen. Consequently, failure to record every partner is compatible with paired production.
The relevant distinction is between an average balance and a balance in each event. For an initially stationary free electron, Compton recoil kinematics givesHere are incident and scattered photon energies, is recoil kinetic energy, and is electron momentum. These are paired constraints, not just equations between averages over unrelated detections. Summing correctly paired events preserves the equations; throwing away the pair identities loses information. Two samples can have identical separate energy distributions while differing in their joint probability distribution.
The experiment therefore supplied evidence for the event association required by photon recoil, rather than weighing both outgoing energies in every event. A statistically established excess above accidental coincidences matters; one near-simultaneous pair cannot establish the association. It also cannot by itself settle every question about wave-particle duality.
Preparation, readout and background checks address different failure modes. The direct beam must avoid the second counter, and the counter boundary must prevent a recoil electron from masquerading as its own photon partner. Separate-channel rates constrain accidental coincidences; common disturbances or electrical coupling could instead create a correlated instrumental background. A useful diagnostic is to displace one record in time: under a stationary process assumption, unrelated-pair expectations persist while prompt partners separate. This is the explanatory control modeled below, not an assertion that Bothe performed that particular record-shifting procedure. A background estimate and a statistical comparison are essential to the inference.
The existing coincidence circuit article explains electronic selection, and accidental coincidence derives the accepted-window background. Here pairing can be understood directly from the two recorded time sequences, without imposing a modern detector trigger on the historical readout.
A photon-recoil lag correlation asks how often a photon record occurs at a specified time displacement from an electron record. Let be observed separate-channel rates, the rate of detected genuine pairs before a timing cut, and their normalized timing probability density function. For an original dilute, stationary model with observation time , neglecting end effects and detector dead time, the expected pair density isThis counts all pairs of records, rather than at most one detector trigger per electron. It uses independent unrelated detections for the flat term and an added same-event contribution. A normal distribution for timing spread is a chosen approximation, not a claim about the historical instrument. Intrinsic emission delay, counter response and readout uncertainty can all affect the observed probability density function.
Define the accepted lag interval by : is its full width. Integrating the flat baseline gives the existing accidental coincidence expectation . The additional area is . Moving a window of the same full width away from the peak tests the baseline under the model's stationarity assumption. It does not remove correlated instrumental backgrounds or changing rates automatically.
Lag-dependent pairs and a joint probability distribution carry information absent from singles totals
. Original chosen models, not historical counts or fitted data. Left: a normalized normal distribution of genuine-pair lags with standard deviation is added to an independent-pair baseline. Shaded intervals have full width , centered at zero and . Right: a separate exact ideal-bin model ignores timing spread; the two populations have identical singles expectations but different joint expectations. Details.For the lag model, choose , , , and timing standard deviation . A full width gives expected accidental coincidences and accepted genuine pairs, using the error function. The total is approximately , whereas the displaced interval from to has approximately expected pairs. A finite sample fluctuates around these expectations; these values are not measured counts or a significance calculation.
The right panel isolates the information lost by retaining singles totals alone. In a separate idealized model, stipulate independent bins, with Bernoulli distribution indicators for electron and photon detection in a bin. Set and . Independence predicts , hence one expected double detection. Alternatively chooseThese nonnegative probabilities sum to one and preserve both marginal probabilities, yet predict double detections in expectation. Their covariance is . This is an exact joint probability distribution illustrating pairing; it does not model the timing spread in the left panel or reconstruct either historical hypothesis quantitatively. Its lesson is why two singles totals cannot decide whether the observed events share a cause.
An X-ray tube accelerates electrons from a negative cathode to a positive target anode. A heated cathode supplies electrons by thermionic emission; the evacuated envelope limits collisions before the target. This differs from the gas-discharge tube in the Röntgen X-ray discovery experiment.[ref]
Chapter 5: X-Ray Production (teaching slides) by K. P. Maher. Diagnostic Radiology Physics: A Handbook for Teachers and Students; IAEA, Chapter 5: X-Ray Production, §§5.2–5.3.2; authored teaching slides, inspected transcription
In bremsstrahlung, an electron changes velocity in the target's electric fields, emitting a photon while losing kinetic energy. Different encounters allow a continuous range of transferred energies. This is distinct from the discrete electronic transitions producing Characteristic X-rays.
Changing the accelerating voltage changes the available kinetic energy per electron and the X-ray tube cutoff. Changing the number of arriving electrons changes the number of opportunities for photon emission. These are distinct controls: a larger electric current does not by itself give each electron more energy. For an original idealized budget, and tube electric current give electrical power and arrival rate , where is the elementary charge. This is input power, not emitted X-ray power; obtaining the latter requires a conversion efficiency.
For an electron starting with negligible kinetic energy and accelerated through a constant positive electric potential difference , electrical work supplies . In the ideal single-electron bremsstrahlung model, conservation of energy bounds any one emitted photon:The endpoint corresponds to essentially all available kinetic energy going into one photon. It is a limiting bound, not a claim that every electron produces an endpoint photon. Neglect target recoil, initial kinetic energy, and losses before the emitting interaction. If the accelerating voltage varies, its largest value sets the corresponding ideal upper endpoint; a mean voltage does not substitute for that value.
For a calculated constant- example, gives and . Doubling halves . Producing a photon requires at least in this model. A continuous frequency spectrum spans lower photon energies; the cutoff calculation predicts neither its shape nor the efficiency of photon emission.
A Characteristic X-ray comes from an electronic transition filling an inner electron shell vacancy. The emitted photon carries the difference between atomic energies. Vacancy creation by direct electron impact requires kinetic energy above the shell's binding energy, exceeding the line energy. Higher tube voltage need not move the spectral line.[ref]
Chapter 5: X-Ray Production (teaching slides) by K. P. Maher. Diagnostic Radiology Physics: A Handbook for Teachers and Students; IAEA Chapter 5, §§5.2.2–5.2.3: shell vacancy, binding-energy threshold and characteristic radiation
An original stipulated shell model illustrates the distinction without using measured atomic data. Let positive binding energies be and , ignoring relaxation corrections. Filling a K-shell vacancy from the L shell releasesAn tube can energetically emit a bremsstrahlung photon, yet cannot directly remove this K-shell electron. A tube can create that vacancy by electron impact; if radiative filling occurs, the line is still , not . This argument concerns direct electron impact and an initially unexcited target; it does not describe every possible excitation route.
X-ray emission spectroscopy studies the frequency spectrum of emitted X-rays. The spectral line positions identify electronic energy differences; their strengths also depend on excitation, photon absorption inside the sample, geometry and detector response. An X-ray tube may excite a sample with electrons, while X-ray fluorescence uses incident photons. The distinction matters when choosing what the experiment measures: identifying a chemical element from a line position is different from determining its abundance from a line strength.
Charles Glover Barkla's 1911 paper describes irradiating a target with an X-ray tube and observing secondary X-rays using an electroscope. For soft Characteristic X-rays from tin, he used a soft primary beam and placed the electroscope close to the target to limit loss in air. Successive aluminium absorbers changed the gas-ionization signal. Thick absorbers suppressed the soft component; a carbon radiator supplied a comparison for the surviving scattered component. Subtracting this estimated contribution left approximately equal fractional losses through successive sheets, evidence for a nearly homogeneous component. Changing primary-beam hardness could suppress excitation of the more penetrating characteristic component.[ref]
The Spectra of the Fluorescent Röntgen Radiations by Charles Glover Barkla. Barkla, The spectra of the fluorescent Röntgen radiations (1911), p. 396: soft tube, nearby electroscope, aluminium sheets, carbon comparison and subtraction
An electroscope reads loss of stored electric charge; ionization in its detecting gas enables discharge. An ionization chamber with an electrometer instead measures the collected electric charge or electric current. These are integrating readouts: neither directly assigns an energy to each arriving photon. The diagram separates these functions without claiming a surviving apparatus drawing.
The K and L components were distinguished by their penetrating power and dependence on the emitting chemical element. Barkla's Nobel lecture, delivered on 3 June 1920 for the 1917 prize, explains that absorber-defined K radiation had seemed homogeneous, whereas later diffraction experiments resolved neighbouring spectral lines in both K and L groups. Absorber tests therefore distinguished groups without resolving every line.[ref]
Characteristic Röntgen Radiation by Charles Glover Barkla. Nobel Lectures, Physics 1901–1921; Barkla, Characteristic Röntgen radiation, printed pp. 392 and 395, PDF pp. 132 and 135: lecture date and limitations of absorption analysis
Henry Gwyn Jeffreys Moseley subsequently related the frequencies of corresponding spectral lines to atomic number. The approximate relation , with series-dependent constants , is Moseley's law; its discovery should be distinguished from Barkla's identification of characteristic secondary radiation.[ref]
Moseley and X Rays by University of Oxford Department of Physics. University of Oxford Department of Physics, Moseley and X rays: Moseley's graph and the story of Moseley and X-rays
A continuous incident frequency spectrum can contribute a continuous scattered background alongside discrete Characteristic X-rays. Here “scattered” identifies a production process, not a universal spectral shape: scattering of a narrow incident line need not make a continuum. In particular, the characteristic component is photon emission after vacancy creation, rather than simply the primary beam redirected. Source hardness, target substitution and absorber thickness probe different parts of that distinction. A surviving signal alone establishes neither an additional electron shell nor a fully resolved spectral line.
Precision X-ray emission spectroscopy turns closely spaced spectral lines into quantitative constraints on atomic energy levels. Bragg's law makes a crystal an angular ruler for wavelength: resolving nearby directions can reveal components hidden inside an apparently single line. Accurate line positions and the ability to separate two lines are related, but distinct, experimental achievements.
Karl Manne Georg Siegbahn received the 1924 Nobel Prize in Physics; his lecture was delivered on 11 December 1925.[ref]
The X-ray Spectra and the Structure of the Atoms by Karl Manne Georg Siegbahn. Nobel Lectures, Physics 1922–1941; The X-ray Spectra and the Structure of the Atoms, heading, printed p. 81
His son Kai Siegbahn received the 1981 Nobel Prize in Physics for electron spectroscopy.[ref]
Facts on the Nobel Prize in Physics by Nobel Prize Outreach. Family Nobel Prize laureates in physics, Father and son: Manne and Kai Siegbahn
The Barkla characteristic X-ray experiment distinguished element-dependent K and L groups through absorption and excitation. Moseley's law related corresponding line frequencies across chemical elements to atomic number. Measuring the components within those groups asks a further question: which distinct atomic energy differences produce the neighbouring spectral lines?
Siegbahn's lecture organizes measured spectral lines into energy levels and resolved double levels.[ref]
The X-ray Spectra and the Structure of the Atoms by Karl Manne Georg Siegbahn. Nobel Lectures, Physics 1922–1941; Printed pp. 84–86, Figs. 1–2
The payoff is a map of atomic energy differences as well as an element's position in the periodic table.A crystal X-ray spectrometer selects a narrow wavelength interval by diffraction at known interplanar spacing and Bragg angle . For fixed diffraction order , a known lets an angular measurement determine . This reverses the crystallography problem of finding from a known wavelength.
Siegbahn's laboratory developed X-ray tubes and evacuated spectrographs for longer wavelengths. Rotating the crystal selected reflections; photographic plates recorded positions. Opposite-side exposures measured angles on both sides of the direct beam. Later tube instruments mounted a beam-defining slit opposite the plate holder. A separate double instrument compared two reflected beams with two ionization chambers. These were different instruments, not one universal assembly.[ref]
Manne Siegbahn, His Research by Hugo Atterling. Hugo Atterling, Manne Siegbahn: Development of precision spectroscopy; Work at Uppsala 1923–1927
The Nobel biography describes constant-temperature spectrographs and a precision angular scale read by diametrically opposed microscopes.[ref]
Manne Siegbahn - Biographical. Nobel Lectures, Physics 1922–1941; Biographical, paragraph beginning As a measure of the high precision; inspected collected volume pp. 90–91
Temperature control matters because thermal expansion changes ; an accurately read angle cannot compensate for an unknown interplanar spacing.The schematic separates preparation, selection and readout. An X-ray tube target supplies Characteristic X-rays with a possible bremsstrahlung background. A collimator limits incident directions; evacuation reduces air X-ray attenuation. Rotating the crystal brings different wavelengths into reflection. A photographic plate stores line positions over an exposure, whereas an ionization chamber can measure collected electric charge at successive angles. Neither readout alone establishes absolute wavelength: an angular zero, angular-scale calibration, diffraction order, and any required refraction correction enter the inference. Narrower slits reduce accepted angular spread but also reduce signal; a weak line can become harder to locate despite a narrower instrumental response.
A control reported in Siegbahn's lecture photographed a line system with copper-sulphate and calcium-sulphate crystals. Irregular relative shifts around copper's characteristic frequency supported anomalous dispersion; the arrangement excluded differing absorption across that frequency as the explanation.[ref]
The X-ray Spectra and the Structure of the Atoms by Karl Manne Georg Siegbahn. Nobel Lectures, Physics 1922–1941; Printed pp. 88–89, final experiment
A finer angular scale alone cannot remove this physical refraction correction.Differentiate Bragg's law at fixed correctly assigned diffraction order:Divide the second equality by the first. For small signed changes,The Bragg angle error must be in radians. An error quoted for detector deflection must first be halved. The expression is a first-order Taylor expansion; an unknown diffraction order is a discrete assignment error, not an infinitesimal perturbation.
For error bounds, add magnitudes. For independent zero-mean random errors with standard deviations , variance addition instead givesCorrelated errors require a covariance term. A shared calibration bias does not become independent merely because many line positions are measured.
With a chosen angular error arcseconds, , the angular contribution is at and at . Larger Bragg angles reduce this contribution because decreases. For a nearby spectral doublet, the inverse relation is : a fixed fractional separation spreads farther apart angularly at large Bragg angle.
This does not permit unlimited improvement. The geometry requires ; a desired wavelength might not have an accessible large-angle reflection with the chosen crystal. Higher diffraction orders can reach larger Bragg angles but their strengths depend on the crystal lattice structure factor. Finite crystal response, slit widths and source size remain relevant. An error in , including uncorrected thermal expansion, remains even when the angular term is small. Very near , the leading angular derivative vanishes and the second-order Taylor expansion matters.
For two lines measured with the same interplanar spacing at the same temperature, division of Bragg's law givesThe common cancels. Consequently a precise wavelength ratio can coexist with an uncertain conversion to SI length. In contrast, angular calibration errors generally survive: a shared small zero offset changes the inferred ratio fractionally by approximately . Nearby lines partially cancel this effect, but widely separated angles need not. Different crystals, temperatures or refraction corrections also prevent unqualified cancellation.
The historical X unit was a practical X-ray wavelength unit, approximately . Its scale used an assigned calcite spacing; relative wavelength measurements could be more precise than absolute determinations. Variation between crystal specimens led to calibration using reference spectral lines. An X unit value therefore cannot simply be read as an exact multiple of .[ref]
Nomenclature System for X-ray Spectroscopy prepared by R. Jenkins and others. IUPAC, Nomenclature system for X-ray spectroscopy, §5.1 Units, printed p. 745
An angular-scale check determines how an indicated rotation corresponds to an angle. A reference line transfers a wavelength scale. An absolute determination ties that scale to an independently established length standard. These are different calibration tasks. Repeating measurements can reduce random scatter without correcting the common scale: if every inferred is too large by a chosen , all inferred absolute wavelengths are too large by , while ratios using that same are unchanged.
A spectral doublet comprises two neighbouring spectral lines. Resolving it requires information about the line response, relative strengths and noise, not only precision in reading an angle. Choose two equal angular responses shaped as Gaussian functions with common standard deviation and separation . If is angular displacement from their midpoint, their summed signal isThese are assumed response shapes, not a measured Siegbahn frequency spectrum. By symmetry , andThe midpoint changes from a maximum to a minimum at . For this particular equal-width, equal-height model, two distinct maxima occur when . Each isolated Gaussian function has full width at half maximum ; the two-maxima threshold is therefore about times that width.
In this chosen model, the two Bragg angles are and . Their separation is times for , giving one maximum, and times for , giving two. Sharpening the response can reveal the doublet without changing either emitted wavelength.
The Rayleigh criterion uses a first-zero convention for specified diffraction patterns. A Gaussian function has no finite zero, so its two-maxima threshold is not the Rayleigh criterion. Neither convention is a universal inference limit: known response shapes and adequate signal-to-noise ratio can support estimating a separation before two visible maxima appear. Unequal strengths, background, finite sampling and uncertainty in the response can make that inference much harder. Measurement resolution, the precision of an isolated line's centre and absolute wavelength accuracy should therefore be reported separately.
For a fixed homogeneous absorber in a narrow-beam geometry, define the X-ray spectral attenuation operator on L1 space over a bounded positive energy interval. A physical input is an integrable function giving incident photon rate density. Let its linear attenuation coefficient be a measurable function, with . The transmitted uncollided density isHere is a fixed bounded detector response described by a measurable function; background has been subtracted. This is a positive linear operator on L1 space. Since , it cannot increase the integrated absolute incident rate. Multiplication of exponentials proves for successive layers of the same material. Ignore secondary radiation entering the detector, saturation and changes to the source. Discrete spectral lines use the finite-sum version below instead of an ordinary rate density.
For a chosen filter, stipulate , and input line rates in a common arbitrary rate unit. Assume equal calibrated detector weight for both lines. At ,The selected line's fraction rises from to , but its absolute rate falls by about . Filtering improves purity at the cost of signal. It multiplies existing components and cannot create a new emitted spectral line.
With just one integrated reading, , the two unknown line rates are underdetermined. If the source is unchanged between an empty-path reading and a filtered reading, the ideal inverse problem becomesThe determinant is nonzero, so these two ideal readings determine the two stipulated line rates uniquely. Identical coefficients would give zero determinant and destroy that separation. This small linear algebra example explains why absorber contrast supplies information, while also showing its limit: unknown scattered components or unknown detector weights add unknowns that two readings cannot determine.
X-ray fluorescence is Characteristic X-ray emission following excitation by incident photons. In a simple initially unexcited chemical atom, photoionization can eject an inner electron if the incident photon supplies its binding energy. An outer electron can then fill the vacancy, releasing an emitted photon with the difference of shell binding energies. Nonradiative relaxation competes with this route, so one absorbed incident photon need not yield one escaping characteristic photon.
Choose a separate stipulated electron shell model with values , and , all in . Ignore subshell splitting, recoil and changes of binding energy during relaxation. The possible shell differences areThese labels denote simplified shell groups, not resolved subshell electronic transitions. With , their calculated wavelengths are respectively , and . An incident photon exceeds both K-line energies but cannot directly create the K vacancy in this initially unexcited model. A photon can, leaving approximately of photoelectron kinetic energy. This comparison fixes neither the excitation probability nor the radiative branching probability.
For a narrow beam of monoenergetic photons crossing homogeneous material of thickness , the uncollided wave intensity obeys . Here is the linear attenuation coefficient, counting removal from the incident beam by photon absorption and scattering of light. It depends on photon energy and material; it is not universally independent of energy.[ref]
2. The Mass Attenuation Coefficient. Tables of X-Ray Mass Attenuation Coefficients and Mass Energy-Absorption Coefficients by John H. Hubbell and Stephen M. Seltzer; NIST, X-Ray Mass Attenuation Coefficients, §2, Eq. (1), narrow monoenergetic beam and interaction contributions
An original derivation makes the model explicit. If each thin layer removes fraction of the surviving beam, with the same throughout, thenThus equal added thicknesses multiply transmission by the same factor. The ordinary differential equation describes uncollided beam survival. To test it with a detector, keep source output, distance, selected photon energy band and detector response fixed. Use a collimator and suitable detector acceptance to exclude scattering of light into the detector. Subtract background, measure an empty-path reference, and keep the detector in its linear operating range. A changing source distance adds geometric dilution and is not an attenuation measurement at fixed geometry.
For a stipulated example, take and . Transmission is . If the empty-path detector rate is , including background , the model predicts sample rate . Recover transmission as ; the raw ratio is biased. These chosen values are a calculation, not measurements of a particular material or a historical apparatus.
When X-ray transmission is exponential, and when spectral mixing bends it
. Original calculated examples, with stipulated linear attenuation coefficients in inverse millimetres. The left panel uses one photon energy and marks and the half-value layer. The right panel compares an equal-weight mixture of two photon energies with the exponential having the same initial slope. A logarithmic vertical axis turns a single exponential into a straight line. Neither curve is fitted to measured material data. Details.The linear attenuation coefficient is the infinitesimal probability of removal from the uncollided beam per unit path length. Its units are inverse length. In the homogeneous monoenergetic model, ; is the thickness leaving fraction uncollided. The mass attenuation coefficient is for material mass density . Removing a photon by scattering of light does not imply deposition of all its energy at that point; attenuation and energy absorption are different quantities.[ref]
2. The Mass Attenuation Coefficient. Tables of X-Ray Mass Attenuation Coefficients and Mass Energy-Absorption Coefficients by John H. Hubbell and Stephen M. Seltzer; NIST §2, mass thickness, Eq. (1), and total interaction cross section; distinction from the mass energy-absorption coefficient
A coefficient describing the locally absorbed fraction of an incident photon energy flow per path length, under a stated averaging convention. It is distinct from the total linear attenuation coefficient, which counts removal from an uncollided beam. Dividing by mass density gives an energy-absorption coefficient per mass.
The uncollided component decays exponentially when its removal probability per unit path length is constant. Scattered contributions require a separate transport treatment or a specified radiation buildup factor.
The linear attenuation coefficient divided by the material mass density.
An energy-weighted interaction coefficient for photons, accounting for the fraction transferred to charged particles after radiative losses. It differs from the removal-probability mass attenuation coefficient. With charged-particle equilibrium, its product with photon energy fluence gives the absorbed dose.
The half-value layer is the thickness reducing the specified transmitted signal by one half. For constant monoenergetic linear attenuation coefficient , solving gives . The stipulated gives ; two such layers transmit one quarter. A broad frequency spectrum need not retain the same half-value layer after filtering.
An original two-energy model demonstrates the failure of a single constant linear attenuation coefficient for a mixed beam. Suppose the two components contribute equally to the empty-path detector signal and have stipulated and . With fixed linear detector response and no accepted scattering of light,The initial slope corresponds to , but at , , rather than . The more strongly attenuated component disappears faster. If that component has lower photon energy, the surviving beam has a higher mean energy: beam hardening. The formula is explicitly a two-component example, not a universal rule that attenuation decreases monotonically with photon energy. Detector weighting also matters when interpreting a broadband transmission signal.
An absorption edge is an abrupt change in photon absorption as incident photon energy crosses an electronic excitation threshold. For inner-shell photoionization, a new vacancy-production channel opens near the shell's binding energy. This threshold concerns incident energy; a Characteristic X-ray concerns a subsequent difference of atomic energies. They are different observations. Barkla's lecture explicitly treats characteristic emission as requiring a critical excitation condition, while discussing characteristic radiation separately from scattering.[ref]
Characteristic Röntgen Radiation by Charles Glover Barkla. Nobel Lectures, Physics 1901–1921; Barkla, Characteristic Röntgen radiation, printed p. 395, PDF p. 135: shorter-wavelength excitation and critical condition
In the stipulated X-ray fluorescence model, the K threshold is , whereas the K lines are and . An absorber made of a different material could have its own absorption edge between those line energies, preferentially removing the upper line. Actual near-edge structure and attenuation values require material data; the following deliberately chosen coefficients are not such data.
Radiography forms an image from spatially resolved transmission of X-rays or other penetrating radiation. A source illuminates the object, and a detector on the other side records how much radiation reaches each position. Variations in attenuation make internal differences observable without cutting the object.
A thicker region and a more strongly absorbing material can give similar transmission, so one projection does not uniquely determine composition or three-dimensional shape. Unwanted scattering reduces image contrast by adding radiation that did not follow the intended straight path. A reference exposure measures source and detector nonuniformity; multiple viewing directions provide additional geometric information.
A chest radiograph is an X-ray transmission image through the chest. Different paths encounter different compositions and thicknesses, producing different detected intensities through attenuation. The detector records a projection through the body rather than a physically isolated slice.
For a narrow monochromatic beam, a spatially varying linear attenuation coefficient gives . Real sources emit an electromagnetic spectrum of photon energies, and scattered radiation contributes additional signal. Overlapping structures can therefore be ambiguous in a single projection; detector display brightness also depends on processing and must not be confused directly with one local material density.
The nonrelativistic radiated power of an accelerated point charge is in SI units. Integrating its dipole radiation pattern over solid angle gives this result; relativistic motion requires the Lienard generalization.
For a nonrelativistic point charge, let be the time-averaged second moment of acceleration, without subtracting its mean. The outgoing radiation zone fields satisfy and . Their Poynting vector gives the displayed power per solid angle. Its integral is , the averaged Larmor formula.
For periodic motion the mean acceleration vanishes and is also its covariance matrix. More generally the second moment, rather than the centered covariance matrix, is the relevant quantity. The angular formula is valid to leading nonrelativistic order and evaluates source motion at retarded time.
The Liénard radiated-power formula gives the total instantaneous emitted power of an accelerated classical point charge. Write for its velocity, for its coordinate acceleration and for its Lorentz factor. In SI units,For small this reduces to the Larmor formula. The perpendicular and parallel components carry different powers of , which makes the constraint in a radiation comparison important.
With metric signature , four-velocity and four-acceleration , the same SI result isThe minus sign compensates the negative squared norm of the four-acceleration. This total emitted power is invariant under changes of inertial frame; directional detected radiative flux involves additional angle and arrival-time transformations. [ref]
Classical Electromagnetism by Richard Fitzpatrick. Larmor Formula, equations 1940–1944; SI four-acceleration and three-acceleration forms
For circular motion perpendicular to a magnetic field, givesThis substitution uses the magnetic Lorentz force and keeps the same SI units throughout.
For one particle at a fixed Lorentz factor, the Liénard radiated-power formula gives and , where . Consequently equal coordinate acceleration magnitudes make transverse motion radiate less by . Equal applied laboratory force magnitudes instead give and , so . These opposite orderings concern distinct constraints and are consistent. An energy budget without a time, length, force, or acceleration constraint cannot by itself select a unique minimum-loss accelerator design.
The electromagnetic scattering solution for a sphere describes the transition between Rayleigh scattering and geometrical optics. Grain-size-dependent efficiencies can produce structure in the radiation-pressure coefficient.
Synchrotron radiation is electromagnetic radiation emitted by relativistic charged particles undergoing transverse acceleration, typically when a magnetic field bends their paths. For ultrarelativistic particles, emission is concentrated near the instantaneous direction of motion rather than distributed isotropically.
A circulating electron beam therefore loses energy even when the bending magnet itself does no work. Radiofrequency accelerating fields replenish that loss in a storage ring. The extracted radiation is useful as an intense source for spectroscopy and imaging; its angular distribution, polarization and optical spectrum depend on particle energy and magnetic geometry. In synchrotron cooling, those same radiation losses reshape a particle population.
At fixed magnetic field, ultrarelativistic electrons lose energy through synchrotron radiation at a rate proportional to . For steady injection , negligible escape and , integrating the energy-space continuity equation gives . Above the cooling break, the optically thin radiation spectral index therefore steepens from to .
The forward radiation cone sweeps past a distant observer while the source moves closer. The difference between emission time and arrival time shortens the observed pulse to order and broadens its spectrum.
In a fixed tangent viewing geometry, an electron bunch of longitudinal length passes the same radiating point over approximately . Different electrons then emit from nearly the same point at different times. The incoherent pulse envelope is the convolution of the single-electron intensity profile with the bunch's passage-time distribution, assuming equal particle trajectories and a linear detector. Its width generally has scale at least . A bunch short compared with the orbit need not be short compared with the intrinsic single-electron pulse.
For an ultrarelativistic circular orbit of curvature radius , the conventional critical angular frequency is . It sets the broad spectral scale rather than a strict maximum frequency.[ref]
Synchrotron Radiation in the Geant4 Physics Reference Manual by Geant4 Collaboration. Critical energy and critical mode number
Bremsstrahlung is electromagnetic radiation emitted when a charged particle accelerates during interaction with another charged particle or field. The microscopic process creates a photon, while its inverse absorbs one. Thus it contributes to a photon-number collision source in the photon number current, unlike ordinary Compton scattering. Thermal bremsstrahlung averages this emission over a thermal distribution of charged particles.
Radiation from unbound charged particles during a scattering encounter, notably electrons accelerated by ions in a plasma. Both the initial and final electron states are free, distinguishing this process from emission involving an atomic bound state.
For an electron accelerated through a electric potential difference and stopped at a massive target, the largest single photon energy is approximately . Conservation of energy and give the short-wavelength cutoff . Target recoil is neglected in this limiting relation.
Free-free absorption is the inverse of bremsstrahlung: a free electron absorbs a photon during an encounter with an ion, which permits conservation of momentum. In local thermodynamic equilibrium its absorption coefficient and the thermal free-free emissivity obey Kirchhoff's law of thermal radiation, . For a nonrelativistic plasma at , , including the stimulated-emission correction in the net coefficient.
Thermal radiation is electromagnetic radiation emitted by matter because of its temperature. Matter in thermal equilibrium emits a spectrum governed by its absorptivity, approaching the Planck law for a blackbody.
A thermal radiation shield interposes a surface to reduce radiative heat exchange between an apparatus and its surroundings. temperature, emissivity and view factors determine its effectiveness; conductive supports and gas transport remain separate heat paths. A thermal radiation shield is not automatically an ionizing-radiation shield.
For a sphere of radius , the scattering efficiency is its effective scattering area divided by the projected geometric cross-section . It is a dimensionless quantity. For Rayleigh scattering by a small sphere with relative refractive index and incident wavenumber ,At fixed wavelength and fixed refractive index, the Rayleigh scattering cross-section scales as , whereas the scattering efficiency scales as . Doubling radius multiplies the former by and the latter by . An efficiency here is an effective scattering area relative to a reference area, rather than a fraction of all light in an arbitrary beam.
For a worked toy example, take , , and . Then and . Substitution gives Rayleigh scattering cross-section and scattering efficiency . At incident light intensity , the scattered power is approximately . These are leading small-particle estimates, not a measured air-molecule cross-section.
Rayleigh scattering is elastic scattering of electromagnetic radiation by particles much smaller than the incident wavelength. In the stationary particle approximation, the scattered electromagnetic radiation keeps the incident frequency: its direction changes, rather than its color. The incident electric field induces an oscillating electric dipole moment, which produces electric dipole radiation. This is a useful example of how a microscopic response can explain a familiar large-scale sight, why the sky is blue. [ref]
https://farside.ph.utexas.edu/teaching/jk1/lectures/node108.html. Richard Fitzpatrick, Rayleigh Scattering: bound-charge response and wavelength dependence
.The smallness condition for Rayleigh scattering by a small sphere of radius is , where the wavenumber is and is the surrounding medium's wavelength. For ordinary materials with modest refractive index, the incident electric field then varies little across the particle, making the electric-dipole approximation for radiation useful. For very large refractive index, also check the internal size before applying the simple electric dipole model. Once these conditions fail, use Mie scattering for a sphere instead of extrapolating the Rayleigh scattering wavelength dependence.
Historically, the 1871 paper [ref]
https://en.wikisource.org/wiki/Scientific_Papers/Volume_1/On_the_Light_from_the_Sky,_Its_Polarization_and_Colour. Rayleigh, On the Light from the Sky, Its Polarization and Colour: original-paper transcription
connected the color and polarization of an electromagnetic wave of scattered skylight with particles smaller than the wavelength. Its dimensional analysis anticipates scattered light intensity proportional to particle volume squared and to . The original mechanical picture is historical; the modern explanation uses induced electric dipole radiation.In a dilute nonmagnetic medium of isotropic independent polarizable particles, and the Rayleigh scattering cross-section is . Eliminating polarizability and setting direct-beam attenuation coefficient to gives the title relation. It describes scattering out of a narrow beam, not absorption of all radiant energy. It assumes fixed number density, negligible correlations/local-field corrections and a scalar polarizability; molecular anisotropy, aerosols and stratification require additional information.
In ideal single Rayleigh scattering of unpolarized incident light by an isotropic small scatterer, observed intensities perpendicular and parallel to the scattering plane are proportional to 1 and . Their normalized difference is . At a right-angle scattering geometry the output is fully linear and perpendicular to that plane. Multiple scattering, large particles and anisotropic scatterers change this ideal sky-polarization law.
An electrically small perfect conductor sphere has both an induced electric dipole moment and magnetic dipole moment. The latter contributes half the electric scattering amplitude in magnitude. The two amplitudes add in the backward direction and partially cancel in the forward direction. Thus the backward intensity is of the electric-only value and its radar cross section is . The correction persists at leading order as ; discarding the magnetic term is a separate response approximation.[ref]
In a homogeneous medium driven by a plane wave, coherent scattering amplitudes carry phases . An infinite uniform volume cancels arbitrary nonforward components. Finite shapes, boundaries and fluctuations determine any side signal; summing independent-particle intensities is not the continuous-medium limit.
For isotropically oriented independent needles illuminated with polarization and viewed along , the amplitudes through and analysers are proportional to and . The moments and give intensity ratio .
Consider a fixed, homogeneous, nonabsorbing, nonmagnetic sphere of radius in vacuum. Let be its relative refractive index, a fixed real number; in vacuum this equals the sphere's refractive index. Treat as independent of wavelength over the range being compared, neglecting optical dispersion. Air can be approximated by vacuum here because its refractive index is close to one. These assumptions describe a toy particle, rather than a literal model of an individual air molecule.
The Rayleigh scattering cross-section is an effective area: the total scattered power is , where is the incident light intensity. For its leading approximation isThe units are area, since has units . This Rayleigh scattering cross-section measures scattering, not conversion of the incident electromagnetic radiation into heat. The definition follows [ref]
https://farside.ph.utexas.edu/teaching/jk1/lectures/node107.html. Fitzpatrick, Thomson Scattering: total and differential scattering cross-sections
.To see the mechanism, the nearly uniform applied electric field produces an electric dipole moment with peak magnitudewhere is the incident electric field peak wave amplitude and is vacuum permittivity. This is the sphere's response in electrostatics, with its permittivity divided by vacuum permittivity equal to under the nonmagnetic assumption. [ref]
https://farside.ph.utexas.edu/teaching/jk1/lectures/node42.html. Fitzpatrick, Boundary Value Problems with Dielectrics, equation 554: induced sphere dipole
. The averaged electric dipole radiation power is , with angular frequency and speed of light . Dividing by gives the displayed Rayleigh scattering cross-section. Thus doubling radius multiplies the electric dipole moment by eight and the scattered power by , provided the larger sphere still satisfies . [ref]https://farside.ph.utexas.edu/teaching/em/lectures/node95.html. Fitzpatrick, Electric dipole radiation: angular power and its integral
.For a fixed sphere and fixed refractive index, both the Rayleigh scattering cross-section and scattering efficiency are proportional to . Halving wavelength multiplies either by , as long as the shorter wavelength still satisfies . If optical dispersion changes , the material factor changes too; the pure fourth-power comparison then needs correction.
For equal incident light intensities at blue wavelength and red wavelength , the same toy sphere givesBlue light therefore produces about times the scattered power. This compares the particle's response at two wavelengths; it does not assert that an actual sky has this ratio of observed blue and red light intensities.
For incident unpolarized light and the isotropic electric dipole response of Rayleigh scattering by a small sphere, let be the angle between the incident beam's propagation direction and the outgoing direction. The differential scattering cross-section and its relative angular pattern arewhere is an element of solid angle. Averaging over the two transverse directions of incident polarization of an electromagnetic wave gives this pattern. Forward scattering at and backward scattering at are equally strong: . Sideways scattering at is weakest, but nonzero: . [ref]
https://farside.ph.utexas.edu/teaching/jk1/lectures/node107.html. Fitzpatrick, Thomson Scattering, equations 1283–1287: averaging the dipole angular pattern

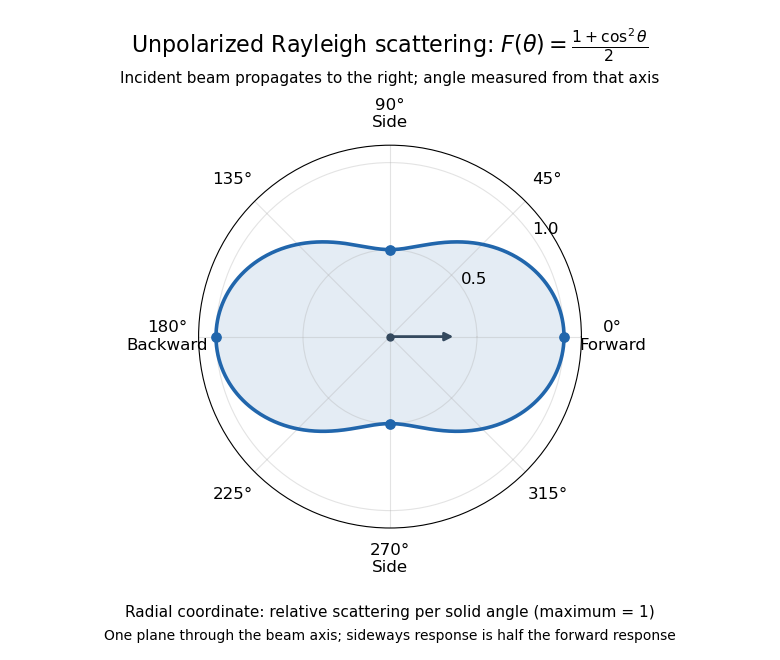

.Rayleigh scattering angular pattern for incident unpolarized light, measured from the incident beam
. The plotted radial coordinate is , a relative differential scattering cross-section, rather than the distance travelled by light. The incident propagation axis points right: is forward, backward, and sideways. Rotating this plane about the incident axis gives the three-dimensional pattern. Details.The normalization is consistent becauseThus integrating gives the total Rayleigh scattering cross-section . The plotted has maximum one; it is not itself normalized to unit solid angle integral.
For a single electric dipole driven by incident linear polarization, the angular distribution of electric dipole radiation instead has a factor, where is measured from the electric dipole moment direction, parallel to the incident electric field. That direction is perpendicular to the incident beam. Confusing with the beam angle would incorrectly predict zero forward scattering. Averaging the dipole patterns over incident unpolarized light yields the displayed .
In a clear terrestrial atmosphere, Rayleigh scattering by air molecules redirects some sunlight toward an observer looking away from the Sun. Shorter wavelengths are preferentially scattered, enriching the scattered light in blue compared with the incoming sunlight. Along the longer atmospheric path to the low Sun, more short-wavelength light is removed from the direct beam, helping produce red sunsets. [ref].
Violet light has an even shorter wavelength than blue light, so the Rayleigh scattering wavelength dependence alone cannot predict the perceived sky color. The incoming solar optical spectrum and the eye's differing response to wavelengths both matter; human vision is less sensitive to violet than to blue. [ref]
https://www.weather.gov/fgz/SkyBlue. NOAA National Weather Service, Why Is The Sky Blue?: solar spectrum and visual response
. Multiple scattering and other atmospheric particles also affect the observed sky. Cloud droplets are generally too large for this simple Rayleigh scattering model: Mie scattering describes spherical droplets, with much weaker visible wavelength selectivity, while repeated scattering helps make clouds appear white. [ref]https://www.giss.nasa.gov/edu/icp/research/ppa/1997/reyes/. NASA GISS, Aerosols in the Atmosphere: particle size, Mie scattering and white clouds
. Articles by others on the same topic
Electromagnetic radiation is a form of energy that travels through space in the form of waves. It is produced by the movement of electrically charged particles, which create oscillating electric and magnetic fields. These waves can travel through a vacuum as well as through various media. Electromagnetic radiation is characterized by its wavelength or frequency, which determines its type and energy. The electromagnetic spectrum encompasses a wide range of wavelengths, from very short gamma rays to long radio waves.
