Positive-definiteness threshold in a two-by-two family ($A_t=\left(\begin{array}{cc}3& t\\ t& 3\end{array}\right),|t|<3$)

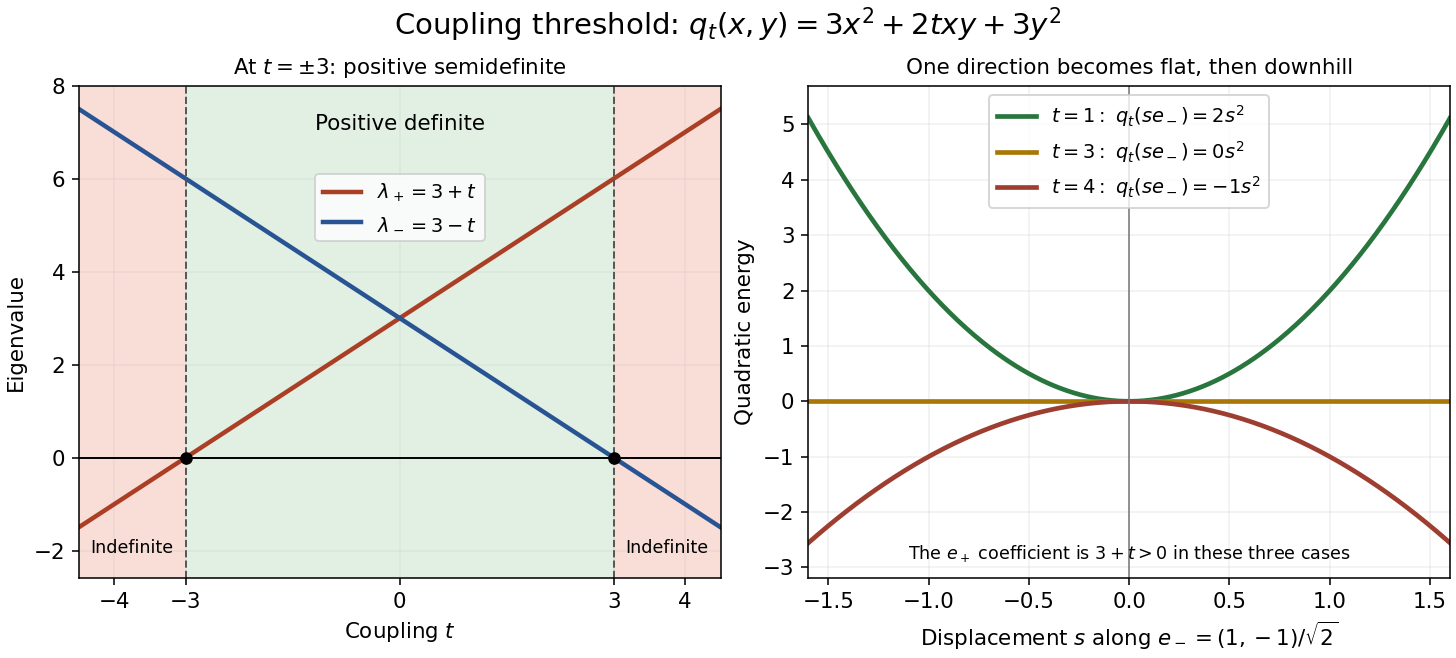

Vary the coupling in the opening example. The eigenvectors $e_{+}=(1,1{)}^T/\sqrt{2}$ and $e_{-}=(1,-1{)}^T/\sqrt{2}$ form a fixed orthonormal eigenbasis, with eigenvalues $3+t$ and $3-t$. Writing a vector as $u{e}_{+}+v{e}_{-}$ givesFor $|t|<3$, both directions cost energy and $A_t$ is a positive-definite matrix. At $t=3$, the quadratic form is $6u^2$: the entire line spanned by $e_{-}$ has zero energy, and $A_t$ is a singular positive semidefinite matrix. At $t=-3$, the flat line is instead spanned by $e_{+}$. For $|t|>3$, the quadratic form is an indefinite quadratic form; one direction lowers the energy without bound as its displacement grows. At $t=4$, for instance, $q_t(e_{+})=7$ while $q_t(e_{-})=-1$.

The geometric transition is precise. For $|t|<3$, $q_t=1$ is an ellipse. At $t=3$, it consists of the two parallel lines $u=\pm 1/\sqrt{6}$, extending freely in the zero-energy direction. For $t>3$, it is a hyperbola. The boundary case retains nonnegative energy but loses both the bounded positive level sets and the unique zero-energy vector.
