A cryogenic radiometer uses low-temperature operation to improve electrical substitution radiometry through particular material and thermal properties. Lower heat capacity of a copper receiver permits a substantial cavity without proportionately slow relaxation; cold shields reduce unwanted thermal radiation, and heater leads with superconductivity can suppress resistive lead heating. These features do not make radiometric absorptance exactly one or abolish optical-electrical heating non-equivalence.^[ref]

Cold surroundings matter as much as a cold receiver. In a simplified gray-surface model, net outward thermal radiation is $ϵ\sigma A(T^4-T_s^4)$, using emissivity $ϵ$, area $A$, shield temperature $T_s$ and the Stefan-Boltzmann constant $\sigma$. Cold shields reduce the incoming term as well as the receiver's emission; cooling the receiver alone while leaving it exposed to warm surroundings does not remove incoming radiation. An entrance window still provides an optical and thermal path. Vacuum reduces gas-mediated heat transfer, while an intentional radiometer thermal link remains necessary. This model explains specific losses, rather than promising a universal improvement factor or perfect accuracy.

An electrical substitution radiometer measures radiant flux by replacing absorbed optical power with calibrated Joule heating. At fixed temperature, feedback control holds the receiver equally warm with the beam blocked or admitted: after corrections, absorbed optical power equals the reduction in supplied electrical heating. Incident radiant flux additionally requires radiometric absorptance and entrance-path corrections. This connects radiometry to electrical standards.^[ref]

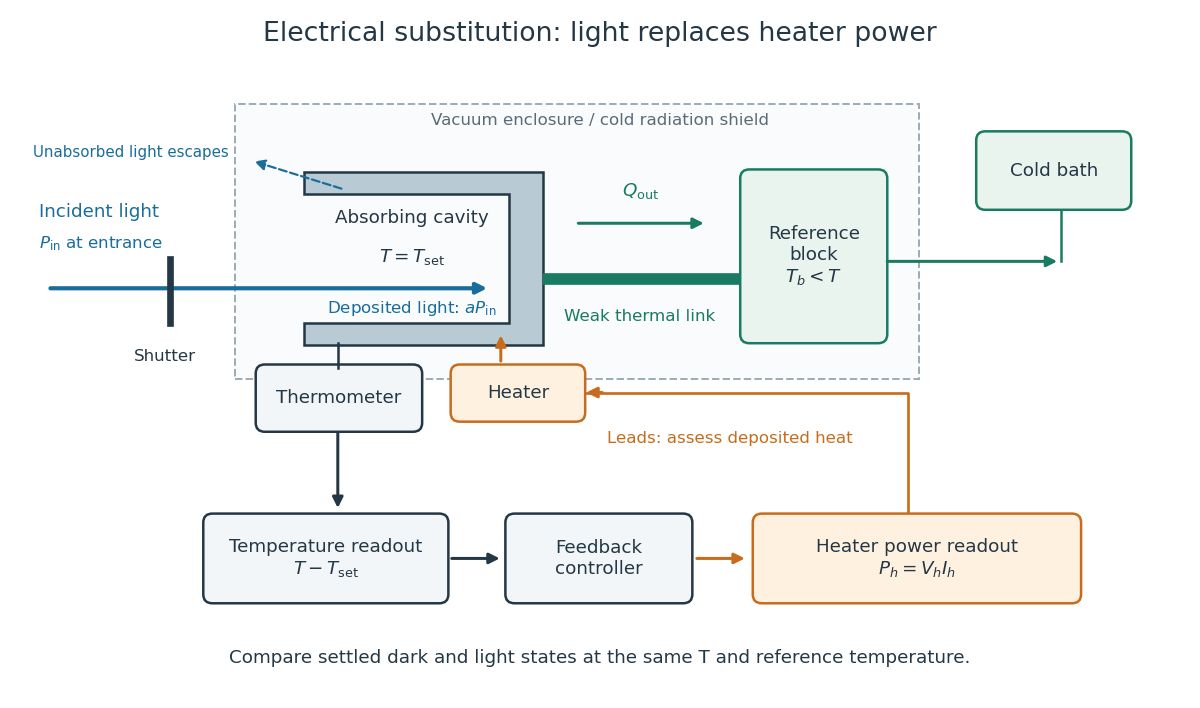

Picture a small absorbing cavity connected to a colder reference block by a radiometer thermal link. A heater supplies Joule heating, a thermometer senses the receiver, and feedback control adjusts the heater. When light supplies some of the heating, the controller supplies less. The readout is the change in heater power, rather than the beam's brightness or its number of photons. NIST's institutional description gives a concrete receiver with a conical interior, absorbing coating and weak Kapton support, operated with a receiver heater and thermometer.^[ref]

A radiometer thermal link is the intentional path for thermal conduction from receiver to reference block. Near a chosen operating point, write $Q_{\mathrm{link}}\simeq G(T-T_b)$ with local conductance $G$ in $\mathrm{W}{\mathrm{K}}^{-1}$. A weaker link increases the steady temperature rise per added power, $\delta T\simeq \delta P/G$, but also increases the uncontrolled relaxation time $\tau =C/G$ when the link dominates other heat transfer. These are local linear approximations: actual thermal conductivity depends on temperature, and active feedback control introduces its own response. NIST explicitly describes the tradeoff between weaker links and smaller receiver heat capacity.^[ref]
