Linear Stark effect in the first excited hydrogen eigenspace ($\Delta E=0,0,\pm 3e{a}_0\mathcal{E}$)

Consider a fixed proton and one Electron, omitting spin, fine structure and the Lamb shift. Let $e>0$ be the elementary charge, $a_0$ the Bohr radius in this fixed-nucleus model, and $\mathbf{E}=\mathcal{E}\hat{\mathbf{z}}$. Because the Electron's electric dipole moment is $\mathbf{d}=-e\mathbf{r}$, its electric-dipole interaction isThe first excited hydrogen eigenspace has a common unperturbed energy eigenvalue $E_2$. Write $|s⟩=|2,0,0⟩$ and $|p_m⟩=|2,1,m⟩$ in the hydrogen energy eigenbasis. The electric-dipole selection rules for hydrogen leave only the $s,p_0$ coupling within this eigenspace. Each diagonal matrix element vanishes by parity, but that does not make the entire perturbation vanish. Degenerate perturbation theory requires its eigenvalues in the whole eigenspace. With the usual real wavefunction phases the off-diagonal position matrix element is $⟨s|z|p_0⟩=-3a_0$.^[ref]

The factor three can be checked directly. Set $\rho =r/a_0$ and use normalized radial wavefunctions and spherical harmonics:The angular integral is $\int Y_{00}^{\ast }\cos \theta Y_{10}d\Omega =1/\sqrt{3}$. Including $z=r\cos \theta$ and the radial volume factor $r^2$ then givesReversing the quantum phase of $|p_0⟩$ reverses this sign, with no change to the predicted energy eigenvalues.

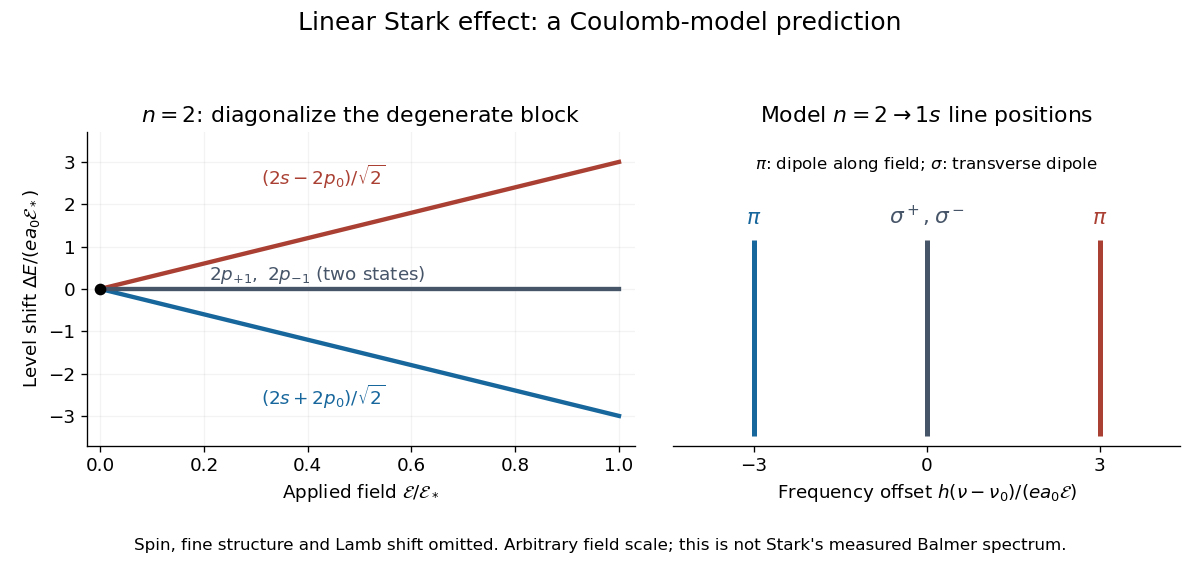

Thus the nontrivial two-dimensional block and its determinant equation areConsequently, for the displayed sign convention,The two remaining energy eigenstates $|p_{+1}⟩,|p_{-1}⟩$ have zero first-order shifts. The slopes correspond to opposite electric dipole moments, $⟨d_z⟩=+3e{a}_0$ and $-3e{a}_0$. The electric field selects combinations of opposite parity that already have these dipole expectations at leading order. This is why applying first-order nondegenerate perturbation theory separately to $2s$ and $2p_0$, and obtaining two zero diagonal entries, misses the splitting.

The approximation requires $e{a}_0|\mathcal{E}|$ small compared with the separation to other principal quantum numbers. For real hydrogen atoms, it also requires the relevant electric-dipole interaction to dominate the small splittings omitted here, including the Lamb shift. At sufficiently small electric fields a pre-existing nonzero $2s$–$2p$ separation must be retained before taking the limit. A simple two-state illustration with unperturbed separation $\delta >0$ has shifts relative to its meanFor $3e{a}_0|\mathcal{E}|\ll \delta$, the lower branch moves by $-(3e{a}_0\mathcal{E}{)}^2/\delta +O({\mathcal{E}}^4)$ relative to its zero-field value. At $\delta =0$ the splitting is linear. This interpolation explains the importance of the hydrogen energy-level degeneracy; it is not a complete model of the fine structure multiplet.

For an illustrative $n=2\to 1s$ emission calculation, retain only the first-order shifts above and neglect the quadratic shift of the hydrogen atom ground state. The unperturbed Lyman-alpha line frequency is ${\nu }_0=(E_2-E_1)/h$. The possible offsets areThe outer pair originates in the $p_0$ parts of $|{\psi }_{\pm }⟩$ and has transition electric dipole moments along the applied electric field, conventionally called $\pi$ components. The central pair originates in $p_{\pm 1}$ and has transverse rotating transition electric dipole moments, conventionally called ${\sigma }^{\pm }$ components. Because electromagnetic radiation is transverse, the $\pi$ components disappear when viewed along the electric field. Viewed from the side, the $\pi$ and $\sigma$ components have polarization of an electromagnetic wave respectively parallel and perpendicular to the applied electric field. Line intensities additionally require the initial quantum state populations and the collection geometry.
