Maximum elastic recoil energy fraction ($f_{\max }=4mM/(m+M{)}^2$)

Let a projectile have mass $m$, incident speed $v$, and incident kinetic energy $E=m{v}^2/2$. The stationary target has mass $M$. In a head-on elastic collision, the signed outgoing projectile velocity $v^{\prime }$ and target velocity $u$ obey momentum conservation and conservation of energy:Factor the second equation and eliminate $Mu=m(v-v^{\prime })$. The nontrivial collision branch has $u=v+v^{\prime }$, henceThis is the maximum over scattering angles, not the energy of every recoil. To see the bound without assuming a head-on event, set the recoil momentum magnitude to $q$ and its laboratory angle to the incident direction to $\theta$. Conservation of energy with outgoing projectile momentum $\mathbf{p}-\mathbf{q}$ givesThus $T=T_{\max }{\cos }^2\theta$ for a nonzero recoil, and the endpoint occurs at $\theta =0$.

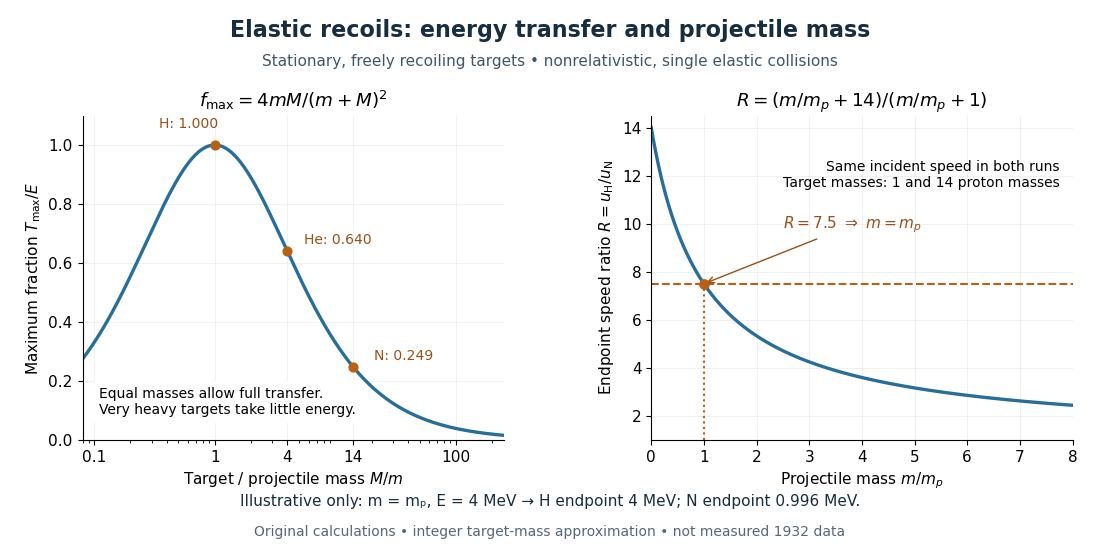

For an original numerical example, stipulate $E=4\mathrm{MeV}$ and $m=m_p$, with $m_p$ the proton mass. Approximate hydrogen, helium and nitrogen target masses by $M=m_p$, $4m_p$ and $14m_p$ respectively. Their maximum fractions and recoil energies areThese stipulated values illustrate the approximation $m_n=m_p$; they are not measurements from 1932. With $m_p{c}^2\simeq 938\mathrm{MeV}$, the incident ratio $E/(m_p{c}^2)\simeq 0.0043$ gives $v/c\simeq 0.092$, consistent with the nonrelativistic limit used here. A million electronvolts is an energy unit, whereas a mass expressed in $\mathrm{MeV}/c^2$ requires the factor $c^2$ when inserted into an energy equation.

The hydrogen endpoint permits essentially complete transfer because the projectile and target masses match. For a very heavy target, $M\gg m$, the fraction approaches $4m/M$, which is small: the target can take substantial momentum with little kinetic energy. The exact inequality follows from $(m-M{)}^2\ge 0$, which implies $(m+M{)}^2\ge 4mM$.
