Section B

Solution

Zinc blende and wurtzite differ in their stacking of tetrahedrally bonded bilayers: an ideal cubic sequence is ABCABC, while the hexagonal sequence is ABAB. During vapor–liquid–solid growth, each new interfacial nucleus can choose between continuing the existing sequence and changing it.

The selected phase can be the one with the smaller nucleation barrier, rather than the lower bulk free energy alone. A nucleus at the droplet–wire–vapour triple line has edge and interfacial energies different from a nucleus fully inside the liquid–solid interface. Schematically, its free energy combines a favourable chemical-potential term with new edge/interface costs and, when appropriate, a stacking penalty. Supersaturation changes the relative importance of these terms; the droplet shape and contact angle change which nucleation sites are available.

Control is therefore possible through temperature, III/V supply ratio, precursor fluxes, catalyst composition, droplet volume/contact angle and wire diameter. Monitoring growth rather than only inspecting cooled specimens helps determine which parameter actually changes the interface. A nucleation model for Au-catalysed III–V wires explicitly showed how triple-line nucleation can favour wurtzite under suitable interface energies and supersaturation.^[ref] There is no universal rule that one phase always corresponds to the larger temperature or smaller diameter regardless of catalyst and interface geometry.

iii

Solution

For the common $[111]$ -axis zinc-blende GaAs wire, a representative cross-section is a faceted hexagon with low-index sidewalls, often described by

{110}

-type facets. The threefold crystallographic symmetry of a polar

[111]

direction can make alternate facets inequivalent, so triangular or truncated-triangular sections are also possible. The zinc-blende label alone does not fix a unique hexagon: growth direction, termination, twins, surface chemistry and kinetic facet selection also matter.

The accompanying sketch shows a representative faceted section rather than a circular cylinder. Facets that advance slowly in their normal direction tend to remain exposed, so a kinetic growth shape need not be an equilibrium Wulff shape.

A simple cause of tapering is continued radial vapor–solid growth on sidewalls while the tip grows axially. A lower wire segment has been exposed to precursors for longer than a segment formed near the end of growth. For a roughly constant radial growth speed

v_{r}

, its radius gains about

v_{r} [t_{end} - t_{formation} (z)]

, giving a larger base. Substrate-fed species, changing catalyst size and droplet wetting can also contribute. Tapering is not proof that the original VLS droplet was wider at every earlier stage.

iv

Solution

Cooling changes the catalyst state that is being measured. Crossing Au–Ga phase boundaries can cause solidification, segregation and intermetallic formation. Solubility changes can expel Ga or precipitate additional GaAs after the intended growth interval. The droplet contact angle and interfacial shape also change as temperature and composition change.

A cooled catalyst–wire interface can consequently have a different composition, phase assemblage, geometry and even last-grown crystal segment from the active growth interface. Continued precursor supply during cooling can add another uncontrolled history. An ex situ observation of a solid catalyst does not prove that growth occurred by a solid-catalyst mechanism, and its final geometry cannot simply be substituted into a nucleation model for the liquid growth stage.

Use in situ microscopy, diffraction or spectroscopy under representative growth conditions, or compare controlled interruption and quench protocols. Quenching reduces some rearrangement but does not guarantee a perfectly frozen interface. The Au-catalysed GaAs composition experiment provides a direct example of measuring catalyst state during growth instead of inferring it from the cooled residue.^[ref]

v

Solution

A c-axis wurtzite ZnO wire has crystallographically polar basal ends, conventionally Zn-terminated

(0001)

and O-terminated

(000 \overset{ˉ}{1})

, and approximately nonpolar prismatic side facets such as

{10 \overset{ˉ}{1} 0}

. Crystallographic polarity is not identical to net surface charge in a growth solution: protonation, adsorbates and ionic speciation can change the latter.

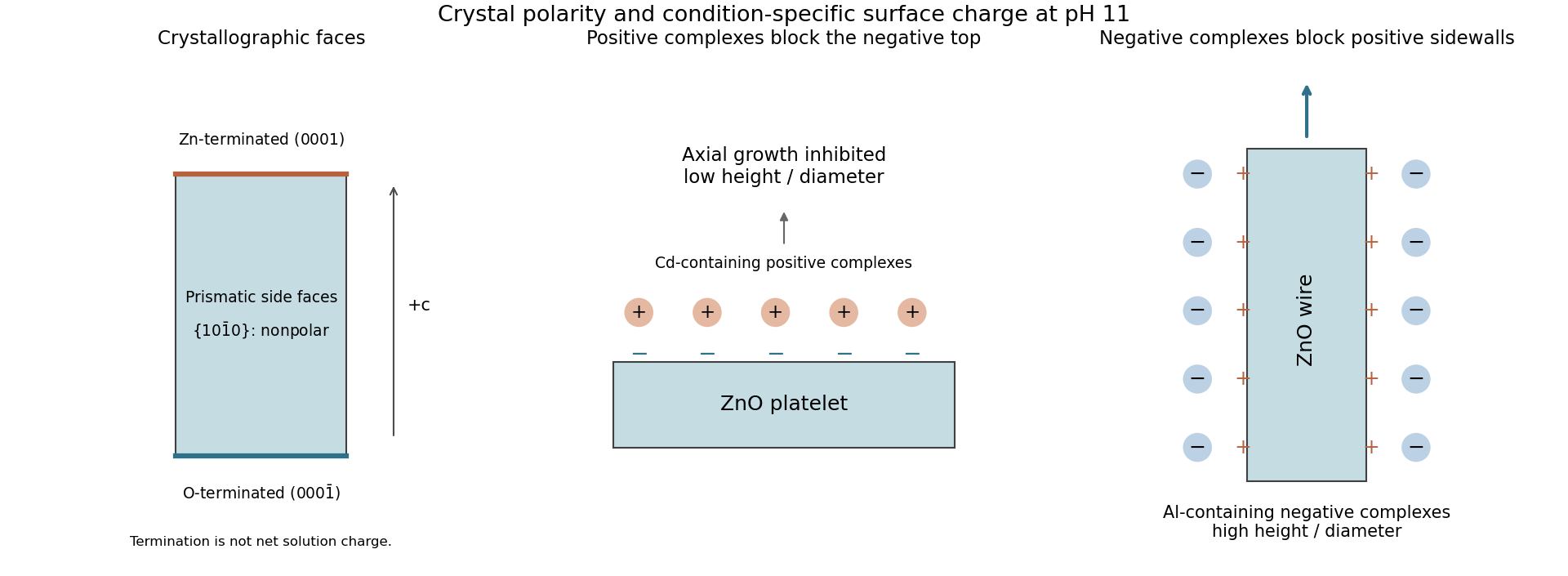

For face-selective electrostatic growth inhibition, an oppositely charged additive adsorbs preferentially to a particular face and obstructs incorporation there. Blocking the axial end lowers axial growth relative to radial growth and yields a smaller aspect ratio; blocking sidewalls suppresses radial growth and favours long thin wires.

A primary hydrothermal experiment at pH 11 found negatively charged basal top surfaces and positively charged sidewalls. Positively charged Cd-containing complexes inhibited the top and favoured platelets; negatively charged Al-containing complexes inhibited sidewalls and favoured large aspect ratios. These signs are condition-specific, not fixed by the formal Zn/O termination alone.^[ref]

21

i

Solution

One consistent five-postulate formulation is the following; different textbooks group the same content differently.

State. A pure state is a normalized vector $∣ ψ ⟩$ in a complex Hilbert space, with $⟨ ψ ∣ ψ ⟩ = 1$ ; vectors differing only by an overall phase represent the same state. For a spinless particle in position representation, $ψ (r) = ⟨ r ∣ ψ ⟩$ is its wavefunction.
Observables. A physical observable A is represented by a self-adjoint operator $\hat{A}$ . In a Cartesian position representation, $\overset{x}{^} = x$ and $\overset{p}{^}_{x} = - i ℏ \partial_{x}$ , with $ℏ = h / (2 π)$ .
Outcomes and probabilities. Allowed ideal measurement outcomes are spectral values $a$ of $\hat{A}$ . The Born rule gives $P (a) = ⟨ ψ ∣ P_{a} ∣ ψ ⟩$ , where $P_{a}$ projects onto the corresponding eigenspace; continuous spectra require the analogous spectral probability measure. The expectation is $⟨ \hat{A} ⟩ = ⟨ ψ ∣ \hat{A} ∣ ψ ⟩$ .
Ideal measurement update. Conditional on a nonzero-probability outcome $a$ , an ideal projective measurement leaves $P_{a} ∣ ψ ⟩ / ⟨ ψ ∣ P_{a} ∣ ψ ⟩$ . For a nondegenerate result this is its eigenstate. This is the ideal projection rule, not a description of every general measurement apparatus.
Time evolution. Between measurements a closed system evolves by the Schrödinger equation, $i ℏ \partial_{t} ∣ ψ (t)⟩ = \hat{H} ∣ ψ (t)⟩$ , with Hamiltonian $\hat{H}$ . For time-independent $\hat{H}$ , this gives unitary evolution $e^{- i \hat{H} t /ℏ}$ .

The position-dependent probability density is

∣ ψ ∣^{2}

, and its flux is the probability current. These distinguish the wave amplitude from the measurable particle flow in the following scattering problem.

ii

a

Solution

Place the interface at

x = 0

and let the incident beam travel in the positive x direction. Set the vacuum potential to zero and the solid potential lower by

V_{0} > 0

V (x) = {0 - V_{0} x < 0, x \geq 0.

Equivalently,

V (x) = - V_{0} Θ (x)

. The incident kinetic energy is

E = m v^{2} /2

. This ideal potential step assumes a sharp, planar interface, constant particle mass and no absorption, inelastic processes or lateral structure. It models the prescribed decrease in potential without asserting that every real solid has the same electronic interface potential.

b

Solution

For a stationary scattering state, the time-independent Schrödinger equation is

- ℏ^{2} ψ^{''} / (2 m) + V ψ = E ψ

. The left side contains the incident and reflected waves, while the solid has no incident wave arriving from positive infinity:

ψ_{<} (x) = A e^{i k_{1} x} + B e^{- i k_{1} x}, ψ_{>} (x) = C e^{i k_{2} x},

k_{1} = \frac{2 m E}{ℏ}, k_{2} = \frac{2 m ( E + V _{0} )}{ℏ} .

Multiplying by

e^{- i Et /ℏ}

gives the time-dependent wavefunctions. The kinetic energy rises inside the lower-potential solid, so

k_{2} > k_{1}

and the transmitted wavelength is shorter. A downward step permits a propagating transmitted wave for every $E > 0$ , but still generally reflects some incident flux. There is no forbidden region merely because

E < V_{0}

; the relevant transmitted kinetic energy is

E + V_{0}

Classically every particle crosses a downward step and accelerates, so this partial reflection has no classical counterpart. If the step is instead upward to

U > 0

E > U

gives oscillatory transmission with possible reflection, while

E < U

gives a decaying evanescent wave. A semi-infinite forbidden region carries no transmitted stationary flux; a finite barrier can permit quantum tunnelling to a propagating region beyond it.

c

Solution

For a finite step and equal masses, continuity of the wavefunction and its derivative gives

A + B = C, k_{1} (A - B) = k_{2} C .

Hence the reflected and transmitted amplitude ratios are

r = \frac{B}{A} = \frac{k _{1} - k _{2}}{k _{1} + k _{2}}, t = \frac{C}{A} = \frac{2 k _{1}}{k _{1} + k _{2}} .

A travelling wave has probability current

j = (ℏ k / m) ∣ A ∣^{2}

, so the flux coefficients are

R = ∣ r ∣^{2} = (\frac{k _{1} - k _{2}}{k _{1} + k _{2}})^{2}, T = \frac{k _{2}}{k _{1}} ∣ t ∣^{2} = \frac{4 k _{1} k _{2}}{( k _{1} + k _{2} ) ^{2}} .

(3)

They satisfy

R + T = 1

. Using

∣ t ∣^{2}

alone as the transmission probability would omit the different transmitted velocity.

For

E = 2 eV

and a downward step of

2 eV

, the transmitted kinetic energy is

4 eV

and

k_{2} / k_{1} = 2

. Therefore

R = 0.0294 (2.94%), T = 0.9706 (97.1%) .

(4)

The nonzero reflection is compatible with current conservation even though the potential drops.

d

Solution

Here the step is upward by

U = 3 eV

, so the forbidden-region energy difference is

U - E = 1 eV

. The bounded wavefunction is

ψ_{>} (x) = C e^{- κ x}, κ = \frac{2 m ( U - E )}{ℏ} .

The requested amplitude penetration depth is

δ = 1/ κ

. Using the supplied mass and

h

δ = \frac{6.63 \times 1 0 ^{- 34} / ( 2 π )}{2 ( 9.11 \times 1 0 ^{- 31} ) ( 1.60218 \times 1 0 ^{- 19} )} = 1.95 \times 1 0^{- 10} m = 0.195 nm .

The probability density decays as

e^{- 2 κ x}

, so its

1/ e

depth is half this value. For an ideal lossless semi-infinite step below threshold, the evanescent tail does not imply net stationary particle current deep into the material; the reflected flux is unity.

e

Solution

Scanning tunneling microscopy uses electron tunnelling between a conducting tip and a sample across a narrow vacuum gap. At fixed bias, the strong distance dependence of the current enables sensitive height or electronic-structure measurements; the result depends on local electronic states as well as topography.

A tunnel diode uses tunnelling between occupied and available states across a very thin, heavily doped semiconductor junction. The alignment of those states changes with bias and can produce a region of negative differential resistance, useful in fast switching or oscillation circuits. Both examples require a finite barrier with states available on the other side; an infinitely extended forbidden region is not an equivalent transport geometry.

Solution

TODO — user-deferred biology. This part belongs to the explicitly biological molecular-system question and is preserved without a solution under the requested nonbiology scope.

b

Solution

TODO — user-deferred biology. This part belongs to the explicitly biological molecular-system question and is preserved without a solution under the requested nonbiology scope.

23

i

Solution

N_{1}

and

N_{2}

count the microscopic interacting units in bodies 1 and 2. Their positions are

r_{i}

and

r_{j}

; the difference vector gives their pair separation. The positive coefficient

C

specifies an attractive nonretarded pair energy

- C / r^{6}

and has units

J m^{6}

Hamaker summation approximates a macroscopic interaction from Van der Waals forces by adding these microscopic pair energies. For homogeneous continua, sums are replaced by integrals over the two body volumes with number densities

ρ_{1}

and

ρ_{2}

. Integrating the geometry changes the distance dependence and produces a Hamaker constant

A_{H} = π^{2} ρ_{1} ρ_{2} C

for the stated simple model.

The approximation assumes pairwise additivity, uniform material properties, a known geometry and a separation large enough to use a continuum but small enough for the chosen nonretarded interaction law. It neglects many-body electrodynamic screening, chemical bonding, atomic roughness and short-range repulsion. A medium changes the effective interaction strength; an effective measured

A_{H}

across water need not equal a vacuum value inferred from isolated atom pairs.

ii

Solution

The microscopic pair potential falls as

- r^{- 6}

, whereas integrating over two half-spaces gives an interaction energy per area

W (d) = - A_{H} / (12 π d^{2})

. The plate attraction therefore decays much more slowly with distance because many pairs contribute. The quantities have different dimensions, so the shared sketch uses separately normalized energies at a reference separation rather than pretending that joules and joules per square metre are directly comparable.

The attractive pressure is

\frac{F}{A} = - \frac{d W}{dd} = - \frac{A _{H}}{6 π d ^{3}} .

d = 100 nm

and the supplied effective

A_{H}

F / A = - \frac{2.5 \times 1 0 ^{- 19}}{6 π ( 1 0 ^{- 7} ) ^{3}} = - 13.3 Pa .

The minus sign denotes decreasing separation. A total force cannot be calculated without the interacting area: for area

A

in square metres,

F ≃ - (13.3 N m^{- 2}) A

. This uses the supplied nonretarded half-space model; finite film thickness, geometry and retardation at larger distances can change it.

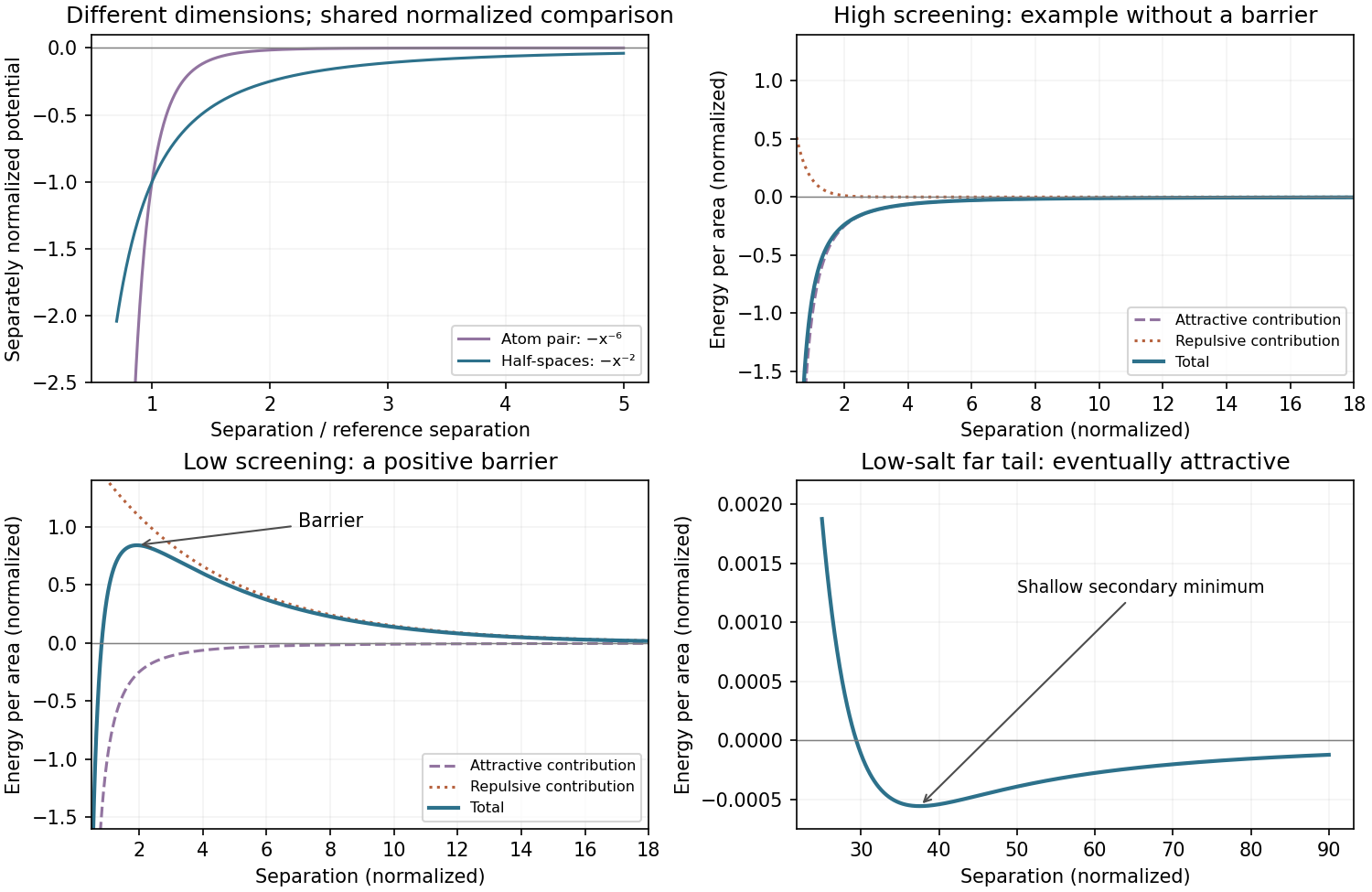

Figure 1.
Normalized Hamaker distance laws and illustrative salt-dependent DLVO barriers
. Original analytic models. Microscopic energy and plate energy per area are normalized separately. DLVO examples hold an explicitly chosen repulsive amplitude fixed while changing screening length; they are not fits to a specified surface chemistry. **Details**.

iii

Solution

Choose a positively charged plate to match the question's labels

n_{+}

for co-ions and

n_{-}

for counterions. Let

x = 0

denote the outer edge of its compact Stern layer, and set the bulk potential to zero.

In the weak-potential Debye–Hückel approximation, the diffuse-layer potential is

ψ_{ES} (x) = ψ_{d} e^{- κ_{D} x}, ψ_{d} > 0, λ_{D} = κ_{D}^{- 1} .

The key length is the Debye–Hückel screening length. For a symmetric monovalent electrolyte, the Boltzmann distribution gives

n_{+} (x) = n_{\infty} e^{- e ψ_{ES} (x) / (k_{B} T)}, n_{-} (x) = n_{\infty} e^{+ e ψ_{ES} (x) / (k_{B} T)} .

Positive co-ions are depleted near the positive plate, while negative counterions accumulate. Both approach the same bulk density as the potential decays. Attraction and repulsion by the surface compete with mixing entropy, so diffuse ions do not simply collapse into one plane. The compact Stern layer represents finite closest approach and specifically associated charge; the diffuse continuum begins outside it. For large potentials the linear exponential potential needs the nonlinear Poisson-Boltzmann equation, though the far-field screening scale remains the same in this simple electrolyte.

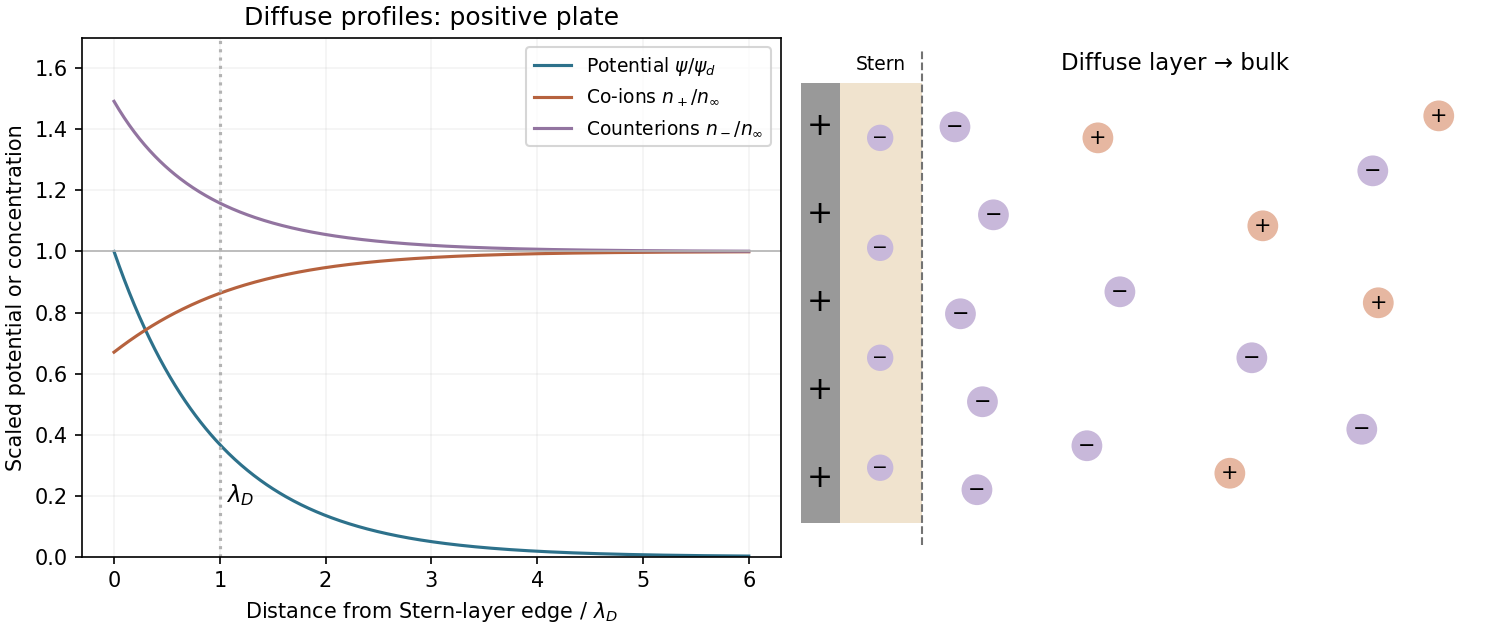

Figure 1.
Positive surface, compact Stern layer and screened diffuse-ion distributions
. Original weak-potential model. Counterions are negative and co-ions positive; reversing the surface sign exchanges their roles. Curves are scaled and are not measured ion profiles. **Details**.

iv

Solution

For an ideal electrolyte with species number densities

n_{i}

, valences

z_{i}

, solvent permittivity

ϵ

and common temperature,

λ_{D} = (\frac{ϵ k _{B} T}{e ^{2} \sum _{i} n _{i} z _{i}^{2}})^{1/2} .

Increasing salt concentration supplies more mobile charge to screen a surface perturbation, so a shorter distance is needed for the potential to decay. At fixed ion composition, permittivity and temperature,

λ_{D} \propto c^{- 1/2}

A fivefold concentration increase therefore gives

λ_{D}^{'} = λ_{D} / 5 = 0.447 λ_{D} .

Equivalently, the inverse screening length grows by

5

. Changing ion valence changes the ionic-strength weighting as well, and highly concentrated electrolytes can depart from this dilute-solution screening model.

v

a

Solution

For like-charged plates, DLVO theory combines an attractive dispersion contribution and a screened electrostatic repulsion. A useful far-field schematic model is

W_{tot} (d) = - \frac{A _{H}}{12 π d ^{2}} + B e^{- κ_{D} d}, B > 0.

At high salt concentration,

λ_{D} = κ_{D}^{- 1}

is short. The repulsion then disappears over a short distance, leaving attraction across much of the accessible range. The usual high-salt sketch has a greatly reduced or absent repulsive energy barrier, so approach into a primary attractive minimum is easier. At very small separations, short-range repulsion cuts off the unphysical divergence of the simple

- d^{- 2}

continuum expression.

The large-distance tail of the stated model is attractive because an exponentially decaying repulsion eventually becomes smaller than the algebraic attraction. A barrier is not ruled out by the words “high salt” alone: its existence also depends on surface charge or potential, charge regulation,

A_{H}

and the boundary conditions that determine

B

. The figure shows one declared barrier-free high-screening example rather than claiming a universal threshold concentration.
