Past exam of the year 2 of the earth sciences (geology) course of the University of Oxford / 2024 / Paper 3 / 5 / e / Solution

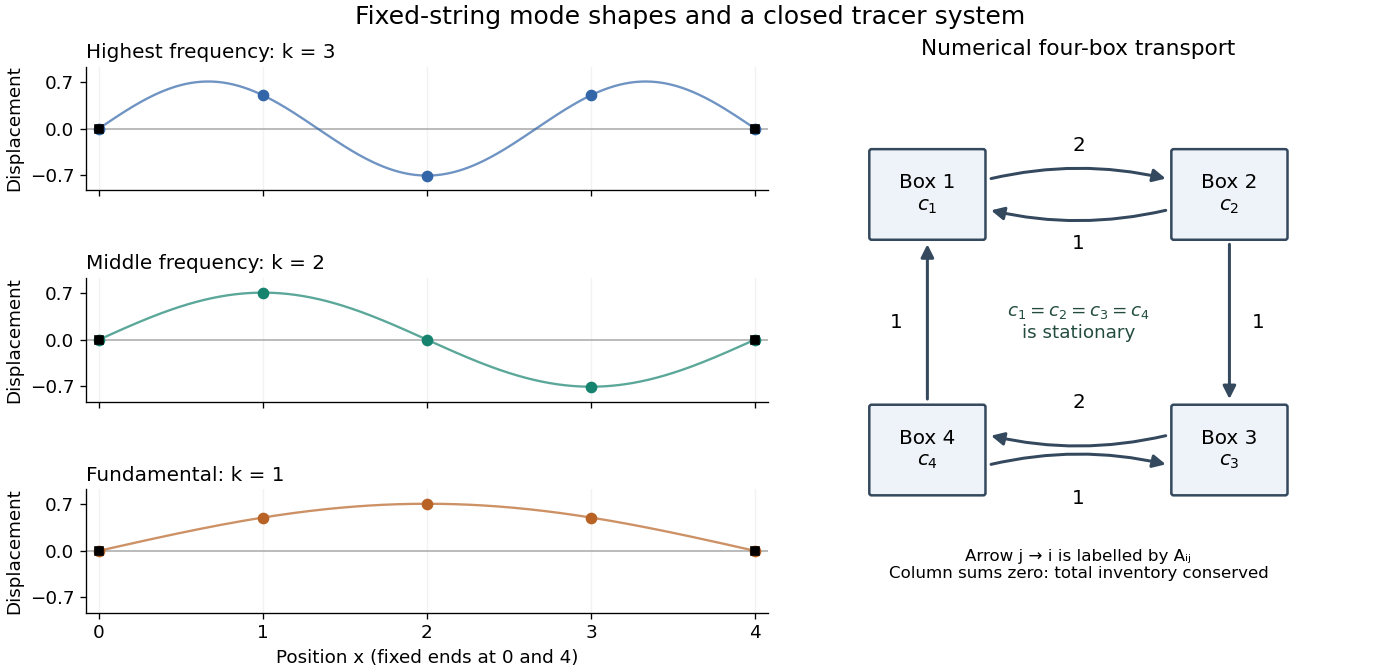

Each supplied eigenvector gives relative displacements at $x=1,2,3$ in a standing wave. Insert zero at $x=0,4$ to describe the whole sampled string. A real normal mode is $u_j(t)=C{v}_j\cos (\omega t+\varphi )$: its shape stays fixed while its amplitude oscillates.

These semidiscrete fixed-string normal modes are samples of $\sin (k\pi x/4)$, with $k=3,2,1$ in the order listed. More precisely, their interior vectors are $v_j^{(k)}=2^{-1/2}\sin (k\pi j/4)$, which have unit Euclidean norm and form an orthonormal basis of ${\mathbb{R}}^3$. Their eigenvalues and angular frequencies obeyThus larger absolute value of a negative eigenvalue means faster oscillation, rather than faster decay. The numerical angular frequencies approximate the continuous fixed-string values $k\pi c/L$; the finite difference spatial approximation changes them. Only three independent interior normal modes exist on this grid, and any interior displacement or initial velocity vector can be expanded in this orthonormal basis.
