For a nonrelativistic electron,Using the supplied constants givesThis is comparable with atomic lattice spacings. A suitable crystalline surface or sufficiently thin crystal can therefore diffract the electron beam; the reciprocal-lattice geometry and scattering conditions determine the actual angles. A grating or slit can also diffract matter waves if its scale and coherence conditions are suitable. The kinetic energy is tiny compared with the electron rest energy, so relativistic corrections are negligible at the stated precision.

For the nonbiology fabrication objective, reduce unwanted dipolar coupling while preserving a useful single-particle dynamic response. Lithographically reduce magnetic volume or adjust aspect ratio to control $\mu \simeq M_{s}V$ and magnetic anisotropy. Reducing $V$ reduces the characteristic pair interaction approximately as $V^2/r^3$, but also changes $E_a$ and relaxation time.

A nonmagnetic spacer coating or stable surface layer can maintain minimum center-to-center separation after release and reduce aggregation. At a fixed magnetic volume fraction this geometric constraint has a real packing cost; separation cannot be increased without limit while claiming unchanged loading.

Tune particle volume, magnetic anisotropy and spacing together, then measure dynamic susceptibility/loop area at the specified temperature and frequency. In a simple single-relaxation model, useful phase lag occurs near $\omega \tau \sim 1$; making particles so small that reversal is essentially instantaneous can reduce dissipative response. Clinical treatment optimization remains user-deferred; these are materials/fabrication controls, not a treatment recommendation.

At greater concentration, the mean separation falls and the independent-moment approximation can fail. The magnetic dipole interaction has characteristic scalewith sign and angular dependence set by moment orientation. Correlated clusters, chains or frustrated arrangements change local fields and relaxation barriers.

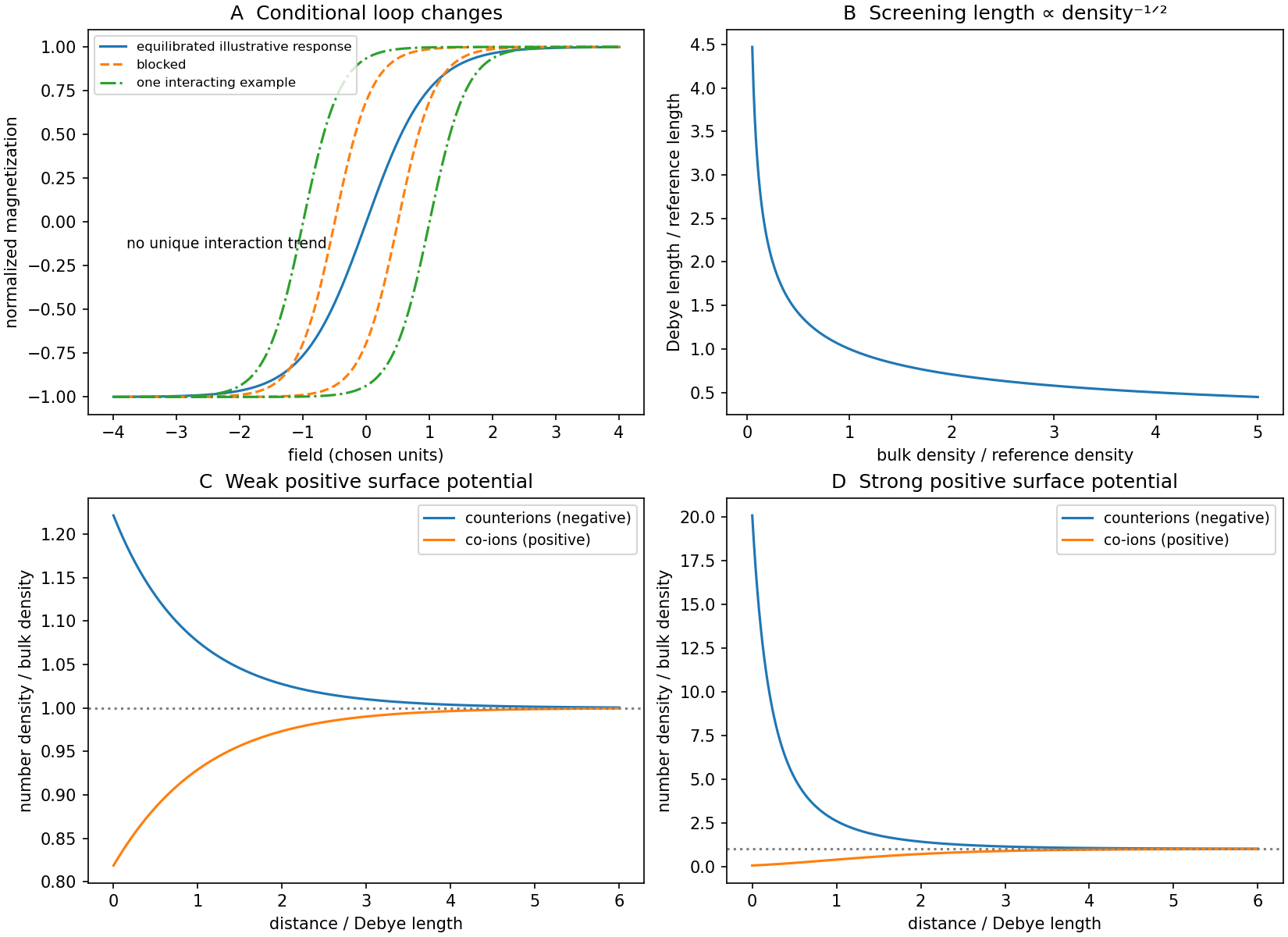

A plausible example is a progressively less reversible loop with larger remanence/magnetic coercivity when interactions slow collective relaxation; the figure illustrates that case. The trend is not universal: some arrangements reduce susceptibility or suppress remanence, and aggregation can introduce a different response from a uniform concentrated dispersion. Neither loop area nor magnetic coercivity must vary monotonically with concentration.

At the actual drive frequency, the dissipated energy per cycle per unit volume is proportional to ${\mu }_0\oint HdM$. Measure this dynamic loop rather than inferring dissipation from an unrelated slow sweep. Compare equal magnetic-material amounts, inspect dispersion state, and vary frequency to separate concentration-driven interactions from simple signal scaling. No biological efficacy is inferred.

Thermally activated moment reversal, or Néel relaxation, often has an activated timescaleLowering temperature increases ${\tau }_N$. When it becomes comparable to the observation time $t_m$, the ensemble crosses an operational magnetic blocking temperature,Above this blocking crossover, an equilibrated ensemble remains reversible; its low-field susceptibility can increase as temperature falls. Below it, moments cannot fully relax during the field sweep, so magnetic coercivity and remanence can emerge and the loop opens. A distribution of particle volumes/anisotropies broadens the crossover.

This is a timescale-dependent blocking effect, not necessarily a thermodynamic phase transition. Rotation of whole particles in a fluid can supply an additional relaxation channel, and the particle orientation distribution affects the observed loop. Compare sweep rates and temperatures before interpreting one curve as an intrinsic static material law.

Only the magnetic-response physics is addressed here; biological and clinical application is user-deferred.

A single-domain particle has an approximately coherent magnetic dipole moment, but single-domain does not by itself imply rapid thermal reversal. If moments equilibrate within the measurement time, a dilute, noninteracting ensemble is superparamagnetic: its quasistatic magnetization is reversible, odd in field and approaches saturation with negligible remanence or magnetic coercivity.

For freely orientable classical moments,At small field, $\mathcal{L}(z)\simeq z/3$; at large field moments align. This Langevin form is an ideal limit, not a universal exact curve for anisotropic fixed-axis particles.

The missing timescale/magnetic anisotropy information must be stated: blocked single-domain particles can already show hysteresis. Also, a reversible quasistatic curve does not preclude a finite-frequency loss loop when relaxation lags an alternating field. The original curves illustrate an equilibrated dilute limit and possible blocked/interacting alternatives, not measured treatment performance.

Since energy and angular frequency are related by $E=\hslash \omega$, the given eigenvalue relation yieldsWith $E_P=4.3\mathrm{eV}$,The ${\lambda }_i$ are dimensionless modal eigenvalues, not optical wavelengths despite the symbol. The same $\hslash$ multiplies both mode and bulk angular frequencies and cancels in the energy ratio. These are bare-core predictions of the stipulated lossless Drude model; adding a dielectric/metallic shell, interband response or damping changes the actual resonances.

The Wulff construction minimizes total orientation-dependent surface free energy at fixed crystal volume:Planes at distances proportional to their surface energies bound the equilibrium shape. The construction is thermodynamic; observed growth rates need not select the same shape.

For a mixed-metal particle, minimize a more complete free energy including bulk mixing/ordering, Au–Ag interface energy, exposed-surface composition, adsorbates and elastic strain, while conserving the amount of each metal. Important parameters include orientation-dependent surface energies, metal chemical potentials, interface coherency, lattice mismatch, temperature and ligand coverage. surface segregation can change the exposed composition and hence the relevant ${\gamma }_i$.

A generalized free-energy minimization can address a multicomponent particle; the elementary Wulff construction alone does not predict its core-shell composition. Sequential Au-core formation and Ag deposition can preserve a kinetically trapped interface when diffusion is too slow to reach equilibrium. If shape relaxation is fast but interdiffusion slow, an external shape may approach a constrained minimum even though the complete particle is not at global equilibrium. Growth kinetics, ligand stabilization and finite-size effects limit a bare-surface equilibrium model. A faceted image is therefore insufficient proof that either shape or composition is an equilibrium state.

Read the displayed axes as horizontal $[001]$ and vertical $[010]$; the viewing direction is therefore consistent with $[100]$. crystal facets edge-on in this projection have normals in the $yz$ plane. The flat upper/lower boundaries are approximately horizontal, the end face vertical, and the bevels approximately $45^{\circ }$ to both.

A probable low-index assignment is upper face $(010)$, end face $(001)$ and lower-right bevel $(0\bar{1}1)$, with the upper-right bevel $(011)$ if it is also indexed. Thus the flat faces belong to $\{100\}$ and the diagonal faces to $\{110\}$.

For example,giving $90^{\circ }$ and $45^{\circ }$ between normals. The upper $(010)$ normal and lower bevel $(0\bar{1}1)$ normal instead make $135^{\circ }$; their acute unoriented plane angle is $45^{\circ }$. Adjacent polygon corners between a flat edge and bevel have internal angles near $135^{\circ }$.

The distinction between a normal angle, an acute plane angle and an internal polygon angle avoids a supplementary-angle error. This is a probable projected indexation, not a unique full three-dimensional crystal facet reconstruction. The associated work uses tomography precisely to recover information absent from one projection.^[ref] The original facet-normal diagram in the growth-and-LED figure shows the $45^{\circ }$ relation independently of the source micrograph.

The floating-catalyst direct-spinning route commonly requires a small sulfur promoter addition. sulfur changes catalyst-particle nucleation and surface chemistry, influencing the active Fe-particle population, carbon incorporation and whether sufficiently long, numerous tubes form a drawable aerogel.

A sulfur-rich catalyst surface or Fe–S-containing state can alter surface energy, wetting and particle coarsening; a low-melting interfacial state can also affect catalyst activity. These are process-dependent mechanisms, not a statement that sulfur is a structural constituent required in every carbon nanotube. Excess sulfur can suppress useful growth or worsen impurities. The useful dose therefore has a window and depends on catalyst and feed chemistry.

A controlled comparison changes sulfur supply while holding the carbon/catalyst feed and collection conditions fixed, then measures tube population, catalyst residue and spinnability rather than judging only the presence of soot. The primary direct-spinning study specifically treats sulfur-dependent processing and purity.^[ref]
