Fixed-step gradient descent on a positive-definite quadratic ($e_{k+1}=(I-\eta A)e_k$)

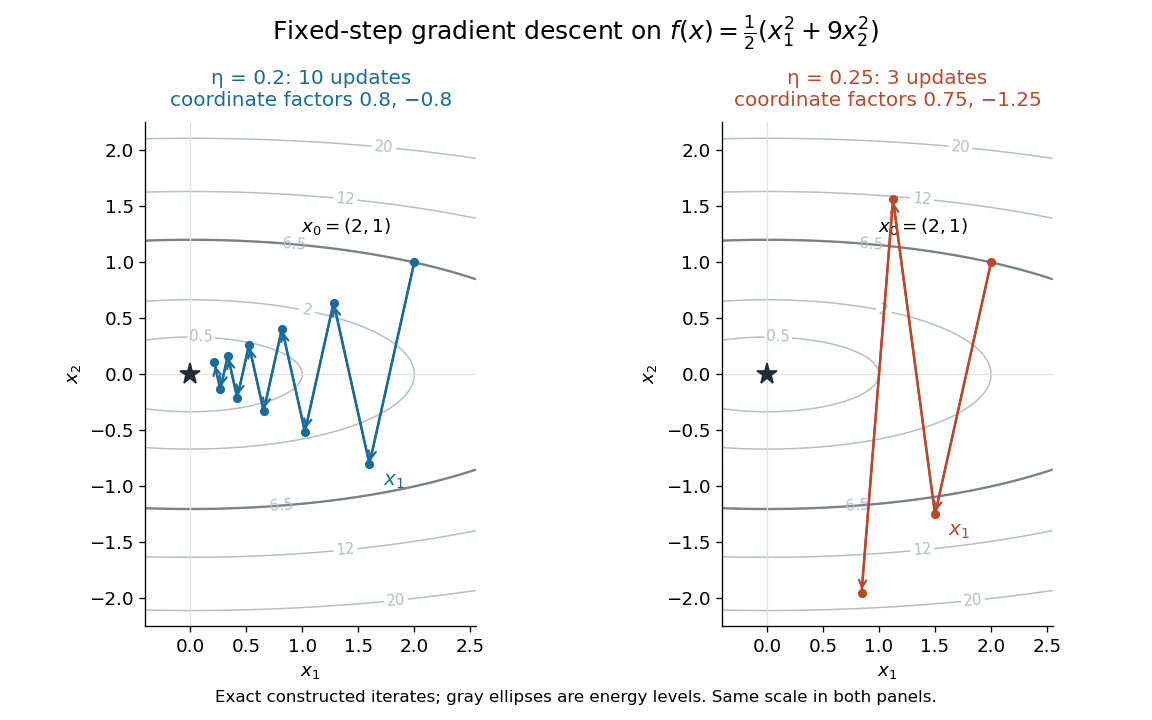

Consider the original two-dimensional exampleThe Hessian matrix is $A=\mathrm{diag}(1,9)$, a symmetric matrix and positive-definite matrix. Its eigenvectors are the coordinate directions, its eigenvalues are $1$ and $9$, and its Euclidean norm condition number is $9$. The unique global minimum is $x_{\ast }=0$, so the error $e_k=x_k-x_{\ast }$ equals $x_k$. The linear map $I-\eta A$, with $I$ the identity matrix, givesFor $\eta =1/5=0.2$, the two coordinate error multipliers are $0.8$ and $-0.8$. Consequently $x_1=(1.6,-0.8{)}^T$, $x_2=(1.28,0.64{)}^T$, and the second coordinate changes sign at every step while both shrink. The Euclidean norm of the error contracts by $0.8$ each step. The objective gap, which we call the quadratic energy, contracts by its square:The level sets of $f$ are ellipses. Oscillation across their narrow direction is compatible with strictly decreasing energy.

For $\eta =1/4=0.25$, the coordinate error multipliers become $0.75$ and $-1.25$, giving $x_1=(1.5,-1.25{)}^T$. The first coordinate still tends to zero, but the second alternates and grows. Direct substitution givesThus a larger positive step size can turn a strictly convex function into a divergent iteration. Energy and error are different quantities: coordinate errors carry signed multipliers, while each coordinate's contribution to energy carries the squared multiplier.

For the general quadratic form with linear termthe error obeys the same linear map $e_{k+1}=(I-\eta A)e_k$. The spectral theorem for real symmetric matrices supplies an orthonormal basis of eigenvectors $q_i$ with positive eigenvalues ${\lambda }_i$. Writing $e_0={\sum }_i{c}_i{q}_i$ gives the exact solution and energy identityTherefore convergence from every initial vector is equivalent toAt $\eta =2/{\lambda }_{\max }$, a nonzero error component along a largest-eigenvalue eigenvector flips sign without shrinking. Above that threshold it grows. A particular start can still converge if it has zero components in every unstable direction; the interval is the condition for all starts. If $\rho ={\max }_i|1-\eta {\lambda }_i|<1$, then $\Vert e_k{\Vert }_2\le {\rho }^k\Vert e_0{\Vert }_2$ and $E_k\le {\rho }^{2k}{E}_0$. These bounds follow by summing the squared components in the orthonormal basis.

For a fixed symmetric matrix and positive-definite matrix $A$, what positive step size minimizes the largest coordinate error multiplier over all eigenvector directions? Let $m={\lambda }_{\min }>0$ and $L={\lambda }_{\max }$. Since $|1-\eta \lambda |$ is a convex function of $\lambda$, its maximum over the eigenvalues occurs at an endpoint:Balance the two extremes by solving $1-\eta m=-(1-\eta L)$:Here $\kappa$ is the Euclidean norm condition number of $A$. This balance is optimal: for $\eta <{\eta }_{\ast }$ the endpoint $1-\eta m$ exceeds ${\rho }_{\ast }$, and for $\eta >{\eta }_{\ast }$ the endpoint $\eta L-1$ exceeds ${\rho }_{\ast }$. The optimal worst-case energy factor is ${\rho }_{\ast }^2$, rather than ${\rho }_{\ast }$. This optimizes a uniform one-step bound; a particular initial error supported on fewer eigenvectors can have a different best step size.

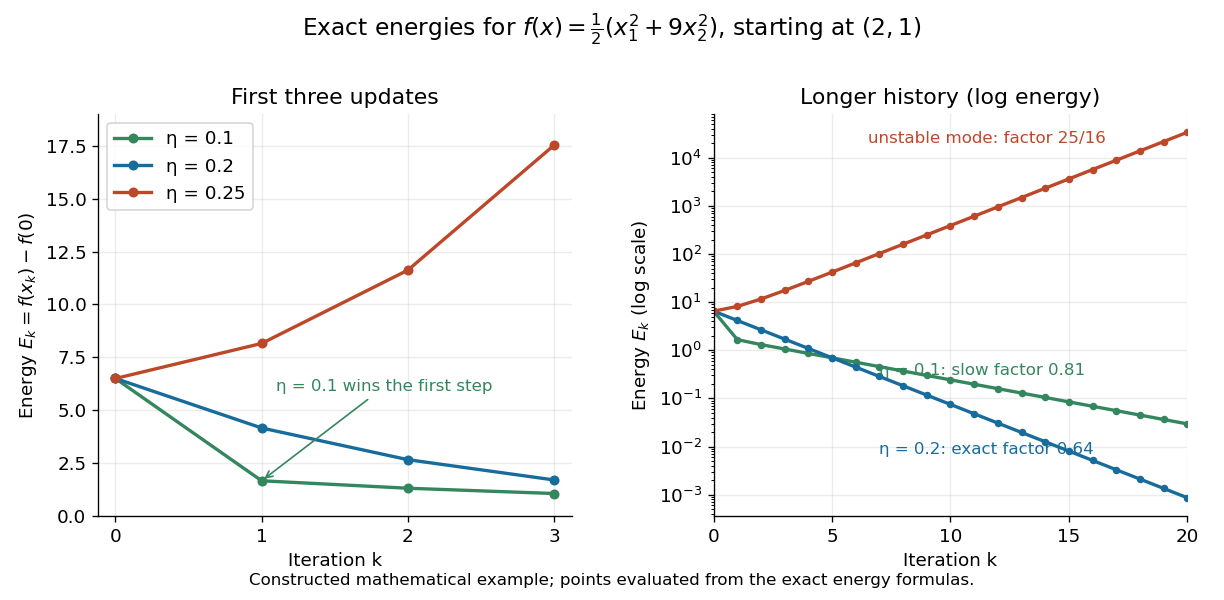

In the example $m=1$, $L=9$, so ${\eta }_{\ast }=0.2$ and ${\rho }_{\ast }^2=0.64$. Both eigenvalue directions attain that energy factor, making the displayed history exact. The smaller step size $0.1$ instead givesIts first step reaches $E_1=1.665$, below $4.16$ for $\eta =0.2$, but subsequent progress is limited by the first direction's energy factor $0.81$. By $k=5$, the energies are approximately $0.69736$ and $0.69793$, respectively; by $k=6$, the $0.2$ iteration is ahead. A better first step need not yield a faster long-run history.

As the condition number grows, ${\rho }_{\ast }$ approaches one: stability in the direction of the largest eigenvalue forces small movement along the smallest-eigenvalue direction. This is a precise reason to improve scaling or use a method such as the Conjugate gradient method, rather than merely increasing the step size. When $m=L$, choosing $\eta =1/m$ eliminates every error component in one step.
