Mark and recapture

Mark and recapture estimates the cardinality of a finite set of individuals when counting everybody is impractical. The useful information is the overlap between observations: with fixed sample sizes, finding many of the same individuals again suggests a smaller population, while finding few suggests a larger one. More elaborate capture-recapture models also estimate survival and changing probabilities of detection.

In a closed-population capture-recapture model, let $N$ be the unknown population cardinality. Capture $M$ distinct individuals, mark them, release them all, and allow them to mix with the rest. Next take a second sample of $C$ distinct individuals using sampling without replacement, and count the $R$ individuals carrying a mark. The observed marked fraction $R/C$ estimates the population's marked fraction $M/N$, giving the Lincoln-Petersen estimatorRelease happens between the two samples; sampling without replacement means that an individual is counted at most once within the second sample. See Richard J. Barker, Open Population Mark-Recapture Models, §1.1.1.

For a constructed teaching example, mark $M=20$ individuals and later capture $C=25$, including $R=5$ marked individuals. One fifth of the second sample is marked, suggesting that the twenty marked individuals are one fifth of the population:Let $A$ and $B$ be the sets of individuals in the first and second samples. Their intersection has cardinality five. By the inclusion-exclusion principle, the set union containsThus $N\ge 40$ is an observed lower bound, whereas $100$ is the output of an estimator based on the capture-recapture model. These are toy counts, not measurements from a medical or ecological study.

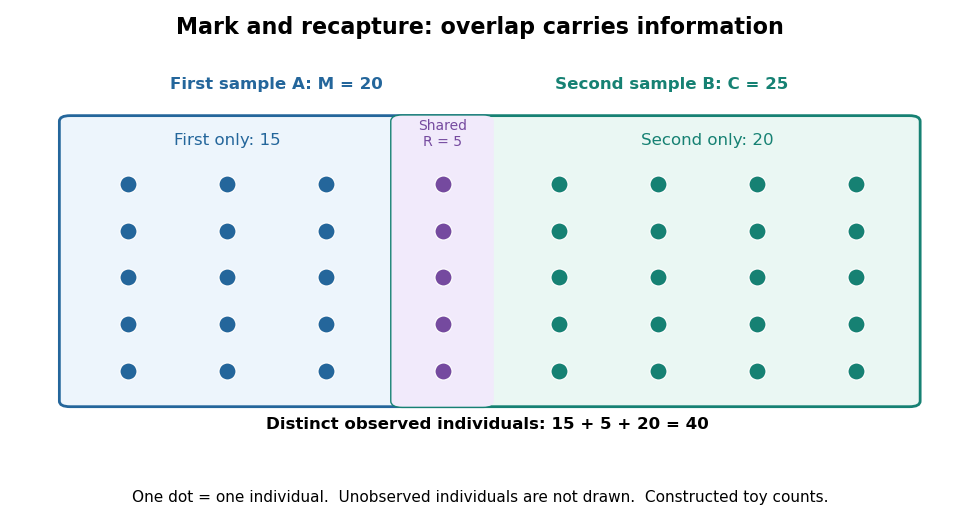

The diagram shows only observed individuals. It does not draw an assumed population of one hundred. The capture-recapture model uses the overlap to infer how many individuals may have escaped both samples; its likelihood function shows why one estimator output cannot describe all that uncertainty.

A capture-recapture model is a statistical model for repeated observations of identifiable individuals, including those missed on some occasions. A closed-population capture-recapture model estimates a fixed population cardinality; models allowing individuals to enter or leave can instead describe survival and recruitment. The sampling assumptions determine which likelihood function is appropriate.

For the two-sample closed-population capture-recapture model, condition on the sample sizes $M$ and $C$. If the second sample selects $C$ distinct individuals from $N$ by simple random sampling, then the overlap $R$ has the hypergeometric distribution:Here $r$ is an integer and the probability mass function is zero outside these bounds. The binomial coefficients count choices of $r$ marked and $C-r$ unmarked individuals, divided by all equally likely size-$C$ subsets. The hypergeometric distribution has expected valueEquating the observed overlap with this expected value gives the Lincoln-Petersen estimator. The underlying sampling without replacement, probability mass function, and expected value are developed in Raymond P. Guiteras, MIT 14.30 hypergeometric distribution handout, §§1–4 and 8.

For the toy counts $M=20$, $C=25$, and $R=5$, hold the observations fixed and vary the unknown integer $N$. The likelihood function isValues below forty cannot contain the observed set union. Exact comparison of consecutive likelihoods gives two tied maximum-likelihood estimates, $N=99$ and $N=100$. The Lincoln-Petersen estimator returns $100$; the Chapman estimator returns $90$ and is a different rule for estimation.

The vertical scale is $L(N)/{\max }_{n\ge 40}L(n)$. This relative likelihood compares how well candidate statistical parameters explain the same observations; it is not a posterior probability. The displayed range $40\le N\le 300$ is only a plotting window. The likelihood function remains positive for every integer $N\ge 40$ and tends to zero as $N$ increases, so the curve has a continuing right tail. The data do not justify truncating statistical inference at three hundred. The conditional hypergeometric distribution formulation also appears in Louis-Paul Rivest and Mamadou Yauck, Small Sample Estimators for Two-way Capture Recapture Experiments, §3, equation (5).

Zero recaptures require care. With $R=0$ and positive $M,C$, the Lincoln-Petersen estimator has no finite ratio, but the capture-recapture model still gives a valid likelihood function:This likelihood function increases toward one as $N$ grows, so there is no finite maximum-likelihood estimate. For the same sample sizes twenty and twenty-five with zero overlap, forty-five distinct individuals would be observed. Lack of overlap supplies a lower bound but very weak information about large population cardinalities.

In more elaborate capture-recapture models, a first-recapture array $m_{ij}$ counts individuals released at occasion $i$ and next observed at $j$. A probability of survival ${\varphi }_j$ and a probability of detection $P_{j+1}$ contribute a no-observation continuation factor ${\varphi }_j(1-P_{j+1})$. The resulting likelihood function depends on both survival and detection; these probabilities need not be separately identifiable at the last observation interval. Missing-count EM for capture-recapture describes one way to fit such a model, and identifiability remains a separate issue from computing an estimator output.

A closed-population capture-recapture model assumes the same individuals remain throughout the observations: no births, deaths, immigration, or emigration. Its elementary two-sample version additionally requires retained, correctly recognized marks and a second sample chosen by simple random sampling independently of first-sample membership. Mixing and unchanged capture behavior help make this plausible. Equal individual capture probabilities alone do not guarantee that every size-$C$ subset is equally likely; that stronger sampling assumption gives the hypergeometric distribution. See Barker, §§1.1.1 and 1.1.3: closure, marks, and catchability assumptions.

Unequal catchability, mark loss, and population change can invalidate this capture-recapture model. For example, if especially catchable individuals appear repeatedly, overlap can be inflated and the Lincoln-Petersen estimator can underestimate population cardinality. Lost marks can decrease recorded overlap and increase the same ratio estimator, all else equal. Two samples alone cannot establish that the sampling assumptions hold.

The Lincoln-Petersen estimator is the ratio estimator obtained by matching the observed overlap to its hypergeometric expected value. It is defined when $R>0$. To distinguish that ratio from the exact integer maximization, consecutive positive likelihoods satisfyThis comparison is valid for $N\ge M+C-R$. For the toy counts, the numerator minus the denominator is $500-5(N+1)$. Thus the likelihood function increases up to ninety-nine, ties at ninety-nine and one hundred, then decreases for every larger integer. This independently establishes the global maximum-likelihood estimates, beyond the plotting window. The adjacent-ratio method is given in Guiteras, §8.

The Chapman estimator is a correction intended to reduce the small-sample bias of the Lincoln-Petersen estimator. Under the fixed-size hypergeometric sampling assumptions it is exactly an unbiased estimator when $M+C\ge N$; it can have nonzero bias otherwise. This qualification and the formula are stated in Barker, §1.1.1, equation (1.3), citing Chapman's work through Seber. For the toy observations,It is an alternative estimator, not a maximum-likelihood estimate for this capture-recapture model. The Chapman estimator remains finite when $R=0$, but a finite output does not supply the missing overlap information or repair unequal catchability, lost marks, or population change.

Let $N_i=R_i-{\sum }_{s=i+1}^J{m}_{is}$ count individuals never recaptured after release $i$. Partition them into death-interval counts $n_{ij}$ and terminal survivors $n_{iJ}$. Their unnormalized weights are $w_{ij}=(1-{\varphi }_j){\prod }_{\ell =i}^{j-1}{\varphi }_{\ell }(1-P_{\ell +1})$ for $j<J$, and $w_{iJ}={\prod }_{\ell =i}^{J-1}{\varphi }_{\ell }(1-P_{\ell +1})$. Conditional counts are multinomial with normalizer $C_i={\sum }_{j=i}^J{w}_{ij}$. The EM algorithm replaces all missing counts by the displayed conditional expectations, then maximizes the resulting complete-data log likelihood. Survival and detection updates are expected successes divided by expected opportunities. A flat observed-likelihood ridge remains nonidentifiable even if each conditional complete-data maximization is explicit.
