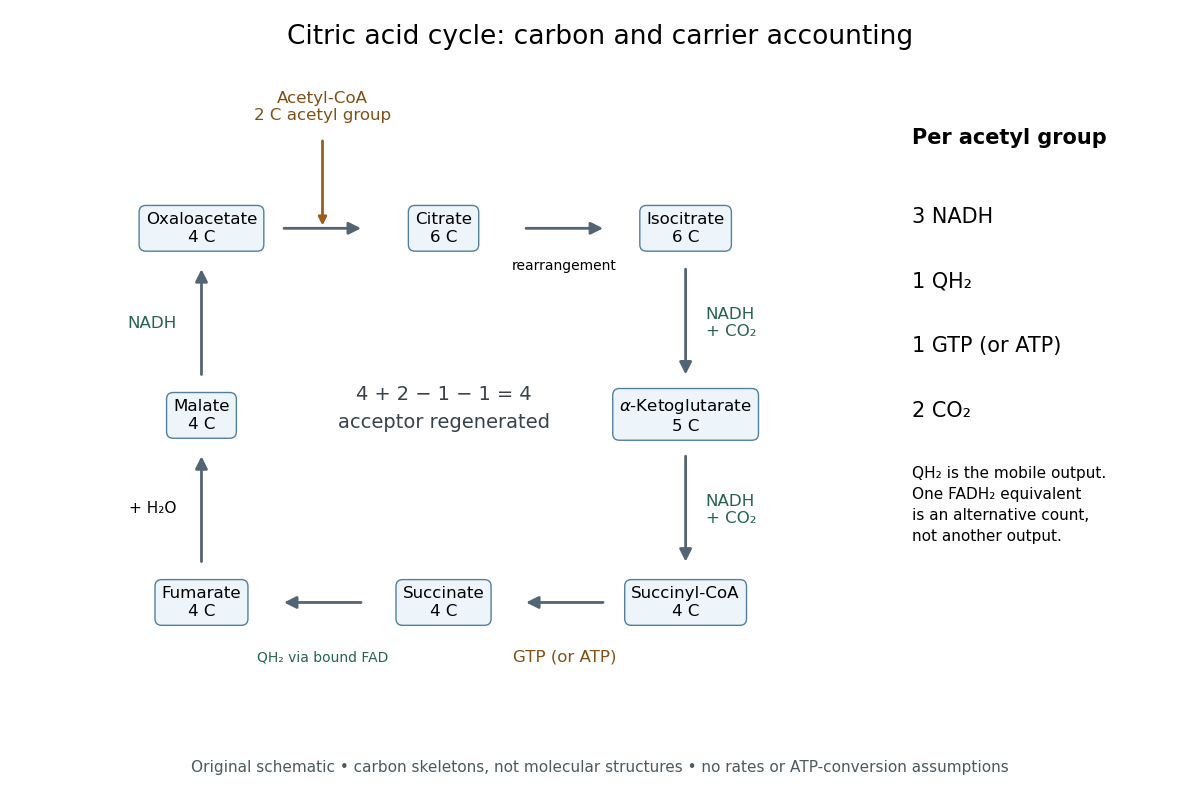

The carbon sequence is oxaloacetate $(4)$ plus an acetyl group $(2)$ to citrate $(6)$, then isocitrate $(6)$, alpha-ketoglutarate $(5)$, succinyl-CoA $(4)$, succinate $(4)$, fumarate $(4)$, malate $(4)$ and back to oxaloacetate $(4)$. The numbers count the cycling carbon skeleton, excluding coenzyme A. Two carbon dioxide releases accompany the changes $6\to 5\to 4$.^[ref]

Per acetyl group: three NADH, one FADH2 equivalent, one GTP or ATP by substrate-level phosphorylation, and two carbon dioxide. Succinate dehydrogenase retains FADH2 and transfers its electrons to ubiquinone, forming ubiquinol. The FADH2 equivalent and ubiquinol count the same electron pair.^[ref]

A useful check adds the stepwise changes. The carbon count is $4+2-1-1=4$; the NADH count is $1+1+1=3$. Each NADH carries two electrons, and the succinate dehydrogenase route supplies another pair, so one turn exports $3\times 2+2=8$ electrons. This arithmetic is an accounting identity, not an ATP yield calculation. Converting it to ATP requires the separate energy coupling and transport assumptions discussed under oxidative phosphorylation.

For a chosen ideal conversion of $5\mu \mathrm{mol}$ of acetyl groups, multiplication gives $15\mu \mathrm{mol}$ of NADH, $5\mu \mathrm{mol}$ of ubiquinol, $5\mu \mathrm{mol}$ of GTP and $10\mu \mathrm{mol}$ of carbon dioxide. The electron output is $40\mu \mathrm{mol}$. If all these electrons subsequently reach oxygen with no competing sinks, four electrons per oxygen molecule require $10\mu \mathrm{mol}$ of oxygen. That is consumption by the connected electron transport chain; it is not an oxygen term in the cycle's own substrate ledger.

No cycle step directly consumes molecular oxygen. In ordinary aerobic mitochondrial operation, however, the mitochondrial respiratory chain must reoxidize NADH and ubiquinol to restore the oxidized electron carriers. Without that outlet, a finite oxidized-carrier pool cannot sustain continued turnover. Other electron acceptors and other forms of metabolism require their own analysis.^[ref]

The pyruvate dehydrogenase complex acts upstream: one three-carbon pyruvate gives one two-carbon acetyl group, one carbon dioxide and one NADH. These are additional to the cycle ledger.^[ref] Consequently, processing one pyruvate through both stages gives three carbon dioxide and four NADH, while the succinate dehydrogenase contribution and the substrate-level phosphorylation contribution each remain one. Counting the upstream step inside the cycle would obscure where the extra carbon dioxide and NADH arise.

Location determines access to substrates, cofactors and transport routes; identical catalytic potential can therefore serve different physiological functions in different compartments. In carbohydrate metabolism, the plasma membrane, mitochondrion and endoplasmic reticulum are selective barriers, not merely containers. A soluble enzyme cannot use a metabolite efficiently if that metabolite cannot reach its compartment, while transporter abundance matters chiefly when the transporter is in the appropriate membrane.

Most glycolysis occurs in the cytosol, whereas pyruvate dehydrogenase complex and much oxidative metabolism occur in the mitochondrial matrix. Pyruvate entry therefore links cytosolic glucose breakdown to mitochondrial oxidation. Cytosolic NADH does not freely cross the inner mitochondrial membrane: the malate-aspartate shuttle and glycerol phosphate shuttle transfer reducing equivalents through different routes. Their operation affects the energetic outcome of glucose use. In gluconeogenesis, mitochondrial pyruvate carboxylase produces oxaloacetate, but oxaloacetate itself does not freely cross that membrane. Conversion into transportable intermediates, or formation of phosphoenolpyruvate in the appropriate compartment, allows carbon to reach cytosolic steps. Enzyme localization thus imposes an obligatory transport and redox problem, not just an extra reaction label.

At the final step of hepatic glucose production, the catalytic site of glucose-6-phosphatase faces the endoplasmic-reticulum lumen. Glucose-6-phosphate must reach it through the associated transport system. Hydrolysis makes free glucose available for export, whereas the phosphate ester is largely retained by membranes. Muscle can mobilize cytosolic glycogen to glucose-6-phosphate for its own glycolysis, but lacks the hepatic glucose-6-phosphatase system needed for substantial release of that carbon as free blood glucose. Tissue function therefore depends on both enzyme expression and the membrane machinery surrounding the enzyme.

Transporter traffic changes function without waiting for new protein synthesis. In resting muscle and adipose cells, much GLUT4 resides in intracellular vesicles. Insulin signalling promotes its delivery to the cell surface and increases glucose uptake; internalization subsequently reduces surface transport capacity. Classical membrane-fractionation and transport-site measurements supported redistribution from an intracellular pool to the plasma membrane.^[ref] Fractionation requires compartment markers, and surface labelling or microscopy provides an independent check: altered fraction recovery alone could otherwise mimic redistribution. Total cellular GLUT4 is not an adequate proxy for surface uptake capacity.

Polarity provides another example. In intestinal epithelial cells, apical SGLT1 uses the sodium electrochemical gradient to take up glucose, whereas basolateral GLUT2 enables exit towards the circulation. Basolateral sodium-potassium ATPase maintains the sodium gradient. Misplacing a transporter can disrupt vectorial absorption despite normal intrinsic transport activity. Glycogen-associated regulatory enzymes similarly gain access to a localized substrate pool. These examples show why localization should be tested with activity and transport measurements as well as images. Compartmentation creates direction, regulation and tissue specialization, while requiring transporters that connect the separated reactions.

The pyruvate dehydrogenase complex converts pyruvate into acetyl-CoA, releasing carbon dioxide and reducing NAD+ to NADH. Several catalytic components and enzyme cofactors couple decarboxylation, group transfer and oxidation within one assembly. It links glycolysis to the citric acid cycle, so control of the complex regulates the entry of carbohydrate-derived carbon into oxidative metabolism. A shared reaction intermediate can be passed between component active sites rather than diffusing freely through the cell. ^[ref]
