Thévenin's theorem ($V=V_{\mathrm{oc}}-I{R}_{\mathrm{th}}$)

Thévenin's theorem replaces the terminal behavior of a linear resistive circuit by an ideal voltage source in series with a Thévenin resistance, whenever its terminal electric potential difference is a well-defined affine function of the delivered electric current. Fix terminals $a,b$, write $V=\varphi (a)-\varphi (b)$, and take $I$ positive out of the network at $a$ into the electrical load, returning through $b$. ThenThe open-circuit voltage $V_{\mathrm{oc}}$ is the intercept at $I=0$; $-R_{\mathrm{th}}$ is the slope. Thus two parameters predict what happens when many different electrical loads are connected. The Wheatstone bridge detector loading calculation uses precisely this replacement to find the detector reading even when the bridge's two voltage dividers interact through its detector.

For example, a $12\mathrm{V}$ ideal voltage source with $2\mathrm{k\Omega }$ above and $4\mathrm{k\Omega }$ below a voltage divider junction supplies $V_{\mathrm{oc}}=8\mathrm{V}$ and $R_{\mathrm{th}}=\frac{4}{3}\mathrm{k\Omega }$ at that junction relative to the lower terminal. Attaching a $4\mathrm{k\Omega }$ electrical load reduces its voltage to $6\mathrm{V}$ and draws $1.5\mathrm{mA}$. The equivalent explains why an unloaded divider ratio alone cannot predict a loaded output.

The equivalence concerns the chosen terminals, including the power $VI$ delivered there. It does not identify internal branch electric currents or internal Joule heating. At open circuit the original divider still draws $2\mathrm{mA}$ from its $12\mathrm{V}$ supply, while the equivalent's series branch carries no electric current. ^[ref]

With the passive sign convention applied to the network, its entering electric current is $J=-I$, and the same relation becomes $V=V_{\mathrm{oc}}+J{R}_{\mathrm{th}}$. The electrical load uses the passive sign convention with entering electric current $I$, so it absorbs power $VI$. A positive delivered electric current therefore produces a voltage drop for positive $R_{\mathrm{th}}$; changing the reference direction without changing the equation would give the wrong sign.

The reason is linearity of Ohm's law, Kirchhoff's current law, Kirchhoff's voltage law, and the constitutive relations of any linear dependent electrical sources. Solve once at $I=0$ with the independent electrical sources present. Subtract this solution from a solution with prescribed delivered electric current $I$: the fixed independent electrical sources cancel, leaving a homogeneous linear network whose terminal voltage change is proportional to $I$. This is a short superposition principle argument for an affine function; the fixed offset need not vanish.

The qualification about a well-defined response matters. An ideal voltage source alone has $R_{\mathrm{th}}=0$. An ideal nonzero current source alone constrains $I$ and does not have a finite open-circuit voltage or a representation $V=V_{\mathrm{oc}}-I{R}_{\mathrm{th}}$ with finite coefficients. Linear dependent electrical sources can give negative resistance, and singular ideal networks may fail to have a unique finite response. Neither a finite nor a strictly positive passive $R_{\mathrm{th}}$ follows merely from calling an electrical circuit linear. ^[ref]

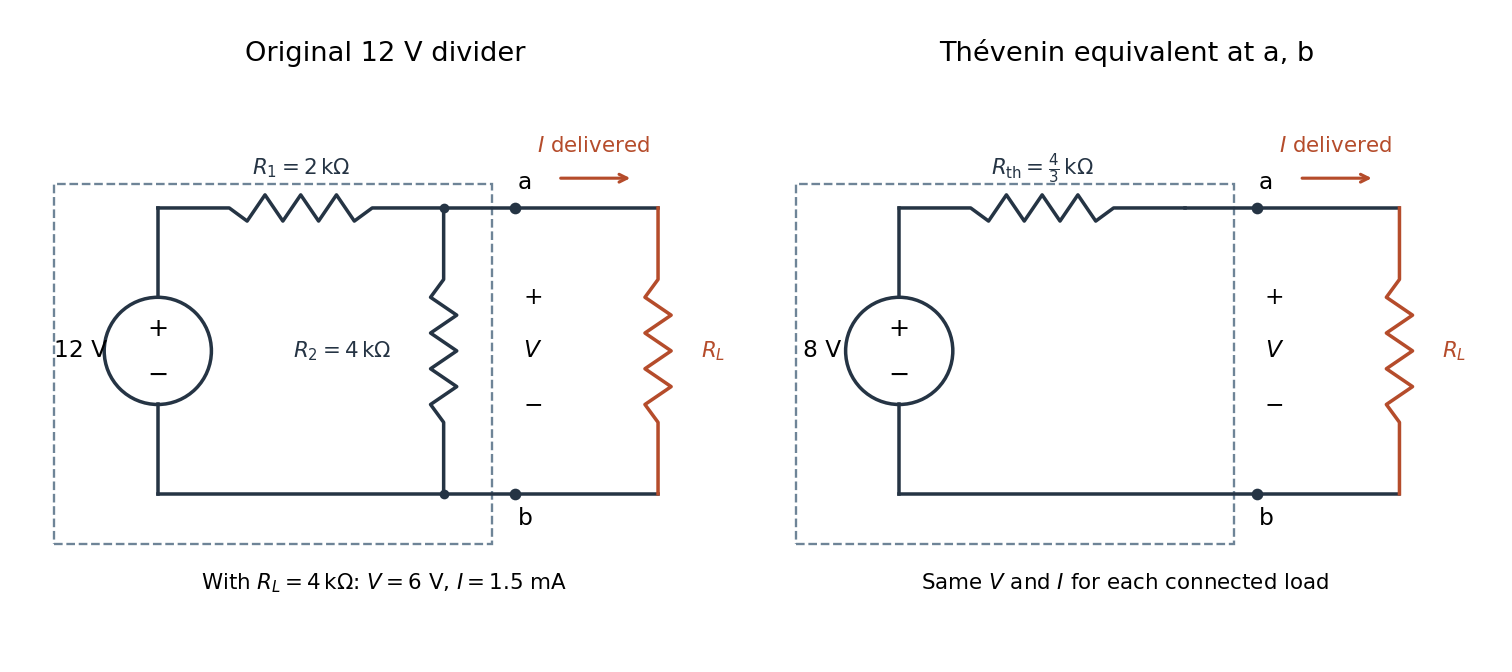

In the pictured original linear resistive circuit, the ideal voltage source keeps its upper node at $12\mathrm{V}$ relative to $b$. Let $R_1=2\mathrm{k\Omega }$ connect that node to $a$, and $R_2=4\mathrm{k\Omega }$ connect $a$ to $b$. With the external electrical load removed, the voltage divider givesTo find the Thévenin resistance, Thévenin source suppression replaces the ideal $12\mathrm{V}$ voltage source by a wire. Both resistors now join $a$ to $b$ in parallel, givingThis is the electrical resistance looking into the original network with its independent electrical source suppressed; the external electrical load is excluded.

An independent check uses Kirchhoff's current law at $a$, without suppressing anything:The Thévenin terminal response thus follows directly from the original topology. Shorting $a$ to $b$ in this ideal calculation gives $I_{\mathrm{sc}}=6\mathrm{mA}$: the lower resistor has zero voltage and the upper resistor limits the electric current. All numerical values here and in the figures are stipulated model values, not laboratory data.

To determine the Thévenin resistance, remove the external electrical load and set each independent electrical source to zero in the circuit model. A zero ideal voltage source enforces zero electric potential difference, so replace it by a short connection. A zero ideal current source enforces zero electric current, so replace it by an open connection. Retain every resistor, including any explicitly modeled supply electrical resistance. Turning an actual power supply's front-panel control to zero is not evidence that it physically becomes an ideal wire.

Retain every dependent electrical source and its controlling variable: its response to an electrical test source is part of the network's electrical resistance. Impose terminal voltage $v_t$ with an electrical test source and calculate $j_t$ entering the suppressed network at $a$. For a nonzero test yielding a finite ratio,Alternatively inject a known entering electric current and solve for $v_t$. The test electric current is opposite to the delivered-current convention of the original Thévenin terminal response. ^[ref]

For an original illustration, put a positive resistor $R$ across $a,b$ and a dependent electrical source in parallel that injects electric current $g{v}_t$ from $b$ toward $a$, where $g$ has units of electrical conductance. Its control is the same terminal voltage $v_t$. Kirchhoff's current law givesWith $R=1\mathrm{k\Omega }$ and $g=0.5\mathrm{mS}$, a $1\mathrm{V}$ test draws $0.5\mathrm{mA}$, giving $R_{\mathrm{th}}=2\mathrm{k\Omega }$. Removing the dependent electrical source would falsely give $1\mathrm{k\Omega }$. With $g=2\mathrm{mS}$, the model instead has $R_{\mathrm{th}}=-1\mathrm{k\Omega }$; with $g=1\mathrm{mS}$ it draws zero test electric current for any imposed voltage and has no finite ratio. An active physical realization requires a supply and has a limited operating range.

For a finite nonzero $R_{\mathrm{th}}$ and a well-defined short-circuit response, $I_{\mathrm{sc}}=V_{\mathrm{oc}}/R_{\mathrm{th}}$. Thus $R_{\mathrm{th}}=V_{\mathrm{oc}}/I_{\mathrm{sc}}$ is usable when $I_{\mathrm{sc}}\ne 0$. A source-free positive resistor has both $V_{\mathrm{oc}}=0$ and $I_{\mathrm{sc}}=0$, so this quotient cannot reveal its electrical resistance; an electrical test source can.

A positive resistive electrical load obeys Ohm's law, $V_L=I{R}_L$. Its resistive load line intersects the Thévenin terminal response atprovided $R_{\mathrm{th}}+R_L\ne 0$. For the Thévenin divider example, $R_L=1\mathrm{k\Omega }$ gives $I=24/7\mathrm{mA}$ and $V_L=24/7\mathrm{V}$; $R_L=4\mathrm{k\Omega }$ gives $I=1.5\mathrm{mA}$ and $V_L=6\mathrm{V}$. At $R_L=R_{\mathrm{th}}=\frac{4}{3}\mathrm{k\Omega }$, the voltage is $4\mathrm{V}$, half the open-circuit voltage.

For this positive $R_{\mathrm{th}}$, increasing $R_L$ reduces the drawn electric current and raises $V_L$ toward $V_{\mathrm{oc}}$. This explains voltmeter loading: a voltmeter itself is an electrical load. The equivalence also applies to a nonlinear electrical load through intersection with its terminal relation, but an arbitrary load need not give a unique operating point. If negative $R_{\mathrm{th}}$ cancels positive $R_L$, the displayed formula is singular; a real active circuit's limits and dynamics must then be considered.

An authored teaching experiment uses an adjustable steady-voltage supply, a digital multimeter, fixed resistors, and a $10\mathrm{k\Omega }$ potentiometer or resistance decade box. Its original circuit uses a $10\mathrm{V}$ supply and $3.3$, $6.8$, and $4.7\mathrm{k\Omega }$ resistors; the student compares $8.2$ and $2.2\mathrm{k\Omega }$ electrical loads. The readout is load voltage, recorded against prediction and deviation. The student then removes the electrical load to measure the open-circuit voltage, disconnects the supply and substitutes a wire to measure the Thévenin resistance with the multimeter's resistance mode, and restores the supply for an independent method: adjust the variable electrical load until the voltmeter reads half the unloaded voltage. Finally the student builds the equivalent and repeats both load measurements. Its tables are blank recording forms, not reported observations. ^[ref]

The half-voltage inference assumes negligible voltmeter loading and positive $R_{\mathrm{th}}$. A finite voltmeter input electrical resistance $R_m$ actually gives an apparent unloaded readingWhen the same voltmeter remains connected across a variable electrical load $R_L$, the network sees $R_p=R_L{R}_m/(R_L+R_m)$. Setting its reading to $V_m/2$, rather than to the true $V_{\mathrm{oc}}/2$, givesThus the uncorrected half-reading method underestimates positive $R_{\mathrm{th}}$. In the original $12\mathrm{V}$ example, a stipulated $R_m=10\mathrm{k\Omega }$ gives $V_m=120/17\mathrm{V}\approx 7.059\mathrm{V}$ and half-reading load $R_L=20/17\mathrm{k\Omega }\approx 1.176\mathrm{k\Omega }$, instead of $\frac{4}{3}\mathrm{k\Omega }$. These are model predictions for a deliberately loading meter, not the specification or observed readout of the source experiment's instrument.

Finite readings can also estimate the terminal line without a physical short. For two distinct load settings with corrected delivered electric currents $I_1,I_2$ and terminal voltages $V_1,V_2$,If the voltmeter remains across each electrical load, the delivered electric current is $I_k=V_k(1/R_{L,k}+1/R_m)$, including the meter branch. Omitting it biases the inferred slope.

Useful additional controls are to measure each resistor separately before assembly, verify terminal polarity, repeat an earlier load setting to detect supply drift, and compare a third setting with the inferred Thévenin terminal response. These are proposed controls, not reported outcomes of the source experiment. Closely spaced electric currents make the slope estimate sensitive to voltage resolution and measurement error; widely separated settings may trigger source current limiting or Joule heating that changes electrical resistance. Lead and contact electrical resistance, meter input uncertainty and rounding limit the inference. An ohmmeter injects its own test electric current; its reading on a powered network is not the suppressed-network ratio. Measurements with independent sources physically removed do not characterize an active dependent electrical source whose control or supply has also been disconnected.

The negative slope of the Thévenin terminal response with delivered electric current $I$. Thévenin source suppression determines it from the ratio of test voltage to entering test electric current. It need not represent a physical positive resistor inside the original network.

A Thévenin equivalent represents a network at two terminals by a voltage source in series with its Thévenin resistance. It reproduces the terminal relation under the assumptions of Thévenin's theorem.
