Matthiessen's rule approximates the total electrical resistivity of a metal by the sum of separate scattering contributions. For a common parabolic energy band, approximately independent scattering mechanisms give $1/\tau ={\sum }_{j}1/{\tau }_j$ for the respective momentum relaxation times, and hence ${\rho }_{\mathrm{el}}=m/(n{e}^2\tau )={\sum }_{j}m/(n{e}^2{\tau }_j)$. Correlated scattering, strongly angle-dependent processes or a complicated changing energy band structure can invalidate the simple addition.

In a normal metal, the electrical resistivity can often be approximated using Matthiessen's rule,Static impurities, defects and grain boundaries scatter conduction Electrons even as $T\to 0$, giving the residual resistivity. Thermal lattice phonons add a temperature-dependent contribution through electron-phonon scattering. In a clean three-dimensional acoustic model, small-angle electron-phonon transport at low temperature gives ${\rho }_{\mathrm{phonon}}\propto T^5$ at low $T$; once thermal phonon populations are approximately classical, the resistivity is approximately linear in $T$. An electron-electron contribution proportional to $T^2$ can be relevant in some low-temperature ranges.

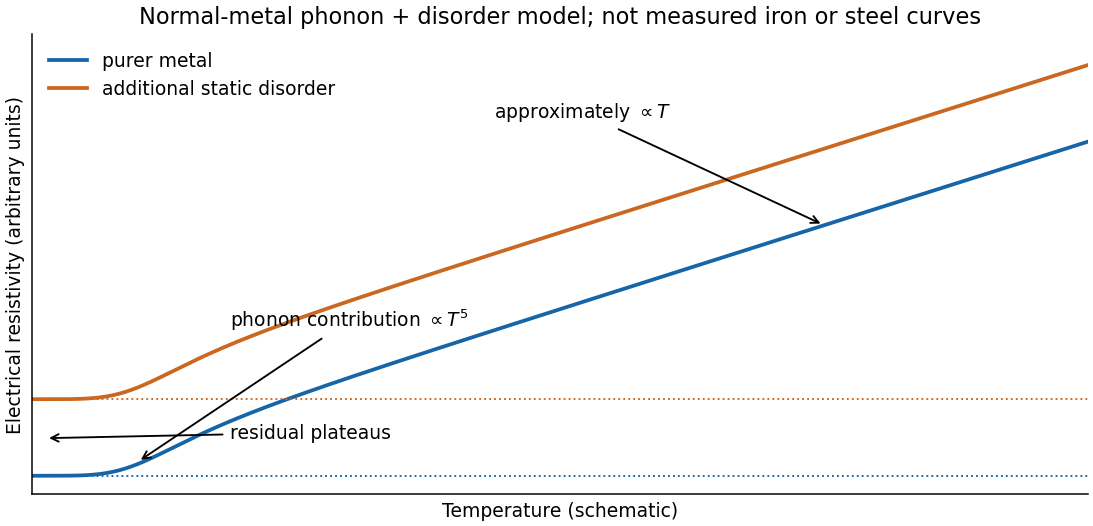

Carbon in mild steel, together with associated disorder, strain and microstructural changes, adds scattering and generally raises the residual resistivity relative to purer iron. Thus a dilute alloy may have a similar broad phonon-dependent rise but a larger baseline. The sketch is a generic phonon-plus-disorder model, not measured iron data. Iron's magnetic scattering and phase changes, and real steel's phases and processing history, can add structure; the simple sum is approximate rather than an exact material law. The expected explanation is greater Electron scattering from the added carbon and resulting disorder.

In a metal, a partially filled energy band or overlapping energy bands supplies Electrons with nearby unoccupied states. At thermal equilibrium, oppositely directed group velocities are equally populated and the net electric current vanishes. An applied electric field distorts the occupation distribution, producing a small mean drift velocity. A filled energy band alone has no such low-field intraband response because its velocity contributions cancel over the entire Brillouin zone.

In the Drude model, let $n$ be the mobile Electron number density, let $e>0$ be the elementary charge, and let $\tau$ be the momentum relaxation time. The mean motion obeysThe steady state is ${\mathbf{v}}_d=-e\tau \mathbf{E}/m$. The current density is opposite to the Electron drift velocity:This gives microscopic Ohm's law, with electrical conductivity $\sigma$ in $\mathrm{S}{\mathrm{m}}^{-1}$ and electrical resistivity ${\rho }_{\mathrm{el}}$ in $\Omega \mathrm{m}$. For a uniform wire of length $\ell$ and cross-sectional area $A$, its electrical resistance is $R={\rho }_{\mathrm{el}}\ell /A$. The dissipated power per volume is $\mathbf{J}\cdot \mathbf{E}=\sigma E^2$, the Joule heating supplied by the external source.

The free electron model with Fermi-Dirac statistics improves the microscopic picture. The Pauli exclusion principle fills states up to the Fermi energy at low temperature. For a spherical, parabolic energy band with two spin states,Only states near the Fermi surface change their occupation in a weak-field response; the large equilibrium Fermi velocity is not the small drift velocity. The same $n{e}^2\tau /m$ formula results for this isotropic parabolic model when $\tau$ is evaluated for transport near the Fermi surface. In a crystal, the energy band group velocity, effective mass and possibly direction-dependent scattering replace the simplest bare-particle picture. The mean free path is approximately ${\ell }_{\mathrm{mfp}}=v_F\tau$.

A perfectly periodic static lattice is already included in Bloch states and does not by itself give a finite electrical resistivity. Momentum relaxation comes from defects, impurities, boundaries, and electron-phonon scattering. Independent scattering mechanisms approximately add their rates, giving Matthiessen's rule,The approximately temperature-independent ${\rho }_0$ is the residual resistivity. In ordinary simple metals, the phonon contribution is approximately proportional to temperature at high temperature; a three-dimensional acoustic-phonon transport model gives a $T^5$ contribution well below the relevant Debye temperature. Other mechanisms can dominate in particular materials or regimes, so neither power law is universal.

The classical Drude model incorrectly treats the equilibrium carrier statistics. Fermi-Dirac statistics explains the small electronic heat capacity, while electrons carrying both charge and heat give the approximate Wiedemann-Franz law ${\kappa }_e/(\sigma T)={\pi }^2{k}_B^2/(3e^2)$ for degenerate carriers with appropriate nearly elastic scattering. Both the simple electrical conductivity formula and this thermal relation depend on the assumptions about energy bands and scattering, rather than being exact for all metals.
