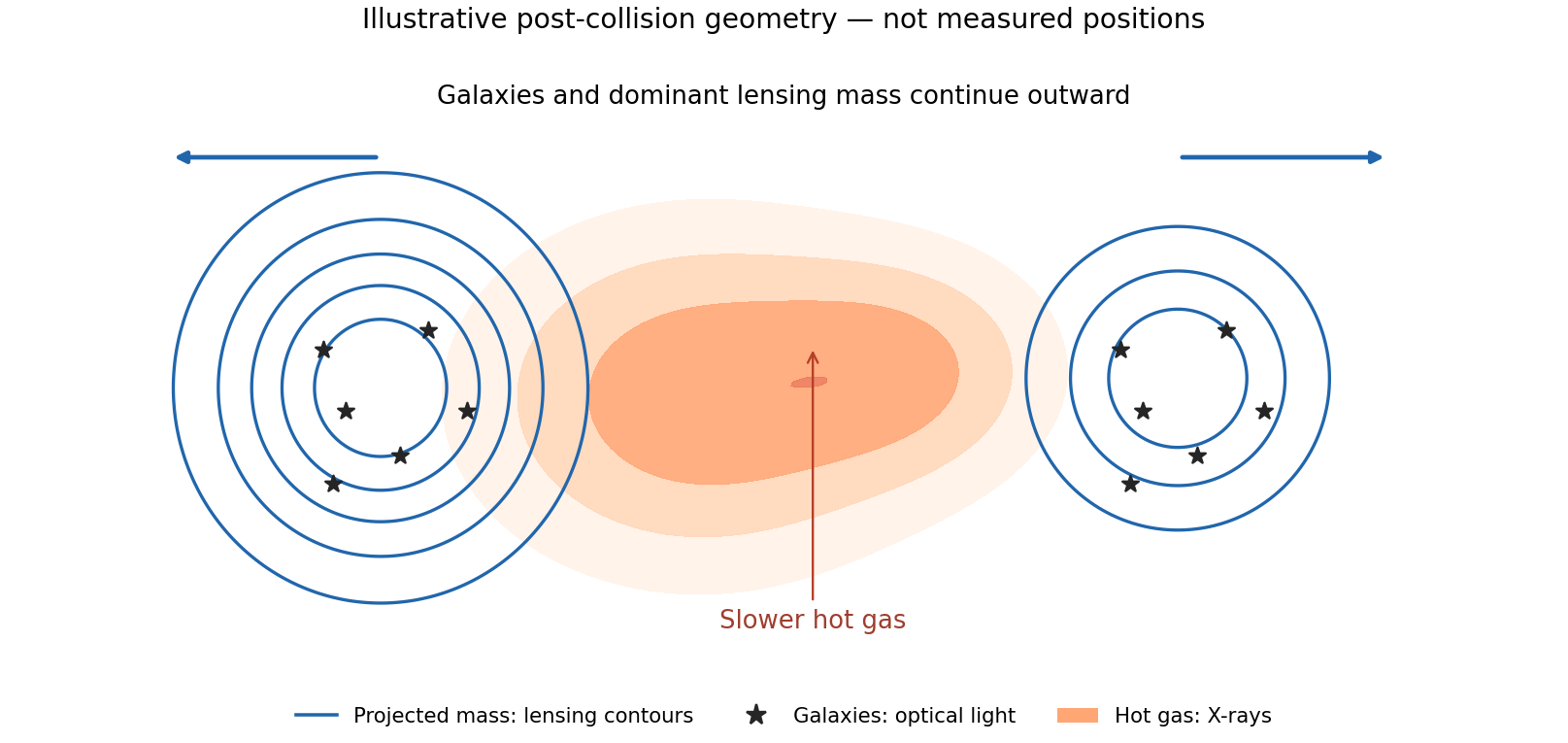

A merging galaxy cluster exhibiting the bullet Cluster dark-matter separation: peaks of weak gravitational lensing mass lie nearer the galaxies than the displaced X-ray gas. Combining the components supports a dominant less-collisional gravitating component under the usual gravitational model.^[ref]

For an isolated approximately spherical mass distribution outside its luminous extent, retain the gravitational force $GMm/r^2$ and use the specified low-acceleration inertial law. circular motion then givesThe radius cancels when enclosed luminous mass is effectively constant. This is the asymptotic modified Newtonian dynamics result associated with the baryonic Tully-Fisher relation; an arbitrary extended disk cannot everywhere be replaced exactly by a point mass.

At the disk edge,Using $G=6.67\times 10^{-11}{\mathrm{m}}^3\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{s}}^{-2}$ givesThis is an order-of-magnitude isolated, low-acceleration estimate. The edge acceleration is below $a_0$, but not extremely small compared with it; a full interpolation law, disk geometry and an external gravitational field can affect a more precise mass fit.

For the spherical mass profile for a flat rotation curve, assume spherical symmetry where the halo dominates. A flat rotation curve gives $M(<r)=v^{2}r/G$, and differentiating $M(<r)=4\pi {\int }_0^r\rho (s)s^{2}ds$ yieldsHere $\rho$ is the density of the spherical gravitating model; it is not an exact deprojection of a thin luminous disk or a proof that the central density must diverge. At the outermost stated measured radius,This is enclosed mass within $2R$, not a measured global total. Treating it as the entire galaxy-plus-halo mass additionally assumes truncation there. Extending $\rho \propto r^{-2}$ to infinity would give divergent mass; no outer cutoff is provided. TODO: A global total requires the unprovided outer halo extent or a continuation of its mass profile. Subtracting the MOND-inferred luminous mass to obtain a Newtonian halo mass would mix independent model-dependent estimates without an independently measured luminous mass.

In the Bullet Cluster collision, most observed baryonic mass is hot gas. ram pressure slows and shocks the gas, while the galaxies pass through much more freely. weak gravitational lensing maps the projected gravitational mass without requiring that the gas be in hydrostatic equilibrium. The dominant lensing peaks lie closer to the galaxies than to the displaced X-ray gas. This supports a dominant weakly collisional dark matter component under the usual gravity model. It is stronger evidence than a mass-to-light discrepancy alone because distinct components separate during the same encounter. The inference needs background-source shape/redshift calibration, projection control and uncertainty in the lensing reconstruction; it does not identify a WIMP species or by itself exclude every modified-gravity theory.^[ref]

For dark-matter direct detection, consider XENON100 at Gran Sasso. A halo WIMP can undergo elastic scattering from a xenon atomic nucleus, leaving a recoil of only a few to tens of keV. The expected rate is very low, so a large target, low threshold and long exposure must be combined with background rejection. The nuclear-recoil kinematics of WIMP scattering gives $E_{R,\max }=2{\mu }_{\chi N}^2{v}^2/m_N$ in the nonrelativistic limit, where ${\mu }_{\chi N}$ is the reduced mass and masses and velocities use consistent units. This explains why low-energy response calibration matters.

The dual-phase xenon detector measures prompt particle scintillation S1 and delayed electroluminescence S2 from ionization electrons extracted into gas. Their time separation gives interaction depth; the S2 light pattern supplies transverse position. An inner fiducial volume uses xenon's self-shielding to suppress external backgrounds. The S2/S1 distribution statistically separates nuclear recoils from electron recoils; it is not perfect event-by-event identification. Underground siting reduces cosmic-ray backgrounds, while passive shielding, low-radioactivity components, xenon purification and a surrounding active detector veto reduce other events.^[ref]

Neutrons can also make nuclear recoils, so charge-to-light discrimination alone cannot eliminate them. Multiple-scatter rejection, shielding and background modelling remain necessary. Gamma-source and neutron-source calibrations map electron- and nuclear-recoil distributions, energy scale and selection acceptance. Position-dependent light collection and charge losses need correction; photon-counting fluctuations and uncertain low-energy yields limit threshold sensitivity. Blind event selection and independent sidebands guard against tuning cuts to apparent candidates. The 224.6-live-day, 34 kg search found two benchmark candidates against about one expected background event, consistent with background. Its interaction limit therefore depends on the assumed halo distribution, WIMP mass and nuclear response; it is not a detection or an exclusion of all dark matter.^[ref]

The inference of dark matter uses a gravitational law to turn observed motions and lensing into a mass distribution. modified gravity asks whether some discrepancies instead reveal a breakdown of that law. The strongest motivation at galactic scales is the regular relation between baryonic structure and galaxy rotation curves, including approximately flat outer rotation speeds and the baryonic Tully-Fisher relation.

In modified Newtonian dynamics, the low-acceleration spherical relation is $g\mu (g/a_0)=g_N$, with $\mu (x)\to 1$ at high acceleration and $\mu (x)\to x$ at low acceleration. For an isolated baryonic mass $M_b$ in the latter regime,Thus an asymptotically flat rotation curve and a fourth-power mass–speed relation arise from a common acceleration scale, without assigning an independent halo profile to every galaxy. This is a substantive phenomenological motivation. Distances, stellar mass-to-light ratios, gas distributions and the external gravitational environment must still be controlled.^[ref]

A nonrelativistic acceleration prescription does not itself specify light bending or cosmology. A relativistic completion must determine the metric followed by photons and matter. tensor-vector-scalar gravity illustrates the need for additional dynamical fields and a specified physical metric; lensing predictions then have to be calculated within that theory rather than imported unchanged from general relativity.^[ref]

Several observations challenge a simple replacement of dark matter by a single galactic acceleration law. galaxy clusters retain substantial mass discrepancies even after such a modification. In the bullet Cluster dark-matter separation, the dominant X-ray-emitting baryonic gas is displaced from the galaxies, whereas weak-lensing mass concentrations lie nearer the galaxies. Collisionless dark matter accompanying the galaxies provides a natural account of this separation. The inference uses a lensing model and does not constitute a theorem excluding every conceivable modified-gravity theory, but a successful alternative must reproduce the displaced lensing signal quantitatively.^[ref]

The cosmic microwave background, acoustic structure, expansion history and growth of cosmic structure provide additional simultaneous tests. A theory that fits galaxy rotation curves must also supply the appropriate cosmological perturbation evolution and lensing. Adding extra clustering fields can help, but may reintroduce an effective unseen gravitating component. Solar-system and binary-pulsar agreement with general relativity constrain alternatives in their tested regimes, although a modification designed to act only at very low acceleration is not automatically ruled out by a high-acceleration test.

A discriminating programme compares dynamics, which probes the potential accelerating nonrelativistic matter, with lensing, which probes the sum of the two scalar metric potentials. Scale-dependent discrepancies, gravitational slip and environmental screening can then be tested with controlled galaxy bias and selection effects. Galaxy-scale tensions in a dark-matter model must likewise be separated from uncertain baryonic astrophysics. Regular galactic scaling relations motivate modified gravity; clusters and the combined cosmological evidence strongly challenge its simplest dark-matter-free forms. Failure to detect a particular WIMP is not positive evidence for a particular modified-gravity theory.

gravitational lensing measures the gravitational influence of matter without requiring that matter to shine. In general relativity a point mass produces small-angle deflectionFor a thin lens, with angular-diameter distances $D_d,D_s,D_{ds}$,Image multiplicity, distortion and magnification therefore constrain projected gravitating mass, with source and lens geometry measured separately.

Strong lensing gives multiple images, arcs and Einstein rings. Their positions and, where available, time delays constrain a central mass distribution. Weak lensing measures correlated small image distortions over a larger field. Using the critical surface density for gravitational lensing and reduced gravitational shear, the convergence and shear satisfyBecause intrinsic galaxy shapes are unknown, weak shear is inferred statistically using many sources. Point-spread-function anisotropy, shear calibration, photometric redshifts, intrinsic alignments and foreground contamination must be controlled.

An inferred lensing mass can be compared with the independently estimated stellar and hot-gas mass. The bullet Cluster dark-matter separation provides a particularly informative separation of components: the collisional X-ray-emitting gas is displaced from the galaxies, while lensing mass peaks approximately follow the less-collisional galaxy component. The primary analysis combined wide-field and Hubble imaging rather than inferring lensing mass from X-ray hydrostatic equilibrium.^[ref] This favors a dominant relatively collisionless unseen component. Translating a merger offset into a particle self-interaction cross section also requires a merger model and projection uncertainties; lensing does not directly reveal a WIMP's mass or quantum numbers.

Microlensing tests a different possibility: dark matter in compact objects. A compact foreground lens can create an unresolved, time-dependent magnification of a background star. Event frequency and duration constrain the abundance and mass range of compact lenses only after survey cadence, detection efficiency, blending, source sizes and halo geometry are included. Achromaticity and the expected light-curve shape help distinguish simple lensing from intrinsic variability. A null survey result does not exclude every compact-object mass at every location.

Weak-lensing correlations and small-scale strong-lens structure also test the matter power spectrum and halo substructure, potentially distinguishing cold from warm free-streaming behavior. Baryonic feedback can change the same small-scale mass distribution. There are intrinsic inversion ambiguities: the mass-sheet transformationleaves reduced gravitational shear unchanged. Source-redshift information, absolute magnification or other data can restrict such degeneracies. Lensing establishes where gravitating matter is and tests its distribution and interactions; identification of its particle species requires complementary evidence.

A galaxy cluster deflects background light through its projected gravitational field. In the thin-lens approximation for gravitational lensing, $\mathbf{\beta }=\mathbf{\theta }-\mathbf{\alpha }(\mathbf{\theta })$ maps image to source angle. Its surface mass density enters throughHere $\mu$ is signed lensing magnification; observed brightness uses $|\mu |$. The $D$'s are angular diameter distances to lens, source and between them; ${\gamma }_s$ denotes lensing shear, not a Lorentz factor. strong gravitational lensing creates arcs and multiple images near critical curves. For an axisymmetric lens, a tangential Einstein ring satisfies mean enclosed convergence one, givingThis is projected enclosed mass, not a general three-dimensional mass profile inferred from a single arc.

weak gravitational lensing uses coherent distortions of many background galaxies. Their intrinsic orientations average approximately to zero, allowing an estimate of reduced shear $g={\gamma }_s/(1-\kappa )$ and a projected mass map. The method traces all gravitating material without assuming hydrostatic equilibrium, which is valuable in merging clusters. Accurate work requires correction of the point spread function, calibrated shape measurement, source redshifts, foreground-member rejection and selection effects. Intrinsic shape noise, unrelated line-of-sight structures and lens-model degeneracies remain. The mass-sheet degeneracy leaves reduced shear unchanged under $\kappa \mapsto \lambda \kappa +(1-\lambda )$ and ${\gamma }_s\mapsto \lambda {\gamma }_s$, so absolute mass normalization needs additional information.

In the Bullet Cluster, weak gravitational lensing places the main projected mass peaks near the collisionless galaxies, displaced from the X-ray-emitting gas that contains most observed baryon mass. Comparing the lensing, optical and X-ray maps supports a dominant weakly collisional dark component under the usual gravity model; lensing alone does not identify its particle species. Cluster lensing measures projected gravitational mass independently of gas temperature or dynamical equilibrium.^[ref]

Three tracers give complementary estimates of a cluster's gravitating mass. First, galaxy redshifts measure a line-of-sight velocity dispersion ${\sigma }_{\mathrm{los}}$. For a roughly stationary bound cluster, the virial theorem gives a cluster velocity-dispersion mass estimatewith a coefficient depending on the density profile and orbital anisotropy. The galaxy luminosity and plausible stellar mass-to-light ratio supply too little mass to bind typical rich clusters. Foreground interlopers, substructure, velocity anisotropy and a recent merger can bias the dynamical estimate; a large dispersion is not by itself proof of equilibrium.

Second, diffuse X-ray emission measures a hot intracluster plasma, not merely unresolved starlight. Spectral continuum and lines constrain its temperature, while surface-brightness profiles constrain its density after line-of-sight projection and emissivity modeling. If the gas has constant composition and is approximately spherical and in hydrostatic equilibrium,This cluster hydrostatic mass estimator uses $\mu m_p$ as the mean mass per pressure-supporting particle. The inferred potential requires substantially more mass than the stars plus measured gas, although the gas contains much of the visible baryonic mass. Turbulence, bulk motion, temperature structure and departures from hydrostatic equilibrium are important systematic errors.

Third, strong-lensing arcs and multiple images, together with coherent weak-lensing shear of background galaxies, measure projected gravitational deflection. In general relativity,This cluster gravitational-lensing mass estimate does not require the cluster galaxies or gas to be in dynamical equilibrium. It does require source-distance information, a lens model and control of point-spread-function-induced shapes, line-of-sight projection, unrelated line-of-sight structure and the mass-sheet degeneracy.

The convergence of dynamical, hydrostatic and lensing masses, exceeding the baryonic inventory, is the principal evidence. The Bullet Cluster adds a spatial test: collisional X-ray gas lags behind the galaxies during the merger, while the inferred lensing concentrations lie nearer the collisionless galaxy component. An additional weakly collisional gravitating mass accounts naturally for that separation.^[ref] The conclusion assumes a gravitational framework and does not identify the microscopic dark-matter particle; the different tracer systematics should be evaluated rather than treating three mass estimates as completely assumption free.
