Gas-syringe measurement of Boyle's law

Vernier's Boyle's Law: Pressure-Volume Relationship in Gases, Experiment 6 of Chemistry with Vernier, specifies a graduated $20\mathrm{mL}$ gas syringe, a pressure sensor and LabQuest recording. Preparation sets the disconnected syringe to $10.0\mathrm{mL}$, then attaches it to the sensor valve, trapping air. At several plunger positions, the displayed pressure is allowed to stabilize before the paired volume is entered. The analysis tests whether $pV$ remains approximately constant. It adds $0.8\mathrm{mL}$ to each syringe reading for the sensor's internal volume; this correction belongs to that apparatus. The worksheet supplies a blank results table, not measured values.^[ref]

The manufacturer's Gas Pressure Sensor User Manual identifies a membrane sensor referenced to a vacuum, hence an absolute pressure readout. Its calibration section uses the actual local atmospheric pressure for an ambient reference check, rather than a weather report corrected to sea level. Checking this baseline before sealing separates an offset error from compression physics.^[ref]

Additional controls follow from the model. Keep the same sealed amount of substance, connections and ambient temperature; persistent pressure drift at held volume after thermal equilibrium suggests a leak or another uncontrolled change. Small steps and waiting allow compression heat to leave the gas; avoiding hand warming reduces another heat input. Compare settled readings when approaching a position from either direction. Plunger friction affects the applied force and position reproducibility, so record actual pressure and actual plunger position rather than predicting pressure from the load. These are proposed controls, not reported experimental outcomes.

Nearly constant $pV$ across equilibrated states supports the fixed-temperature ideal gas approximation over the tested range. Stabilized pressure alone does not demonstrate uniform or constant temperature; the isothermal gas syringe experiment adds a temperature readout to distinguish a transient from its cooled endpoint. Finite sensor accuracy and uncertain total volume limit the test, and agreement does not establish ideal behavior at every pressure. Repeated return readings help distinguish reproducibility from a one-direction trend.

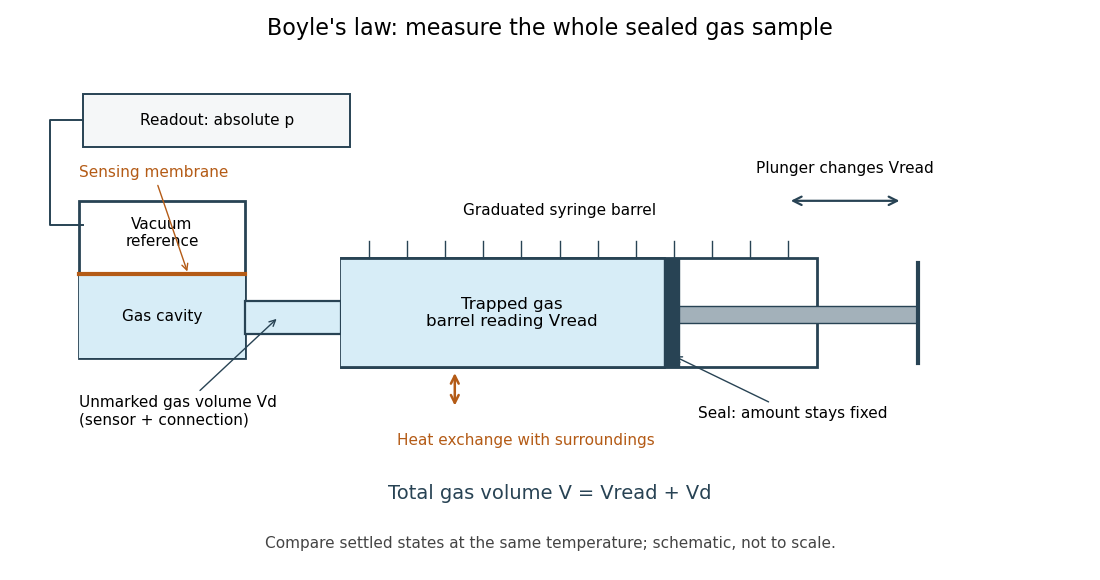

In a gas syringe, the graduated barrel reading $V_{\mathrm{read}}$ can omit a fixed connecting or sensor volume $V_d$ occupied by the same sealed gas. For a common settled temperature, Boyle's law then requiresThis second relation makes a graph of $1/p$ against $V_{\mathrm{read}}$ a straight line; its intercept divided by its slope estimates $V_d$ under these assumptions. Unequal temperatures between the barrel and the connecting space require a different correction, analogous to the gas thermometer dead-space correction.

For an original hypothetical example, let $V_d=1\mathrm{c}{\mathrm{m}}^3$, $V_{\mathrm{read},1}=20\mathrm{c}{\mathrm{m}}^3$, $p_1=100\mathrm{kPa}$, and $V_{\mathrm{read},2}=10\mathrm{c}{\mathrm{m}}^3$. The total volume falls from $21$ to $11\mathrm{c}{\mathrm{m}}^3$, so $p_2=100(21/11)\mathrm{kPa}\approx 190.91\mathrm{kPa}$, rather than $200\mathrm{kPa}$. The omitted volume makes the total compression ratio smaller than the barrel-reading ratio. These stipulated values are independent of the manufacturer's apparatus correction and are not measurements.
