Cold-junction thermal coupling is the heat-transfer relationship between a thermocouple reference junction, its temperature sensor and the surrounding apparatus. Cold-junction compensation needs the actual terminal-region temperature. A sensor with excellent electrical calibration can still give an unsuitable correction if it is at another temperature because of heat conduction, air currents, nearby dissipation or finite response time.

An isothermal terminal block aims to keep both thermoelement-to-lead transitions and the reference sensor at a common temperature while preserving electrical insulation. The TI design discussion identifies two separate requirements: matching the temperatures of the two terminal transitions and measuring that temperature accurately. Its layout discussion considers metal fill, parasitic heating and airflow.^[ref] NI's documented terminal assemblies likewise incorporate local temperature sensors rather than inferring the terminal temperature from the raw thermocouple signal.^[ref]

A simple lumped thermal model separates the paths. Let $T_j$ be a prescribed junction temperature, $T_s$ the sensor temperature, $T_a$ ambient temperature, $G_c$ the thermal conductance to the junction, $G_a$ the conductance to ambient and $P_s$ sensor dissipation. With sensor heat capacity $C_s$,For fixed inputs, the steady sensor error isBetter coupling to the junction and weaker parasitic coupling to ambient have different roles; sensor dissipation adds a further term.

For an original example choose $T_j=35{}^{\circ }\mathrm{C}$, $T_a=25{}^{\circ }\mathrm{C}$, $G_c=0.040W/K$, $G_a=0.010W/K$ and $P_s=1\mathrm{mW}$. ThenThe sensor settles near $33.02{}^{\circ }\mathrm{C}$ despite the junction being at $35{}^{\circ }\mathrm{C}$. These are stipulated thermal parameters, not specifications of the cited devices.

The same equation gives thermal time constant $\tau =C_s/(G_c+G_a)$. With $C_s=0.10J/K$, $\tau =2\mathrm{s}$. Waiting several time constants removes the transient toward the steady sensor temperature, but cannot remove the calculated steady mismatch. A stable display is therefore not proof of thermal agreement.

The reference-junction temperature sweep in thermocouple testing can expose both effects. At matched plateaus, compare the reference reading with a local independent thermometer; during ramps, compare lag and sweep-direction dependence. If the two reference terminals themselves have different temperatures, even one perfectly measured sensor temperature cannot satisfy the simple two-junction compensation model. The thermal configuration must be tested as part of the measurement chain.

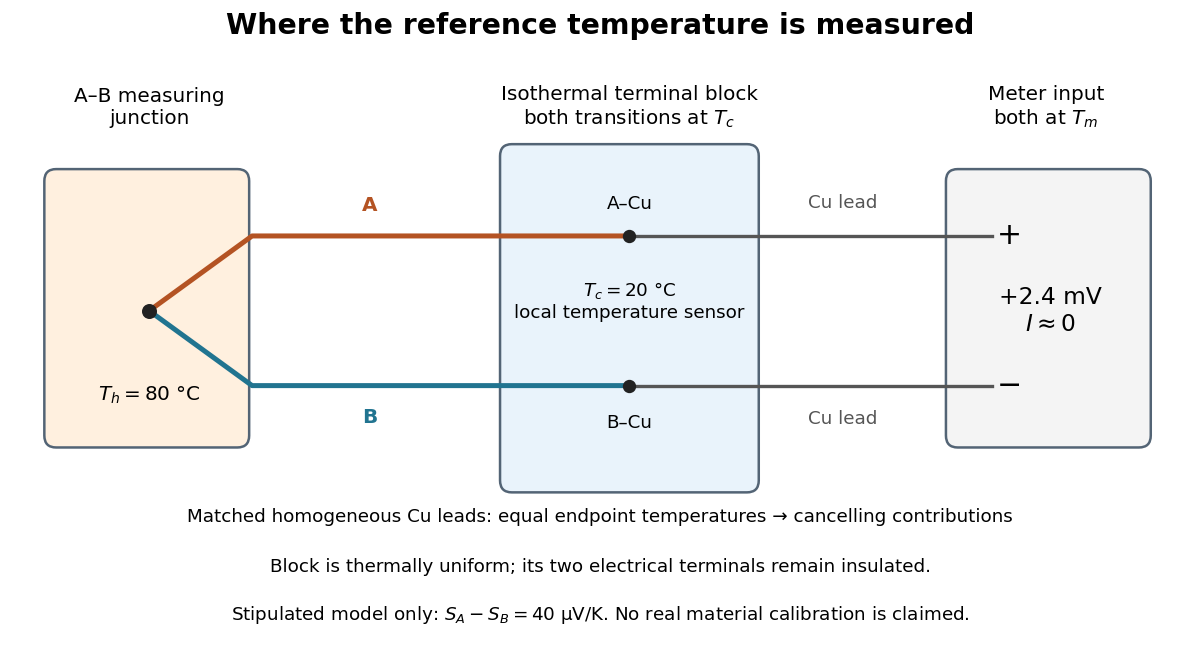

An isothermal terminal block keeps the two reference transitions and the reference thermometer at approximately the same temperature, while maintaining electrical insulation between the terminals. Thermal contact is required; an electrical short between A and B would bypass the signal. Merely using copper does not eliminate the Seebeck effect in the meter leads. If both homogeneous copper leads start at $T_c$ and end at a common meter-input temperature $T_m$, their contributions have equal magnitude and opposite sign around the measurement path:This cancellation uses matched endpoint temperatures and homogeneous lead material, rather than $S_{\mathrm{Cu}}=0$. A temperature gradient along each lead is allowed under these assumptions. If the two transitions are at different temperatures, one measured $T_c$ cannot generally correct both; unmatched connectors or wire inhomogeneity can introduce additional electromotive forces. The FP-TC-120 documentation explicitly locates the reference sensing in the terminal base or connector block and specifies isothermal versions of these assemblies.^[ref]

A thermocouple uses two different electrical conductors and the Seebeck effect to infer a measuring-junction temperature from a voltage and a known reference temperature. The reference material and the reference temperature are distinct choices: B specifies the comparison Seebeck coefficient, while $T_c$ specifies the lower limit of the integral. The two-material experiment in Seebeck effect gives the geometry, sign convention, and calibration limitations.

The useful measurement is a pair: the raw terminal electric potential difference and the thermocouple reference junction temperature. For the A-positive terminal order and homogeneous-wire assumptions of Seebeck effect, write the open-circuit electromotive force asHere $T_h$ is the thermocouple measuring junction temperature and $T_c$ is the common temperature of the reference connections. The subscript $h$ names the measuring end; it need not be hotter. A voltmeter senses the complete connected thermoelectric path through the wires and its leads, in the electrochemical potential convention already described under Seebeck effect. It does not measure an absolute temperature, the individual Seebeck coefficient of A, or an isolated contact electric potential.

Use the A-positive terminal order of Seebeck effect for each thermocouple. Its thermocouple measuring junction has temperature $T_{h,i}$ and its reference connections have temperature $T_{c,i}$. Define the difference of Seebeck coefficients as ${\alpha }_i(T)=S_{A,i}(T)-S_{B,i}(T)$. Connect the B reference end of one thermocouple to the A reference end of the next at a common local temperature, so the terminal electric potential differences add:The first A reference terminal is the positive meter input; the final B reference terminal is the negative input. Following this connected path and adding the individual Seebeck effect integrals proves the result. Matched meter leads with common endpoint temperatures cancel as in an isothermal terminal block. The manufacturer's sum formula also allows unequal individual contributions.^[ref]

If all pairs share $T_h,T_c$ and the same nearly constant difference $\alpha$ of Seebeck coefficients throughout that temperature interval, thenThis $\alpha$ is the pair's relative Seebeck coefficient, not either material's individual coefficient or a universal device constant. As an original constructed example, choose $N=20$, $\alpha =40\mu \mathrm{V}{\mathrm{K}}^{-1}$ and $\Delta T=5\mathrm{K}$. Each thermocouple contributes $0.20\mathrm{mV}$ andReversing the meter connections changes the sign. Exchanging $T_h$ and $T_c$ reverses the integrals and hence the electromotive force; this reversible sign response does not make a detector with heat conduction a reversible thermodynamic process. Reversing the wiring of one pair instead gives $(N-2)\alpha \Delta T$, because one contribution is subtracted rather than added. For this example the result is $3.6\mathrm{mV}$, and at equal junction temperatures every contribution vanishes.

The open-circuit condition matters. If the array's total electrical resistance is $R_{\mathrm{pile}}$ and the meter input has electrical resistance $R_m$, the elementary voltage divider model gives $V_m=V_{\mathrm{oc}}{R}_m/(R_m+R_{\mathrm{pile}})$. Thus $R_m\gg R_{\mathrm{pile}}$ is needed to suppress voltmeter loading. Appreciable electric current also permits Joule heating and the thermoelectric heat transfer to disturb the assumed junction temperatures.
