A far-detuned laser produces an atomic AC Stark shift approximately $U=-\mathrm{Re}\alpha (\omega )|E_0{|}^2/4$. Its spatial gradient creates a conservative dipole force. For a suitable red-detuned ground-state atom, high intensity is an energy minimum and can confine several hyperfine states without relying on nonzero permanent magnetic moments. Photon scattering, differential light shifts and intensity noise remain limitations. This atomic use is more specific than a general dielectric-particle optical trap.

Use the ordered basis $(|1⟩,|2⟩)$ and ${\sigma }_z=\mathrm{diag}(1,-1)$, withA pure quantum superposition $|+x⟩=(|1⟩+|2⟩)/\sqrt{2}$ has $\mathbf{R}=(1,0,0)$ on the Bloch sphere. In contrast, a mixed state $\rho =p|1⟩⟨1|+(1-p)|2⟩⟨2|$ has $\mathbf{R}=(0,0,2p-1)$, inside the sphere for $0<p<1$. At equal populations its vector is zero. Equal populations alone therefore do not distinguish a coherent superposition from a mixture; their off-diagonal density matrix elements differ.

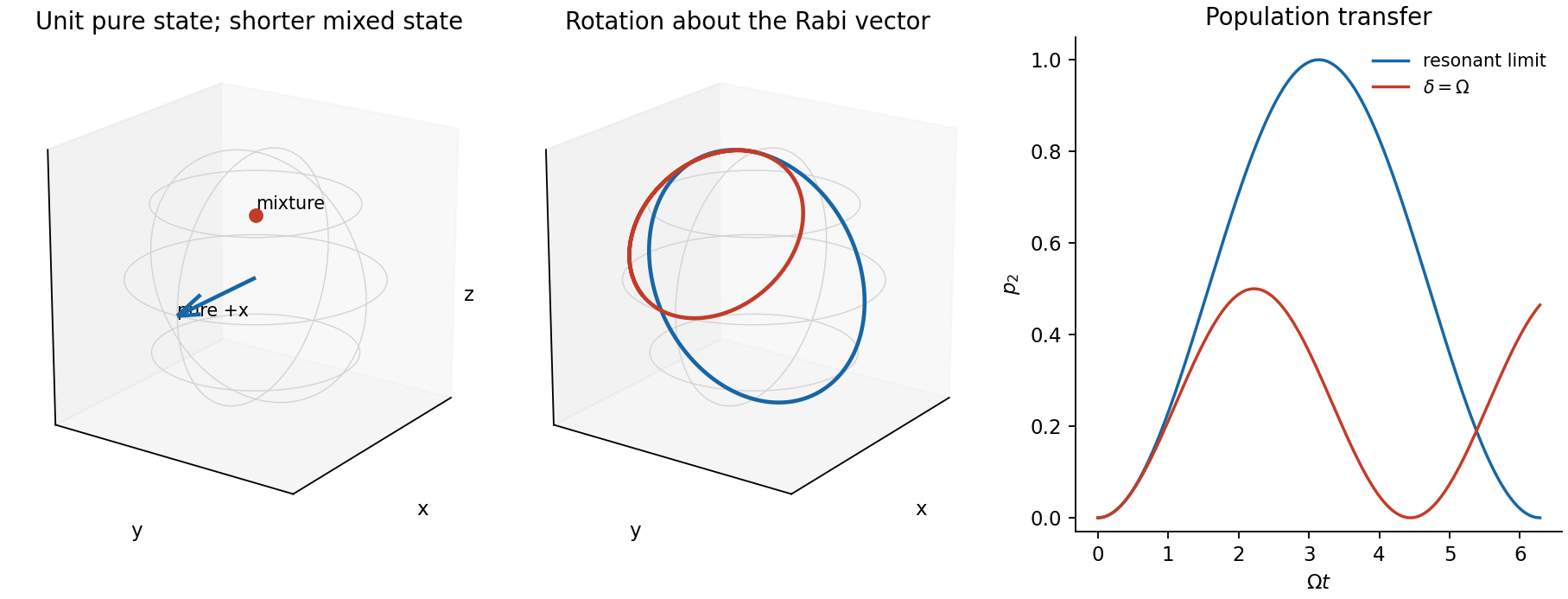

Choose the drive phase so the rotating-frame Hamiltonian is $H_{\mathrm{rot}}=\hslash (\Omega {\sigma }_x+\delta {\sigma }_z)/2$, where $\delta =\omega -{\omega }_0$ as specified. The Rabi vector is the angular-velocity vectorHere $\Omega$ is the on-resonance population oscillation angular frequency, not the unhalved coefficient of a cosine coupling. From $\mathbf{R}(0)=\hat{z}$, rotation about $\mathbf{W}$ at $W=\sqrt{{\Omega }^2+{\delta }^2}$ givesFor $\Omega \gg |\delta |$, the rotation axis is nearly transverse, the trajectory nearly a great circle, and transfer is almost complete. For $\Omega =\delta >0$, the axis bisects $+x$ and $+z$, the orbit lies in $R_x+R_z=1$, and $p_2=\frac{1}{2}{\sin }^2(\sqrt{2}\Omega t/2)$ never exceeds $1/2$. Each member remains a pure state in this coherent evolution.

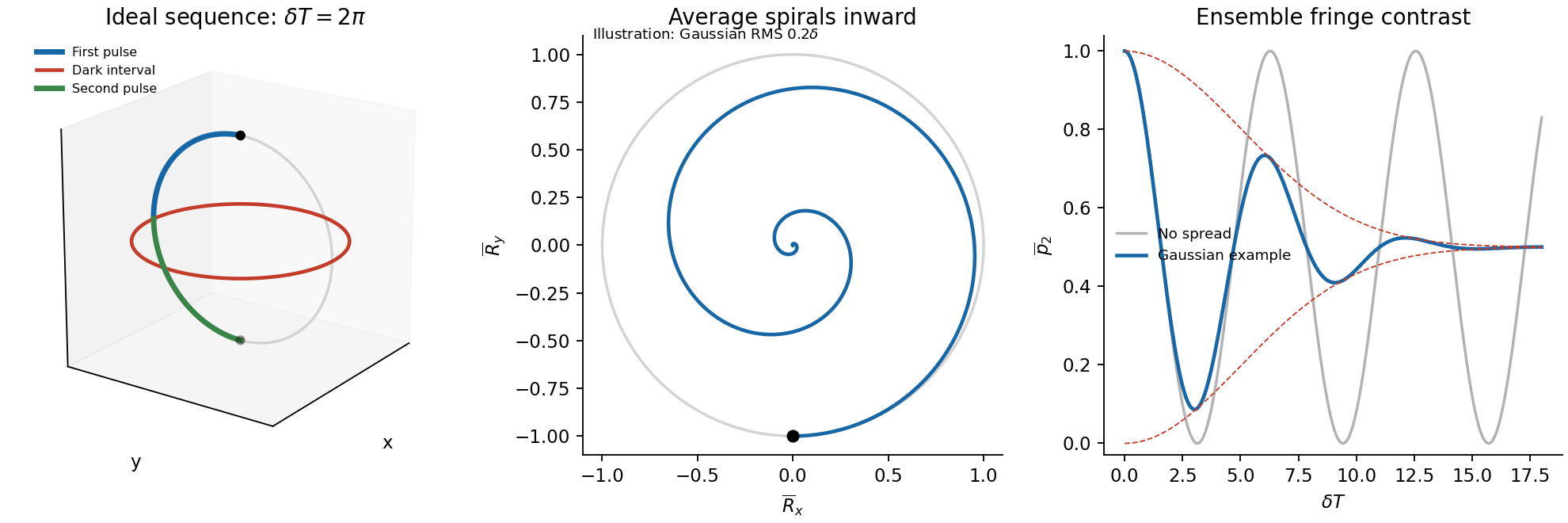

For the Ramsey free interval, let atom $j$ have detuning ${\delta }_j=\delta +{\eta }_j$. Instantaneous ideal pulses give the Ramsey ensemble coherence factor $\chi (T)=⟨e^{i{\eta }_{j}T}⟩$. Averaging the free-evolution vector obtained in step (ii) givesDifferent atoms fan out around the equator, shortening the ensemble Bloch vector even though every individual's vector remains unit length. A broad smooth detuning distribution usually makes the average spiral towards the centre and damps the Ramsey fringes towards $1/2$. The dephasing time is of order $1/\Delta {\omega }_0\sim 5/\delta$. inhomogeneous ensemble dephasing is not necessarily irreversible decoherence of individual atoms; an appropriate spin echo can rephase static frequency offsets.

The given spread does not specify a probability distribution or whether it denotes an RMS width. An exact envelope is therefore not determined. The figure illustrates, rather than infers, a Gaussian distribution with RMS ${\sigma }_{\delta }=0.2\delta$, for which $\chi =e^{-{\sigma }_{\delta }^2{T}^2/2}$. A uniform distribution would instead give a sinc envelope and side lobes. Both have the same qualitative initial loss of contrast on the quoted inverse-spread scale.

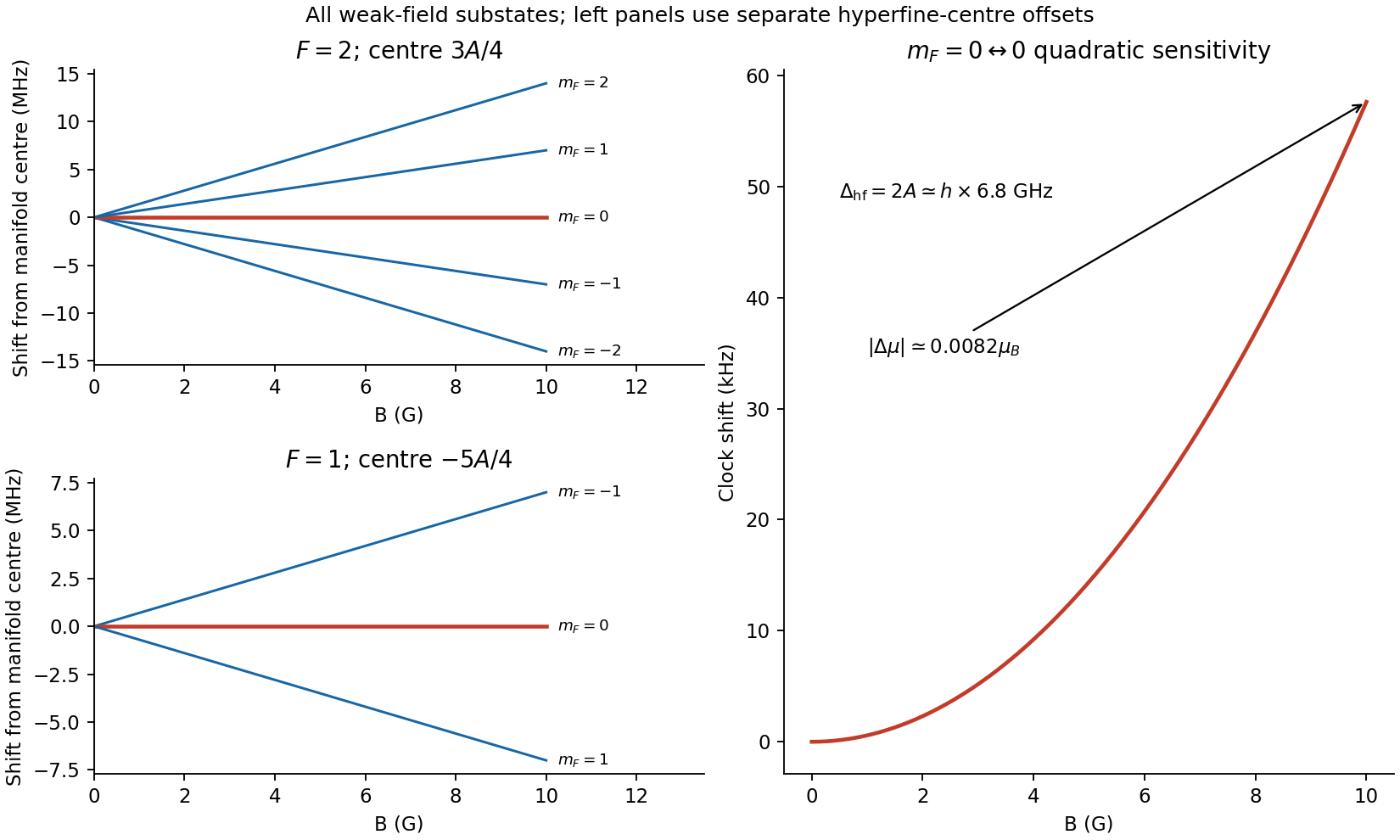

In the rubidium-87 ground-state hyperfine structure, $J=1/2$ and $I=3/2$, so $F=1,2$. Taking $H_{\mathrm{hf}}=A\mathbf{I}\cdot \mathbf{J}/{\hslash }^2$ givesThe zero-field splitting is ${\Delta }_{\mathrm{hf}}=2A\simeq h\times 6.8\mathrm{GHz}$. Ignoring the small nuclear magnetic term, the weak-field Landé g-factors are $g_{F=1}\simeq -1/2$ and $g_{F=2}\simeq +1/2$. The diagram labels all three $F=1$ and five $F=2$ substates, with linear shifts $g_F{\mu }_B{m}_{F}B$.

The pair $|1⟩=|F=1,m_F=0⟩$ and $|2⟩=|F=2,m_F=0⟩$ is connected by a magnetic dipole transition with $\Delta F=1$, $\Delta m_F=0$, driven with its oscillating magnetic component along the quantization axis. Both first-order shifts vanish, giving the rubidium-87 clock transition first-order insensitivity near zero field. Its insensitivity does not imply absence of quadratic shifts.

For these two $m_F=0$ levels the Breit-Rabi formula gives the quadratic Zeeman shift of a clock transition:where the last expression neglects the nuclear term and sets $g_J\simeq 2$. HenceThis uses ${\mu }_B/h\simeq 1.40MHz/G$ and the supplied $A/h\simeq 3.4\mathrm{GHz}$. With physical moments defined by ${\mu }_i=-\partial E_i/\partial B$, the differential magnetic moment is ${\mu }_2-{\mu }_1\simeq -8.2\times 10^{-3}{\mu }_B$. If effective magnetic moment denotes the positive energy slope instead, that slope difference is positive. The magnitude and physical frequency sensitivity are the same. Retaining the full atomic factors gives the familiar quadratic clock-frequency coefficient about $575Hz/{\mathrm{G}}^2$; the simplified supplied parameters give about $576Hz/{\mathrm{G}}^2$.^[ref]

Use a far-detuned optical dipole trap, such as a red-detuned focused-beam trap, to confine both clock states. Their first-order magnetic moments vanish; their residual quadratic magnetic slopes are opposite, so a simple static magnetic-field minimum does not confine both in the same way. An optical potential acts through the electronic polarizability and can trap both ground hyperfine states. It is not perfectly state independent: differential AC Stark shifts, intensity noise and residual magnetic gradients still need control during Ramsey evolution.

A two-photon transition is a second-order atom-field process. For two-photon absorption, energy conservation requires $E_f-E_g=\hslash ({\omega }_1+{\omega }_2)$. A virtual intermediate state in two-photon absorption need not be populated as a real stationary state. In the electric dipole approximation, the two time orderings give an amplitude proportional toThe electric-field amplitudes multiply this expression. Far from intermediate resonance, the denominators are large relative to linewidths and one-photon couplings, keeping real intermediate occupation small. Near an intermediate resonance, sequential absorption, linewidths and saturation require a fuller treatment. For weak unsaturated absorption the rate scales as $I_1{I}_2$, or $I^2$ when both photons come from one field. Absorption followed by stimulated emission instead gives a difference-frequency Raman transition; it is not two-photon absorption at the sum frequency.

Two electric dipole interactions change parity twice, so initial and final states have the same parity. For a one-electron orbital, the usual changes are $\Delta \ell =0,\pm 2$, subject to angular-momentum and polarization constraints. For identical equal-frequency photons, exchange symmetry removes the antisymmetric rank-one tensor: ranks zero and two survive. Thus $J=0\to 0$ is possible, whereas $J=0\to 1$ is forbidden in this degenerate electric-dipole approximation. It would be too strong to prohibit every $\Delta J=1$ transition between nonzero angular momenta, since a rank-two tensor can connect some such pairs. Spin remains unchanged to leading electric-dipole order.

A central example is hydrogen $1S\to 2S$, forbidden as a one-photon electric dipole transition but accessible with two photons near $243\mathrm{nm}$. Absorption of one photon from each of equal-frequency counterpropagating beams makes the first-order Doppler shift $({\mathbf{k}}_1+{\mathbf{k}}_2)\cdot \mathbf{v}$ vanish and suppresses net recoil. The two same-direction absorption paths can still give a broad Doppler background. A primary demonstration used a frequency-doubled pulsed dye laser near this wavelength and compared with a simultaneously recorded Balmer reference.^[ref]

Experimentally, scan the sum frequency and detect the excited state, its subsequent fluorescence or its ionization. Counterpropagating and single-beam spectra distinguish the narrow Doppler-free contribution from its background. Varying intensity tests weak-field scaling and extrapolates AC Stark shifts and power broadening; frequency calibration, beam overlap, residual angle and second-order Doppler shifts still matter. “Doppler free” here cancels the leading velocity term, not every systematic shift.

A two-photon transition transfers population through two interactions with the electric-dipole operator. For absorption of two photons,The intermediate atomic states enter a second-order amplitude rather than necessarily being populated. Suppressing field-normalization factors, its structure isBoth time orderings contribute coherently. Close to a real intermediate resonance, linewidths and intermediate-state population must be treated explicitly; an off-resonant virtual-state approximation then ceases to be adequate. Well away from saturation the absorption rate scales as $I_1{I}_2$, or as $I^2$ for a single applied frequency.

Each electric-dipole interaction reverses parity, so two such interactions connect states of the same parity. The product operator contains angular tensor ranks $0,1,2$, subject to triangle and polarization selection rules. Under the degenerate two-photon selection rule, identical equal-frequency photons have no antisymmetric rank-one contribution cancels; ranks zero and two remain. This permits a $J=0\to 0$ transition and excludes $J=0\to 1$ in that degenerate E1-E1 case. It does not universally forbid every $\Delta J=1$ transition, because a rank-two tensor can also connect some such pairs. For a single orbital electron, the corresponding orbital changes are $\Delta L=0,\pm 2$, with spin unchanged in the nonrelativistic electric-dipole approximation.

In Doppler-free two-photon absorption, counterpropagating equal-frequency photons give first-order Doppler cancellation when one photon is absorbed from each beam:The laser frequency is half the transition frequency. Same-beam two-photon events can still produce a broader Doppler-shifted background; residual beam-angle errors, unequal frequencies, AC Stark shifts and finite transit time limit precision. Thus a narrow two-photon resonance requires control of beam geometry and intensity, not just high laser power.

A stimulated Raman transition is the absorption-emission version: the atom absorbs from one beam and emits into the other, transferring between two long-lived states through an off-resonant upper state. It instead obeysCounterpropagation now enhances momentum transfer rather than cancelling it. With single-photon Hamiltonian matrix elements $\hslash {\Omega }_i/2$ and a common large angular detuning $\Delta$, eliminating the excited state givesThe two-photon detuning must include differential AC Stark and recoil shifts. Large detuning suppresses spontaneous scattering but also reduces coherent coupling at fixed optical power.

The coherent Raman route is useful for atomic beam splitters and mirrors. Mark Kasevich and Steven Chu demonstrated a laser-cooled sodium matter-wave interferometer using stimulated Raman transitions; its controlled internal-state changes accompanied separated external wave packets.^[ref] Testing this interpretation requires scanning the two-photon detuning, controlling relative laser phase and checking output populations against pulse timing. A two-photon process is defined by its coherent two-interaction pathway; absorption-absorption and absorption-emission have different resonance and recoil conditions.

Eliminating a common far-detuned intermediate state with single-photon couplings $\hslash {\Omega }_1/2$ and $\hslash {\Omega }_2/2$ gives effective Rabi angular frequency of magnitude $|{\Omega }_1{\Omega }_2|/(2|\Delta |)$. The complex laser phases set the coupling phase, and differential AC Stark shifts change the two-photon resonance.
