At low accumulated displacements per atom, a stainless steel can undergo substantial microscopic damage while its macroscopic volume changes little. Irradiation-generated vacancies and self-interstitials recombine, reach defect sinks, or form small clusters and dislocation loops. These processes can harden the steel before a large population of growing cavities appears. Thus dimensional stability during this interval does not imply an undamaged microstructure.

Void swelling commonly has an incubation interval, a transition into appreciable swelling, and a later interval with an approximately steady swelling rate per unit dose. The transition reflects the evolution of both stable cavity nuclei and the competing sink population. Gas atoms can help stabilize small cavities, but a vacancy void need not be filled with high-pressure gas.

The driving imbalance is a vacancy supersaturation. Dislocations generally capture interstitial defects more efficiently than vacancies, giving an interstitial bias. Once stable voids exist, the resulting excess vacancy supply can enlarge them. Growing and evolving dislocation structures compete with the cavities for defects. A roughly steady balance can give an approximately linear volume increase with dose over part of the exposure range, rather than proving indefinite linear growth.

If cavities occupy a fraction $f$ of the current volume and the matrix volume is otherwise unchanged, the void swelling volume fraction relation isSince cavity volume scales as radius cubed, numerous tiny clusters and a smaller population of larger voids can have very different dimensional consequences.

The original Cawthorne-Fulton observation of voids in irradiated steel used thin-foil electron microscopy on type316 stainless steel exposed in the Dounreay Fast Reactor. It connected microscopic cavities with the dimensional-instability problem that had emerged during fast-reactor fuel development.^[ref]

Reducing void swelling means delaying stable cavity growth and reducing its rate after incubation. Several approaches act on different parts of that mechanism.

Choose an alloy and initial microstructure with favorable defect sink populations. Grain boundaries, stable interfaces, precipitates and a controlled dislocation structure can remove mobile defects and promote recombination before they feed voids. The relevant quantity is sink efficiency and bias, rather than the number of visible microstructural features alone.

Cold working can increase the starting dislocation density and prolong incubation in suitable austenitic steels. Irradiation and thermal recovery can later change that structure, so an initial benefit need not persist indefinitely. Solute additions and controlled precipitation can also change vacancy mobility, defect trapping and cavity nucleation. Their effectiveness must be assessed together with corrosion, ductility and irradiation-assisted changes in composition.

Where other constraints permit, choose a more swelling-resistant material family, such as an appropriate ferritic-martensitic steel, rather than assuming every stainless steel has the response of an austenitic grade. This introduces its own tradeoffs in toughness, temperature window and compatibility.

Manage the operating temperature and accumulated dose to avoid the most unfavorable swelling regime, and account for transmutation-gas production. Neither simply minimizing temperature nor adding gas traps guarantees an improved component: the former can increase hardening and embrittlement, and gas-stabilized cavities can become nuclei for later swelling.

Useful comparisons require specimens with controlled composition and heat treatment, measured dose and temperature histories, and both dimensional measurements and transmission electron microscopy. Matching final dose alone does not establish that two irradiation conditions produce the same swelling.

An energetic neutron can collide with a lattice atom and create a primary knock-on atom. That recoil transfers energy to other atoms in a displacement cascade. Some atoms leave their normal lattice sites, creating Frenkel pairs: a vacancy and an extra atom at an interstitial position.

Many nearby defects recombine during the cascade and its thermal relaxation. The surviving point defects are therefore fewer than a simple count of all displacement events. Some defects are already clustered within the cascade; others migrate and aggregate later.

A collection of vacancies can collapse into a platelet bounded by a vacancy-type dislocation loop. An aggregation of self-interstitial atoms can create an extra atomic platelet bounded by an interstitial-type dislocation loop. The boundary is a line defect because a circuit around it has a nonzero Burgers vector. The allowed Burgers vectors and habit planes depend on the material's crystal structure and fault energies.

Loops can grow by absorbing mobile point defects, shrink by emitting or absorbing the opposite defect type, and interact with existing dislocations. Some remain faulted, while suitable loops can unfault or become part of a larger dislocation network. Repeated cascades and subsequent defect transport therefore create a population of extended defects even in material with a low initial dislocation density.

This describes the main displacement-damage mechanism. Ionizing energy deposited in a material does not automatically create the same defect population as a neutron recoil cascade; recoil spectrum, displacement thresholds and material response matter.

The resulting dislocation density reflects competing production, growth and recovery rates. The irradiation spectrum and displacement dose rate set the supply of recoil cascades and surviving point defects. Cascade structure controls the fraction born as isolated defects or clusters; equal nominal displacements per atom can therefore give different defect populations.

Temperature sets vacancy and interstitial mobilities and the rates of thermal emission and recovery. A simple radiation damage rate theory model illustrates the competition using number densities $c_i,c_v$:Here $G$ is the surviving mobile-pair production rate per volume, $K_{\mathrm{rec}}$ is the recombination coefficient, $D_i,D_v$ are diffusion coefficients, and $k_i^2,k_v^2$ are sink strengths. The model omits explicit cluster-size populations and thermal-equilibrium emission; those must be added for a quantitative description of a particular exposure.

The initial dislocation density, grain size, free surfaces, precipitates and existing cavities all change sink strengths. Dislocations can have an interstitial bias, so their capture rates for the two defect types differ. Solutes and transmutation gases alter defect binding and mobility. Crystal structure, elastic anisotropy and applied stress affect which loop orientations survive and grow.

For a number density $N_{\ell }$ of circular loops of radius $R$, their contribution to line length per volume isThus loop nucleation and loop growth both increase dislocation density, while shrinkage, annihilation and absorption at other sinks can decrease it. A change in loop count alone does not determine the change in total line density.

Schematically, ${\dot{\rho }}_d$ is a production-and-growth contribution minus recovery and annihilation. An initial rise followed by approximate saturation is possible when these balance, but the saturation value and approach rate depend on the evolving microstructure. There is no universal dislocation density fixed by dose alone.

stress describes internal force per area. A cut with unit normal $\hat{\mathbf{n}}$ has traction $\mathbf{t}=\mathbf{\sigma }\hat{\mathbf{n}}$; its normal component is $\hat{\mathbf{n}}\cdot \mathbf{\sigma }\hat{\mathbf{n}}$ and its remainder is shear traction. force balance constrains the stress divergence, while ordinary local angular-momentum balance makes the Cauchy stress tensor symmetric in a medium without body couples.

strain describes deformation rather than force. For small displacement gradients,The antisymmetric displacement-gradient part is a rigid rotation to first order and contributes no infinitesimal strain. Engineering shear strain is ${\gamma }_{xy}=2{ϵ}_{xy}$, so it must not be confused with the tensor component. stress has units of pressure; strain is dimensionless.

An isotropic linear elastic solid obeysTwo independent moduli are required. The shear modulus $G$ and bulk modulus $K=\lambda +2G/3$ must be positive for stability. Young's modulus and Poisson ratio satisfyFor a tensile specimen with free side faces, ${\sigma }_{xx}=F/A$ gives ${ϵ}_{xx}={\sigma }_{xx}/E$ and ${ϵ}_{yy}={ϵ}_{zz}=-\nu {\sigma }_{xx}/E$. Pure shear gives $\tau =G\gamma$; hydrostatic loading gives $\Delta V/V=-p/K$. The incompressible limit has $\nu \to 1/2$ at finite shear stiffness, not vanishing shear resistance. Crystals can be anisotropic and need a fourth-rank elastic stiffness tensor instead of the isotropic two-constant law.

elastic deformation is recoverable on unloading; it need not remain linear at large strain. Beyond yield, irreversible rearrangements such as dislocation motion cause plastic strain, often followed by hardening. Ductile samples can neck before fracture; brittle failure has much less plastic deformation. Engineering stress uses initial area, while true stress uses the changing instantaneous area. A decreasing engineering stress during necking therefore need not mean that local true stress decreases. stress concentrations, flaws and loading geometry can determine failure before a uniform-material strength is reached. Viscoelastic materials also show rate dependence, creep and stress relaxation; their losses cannot be described by a static Hooke law alone.

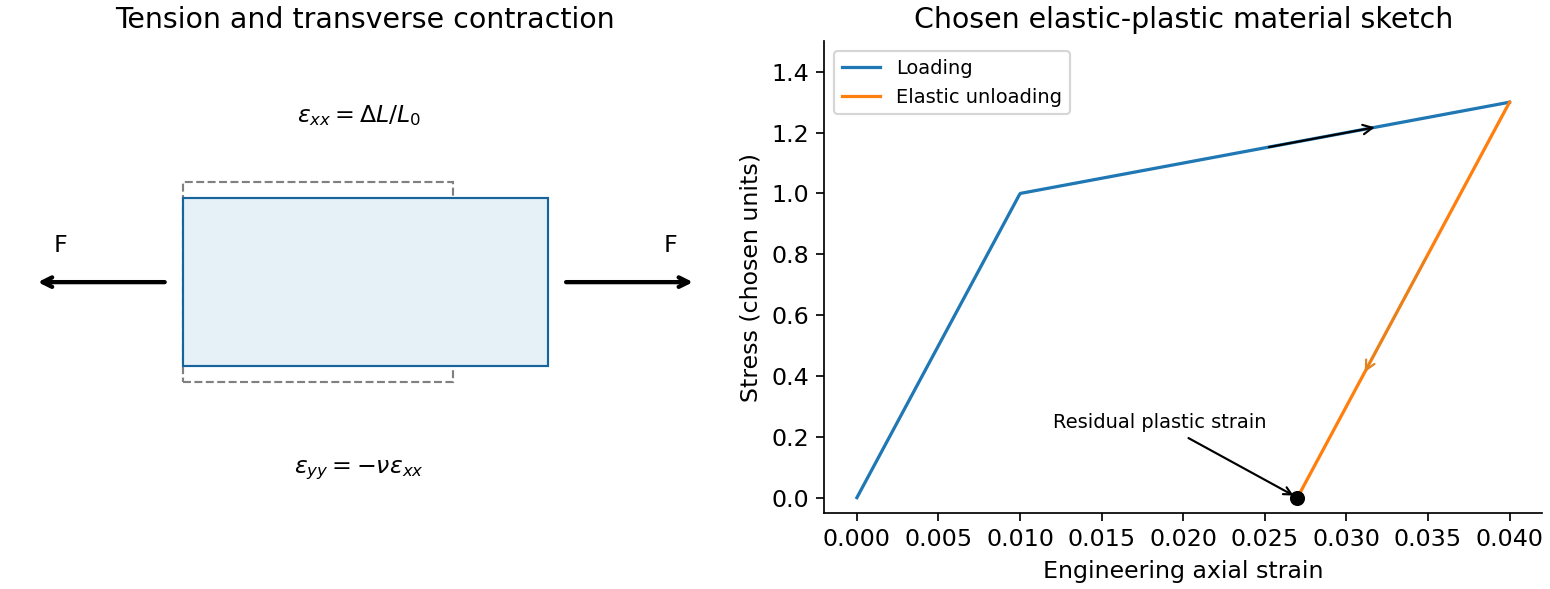

A tensile test should measure force and gauge-length extension independently, correct machine compliance, align the grips, and control strain rate and temperature. Unloading distinguishes recoverable strain from a residual plastic extension. Separate shear or hydrostatic tests determine moduli that one axial measurement does not fix. Compression specimens need friction and buckling checks. Work per volume is $\int {\sigma }_{ij}d{ϵ}_{ij}$; the recoverable part is elastic energy, while a dissipative cycle produces a loss rather than creating energy. The original loading/unloading curve below is a chosen constitutive sketch, not measured material data.

Heat treatment that develops a fine dispersion of a new solid phase in an alloy, impeding dislocation motion. It is distinct from precipitation from a liquid chemical solution. A solid solution may first be formed at high temperature, quenched to retain supersaturation, and then aged to promote solid-state precipitation.

Formation and growth of new crystal grains during microstructural recovery, commonly changing dislocation structure and crystallographic texture. It is not identical to recovery without new-grain formation.

A turbine blade cast as one crystal to remove high-temperature grain boundary sliding and grain-boundary cavitation pathways. This does not eliminate dislocations or all sources of creep.

Resistance to dislocation motion caused by substitutional or interstitial solutes and their interactions with the dislocation strain field and core.

An irradiation creep mechanism in which applied stress makes differently oriented dislocations or dislocation loops absorb point defects at different rates. The resulting directional strain is distinct from stress-free void swelling.

An order-preserving total dislocation in an ordered crystal, often dissociated into smaller dislocations separated by an antiphase boundary. Two matching $a⟨110⟩/2$ dislocations can restore order in the gamma prime phase.
