Breadth-first search explores a graph in successive distance layers from a starting vertex. Before two exploration branches meet, the explored edges form a tree.

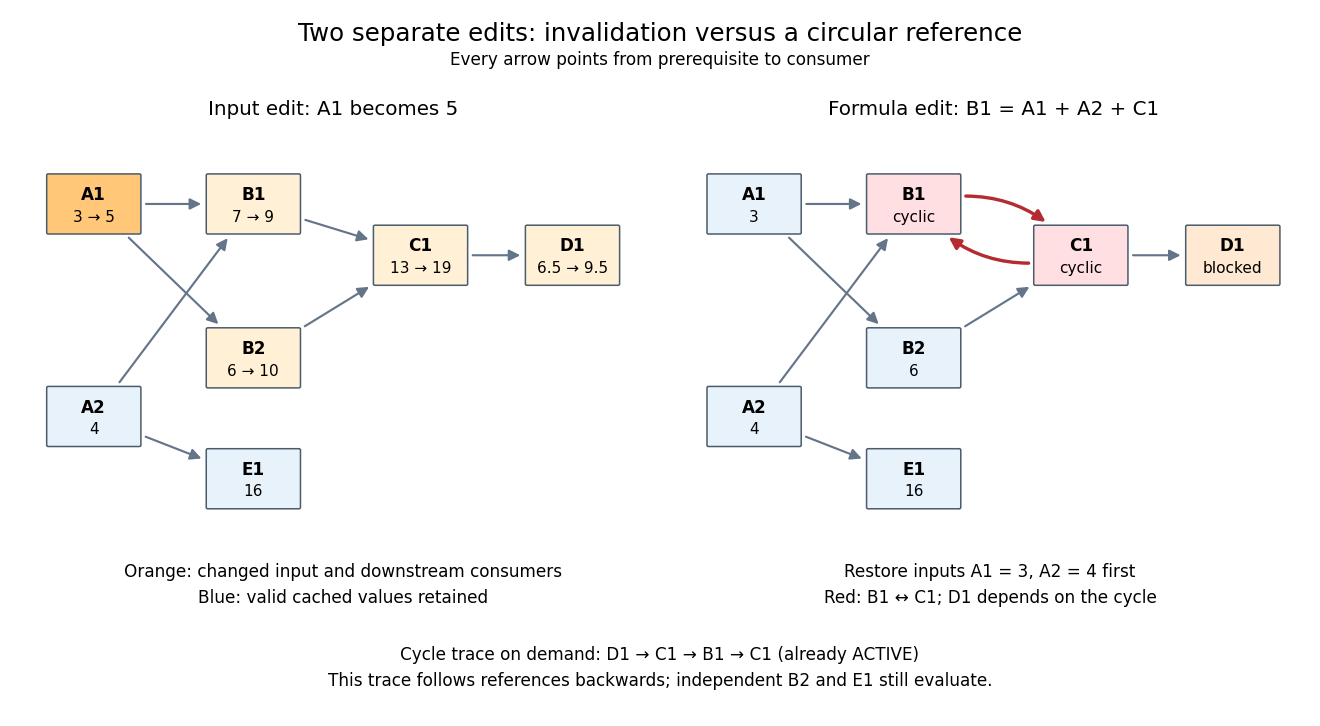

A numerical value retained for reuse by memoization. It is usable only while the spreadsheet formula and all its relevant inputs remain valid. After changing A1 from 3 to 5, following outgoing directed edges finds exactly B1,B2,C1,D1. Invalidate their cached cell values before evaluating another requested result; install the new input value for A1. The cached cell values of A2 and E1 remain valid because neither has a directed path from A1.

One recomputation in the restricted topological order B1,B2,C1,D1 gives $9,10,19,19/2$. Four spreadsheet formulas are recomputed, while E1 stays at 16. Removing invalid values from the cache prevents a subtle error: a finished marker from the previous evaluation does not prove that the old value is correct after an edit. The affected set is conservative; a changed prerequisite might leave a consumer's value numerically equal, but this simple scheme still invalidates it. For a formula edit, update the incoming directed edges and corresponding outgoing consumer lists as well as invalidating the edited spreadsheet cell and its downstream consumers. Microsoft's documentation explicitly describes both direct and indirect dependents being marked for recalculation.^[ref]

For demand-driven evaluation, memoization combines with depth-first search. Each spreadsheet cell has one of three states: UNSEEN means no valid cached cell value; ACTIVE means its evaluation is on the current call stack; FINISHED means a valid value is available. Initialize valid input spreadsheet cells as FINISHED. Start with all spreadsheet formulas UNSEEN, or retain only valid FINISHED entries after invalidation. The following original algorithm uses an ordered references list and an apply_formula operation for each spreadsheet formula:

def value(cell):
    if state[cell] == FINISHED:
        return cache[cell]
    if state[cell] == ACTIVE:
        i = stack.index(cell)
        raise CircularReference(stack[i:] + [cell])
    state[cell] = ACTIVE
    stack.append(cell)
    try:
        args = [value(p) for p in references[cell]]
        cache[cell] = apply_formula(cell, args)
        state[cell] = FINISHED
        return cache[cell]
    except Exception:
        state[cell] = UNSEEN
        raise
    finally:
        stack.pop()

Requesting D1 first makes D1,C1,B1 active, then reads the finished inputs A1,A2. B1 finishes at 7. Evaluating B2 reuses the finished value of A1 and finishes at 6; C1 finishes at 13 and D1 at $13/2$. A later request for D1 immediately returns its cached cell value. The shared prerequisite A1 is not a directed cycle: it was finished before the second request. The crucial distinction is between a previously visited vertex and a still-active vertex. The exceptional path restores unfinished states while unwinding the call stack, so failed evaluations are not cached as successful results. MIT's depth-first search notes use stack-duration marks to distinguish an edge to an active ancestor and to detect a directed cycle.^[ref]

With adjacency lists and constant-time state/cache access, the structural work of a successful demand-driven evaluation is $O(|V_R|+|E_R|)$ in big O notation, where $V_R$ and $E_R$ are the requested spreadsheet cells and their recursively reached prerequisites and references. Each reached spreadsheet formula is computed once; each reference is inspected once. This time complexity counts dependency bookkeeping separately from the cost of the arithmetic operations. Detecting a spreadsheet circular reference can additionally scan the current call stack once to report its witness.

A call stack stores active procedure calls and the information needed to resume each caller, such as its return location and local variables. A call adds a frame; returning removes that frame and resumes the previous call. When depth-first search uses recursion, a frame also records where its adjacency list scan paused. The active frames describe a graph path from the starting vertex to the current vertex; finished calls have left the call stack, although their vertices remain marked as discovered.

Depth-first search is a graph search that follows a branch as far as it can before returning to try the next unexplored branch. Starting at a vertex $s$ of an undirected graph on a finite set of vertices, mark $s$ as discovered. Scan its graph neighbours in a fixed order: for each undiscovered vertex, record the current vertex as its parent in a rooted tree in the discovery tree, mark the new vertex, and explore it immediately using recursion. Return when its adjacency list is exhausted. Discovery marks persist after return, preventing a graph cycle from causing repeated exploration. This branch-and-return rule is the maze exploration described in MIT's notes. ^[ref]

Use the same unweighted undirected graph as breadth-first search, with vertex set $V=\{A,B,C,D,E,F,G\}$ and edgeswhere $XY$ denotes the unordered pair $\{X,Y\}$. Visit graph neighbours in lexicographic order of their one-letter labels, starting at $A$. The discovery order, computed by the diagram's generator, isThe discovery edges in order are $AB,BD,BE,EC,CF,FG$. They form a rooted tree spanning the reached vertices, with root of a tree $A$. The other edges, $AC$ and $EG$, remain in the original graph but never discover a new vertex. In particular, the graph cycle $A,B,E,C,A$ causes no repeated discovery.

At $D$ there is no undiscovered graph neighbour, so its call returns to $B$. The next call enters $E$, then $C$, then $F$, then $G$. Immediately after discovering $G$, the call stack is $A,B,E,C,F,G$, with $G$ on top; $D$ is still discovered but its call has finished. The maximum call stack depth is six, although seven vertices are discovered. Following the recorded parent in a rooted tree backwards at each step reconstructs a graph path; here the route from $A$ to $G$ is $A,B,E,C,F,G$, using five edges. Breadth-first search instead finds $A,B,E,G$, using three edges. Depth-first search establishes reachability but does not guarantee the fewest edges.

An explicit LIFO stack can replace recursion, but its entries and discovery rule must be specified. To reproduce this exact traversal, store one frame per active vertex, retaining the next position in its adjacency list. Advance the top frame by one graph neighbour; if that vertex is undiscovered, mark it and push its frame immediately; pop an exhausted frame. Pushing all undiscovered graph neighbours at once and marking them on push is a different iterative variant. Even pushing them in reverse lexicographic order does not generally reproduce the parent in a rooted tree relationships above: $C$ would already be marked while processing $A$, so $E$ could not discover $C$.

With an adjacency list representation, constant-cost discovery checks and frame operations, and the graph neighbours already ordered, depth-first search has time complexity $O(|V|+|E|)$ in Big O notation. Each reached vertex is entered once and each incident edge is examined at most twice in an undirected graph; initializing all discovery marks costs $O(|V|)$. The call stack has depth at most $|V|$, since no active vertex repeats. Discovery marks and the recorded parent in a rooted tree for each nonroot vertex also need $O(|V|)$ auxiliary space complexity, excluding storage for the graph. Sorting adjacency lists to obtain a chosen order is additional work. ^[ref]

One start explores only its connected component of a graph. To cover a disconnected graph, start again at every still-undiscovered vertex while keeping all discovery marks; the discovery trees form a forest. Depth-first search is useful for reachability, constructing a spanning tree of a connected graph, and organizing the return steps needed by a depth-first traversal of a tree. For detecting a graph cycle in a simple graph that is an undirected graph, an edge to an already discovered vertex other than the current parent in a rooted tree closes a graph cycle; the immediate return edge to that parent in a rooted tree is not itself a graph cycle.

// Target: computer-science.bigb

Under constant-cost lookup and integer addition, Memoized Fibonacci evaluation has time complexity $O(n)$ in Big O notation, retaining $O(n)$ values. A hash table needs its own lookup-cost assumptions; an array indexed by $0,\dots ,n$ avoids hash collisions in this example. Memoization removes repeated bodies, but also pays for keys, lookups and retained answers. A workload without reuse can pay those costs without saving evaluations.

The call stack remains. Left-first recursion descends through arguments $n,n-1,\dots ,1$ before returning, giving $n$ simultaneously active frames for $n\ge 2$. Therefore the auxiliary space complexity includes $O(n)$ frames as well as $O(n)$ table entries in the constant-size-value model. An iterative bottom-up dynamic programming calculation removes these recursive frames; retaining only the two previous Fibonacci numbers suffices when only the final value is wanted, but discards the table useful for later requests.

Exact Fibonacci numbers do not remain constant-size values. For $k\ge 2$, the recurrence relation gives $2^{(k-2)/2}\le F_k\le 2^{k-1}$, so the representation of $F_k$ as a binary number has order $k$ bits. With ordinary addition costing order $k$ bit operations on such operands, the $n-1$ additions cost order $n^2$ bit operations in total. Retaining all values also requires order $n^2$ bits of value storage, before keys and frame overhead. The linear bound counts additions under its stated cost model; it is not a linear bound on exact integer arithmetic in bits.^[ref]

A processor register identifying the current position in a stack, commonly a call stack; the exact convention depends on the architecture. Restoring a stack pointer selects the saved stack position, rather than copying the whole call stack.

A software thread is an execution stream within a operating-system process. Each software thread has its own execution context, including processor registers, an instruction pointer, and a call stack selected by its stack pointer. Software threads in the same operating-system process share its address space, global variables, dynamically allocated storage (the memory heap), and resources such as file descriptors. Separate register states let two software threads pause at different instructions and later resume correctly. A context switch saves and restores those states; it does not copy the entire shared address space. ^[ref][ref]

In the right half of the diagram under operating-system process, T1 and T2 access the same counter x at virtual address 0x1234. Their call stacks occupy separate regions of the same address space, and their saved processor registers can contain different values. A software thread's own call stack means the stack used for its calls, not a hardware protection boundary against another software thread. Another software thread with a suitable address can access that stack's live data, subject to the program's lifetime and synchronization rules. Sharing an address space enables easy communication and makes accidental interference possible.

Concurrency means that several activities can make progress over overlapping intervals; parallel execution means that several activities execute at the same instant. On one CPU execution slot, process scheduling can interleave software threads without simultaneous execution. Multiple processor cores can run eligible software threads in parallel, but merely creating software threads does not ensure parallel execution or a speedup.

Consider an explicitly abstract interleaving model: shared x starts at $0$, and each of T1 and T2 performs three indivisible logical steps in its own order: load x into its own register r, add $1$ to r, then store r into x. Each load sees the latest preceding store in the displayed order. These model assumptions specify the example; they do not describe every programming language or every hardware memory model. In serial order T1 finishes all three steps before T2 starts, so T2 loads $1$ and stores $2$.

An overlapping order instead gives T1 load $0$, T2 load $0$, T1 add to get r1 = 1, T2 add to get r2 = 1, T1 store $1$, and T2 store $1$. The load/store subsequence is therefore T1 load $0$, T2 load $0$, T1 store $1$, T2 store $1$: final $x=1$, although each software thread incremented its register correctly. The second store replaces the first with the same value, losing one intended update. This race condition is possible even with interleaving on a single CPU.

This is not an unprotected C implementation example. Conflicting unsynchronized accesses to an ordinary non-atomic C object from different software threads can constitute a data race, which has undefined behavior; the abstract trace is not a prediction of that program's allowed outcomes. ^[ref]

The repair explains why synchronization matters: mutual exclusion around the whole load/add/store sequence prevents the other software thread from starting an increment halfway through it. Alternatively, an appropriate atomic operation can make the complete increment one indivisible read-modify-write. In the toy model, either repair makes the two increments take effect in an order, producing $0+1+1=2$. Making only each load and each store an atomic operation still permits the displayed lost update. ^[ref]

The attraction is independently progressing activities with direct access to shared data: a user-interface software thread can handle input while another waits for input-output, and workers can divide independent pieces of a large calculation among available cores. The first benefit can exist on one CPU; the second requires suitable work and execution resources. Context switches, synchronization, register-state records and extra call stacks consume time or computer memory, so the useful partition depends on the workload. ^[ref]
