An endpoint experiment uses a polarimeter with a $1.0\mathrm{dm}$ sample cell and supplied $4\%$, $6\%$ and $8\%$ D-glucose chemical solutions. Collect about $15\mathrm{mL}$ of each. Fill the cell first with distilled water, dry its windows, move bubbles to the air trap, and retain its orientation. Scan light intensity against polarimeter analyzer angle through $360^{\circ }$. The protocol fits a Gaussian function to the upper third of a symmetric peak to locate its maximum. Rinse with the next sample, repeat for each glucose chemical solution, and subtract the water maximum's angle from each sample maximum. This is an operational peak-location method; the Gaussian function is not the physical transmission law.^[ref]

The existing optical activity and polarimetry articles explain the apparatus, Malus's law and instrument limitations. For an extension that observes mutarotation in time, freshly dissolve a specified crystalline anomer, record the mixing time, and repeat the optical rotation readout at fixed concentration, path length, wavelength and recorded temperature. Keep pH consistent and record the delay before the first reading. These are proposed additions to the endpoint protocol, not its published steps or a claim of measured results. Recheck the water blank, repeat the preparation, and compare with a separately equilibrated portion under the same conditions. A stable endpoint alone does not show the time evolution.

Interpret each concentration separately. If $\theta$ is blank-corrected optical rotation, $l$ is path length and $c$ is total glucose mass concentration, first calculate specific rotation $r=\theta /(lc)$. In an additive two-anomer approximation, let $r_{\alpha },r_{\beta }$ be reference specific rotations under the same conditions and $x_{\alpha }$ the mole fraction of alpha within that pair. Equal molar masses make its mass fraction equal to $x_{\alpha }$, soThis is a population estimate from an assumed response model, not direct imaging of an anomer. For a simple consistency check, doubling $c$ at fixed $l$ and unchanged composition doubles $\theta$ in this model while leaving $r$ unchanged. Averaging raw optical rotations at different concentrations would fail this test; normalize first.

Changing temperature, pH, contamination, incomplete dissolution, window stress, bubbles or instrumental drift can imitate or obscure a changing signal. Reference specific rotations must match the sample conditions. Minor open-chain and other ring forms limit the two-anomer approximation; a single optical rotation cannot separately determine every population. Also, these anomers are diastereomers, not an enantiomer pair: the equal-and-opposite cancellation formula for enantiomeric excess does not apply.

A monosaccharide is a single-unit carbohydrate that cannot be split into smaller sugars by hydrolysis. Ribose, deoxyribose, and glucose are examples. The unit is a whole molecule containing many chemical atoms; a disaccharide instead contains two linked monosaccharide units.^[ref]

Classification combines carbon count with open-chain connectivity. An aldose has an aldehyde group; a ketose has a ketone group. Thus glucose is an aldohexose, while fructose is a six-carbon ketose. These names describe the open-chain reference forms even when cyclic forms predominate in water.^[ref]

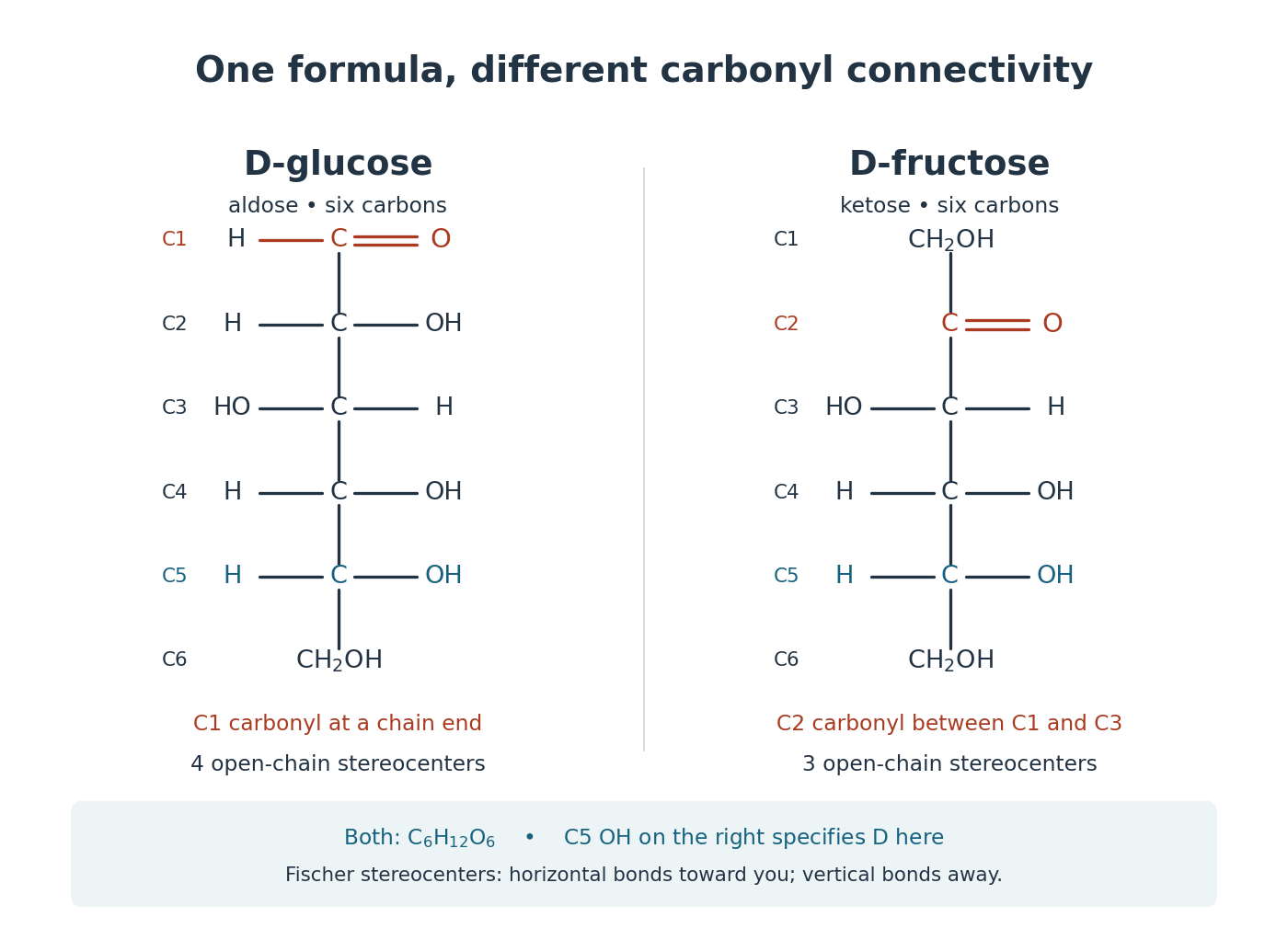

Check the distinction by counting the groups in the drawings. Open-chain glucose contains one $\mathrm{CHO}$, four $\mathrm{CHOH}$ and one $\mathrm{C}{\mathrm{H}}_2\mathrm{OH}$ group. Open-chain fructose contains two $\mathrm{C}{\mathrm{H}}_2\mathrm{OH}$, three $\mathrm{CHOH}$ and one $\mathrm{C}=\mathrm{O}$ group. The respective hydrogen totals are $1+4(2)+3=12$ and $2(3)+3(2)=12$; each structure also has six carbon and six oxygen chemical atoms. Their shared molecular formula ${\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6$ therefore cannot identify the carbonyl group position or the stereochemistry.

The beauty is that a familiar sugar name can embrace an interconverting family of forms. Monosaccharide ring-chain interconversion connects those drawings to mutarotation, a change visible with polarimetry. Spatial arrangement also matters to biology: an enzyme's active site encounters a particular arrangement of hydroxy groups, rather than merely an inventory of chemical atoms. The existing enzyme and chirality articles explain that recognition principle.

In water, D-glucose mainly occupies cyclic forms. The C5 hydroxy group adds to the C1 aldehyde, forming a cyclic hemiacetal; reversible opening restores the aldehyde. Reclosure can give either anomer. Their changing proportions cause mutarotation, the approach of optical rotation to an equilibrium value. This pathway involves changing chemical bonds, rather than simply rotating a hydroxy group about a single chemical bond.^[ref]

In this conventional Haworth projection, C5's $\mathrm{C}{\mathrm{H}}_2\mathrm{OH}$ group points up. The alpha anomer's C1 hydroxy group points down, on the opposite face; the beta anomer's points up, on the same face. C2/C3/C4 retain down/up/down hydroxy groups. These are above/below relationships to a reference ring plane, not a claim that the ring is physically flat.^[ref]

The anomeric carbon is C1, the existing carbonyl group carbon that becomes a new stereocenter; no extra carbon chemical atom appears. The two anomers differ at that centre while retaining the other configurations.^[ref]

Trace the ring as C1–C2–C3–C4–C5–O5–C1, where O5 denotes the oxygen originally in the C5 hydroxy group. It contains five carbon chemical atoms and one oxygen; C6 remains attached outside the ring. The C1 carbonyl group oxygen becomes the C1 hydroxy group oxygen. This accounts for every oxygen: O5 in the ring and five hydroxy groups at C1, C2, C3, C4 and C6. Ring closure preserves ${\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6$. A six-membered ring and a six-carbon sugar are thus different counts.

Mutarotation is a change in optical rotation as anomers interconvert in a chemical solution. The glucose mutarotation experiment detects redistribution between cyclic forms through monosaccharide ring-chain interconversion.
