Strong acid titration model

Consider an original ideal model: $V_A=10.00\mathrm{mL}$ of hydrochloric acid at $c_A=0.100\mathrm{mol}{\mathrm{L}}^{-1}$, titrated with sodium hydroxide at $c_B=0.100\mathrm{mol}{\mathrm{L}}^{-1}$. Treat these numbers as exact model inputs. Assume complete dissociation of an ionic compound, complete strong acid ionization, additive volumes, uniform mixing, and activity coefficients equal to one. Use stipulated $K_w=10^{-14}$, approximately appropriate near $25{}^{\circ }\mathrm{C}$. These are calculated pH values, not measurements of these materials.

The chemical equation for neutralization isInitial acid inventory is $n_A=1.000\mathrm{mmol}$, so the equivalence point is $v=10.00\mathrm{mL}$. Added water does not change this inventory. But the final volume $V_A+v$, including the titrant, determines all concentrations.

Keep self-ionization of water even at the equivalence point. With $c^{\circ }=1\mathrm{mol}{\mathrm{L}}^{-1}$, define the dimensionless acid excess $d$, hydronium level $h$, and hydroxide level $o$ byThe sodium cation and chloride anion inventories fix the electric charge balance $h-o=d$, while chemical equilibrium gives $ho=K_w$. Eliminating $o$ yields a quadratic equation $h^2-dh-K_w=0$ with exactly one positive root. For stable calculation on either side, writeThe second expression follows by multiplying by $s-d$; it avoids subtracting two nearly equal large quantities on the alkaline side. A logarithm acts on the dimensionless $h$, as required by the pH definition.

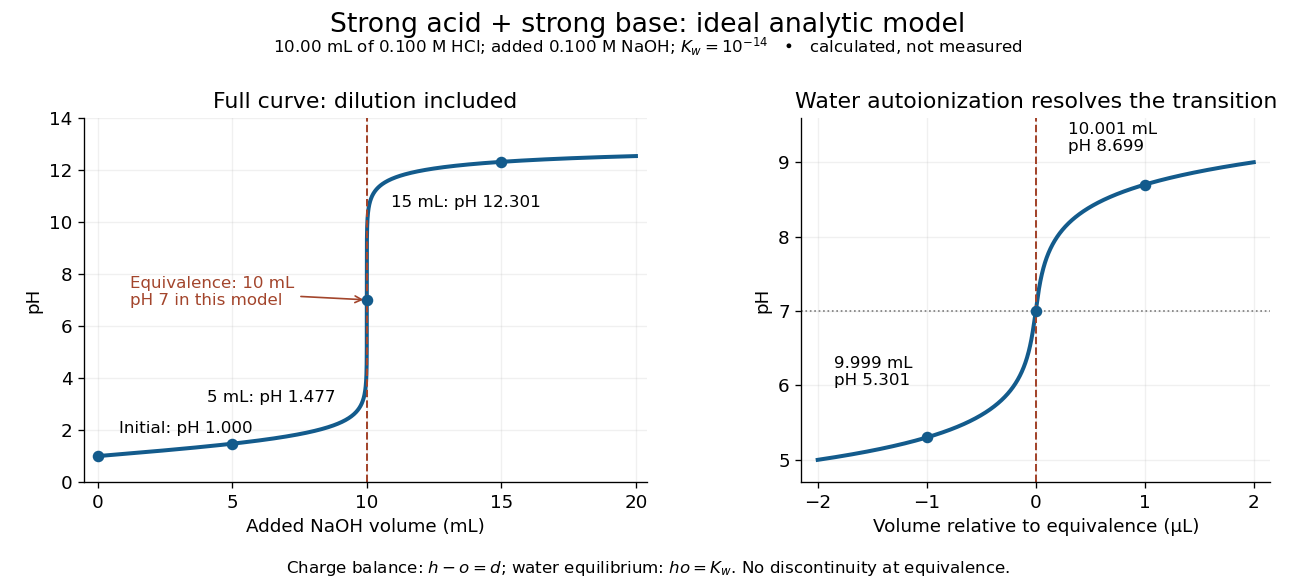

At $v=5.00\mathrm{mL}$, the excess is $0.500\mathrm{mmol}$ in $15.00\mathrm{mL}$, giving $d=1/30$ and pH $1.477121\dots$. At $v=15.00\mathrm{mL}$, excess hydroxide is $0.500\mathrm{mmol}$ in $25.00\mathrm{mL}$, giving $d=-1/50$ and pH $12.301030\dots$. Neglecting dilution would give the wrong values even far from the equivalence point.

Exactly at $v=10.00\mathrm{mL}$, $d=0$ and $h=o=\sqrt{K_w}=10^{-7}$, giving pH $7$ in this model. At $9.999\mathrm{mL}$ and $10.001\mathrm{mL}$, the same smooth expression gives pH $5.300835\dots$ and $8.699121\dots$. The familiar excess-only formulas would predict zero hydronium or zero hydroxide at the equivalence point; retaining self-ionization of water removes that failure. A steep curve is still continuous.

The sensitivity is especially revealing. Differentiating $h-K_w/h=d$ giveswhen $c_A=c_B$. At this model's equivalence point, the derivative is about $1.086\times 10^4$ pH units per millilitre. This is a local derivative, not a linear prediction over a whole drop. Real endpoint accuracy also depends on dosing, mixing, measurement uncertainty, temperature, extra reacting chemical species, and nonideal thermodynamic activities.
