Expansion cloud chamber

The central mechanism is a competition between two falling pressures: expansion reduces the actual water partial pressure, but cooling can reduce the equilibrium vapor pressure still faster. The ratio can therefore rise above one even though the gas becomes more dilute. The cloud-chamber expansion model below makes that comparison explicit.

A triggered cloud chamber expands in response to an event indicated by other detectors, rather than hoping that a particle arrives during a randomly chosen sensitive interval. The ionization trail is produced before expansion. The apparatus must respond while the ions remain sufficiently localized to make a useful photograph.

Patrick Maynard Stuart Blackett and Giuseppe Occhialini began their cosmic-ray collaboration in 1931. They used the coincidence methods of Walther Bothe and Bruno Rossi to make a particle initiate its own recording. Blackett later reported tracks on about $80\%$ of their counter-controlled photographs, compared with roughly $2$–$5\%$ for random expansions in small chambers. Those figures describe the reported apparatus and conditions, not a universal detection efficiency.^[ref]

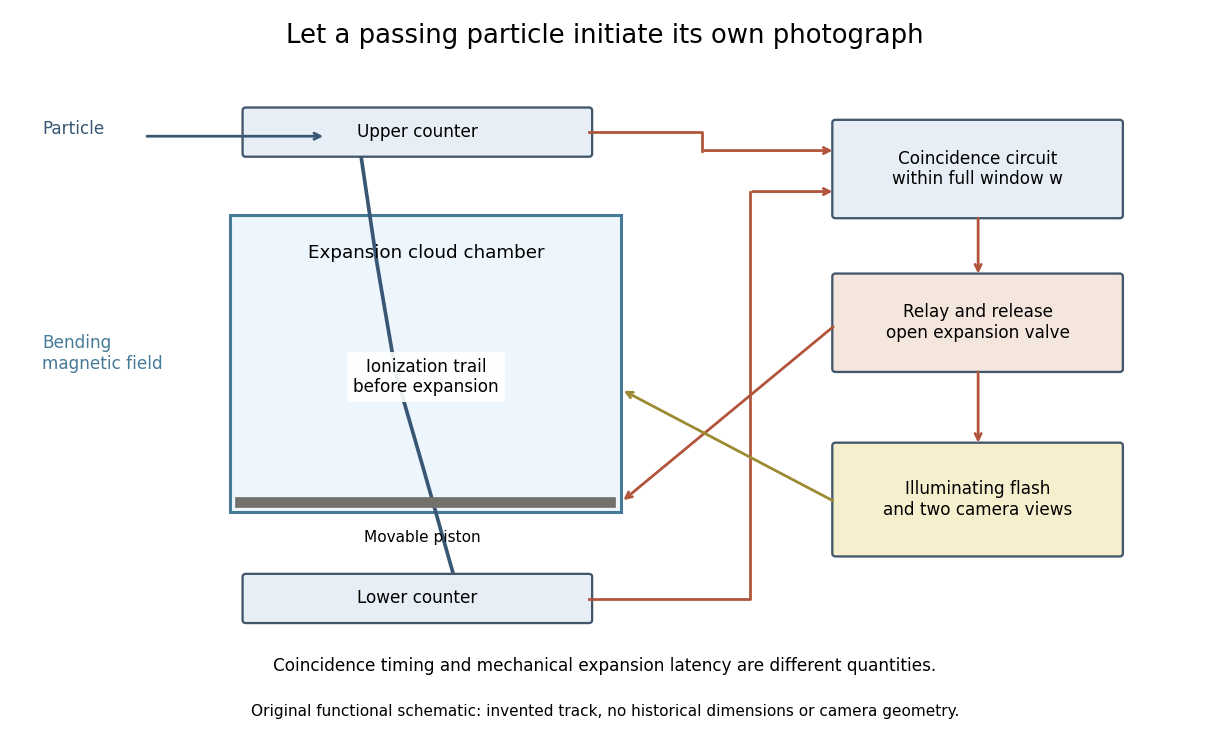

In their 1933 account, Geiger counters above and below the chamber fed a coincidence circuit. Its pulse operated a thyratron, magnet and spring-release valve, letting a light piston expand the gas. A mercury-vapor lamp then illuminated the drops. A water-cooled solenoid supplied the magnetic field; two oblique cameras allowed track reconstruction. Moving the lower counter changed which trajectories could be recorded.^[ref]

Two timing problems must be separated. The coincidence circuit's window distinguishes nearly simultaneous counter signals. The mechanical expansion latency determines how much the existing ionization trail spreads before droplets form. For a chosen one-coordinate diffusion model with initial variance ${\sigma }_0^2$, diffusion coefficient $D$ and expansion delay $t_e$,Taking ${\sigma }_0=0$, $D=2.0\times 10^{-6}{\mathrm{m}}^2{\mathrm{s}}^{-1}$ and $t_e=20\mathrm{ms}$ gives ${\sigma }_{\mathrm{track}}\simeq 0.283\mathrm{mm}$. This is an original illustrative calculation, not the historical track width. It shows why a fast electronic pulse does not by itself guarantee a sharp photograph: the subsequent mechanical response also matters.

The photographs revealed groups containing positive and negative electron-like tracks, complementing the Anderson positron track experiment. Their interpretation depended on track curvature, direction, ionization and particle range, not simply on the presence of a coincidence.^[ref] Blackett explicitly noted that the counter control favored larger particle showers.^[ref] The multiplicity bias from a detector trigger gives a small model of that effect: a recording method can improve the study of rare interactions while making its photographs unrepresentative of the incident population.

Charles Thomson Rees Wilson's 1927 lecture recalls Electron cloud trails produced with X-rays in 1911, then alpha particle trails from a radium-tipped source. The improved 1912 chamber had a wide, shallow space with a suddenly falling floor to limit stirring. A roof–floor clearing electric field removed unwanted ions. Sharp photography required expansion, then the ionizing particle, then illumination.^[ref]

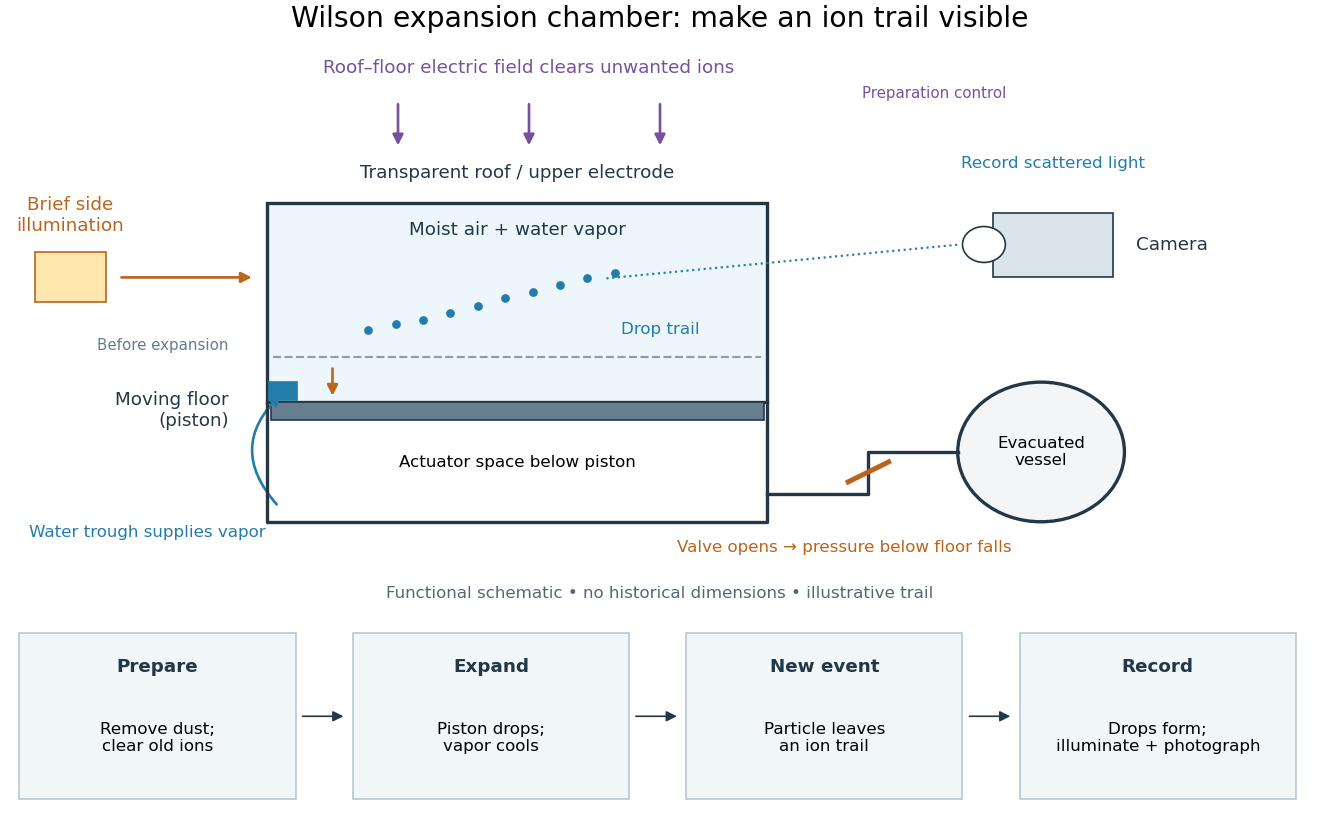

The piston mechanism connects the space beneath the moving floor to an evacuated vessel: opening the valve lets the floor drop. Water in a trough supplies the vapor. The Smithsonian's surviving demonstration object is explicitly a 1961 replica of the 1912 apparatus.^[ref]

After dust removal, X-rays increased droplet formation above a lower expansion threshold; larger expansions also produced dense background cloud.^[ref]

The control logic separates a localized ionization trail from fog. Delays permit ion displacement and drop growth; stirring deforms the trail. A photograph alone supplies neither an absolute event time nor a calibrated particle energy.

Consider an illustrative water–air mixture, initially saturated at $T_0=293.15\mathrm{K}$. Let $\lambda =V/V_0$ be the expansion ratio and approximate the carrier gas by a uniform ideal gas with constant heat capacity ratio $\gamma =1.40$. Before significant condensation, assume fixed numbers of carrier and vapor molecules, negligible incoming heat, and the reversible adiabatic expansion relation. The first law of thermodynamics, $n{C}_{V}dT=-pdV$, with the ideal gas law, givesThe vapor follows the same temperature, so its partial pressure scales as $T/V$. A rapid real piston motion need not be reversible; the formula is an idealized bulk estimate after neglecting flow and losses.

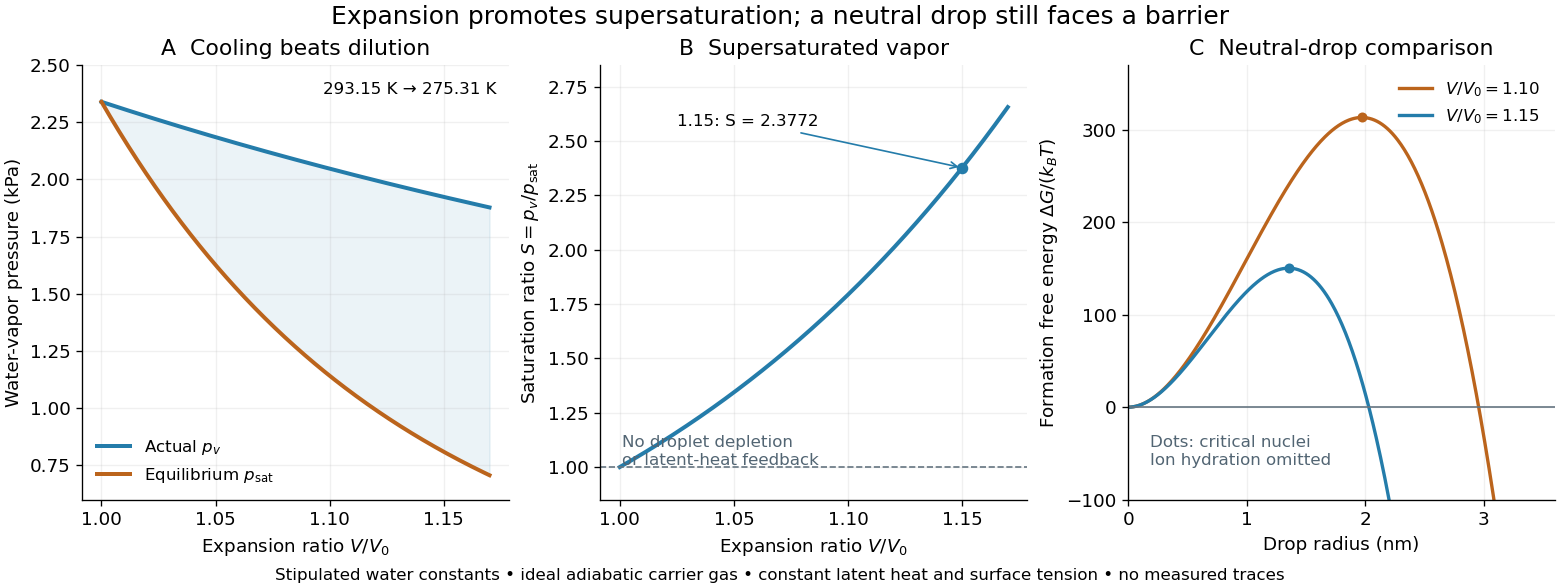

Use a physically motivated Integrated Clausius-Clapeyron relation for the equilibrium water vapor pressure, with stipulated rounded constants $p_0=2339\mathrm{Pa}$ at $T_0$, molar latent heat $L_m=45000\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$ and molar gas constant $R=8.314\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}{\mathrm{K}}^{-1}$:These constants define the example, without fitting any historical measurements. Throughout the plotted interval $1\le \lambda \le 1.17$, the temperature stays above the freezing point of water. InitiallyThus the decrease in vapor pressure initially beats dilution. At $\lambda =1.15$, the model gives $T=277.21\mathrm{K}$, $p_v=1923.33\mathrm{Pa}$, $p_{\mathrm{sat}}=809.07\mathrm{Pa}$ and $S=2.3772$.

Why does $S>1$ not instantly make every molecule a visible drop? In the capillarity approximation of classical nucleation theory, a neutral spherical drop of radius $r$ has a positive surface energy cost and a negative bulk Gibbs free energy contribution. For molecular liquid volume $v_l$, surface tension $\sigma$ and Boltzmann constant $k_B$,Differentiating $\Delta G$ shows that the critical nucleus at $r_{\ast }$ is a maximum: smaller neutral drops tend to shrink, whereas larger ones can grow. With stipulated $\sigma =0.075\mathrm{J}{\mathrm{m}}^{-2}$, $v_l=2.99\times 10^{-29}{\mathrm{m}}^3$ and $k_B=1.380649\times 10^{-23}\mathrm{J}{\mathrm{K}}^{-1}$, the $\lambda =1.15$ example gives $r_{\ast }=1.353\mathrm{nm}$ and $\Delta G_{\ast }/(k_{B}T)=150.3$. A substantial neutral-drop barrier can coexist with supersaturated vapor.

This is deliberately a neutral-drop comparison. An ion changes the cluster free energy through electrical interactions and molecular hydration; the formula does not calculate the ion-assisted nucleation threshold. At nanometre radii, using bulk surface tension is itself approximate. There is no predicted droplet count, growth time or detection efficiency here. Once many drops grow, latent heat release, vapor depletion and heat transfer from the chamber walls invalidate the dry adiabatic expansion trajectory. The example therefore explains the direction of the effect and the need for nucleation, without extrapolating its curves to Wilson's cloud limits.
