For a uniform solid cylinder, take $s$ positive uphill and $\omega$ positive for uphill rolling without slipping. The velocity of the contact point is $w=\dot{s}-a\omega$. Uphill kinetic friction gives $\ddot{s}=-g(\sin \alpha -\mu \cos \alpha )$ and $a\dot{\omega }=-2\mu g\cos \alpha$. Starting from $\dot{s}(0)=a\omega (0)$, one obtains $w=-gt(\sin \alpha -3\mu \cos \alpha )$. Thus $\tan \alpha >3\mu$ makes the assumed uphill kinetic friction self-consistent for the entire ascent and descent. Without slip the required uphill static friction is $mg\sin \alpha /3$; it is available exactly when $\tan \alpha \le 3\mu$ under the same limiting coefficient.

Static friction is the tangential contact force that maintains zero contact slip. “Static” describes the contact state: both surfaces can move together in the chosen inertial frame. In the ideal dry-contact model, the actual static friction adjusts to the equations of motion, subject to a bound, rather than always taking its maximum value.^[ref]Here $N$ is the magnitude of the normal force and ${\mu }_s$ the coefficient of static friction. Equality means limiting static friction; it is a threshold, not an instruction to replace every unknown contact force by ${\mu }_{s}N$.

For a stipulated example, place a nonrotating $2\mathrm{kg}$ block initially at rest on a stationary horizontal surface. Take gravitational acceleration $g=9.8m/{\mathrm{s}}^2$ and coefficient of static friction ${\mu }_s=0.40$, with no other vertical force. The vertical force balance gives $N=mg=19.6\mathrm{N}$, so the largest allowed static friction magnitude is $7.84\mathrm{N}$. Choose right as positive and apply a horizontal force $F$. Remaining at rest requires Newton's second law to giveAt $F=2\mathrm{N}$, the static friction is $-2\mathrm{N}$; at $F=6\mathrm{N}$, it is $-6\mathrm{N}$. Both states have zero acceleration. At $F=10\mathrm{N}$, balancing would require $f_s=-10\mathrm{N}$, outside the bound, so this initially resting block cannot remain at rest. Its subsequent acceleration requires a kinetic friction law; setting $f_s=-7.84\mathrm{N}$ after contact slip begins would still use the wrong contact state. At exactly $F=7.84\mathrm{N}$, the ideal inequality still permits rest at the threshold. These are model calculations, not measured material properties.

The toy model used in kinetic friction makes the contact-state distinction explicit: $m=1\mathrm{kg}$, $N=10\mathrm{N}$, ${\mu }_s=0.5$ and coefficient of kinetic friction ${\mu }_k=0.3$. On stationary ground, an initially resting box pushed right with $4\mathrm{N}$ has $f_s=-4\mathrm{N}$. At $6\mathrm{N}$ it cannot remain at rest; once it slides right, $f_k=-3\mathrm{N}$ and $a=3m/{\mathrm{s}}^2$. At $5\mathrm{N}$, rest is allowed with $f_s=-5\mathrm{N}$, whereas an already right-sliding box has $f_k=-3\mathrm{N}$ and $a=2m/{\mathrm{s}}^2$. The applied force alone does not specify the friction branch: contact slip and motion history matter.

For a flat contact with two tangential directions, the bound applies to a vector norm, not separately to each component:For the stipulated $7.84\mathrm{N}$ bound, balancing horizontal components $4\mathrm{N}$ and $4\mathrm{N}$ requires a force magnitude $\sqrt{32}\mathrm{N}\simeq 5.657\mathrm{N}$, which is allowed. Components $6\mathrm{N}$ and $6\mathrm{N}$ require $\sqrt{72}\mathrm{N}\simeq 8.485\mathrm{N}$, which is forbidden even though each component separately is below $7.84\mathrm{N}$. This circular bound assumes the same coefficient of static friction in every tangential direction. Near impending contact slip, the limiting static friction opposes the relative contact motion that would otherwise begin. Once actual contact slip exists, kinetic friction instead opposes its tangential relative velocity, which need not have the direction of the body's center of mass motion.

The normal force must also come from the equations of motion. On horizontal ground, an upward pull of magnitude $P$ at angle $\alpha$ above horizontal gives, for a block remaining at rest with no other forces,The sine component unloads the contact and the cosine component demands tangential support. These equations require $N>0$; if the supporting contact opens, this dry-contact model cannot supply a negative normal force. For the stipulated $2\mathrm{kg}$ block and $\alpha =30^{\circ }$, the positive threshold is $P={\mu }_{s}mg/(\cos \alpha +{\mu }_s\sin \alpha )\simeq 7.3544\mathrm{N}$, with $N\simeq 15.9228\mathrm{N}$ and $|f_s|\simeq 6.3691\mathrm{N}$. A downward pull increases $N$ instead. An inclined plane gives another reason why $N$ is not always $mg$.

To solve a new problem, impose zero contact slip, find the required static friction and normal force from the equations of motion, then check the bound. A demand inside it permits that contact state; a demand outside it rules the state out. For an ideal driven tire undergoing rolling without slipping on stationary ground, a forward static friction can accelerate the vehicle. Its role is to prevent contact slip, rather than to oppose all motion of the whole body.

Nor does the word “static” by itself make friction do zero work. The contact power delivered to a body is $P_s={\mathbf{f}}_s\cdot {\mathbf{v}}_c$, a dot product with its material contact-point velocity in the chosen inertial frame. At an ideal contact undergoing rolling without slipping on stationary ground, ${\mathbf{v}}_c=0$, so this power is zero. For a rigid body, adding the translational and rotational contributions gives ${\mathbf{f}}_s\cdot {\mathbf{V}}_{\mathrm{CM}}+{\mathbf{\tau }}_{\mathrm{CM}}\cdot \mathbf{\omega }={\mathbf{f}}_s\cdot {\mathbf{v}}_c$, where ${\mathbf{\tau }}_{\mathrm{CM}}$ is the contact torque about the center of mass and $\mathbf{\omega }$ its angular velocity. Counting only the first term omits the rotational contribution.

At a moving contact with zero contact slip, the two material contact points share a velocity ${\mathbf{v}}_c$ that can be nonzero. For instance, a nonrotating block moving with an accelerating belt receives positive contact power $f_{s}U$ when the belt's rightward velocity $U$ and rightward static friction $f_s$ are positive. The belt receives $-f_{s}U$ by Newton's third law. These contact contributions sum to zero in the ideal no-slip model, while the block's kinetic energy can increase. Zero contact slip and zero work on each body are different conditions.

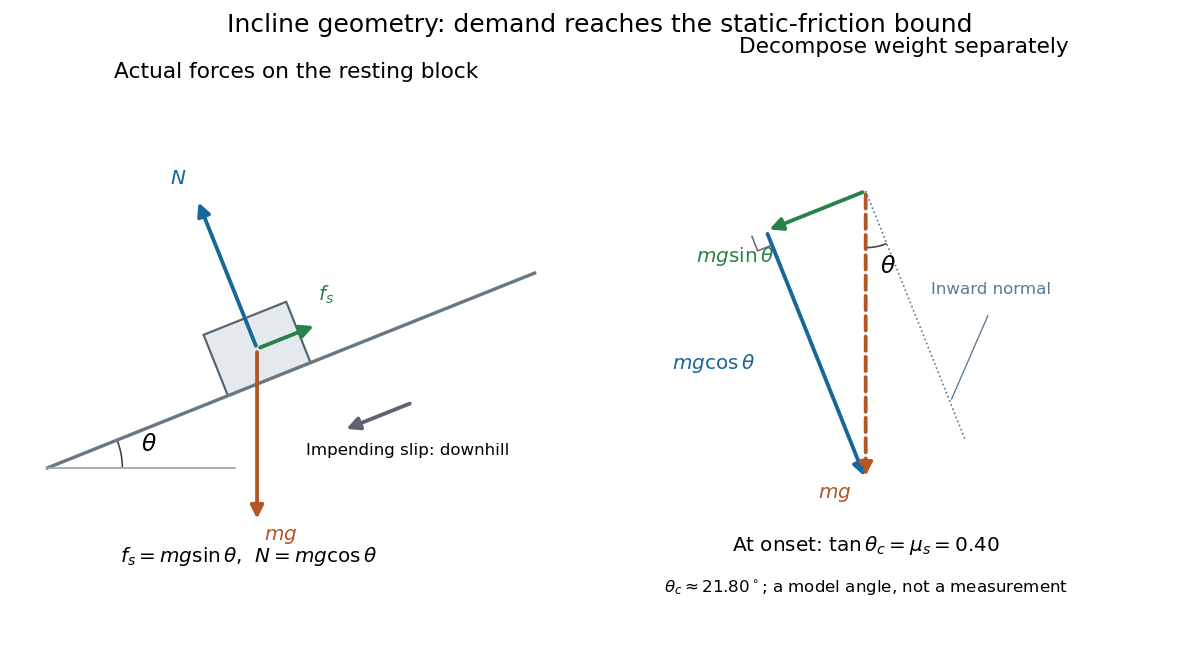

An inclined plane tilted slowly from horizontal turns a coefficient of static friction into a critical angle. Assume a nonrotating block on a stationary, rigid, dry surface, with gravitational weight and the contact forces as its only forces. Take $0\le \theta <\pi /2$ to be the angle between the uphill surface direction and horizontal. Let ${\mathbf{e}}_t$ be a unit vector pointing uphill and ${\mathbf{e}}_n$ a perpendicular unit vector pointing outward from the surface. Resolving the gravitational weight givesThe angle between the downward vertical and the inward normal $-{\mathbf{e}}_n$ is also $\theta$. Thus the inward component uses cosine and the downhill component uses sine. These are components of one force, not two additional forces.

Before downhill contact slip, zero acceleration and Newton's second law requireThe required static friction points uphill. Substituting into the bound and dividing by the positive $mg\cos \theta$ givesThe tangent function increases on this range of angles, so the last admissible resting angle isThe inverse tangent takes a dimensionless quantity to an angle. At equality the ideal model still permits a limiting resting state; increasing $\theta$ further excludes it. At a smaller angle, $f_s/N=\tan \theta$ is the demand ratio, not the coefficient of static friction.^[ref]

For the stipulated $m=2\mathrm{kg}$, $g=9.8m/{\mathrm{s}}^2$ and ${\mu }_s=0.40$, the critical angle is approximately $21.8014^{\circ }$. At $\theta =15^{\circ }$, $N\simeq 18.932\mathrm{N}$ and $f_s\simeq 5.073\mathrm{N}$, comfortably below the bound ${\mu }_{s}N\simeq 7.573\mathrm{N}$. At $\theta =25^{\circ }$, maintaining rest would require $f_s\simeq 8.283\mathrm{N}$, but the bound is only $7.105\mathrm{N}$: rest is impossible. At ${\theta }_c$, $N\simeq 18.198\mathrm{N}$ and $f_s\simeq 7.279\mathrm{N}$. Notice that the limiting tangential force here is smaller than the horizontal $7.84\mathrm{N}$ limit because tilting reduces the normal force.

Cancellation of mass makes this relation useful: the ideal critical angle tests a contact coefficient without needing a calibrated force gauge. Doubling the block's mass doubles both demanded static friction and its bound, leaving ${\theta }_c$ unchanged if ${\mu }_s$ is unchanged. This is a testable model prediction. It need not survive a change in surface condition, a direction-dependent coefficient, appreciable deformation, or vibration.

The derivation also assumes continued contact and that sliding occurs before tipping or rolling without slipping. The resultant contact force must act within the supporting footprint so that the block can satisfy torque balance; a tall block may tip first. No extra tension, imposed tangential pull, or lift is included. In a slowly raised apparatus, quasistatic process means that motion of the board contributes negligible inertial forces while locating the threshold. Once downhill contact slip begins, a constant-velocity sliding angle would concern kinetic friction, not the onset of static friction.

For a body of mass $M$ initially at speed $U$, suppose the total resistance is linear drag $\lambda u$ until speed $u_{\ast }>0$, followed by kinetic friction $\mu Mg$ until rest. The first stage solves $M\dot{u}=-\lambda u$, giving duration $(M/\lambda )\log (U/u_{\ast })$ and distance $(M/\lambda )(U-u_{\ast })$. Constant deceleration in the second stage gives duration $u_{\ast }/(\mu g)$ and distance $u_{\ast }^2/(2\mu g)$. The stopping distance is finite because the switch removes the infinite exponential stopping time of pure linear drag.

Viscous damping means a force proportional to, and opposite to, velocity: $F_{\mathrm{d}}=-b\dot{x}$ with $b\ge 0$. Its coefficient has units $\mathrm{kg}{\mathrm{s}}^{-1}$, equivalently $\mathrm{N}\mathrm{s}{\mathrm{m}}^{-1}$. The name describes a force law; eddy-current damping can approximate the same law without a viscous fluid. Constant $m$, $b$ and $k$ produce a linear ordinary differential equation, allowing superposition of responses. Kinetic friction with approximately constant magnitude and quadratic drag obey different laws, so their decay need not have the exponential decay or critical threshold derived here.
