Titrant standardization

Titrant standardization determines the actual titrant concentration by reaction with a known inventory, often a primary standard. It is distinct from calibrating the delivered volume or a glass electrode's response. For a known monoprotic acid inventory $n_s$ and a suitable blank-corrected endpoint,An original illustrative standard of $0.980\mathrm{mmol}$ requiring $9.85\mathrm{mL}$, with matched blank $0.05\mathrm{mL}$, gives $c_B=0.100\mathrm{mol}{\mathrm{L}}^{-1}$. The measured quantities here are stipulated examples. Independent solution preparation and volumetric calibration tests the pipette, burette, and volumetric flask; titrant standardization tests the reacting inventory per delivered volume.

The useful chain is known mass, known composition, known amount of substance, and then a measured titre through a specified stoichiometry. If each standard unit consumes $r$ units of titrant, the general inventory equation is $c_{B}V=r{n}_s$, where $V$ is the corrected titre. The one-to-one formula above has $r=1$. A titration endpoint supplies an observable stopping rule; whether it represents the equivalence point accurately remains a separate question. Standardization endpoint and blank bias makes the direction of the resulting error explicit.

A primary standard supplies a reliably known reacting inventory from which a titrant concentration can be determined.

The defining advantage is known high purity: the weighed portion can be assigned a known amount of substance. A titrant whose concentration is established against that inventory is a secondary standard solution in IUPAC terminology.^[ref]

An accurate balance determines total mass, including any unwanted water or other material. To infer reacting inventory, one also needs known composition, stability during storage and weighing, complete transfer and dissolution, and a sufficiently complete chemical reaction of known stoichiometry. A finely resolved balance cannot establish these chemical facts. Potassium hydrogen phthalate is useful because a suitably prepared portion provides a known acid inventory for sodium hydroxide titrant standardization; the KHP standardization protocol below shows how that claim is put into practice.

Preparation belongs to the particular material and method. For example, the MIT handout specifies drying potassium hydrogen phthalate at $110{}^{\circ }\mathrm{C}$ for $1.5$ hours or overnight, cooling in a desiccator, and weighing by difference; its footnote identifies removal of superficial moisture as the purpose. This is a condition of that potassium hydrogen phthalate procedure, not a universal instruction to heat every primary standard in the same way.^[ref]

Let $m$ be the transferred sample mass, $p$ the known mass fraction of the intended chemical compound, and $M$ its molar mass. In a model with complete dissolution and chemically inactive impurities,The purity fraction is dimensionless: $99.95\%$ would mean $p=0.9995$, not $99.95$. These equations assume that the impurity contributes no titrant demand; an impurity that also reacts needs its own inventory equation. The value of $p$ must refer to the same preparation state as $m$, for example the specified dry material. A mass fraction assigned before unaccounted uptake of water cannot simply be used after it.

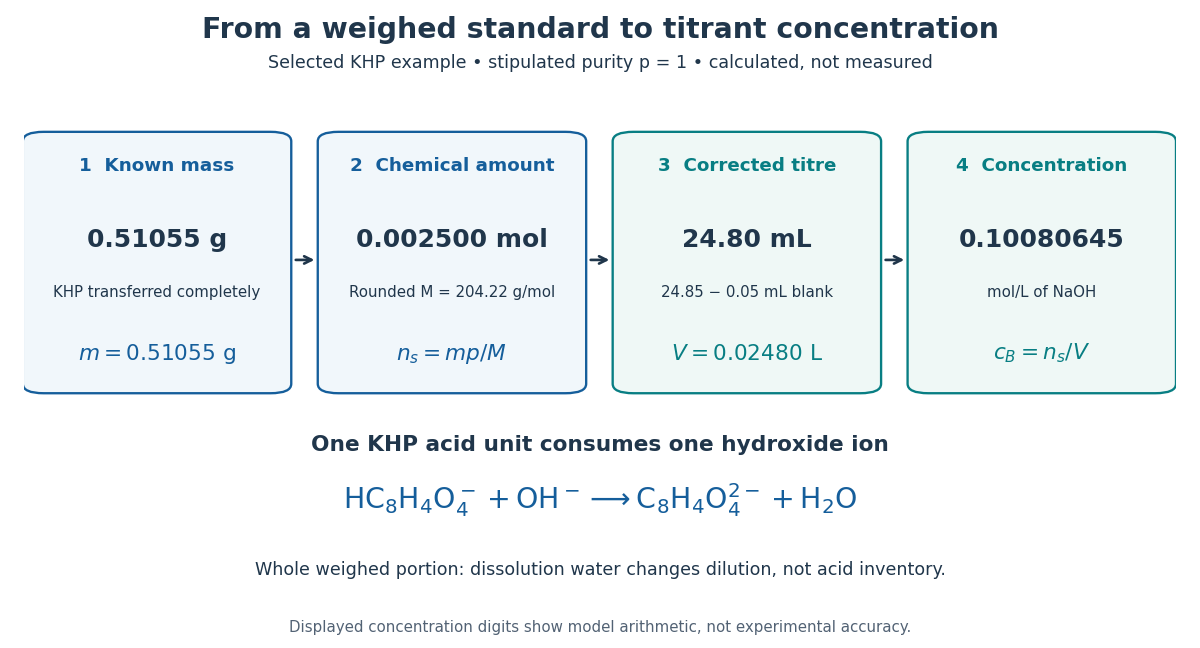

For an original worked example, stipulate pure potassium hydrogen phthalate, abbreviated KHP, so $p=1$, a selected mass $m=0.51055\mathrm{g}$, and rounded molar mass $M=204.22\mathrm{g}\mathrm{mo}{\mathrm{l}}^{-1}$. The NIST Chemistry WebBook lists formula ${\mathrm{C}}_8{\mathrm{H}}_5\mathrm{K}{\mathrm{O}}_4$ and molecular weight $204.2212$, consistent with the rounded molar mass used here.^[ref] The selected mass, purity assumption and volumes in this example are chosen inputs, not measured results or a claim about a real batch's purity.

The acid-bearing anion of potassium hydrogen phthalate loses one proton to hydroxide. The net chemical equation isThus sodium hydroxide has one-to-one stoichiometry with potassium hydrogen phthalate in this neutralization, givingChoose a delivered endpoint titre of $24.85\mathrm{mL}$ and matched titration blank of $0.05\mathrm{mL}$. ThenThe extra displayed digits show the arithmetic of the stipulated model; they do not establish experimental accuracy. A compact rounded result is $0.1008\mathrm{mol}{\mathrm{L}}^{-1}$.

When the entire weighed portion is titrated, added water changes concentration and the pH path but preserves the initial acid inventory. The dissolution volume therefore does not appear in $n_s=mp/M$. If instead a volumetric flask prepares a stock and a volumetric pipette selects an aliquot, the selected inventory is $n_s{V}_a/V_f$ for homogeneous stock, with delivered aliquot volume $V_a$ and final stock volume $V_f$. The same bookkeeping explains why complete transfer matters even when the amount of dissolution water is approximate.

Columbia University's institutional laboratory manual, Experiment 1, Glassware Calibration, Primary and Secondary Standards, and Manual Titrations, Part 3, specifies two weighed $0.2$–$0.3\mathrm{g}$ portions of potassium hydrogen phthalate, transferred completely into separate $250\mathrm{mL}$ Erlenmeyer flasks. Dissolve each in approximately $100\mathrm{mL}$ distilled water; any warmed sample cools to room temperature before titration. Add two or three drops of phenolphthalein. Rinse and condition a clamped burette with the diluted sodium hydroxide, then titrate while swirling to faint pink lasting about $20$ seconds. Calculate concentration from each portion's own mass and delivered titre; repeat if results scatter. Part 1 identifies a Mettler balance, and Part 2 includes paired weighings of exposed sodium hydroxide and potassium hydrogen phthalate. These are prescribed procedures, not reported measurements.^[ref]

The same manual directs keeping the diluted sodium hydroxide covered and limiting air exposure after titrant standardization.^[ref] The MIT handout explains the associated carbon dioxide problem: carbonate contamination of sodium hydroxide is controlled during preparation, bottles are promptly capped, and atmospheric carbon dioxide makes the pink phenolphthalein endpoint fade.^[ref] Consequently, a standardized concentration applies to the stored chemical solution under its handling conditions; continued uptake of carbon dioxide can change the reacting inventory per delivered volume.

The color is the readout, and stoichiometry supplies the inference. Phenolphthalein indicates a pH range, so its first reproducible pale pink is an operational titration endpoint, rather than a direct observation of equal reacting inventories. A potentiometric titration can locate an endpoint from a pH versus volume curve, but glass electrode calibration alone still does not determine sodium hydroxide concentration. Repeat portions test scatter; incomplete dissolution, an unmatched titration blank, or a shared endpoint error can bias all repeats together.

Here a titre means the delivered titrant volume needed to reach the specified titration endpoint, obtained from final minus initial burette readings. Report explicitly whether a quoted titre includes or excludes a titration blank. This volume convention is distinct from uses of titre to express a solution's reacting strength.

A titration blank runs the background procedure without the intended reacting sample, matching relevant water, indicator quantity and titration endpoint conditions. Its titrant demand estimates a background contribution to subtract. The inspected EPA procedure uses such a phenolphthalein blank; this is a distinct control, rather than an instruction present in Columbia's Part 3.^[ref] A blank must match the relevant background to justify subtraction; it does not remove sample-specific side reactions or a mismatch between titration endpoint and equivalence point.

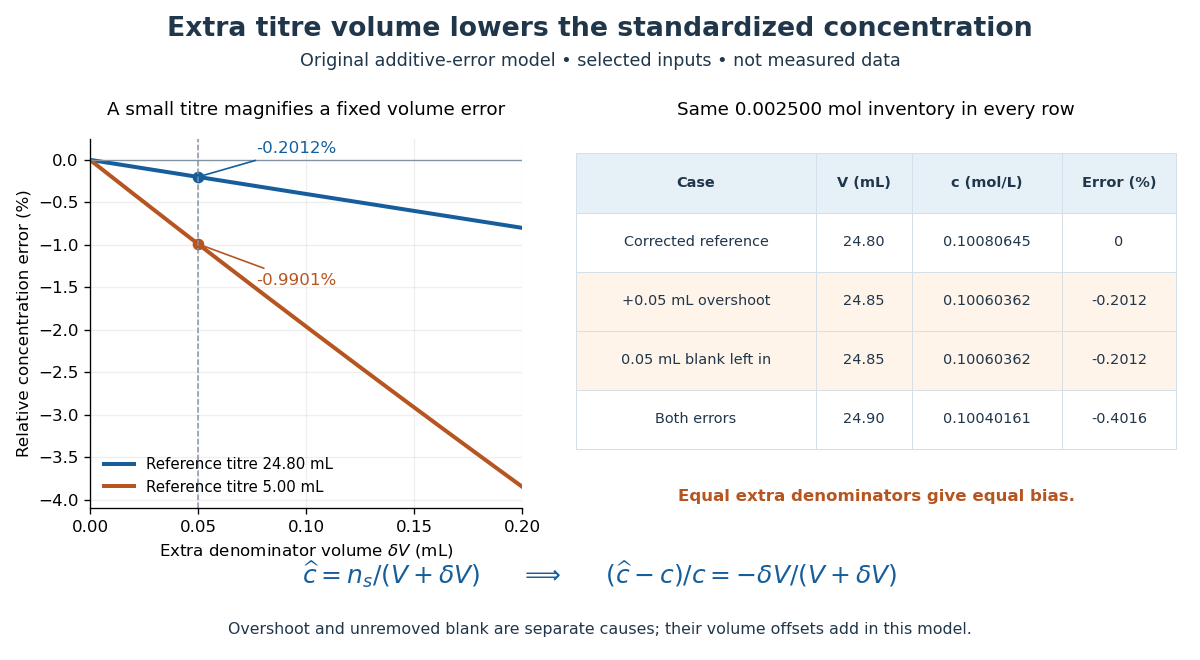

Hold the known primary standard inventory fixed, and let $V$ be the correct blank-subtracted titre. In the following model, any remaining endpoint offset has been removed from this reference. If a titration endpoint overshoot adds $\delta V>0$, the inferred titrant concentration is too small:The denominator grows while the numerator stays fixed. For $\delta V\ll V$, the relative effect is approximately $-\delta V/V$, but the displayed fraction is exact for this additive model. An unremoved positive titration blank $b$ has the same mathematical effect: replace $\delta V$ by $b$. If both remain, replace it by $\delta V+b$. This analogy concerns their effects on the denominator; it does not mean a blank measures endpoint overshoot.

For the chosen $24.80\mathrm{mL}$ reference titre, an extra $0.05\mathrm{mL}$ gives $\hat{c}=0.1006036217\dots \mathrm{mol}{\mathrm{L}}^{-1}$ and relative error $-0.05/24.85=-0.201207\dots \%$. Leaving both a $0.05\mathrm{mL}$ blank and a $0.05\mathrm{mL}$ overshoot gives denominator $24.90\mathrm{mL}$ and relative error $-0.10/24.90=-0.401606\dots \%$.

For comparison, the same extra $0.05\mathrm{mL}$ on a $5.00\mathrm{mL}$ reference titre gives $-0.05/5.05=-0.990099\dots \%$. The ratio of these error magnitudes is $24.85/5.05=4.920792\dots$, while the small-error approximation would give $24.80/5.00=4.96$. A larger titre reduces the fractional effect of a fixed extra volume; it does not fix unknown purity, incomplete transfer, or an incorrect stoichiometry.
