The Rankine-Hugoniot conditions for a perfect gas express conservation of mass flux, normal momentum flux, and total energy flux through a steady planar shock wave in its rest frame. With mass flux $j={\rho }_1{u}_1={\rho }_2{u}_2$, momentum flux is $\rho u^2+p$ and specific transported energy is $u^2/2+e+p/\rho$. The last term is pressure work, so the energy equation contains specific enthalpy rather than only specific internal energy. Neglect gravity across the thin front, magnetic stresses and radiative energy loss for the adiabatic case.

For a calorically perfect ideal gas, $e=p/[(\gamma -1)\rho ]$ and $c_s^2=\gamma p/\rho$. ThereforePut $\chi ={\rho }_2/{\rho }_1$, so $u_2=u_1/\chi$. Momentum conservation givesInsert this and $c_{s,2}^2/c_{s,1}^2=(p_2/p_1)/\chi$ into the energy equation. After multiplying out, its two factors areThe first root is the unchanged flow. The compressive shock branch isIt has $\chi >1$ for upstream supersonic flow. A strong shock approaches $(\gamma +1)/(\gamma -1)$: four for a monatomic gas, or six for a fixed rotationally excited diatomic gas with $\gamma =7/5$. The assumed fixed heat capacity ceases to describe the gas when dissociation or ionization becomes important. Adiabatic here means no net heat lost from the shock-plus-flow energy budget; the irreversible front still increases entropy.

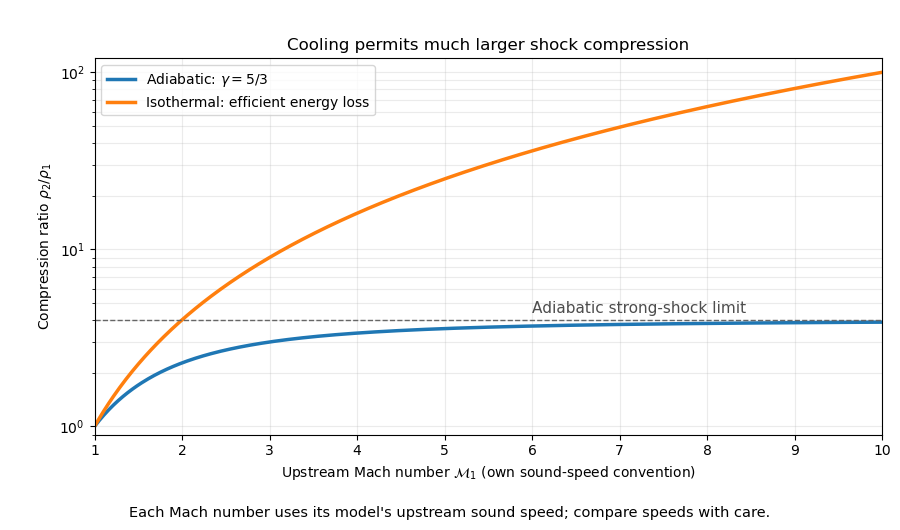

For an isothermal shock of unchanged composition, let $a^2=p/\rho =k_{B}T/\bar{m}$ be the common isothermal sound speed squared. Mass and momentum conservation giveThe compressive branch is thereforeUnlike the adiabatic ratio, it has no fixed upper bound as its upstream Mach number grows. Heat removal prevents the pressure increase that would otherwise resist compression. This approximation describes an efficiently cooled jump between equal-temperature far states, not an adiabatic shock with its energy equation left unchanged. For the same upstream physical temperature and velocity, ${\mathcal{M}}_{T,1}=\sqrt{\gamma }{\mathcal{M}}_1$; the two sound-speed conventions must not be confused.

Full dissociation changes the equation of state even when the temperature is held constant. With negligible electron and binding-energy mass corrections, upstream molecular hydrogen has $a_1^2=k_{B}T/(2m_H)$ and downstream atomic hydrogen has $a_2^2=k_{B}T/m_H=2a_1^2$. The conserved quantity is mass flux; particle number flux doubles. ThusEquivalently, the dissociating isothermal shock relation between temperature and the two velocities isWriting ${\mathcal{M}}_{T,1}=u_1/a_1$ givesThe high-compression branch isIts strong-shock limit is $\chi \sim {\mathcal{M}}_{T,1}^2/2$, rather than ${\mathcal{M}}_{T,1}^2$. The pressure per unit mass has doubled, reducing the compression available at a fixed upstream temperature and speed. A real compressive branch in this prescribed fully dissociated, equal-temperature model requires ${\mathcal{M}}_{T,1}\ge 1+\sqrt{2}$; the high root has downstream speed no greater than the downstream isothermal sound speed. These mass and momentum conditions do not themselves establish that sufficient energy is available to dissociate every molecule. The chemical energy and any required radiative loss must also be included in a physical energy budget.

The Mach number is $\mathcal{M}=u/c_s$, comparing the flow speed relative to a disturbance with the local sound speed. For a body moving supersonically, spherical acoustic disturbances emitted earlier have a tangent envelope with Mach cone half-angle $\sin \theta =1/\mathcal{M}$. Signals cannot propagate arbitrarily far upstream. Compressive characteristics can converge and steepen into a shock wave, within which microscopic dissipation prevents a multivalued fluid state; supersonic motion alone does not require every flow to contain a shock.

Work in the shock frame with steady normal velocities $u_1,u_2>0$. Integrating conservation of mass, normal momentum and total energy over a thin pillbox, neglecting gravity across the thin layer, gives the Rankine-Hugoniot conditions for a perfect gas:The energy equation includes pressure work through specific enthalpy. The shock is adiabatic if negligible heat escapes the layer, but its irreversible dissipation means it is not isentropic.

Put $\chi ={\rho }_2/{\rho }_1=u_1/u_2$ and ${\mathcal{M}}_1=u_1/\sqrt{\gamma p_1/{\rho }_1}$. Momentum conservation gives $p_2=p_1+{\rho }_1{u}_1^2(1-1/\chi )$. Substitution in the energy equation produces the unshocked root $\chi =1$ and the compressive rootSince ${\rho }_1{u}_1^2/p_1=\gamma {\mathcal{M}}_1^2$, the strong-shock limit has negligible upstream thermal pressure compared with ram pressure. The Strong-shock Rankine-Hugoniot conditions giveFor unchanged composition, the ideal gas law implies $T_2/T_1=(p_2/p_1)/\chi$, soFor $\gamma =5/3$, the compression tends to four and $T_2\simeq 3\bar{m}{u}_1^2/(16k_B)$, where $\bar{m}$ is mean particle mass.

With constant specific heat $c_v$, entropy production in a perfect-gas shock is measured by the change in specific entropyThe strong-shock expression is thereforeThe exact jump is positive for every compressive shock with ${\mathcal{M}}_1>1$, in accordance with the Second law of thermodynamics; the asymptotic expression is only for ${\mathcal{M}}_1\gg 1$. There is a normalization issue in the printed description: this logarithmic formula with constant $c_v$ describes entropy per unit mass. The true entropy density is $\rho s$, so its difference is ${\rho }_2{s}_2-{\rho }_1{s}_1$, rather than the same logarithmic jump with a constant heat capacity per unit volume. A material parcel's irreversible entropy increase should be assessed using $\Delta s$.

Downstream gas is denser and hotter. For optically thin collisional emission the loss per unit volume is typically $n_e{n}_i\Lambda (T)$, whereas stored thermal energy scales approximately as $nT$. Compression can therefore reduce the radiative gas cooling time; excitation and ionization at the higher temperature can open additional cooling channels. The actual efficiency still depends on the astrophysical cooling function, composition and optical depth. In a radiative shock with separated scales, the temperature first rises across a narrow dissipative layer, then decreases through a much broader cooling region of characteristic length ${\ell }_{\mathrm{cool}}\sim u_2{t}_{\mathrm{cool}}$. Subsonic cooling usually brings further compression with approximately constant pressure. The immediate microscopic shock thickness and the macroscopic cooling length are distinct.

Let state $f$ be the fully cooled gas, with $T_f=T_1$ and the same composition. Set $a^2=p_1/{\rho }_1$, the isothermal sound speed squared. Across the entire shock plus cooling layer, mass and momentum are still conserved, but gas energy alone is not. With ${\chi }_f={\rho }_f/{\rho }_1$,The nontrivial isothermal shock therefore hasIf the upstream Mach number were defined with $a$ instead, this would be ${\rho }_f/{\rho }_1={\mathcal{M}}_{\mathrm{iso}}^2$. Retaining the distinction avoids losing the factor $\gamma$.

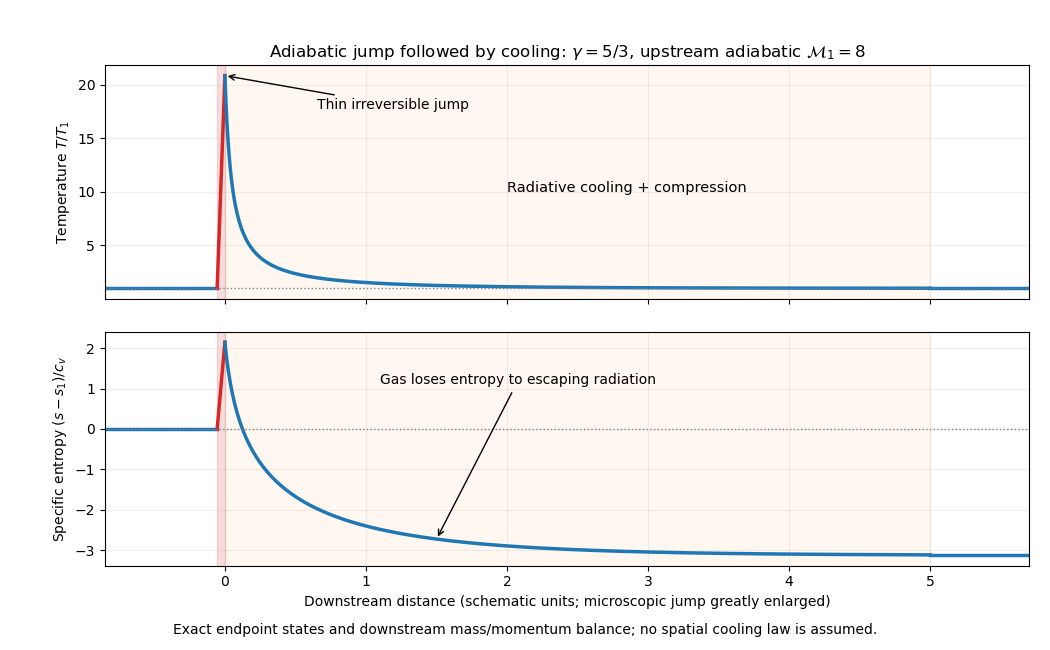

The gas's specific entropy rises irreversibly at the hot shock and then decreases as escaping radiation removes heat. Since the final temperature equals the initial temperature,This decrease for the gas is consistent with the Second law of thermodynamics: the emitted radiation and its eventual surroundings carry entropy away. It does not make the microscopic compressive shock reversible. The figure illustrates both the hot entropy jump and the subsequent cooling; its spatial cooling profile is schematic because no cooling law has been specified.

For small isentropic perturbations of a fixed-composition gas, linearizing its equation of state gives $p_1=(\partial p/\partial \rho {)}_s{\rho }_1=c_s^2{\rho }_1$. The adiabatic sound speed is evaluated at the uniform background, so it is spatially constant at this order. If fast heat exchange instead enforces constant temperature, use the isothermal sound speed consistently. A completely arbitrary entropy perturbation would require an additional thermodynamic variable.

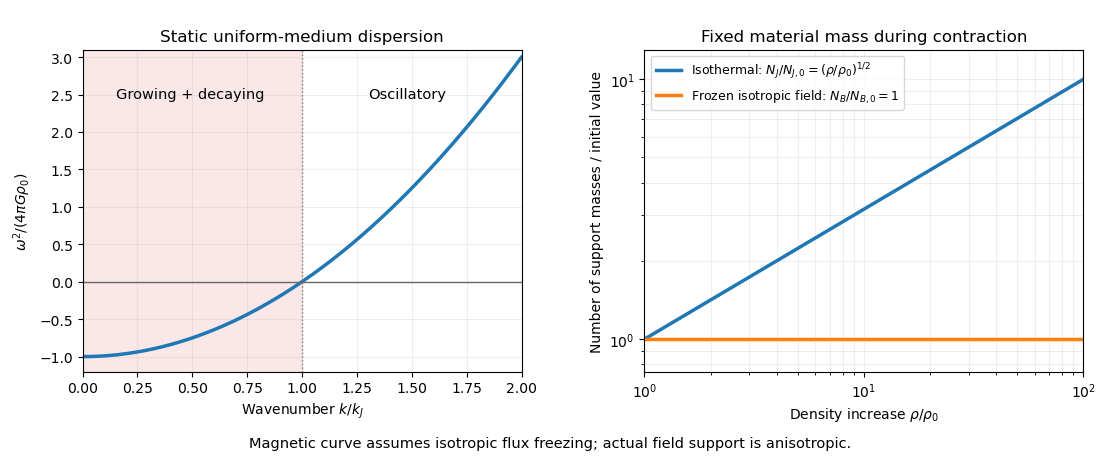

The uniform static infinite medium requires the Jeans swindle: its background gravitational field is subtracted or externally balanced, and only the perturbation sources the Poisson equation for Newtonian gravity. Linearizing the continuity equation, Euler equation and gravitational equation then givesTaking one more time derivative of the first equation and substituting the other two yieldsA Fourier mode proportional to $e^{i(\mathbf{k}\cdot \mathbf{x}-\omega t)}$ therefore obeys the Jeans instability relationFor $k>k_J$, the mode oscillates as a sound wave. For $0<k<k_J$, $\omega =\pm i\sqrt{4\pi G{\rho }_0-c_s^2{k}^2}$ gives a growing and a decaying mode; the static Jeans growth-rate spectrum has no preferred finite fastest-growing wavelength in the infinite-medium approximation. The threshold $k=k_J$ is marginal at linear order. The Jeans length is ${\lambda }_J=2\pi /k_J=c_s\sqrt{\pi /(G{\rho }_0)}$. Defining the Jeans mass as a sphere whose diameter is this wavelength givesOther radius conventions alter its numerical coefficient; the mass scale compares self-gravity with pressure communication.

For the pressureless finite cloud, the shell theorem gives an edge acceleration $\ddot{r}=-GM/r^2$, with fixed enclosed $M=4\pi r_0^3{\rho }_0/3$. Multiplication by $\dot{r}$ and integration from rest givesThe negative root describes collapse. Substituting $r=r_0{\sin }^2\theta$ gives the free-fall time of a uniform sphereThe surface and inner shells reach the origin together in pressureless homologous spherical collapse; pressure, rotation or shell crossing would change this ideal solution.

Equating this time to the specified radius-based sound-crossing time $r_0/c_s$ gives $r_0=c_s\sqrt{3\pi /(32G{\rho }_0)}$. The resulting crossing-time cloud support mass isThis is the same dimensional mass scale as $M_J$, with a different coefficient because the adopted length and time criteria differ. In particular, $t_{\mathrm{ff}}=r_0/c_s$ is not the exact marginal dispersion-relation condition.

With the requested isotropic support approximation, replace $c_s$ by the Alfvén speed $v_A=B/\sqrt{{\mu }_0{\rho }_0}$. In the crossing-time convention the Magnetic Jeans mass isUsing the wavelength-based Jeans mass convention instead replaces $C_{\mathrm{cross}}$ by ${\pi }^{5/2}/6$. The scaling, rather than a convention-independent coefficient, is the shared prediction.

For a fixed cloud mass undergoing isothermal homologous contraction, $\rho /{\rho }_0=(r_0/r{)}^3$ and $c_s$ is constant. Its number of thermal Jeans masses therefore grows asA cloud initially close to the support threshold has $N_{J,0}$ of order one, so smaller pieces can subsequently become independently unstable: this is isothermal fragmentation.

For approximately isotropic contraction with magnetic flux freezing, $B{r}^2$ stays constant, so $B\propto {\rho }^{2/3}$. Hence $M_B\propto B^3/{\rho }^2$ stays constant andThis ideal magnetic support therefore does not create progressively more unstable masses in the way thermal isothermal support does. The same conclusion follows from the conserved mass-to-flux ratio. A magnetically subcritical cloud cannot initiate unrestricted cross-field collapse under ideal flux freezing alone; flux loss or initially supercritical conditions are needed. A real magnetic field also gives anisotropic support: motion and fragmentation along its field lines are not excluded by this scalar-speed estimate.

In a spherical self-gravitating equilibrium with positive mass density, $d\psi /dr=GM(r)/r^2>0$ away from the center. Thus $r$ can locally be replaced by $\psi$, so both $p(r)$ and $\rho (r)$ can be expressed as functions of $\psi$. Hydrostatic equilibrium further givesSince $p$ decreases outward wherever $\rho >0$, eliminating $\psi$ gives a barotropic equation of state along this equilibrium. This is a relation describing its structure; it does not require all thermodynamic perturbations of an arbitrary material to be barotropic.

For $p=K{\rho }^{1+1/n}$, integrate the polytropic enthalpy balance $dp/\rho =-d\psi$:For a finite-radius zero-pressure boundary with $K>0$ and $n>0$, $\rho (R)=0$ and therefore ${\psi }_T=\psi (R)$. With the gravitational potential zero at infinity, an isolated sphere has ${\psi }_T=-GM/R$. It is an integration constant tied to that boundary, not necessarily a zero of the gravitational potential.

Put $\theta =(\rho /{\rho }_c{)}^{1/n}$ and $\xi =\alpha r$, with ${\alpha }^2=4\pi G{\rho }_c^{1-1/n}/[(n+1)K]$. The preceding relation gives $\psi ={\psi }_T-(n+1)K{\rho }_c^{1/n}\theta$. Substitution into the spherical gravitational Poisson equation yields the Lane-Emden equationLet ${\xi }_1$ be the first zero of the regular Lane-Emden function and $Y_n=-{\xi }_1^2{\theta }^{\prime }({\xi }_1)>0$. Then the Lane-Emden mass formula and radius areFor a common fixed polytropic index with a finite first zero, their scalings areThe usual regular zero-pressure models have a finite first zero for $0<n<5$; the $n=5$ model has infinite radius, so a finite-radius formula cannot simply be applied to it.

For an ideal gas of fixed composition, $T_c\propto K{\rho }_c^{1/n}$. Consequently homologous polytropes at fixed central temperature have $K\propto {\rho }_c^{-1/n}$ and both $M,R\propto {\rho }_c^{-1/2}$, recovering $M\propto R$. The common central temperature, composition and dimensionless structure are the relevant assumptions. Keeping $K$ fixed instead gives the different polytropic mass-radius relation, and no finite index makes its generic fixed-$K$ exponent exactly one.

For adiabatic monatomic hydrogen, $\gamma =5/3$ and $n=3/2$. At a common fixed specific entropy, hence common $K$, the same relations giveHere $\bar{\rho }=3M/(4\pi R^3)$, and the omitted constant in the last relation depends on $K$. A population with different cloud entropies need not follow that mass sequence.

Efficient radiative cooling in molecular clouds prevents compression from forcing the temperature upward as steeply as in an adiabatic monatomic gas. Rotational transitions of molecules and radiation by dust provide low-temperature cooling channels; which dominates depends on composition, opacity and temperature. It is therefore possible to assemble dense massive cold clouds while disposing of compressional heat. This explains the direction of the idealized comparison, rather than proving a universal cloud-mass cutoff.

For a common isothermal sound speed $c_T$, a spherical isothermal equilibrium has $GM/R$ equal to $c_T^2$ times a dimensionless structural factor. Holding that factor fixed gives the homologous isothermal mass-radius relationFor example, the singular isothermal sphere has $M(R)=2c_T^{2}R/G$. A regular finite cloud requires a pressure-confined isothermal sphere or another outer boundary: an unconfined isothermal sphere does not end at a finite vacuum radius. Equal temperature alone, while allowing arbitrary truncation or density contrast, does not make the coefficient universal.
