A coherent or fluctuating swirling region of a velocity field. Eddies transport momentum, heat and material constituents, and their averaged fluxes can modify a mean current. They need not be nonlinear: a linear wave packet can also have nonzero averaged quadratic fluxes.

Named after William Ferrel, the thermally indirect middle-latitude mean atmospheric overturning: near-surface flow is poleward and the upper return equatorward. It is maintained largely by eddy forcing and surface stress. Its Eulerian mean thermal transport can oppose the poleward eddy contribution; it is not a second thermally direct Hadley cell.

A tropical atmospheric overturning circulation with rising air near the equator, poleward flow aloft, subtropical descent and an equatorward lower return. In its ideal upper branch, conservation of angular momentum gives $u=\Omega a{\sin }^2\varphi /\cos \varphi$ for air initially at rest relative to the equatorial surface. Eddies and friction modify this idealization.

An effective horizontal transport coefficient for momentum, often representing unresolved eddies in ocean models. A simple constant-coefficient closure adds ${\nu }_h{\nabla }_h^2\mathbf{u}$ to the Cauchy momentum equation and ${\nu }_h{\nabla }_h^2\xi$ to the vorticity equation. Its balance with the beta effect sets the width of a Munk boundary layer.

The component of heat transport crossing a latitude. A poleward transport is northward in the Northern Hemisphere and southward in the Southern Hemisphere. Equal and opposite volume transports can carry net heat when the poleward branch is warmer. For eddies, the corresponding transport is determined by the correlation of meridional velocity and temperature anomalies, closely related to eddy buoyancy flux in a thermal Boussinesq approximation.

Choose $y$ northward and $z$ upward in the Northern Hemisphere. In a locally linear Boussinesq approximation, write the background buoyancy as $\bar{b}=b_{\ast }+By+N^{2}z$, with horizontal buoyancy gradient $B<0$ and positive squared buoyancy frequency $N^2$. The stable density stratification resists a purely vertical displacement, but the isopycnals slope upward poleward:The geopotential surfaces are horizontal in this local approximation. Their inclination differs from that of the isopycnals, which is the relevant baroclinicity.

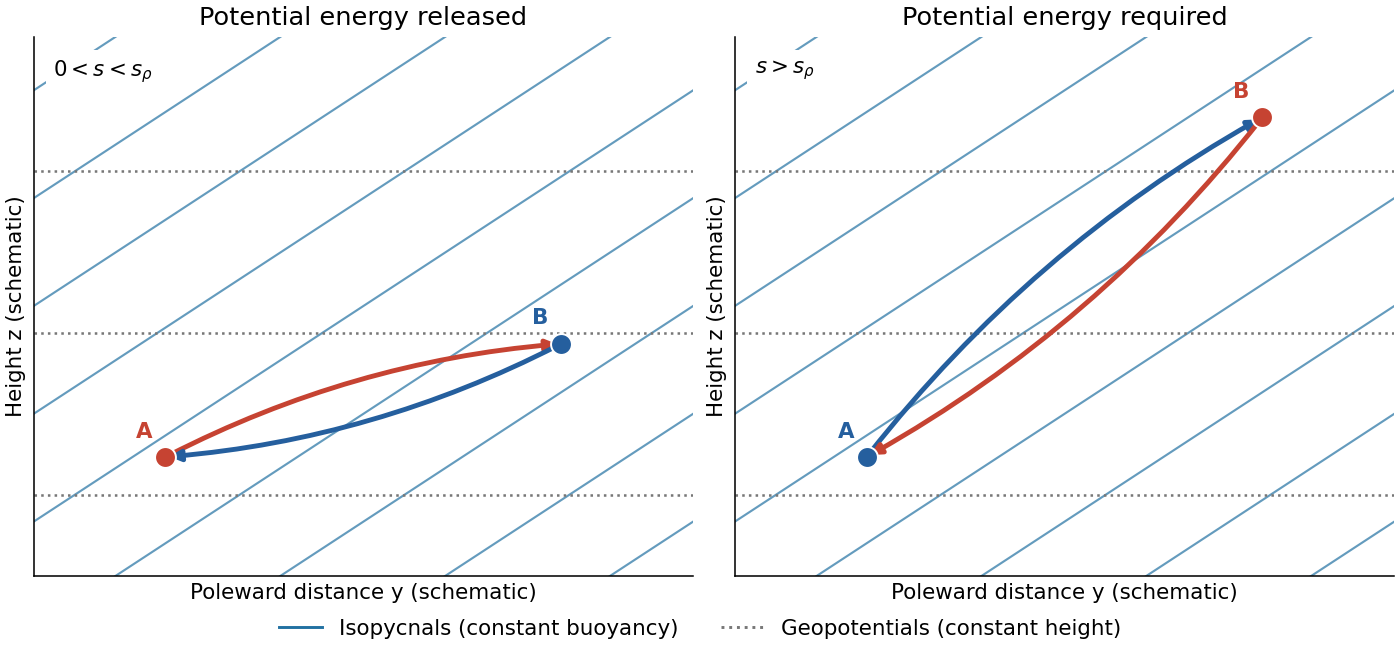

Exchange two equal small fluid elements, each of volume $V$, between positions separated by $(\delta y,\delta z)$. The adiabatic parcel exchange has no thermal diffusion, so each parcel retains its buoyancy. The background buoyancy difference is $\Delta \bar{b}=B\delta y+N^2\delta z$. Because the variable-density contribution to gravitational potential energy is $-{\rho }_{0}Vbz$, the change in the pair's gravitational potential energy isFor a poleward-rising exchange, set $\delta z=s\delta y$ with $s>0$. ThenThe trajectory lies between a geopotential surface and an isopycnal. The poleward-rising parcel starts more buoyant than the parcel it replaces, and the equatorward-sinking parcel starts less buoyant: the buoyancy does positive work on both. This releases available potential energy into kinetic energy, allowing eddies to amplify if the full rotating dynamics supports the displacement and dissipation does not remove the gain.

A trajectory steeper than the isopycnals, $s>s_{\rho }$, instead costs gravitational potential energy; an equatorward-rising trajectory also costs it. Motion exactly along a geopotential surface or an isopycnal gives zero change in this ideal exchange. At fixed $\delta y$, the largest release occurs at $s=s_{\rho }/2$, since $N^{2}s(s-s_{\rho })$ is minimized there.

This is an energetic possibility argument for baroclinic instability, not a sufficient normal mode instability criterion. In particular, unrestricted parcel motion must not be assumed in a rotating fluid: conservation of angular momentum can impose an additional restoring effect. Symmetric instability has a separate Ertel potential vorticity criterion; ordinary Eady instability can occur without violating that criterion.

The low-latitude regions of Earth absorb more incoming solar radiation than they emit as outgoing thermal radiation, whereas high latitudes have a net annual radiation deficit. The obliquity of solar incidence and the distribution of daylight create a strong latitude dependence of absorbed solar energy; emitted thermal radiation varies less strongly because terrestrial temperature contrasts are smaller. The terrestrial atmosphere and ocean therefore carry energy from the tropical surplus toward the polar deficits. Otherwise the low latitudes would keep warming and the high latitudes cooling until a different local radiative equilibrium was reached.

For a steady, zonally averaged energy balance, let $R(\varphi )$ be net downward radiation at the top of the terrestrial atmosphere and $H(\varphi )$ the total northward energy transport across latitude $\varphi$. A narrow spherical band and conservation of energy giveThe poleward direction is northward in the Northern Hemisphere and southward in the Southern Hemisphere. Seasonal internal energy storage modifies the instantaneous balance, but not the annual need for poleward redistribution.

Several circulation structures contribute in addition to the transient eddies produced by baroclinic instability of the middle latitudes:

The Brewer-Dobson circulation additionally redistributes energy in the stratosphere, with tropical ascent and extratropical descent, although most total atmospheric heat transport occurs lower down. An Eulerian mean middle-latitude Ferrel cell is thermally indirect and can oppose the poleward transport by eddies; listing every meridional circulation as a direct poleward heat carrier would be incorrect.

On a beta plane, $f=f_0+\beta y$, the preceding vorticity equation isIn the broad ocean interior, assume a statistically steady flow, weak advection of relative vorticity, and negligible friction compared with planetary-vorticity advection. The constant-depth, constant-density assumptions of 2(a) exclude topographic and baroclinic vorticity generation contributions. More precisely, require $|{\xi }_t|,|\mathbf{u}\cdot \nabla \xi |,|r\xi |\ll |\beta v|$. Then Sverdrup balance isSmall Rossby number and slow forcing help justify these conditions in the interior; they do not justify them inside an intense western boundary current. For fluctuations, the mean eddy contribution to relative-vorticity advection must also be negligible.

The depth-integrated northward volume flux per unit zonal distance is $V=Hv$. For a basin $0<x<L$ and wind stress independent of $x$, the northward interior volume flux isA negative value denotes southward transport. The cancellation of $H$ is why this interior volume flux is insensitive to the chosen constant depth. In a closed, steady basin the net volume flux across a full latitude section is zero: a boundary return must compensate $T$. Thus the displayed formula cannot represent the total closed-basin transport including that return.

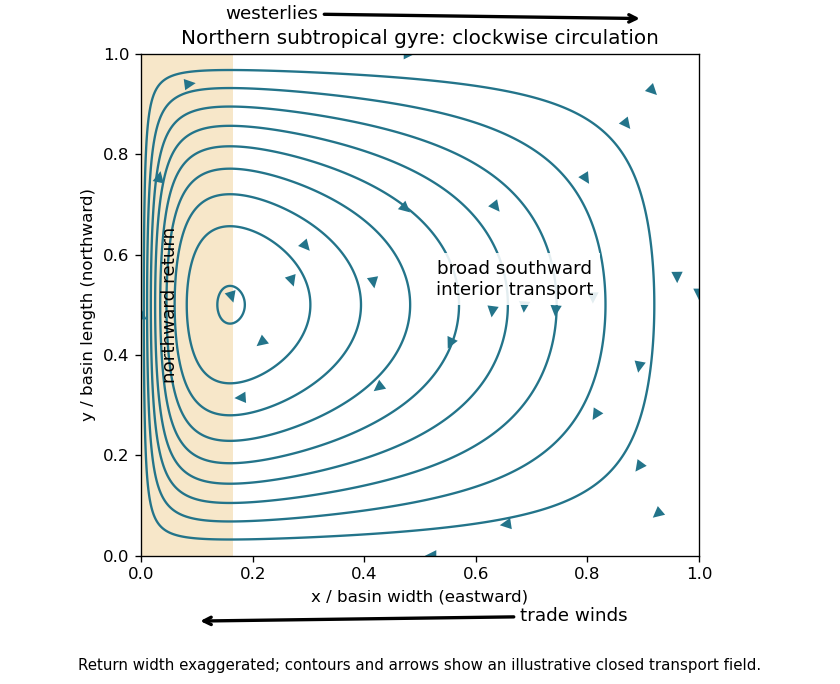

For a concrete circulation sketch, use a northern-hemisphere subtropical basin $0<y<B$ andThis represents westward trade winds at the southern edge and eastward westerlies at the northern edge. The negative wind stress curl drives southward interior flow. Define an ocean transport streamfunction by $Hu=-{\Psi }_y$, $Hv={\Psi }_x$ and impose no normal flow at the eastern wall through $\Psi (L,y)=0$. Integrating Sverdrup balance westward givesSince $V=0$ at $y=0,B$, this also gives no normal flow at the north and south walls. Interior water moves westward in the southern part, southward across the basin, and eastward in the northern part. A northward western boundary current completes the clockwise ocean gyre.

Pure Sverdrup balance cannot satisfy the western impermeability condition as well: ${\Psi }_I(0,y)=-LV(y)$ varies along that wall. Indeed imposing no normal flow on both east and west walls would require their constant streamfunction values to agree in this simply connected closed basin, whereas their difference here is the nonzero $T(y)$. The shaded return in the sketch represents a boundary region where the interior approximation breaks down. It is supplied by friction in 2(c), rather than inferred from Sverdrup balance alone. A southern-hemisphere subtropical ocean gyre has the reflected, anticlockwise circulation.

For an order-of-magnitude estimate, use ${\tau }_0=0.1\mathrm{N}{\mathrm{m}}^{-2}$, ${\rho }_0=10^3\mathrm{kg}{\mathrm{m}}^{-3}$, $\beta =2\times 10^{-11}{\mathrm{m}}^{-1}{\mathrm{s}}^{-1}$, $L=5\times 10^6\mathrm{m}$ and a wind stress variation scale ${\ell }_{\tau }=10^6\mathrm{m}$. ThenHere $1\mathrm{Sv}=10^6{\mathrm{m}}^3{\mathrm{s}}^{-1}$ is a Sverdrup. The sinusoidal example has maximum $|{\tau }_{s,y}|=\pi {\tau }_0/B$; taking $B=\pi \times 10^6\mathrm{m}$ makes it agree with the chosen variation scale. Other reasonable basin widths and wind profiles change the coefficient, but retain a transport of order tens of Sverdrups.

Let $V_b$ be the northward speed in the western boundary current, whose zonal width $\delta$ is much less than its meridional scale. Its dominant relative vorticity is $\xi \simeq v_x\sim V_b/\delta$. Neglecting local wind stress curl and relative-vorticity advection in the narrow return region, the linear stationary vorticity equation becomesConsequentlyThis decay into the interior from the western wall explains why the Stommel boundary layer lies on the west. The sign also matters: a northward return has $v_x<0$, so its negative relative vorticity supplies a positive drag contribution $-r\xi$ to balance $\beta v$. Here $r$ has units ${\mathrm{s}}^{-1}$; no extra factor of $f_0$ belongs in $r/\beta$ with the paper's definition of linear drag.

For example, at fixed $y$ the leading correction to the interior ocean transport streamfunction isIt cancels the western value of ${\Psi }_I$ and carries ${\int }_0^{\infty }H{v}_{B}dx=-LV=-T$. Exponentially small eastern-wall corrections and the turning regions near the northern and southern walls do not affect the leading width estimate.

Using one year $=3.156\times 10^7\mathrm{s}$, the representative $\beta$ of 2(b), and $H=10^3\mathrm{m}$ givesTo return the $25\mathrm{Sv}$ interior volume flux, conservation of mass requiresFor the exponential profile this is the boundary speed associated with its effective transport width $\delta$. It is much narrower and faster than the familiar large-scale western boundary currents, whose energetic cores span tens of kilometres and have speeds of order $1\mathrm{m}{\mathrm{s}}^{-1}$. The simplified constant-depth linear drag model with a one-year decay time therefore does not give a realistic quantitative boundary structure. Lateral viscosity, eddies, stratification and inertia can all affect a real current.

The corresponding relative vorticity scale isThus relative vorticity cannot be discarded relative to planetary vorticity in this predicted return. Even a more realistic $1\mathrm{m}{\mathrm{s}}^{-1}$ across $50\mathrm{km}$ gives $|\xi |\sim 2\times 10^{-5}{\mathrm{s}}^{-1}$, an appreciable fraction of $|f_0|$.

Magnitude alone does not prove that its material advection is large: a perfectly parallel current $v=v(x)$, $u=0$ has $\mathbf{u}\cdot \nabla \xi =0$ exactly. For a gyre return varying over meridional scale $B$, however, incompressibility gives $u\sim \delta V_b/B$, and both generic contributions to $\mathbf{u}\cdot \nabla \xi$ scale as $V_b^2/(B\delta )$. Relative to $\beta V_b$, this isAbsent special cancellations, the assumed neglect of relative-vorticity advection is therefore not self-consistent for these parameters. Its natural inertial width is instead ${\delta }_I\sim \sqrt{V_I/\beta }$, where $V_I=|T|/(HL)\simeq 5\times 10^{-3}\mathrm{m}{\mathrm{s}}^{-1}$; this gives about $16\mathrm{km}$. That comparison diagnoses the missing inertia rather than supplying a complete nonlinear boundary-current solution.

The annual, zonal-mean absorbed sunlight falls from the tropics towards the poles much more strongly than outgoing thermal radiation. Thus Earth's top-of-atmosphere radiation budget has a tropical surplus and a polar deficit, with changes of sign around $35^{\circ }$ latitude in a basic sketch. The curves below are illustrative, rather than measured data; their area-weighted global means agree.

In a statistically stationary climate, local conservation of energy requires the surplus to be exported. If $R(\varphi )$ is the net downward radiative heat flux and $\mathcal{H}(\varphi )$ the northward total power carried across the latitude circle, thenHere $a$ is Earth's radius. The terrestrial atmosphere and ocean circulation carry this energy poleward by moving warm and cold fluid, including atmospheric transport of latent heat. Without this transport the assumed steady radiation budget could not persist: the tropics would warm and polar regions cool until the budget changed. The tropical atmospheric contribution includes the Hadley cell: rising warm air near the equator, poleward flow aloft, subtropical descent, and an equatorward lower return.

For a parcel moving without an axial torque, conservation of angular momentum applies in an inertial frame. The specific axial angular momentum at latitude $\varphi$ is“Initially at rest” means $u=0$ relative to the rotating surface at the equator, so $M=\Omega a^2$. Neglecting atmospheric height compared with $a$ givesWith $\Omega =7.292\times 10^{-5}{\mathrm{s}}^{-1}$ and $a=6.371\times 10^6\mathrm{m}$, the eastward velocity at $30^{\circ }\mathrm{N}$ isThis is the ideal angular-momentum-conserving upper branch of the Hadley cell. Real jet streams exchange angular momentum through eddies and friction, so this estimate is not an observational claim about the actual wind speed.
