A light-emitting diode is a semiconductor diode producing electroluminescence under electric current. Forward bias injects Electrons and electron holes; radiative electron-hole recombination emits photons. A double heterostructure uses band offsets to retain both charge carriers in an active layer. A sufficiently thin layer is a quantum well.^[ref]

The optical and electrical questions are different: photon energy sets a color scale, while light-emitting diode efficiency determines how much supplied energy escapes as light. The blue light-emitting diode made compact white light-emitting diodes and full-color displays practical. A modulated light-emitting diode can also supply the optical signal in a chopped-light lock-in experiment.

Blue transitions motivate wide-bandgap semiconductors, but a large band gap alone cannot guarantee efficient emission. Gallium nitride has a direct band gap; indium gallium nitride composition tunes the transition energy.^[ref]

For an emitted photon, with frequency $\nu$ and vacuum wavelength $\lambda$,where $h$ is the Planck constant and $c$ the vacuum speed of light. Multiplying energy by wavelength gives $hc=1239.841984\mathrm{eV}\mathrm{nm}$. Thus chosen wavelengths $450\mathrm{nm}$ and $630\mathrm{nm}$ correspond to $2.75520\mathrm{eV}$ and $1.96800\mathrm{eV}$: blue requires more energy per photon than red. A stipulated transition energy $3.40\mathrm{eV}$ instead gives $364.659\mathrm{nm}$, in the ultraviolet. These are conversions, not measured emission lines.

For near-edge emission, $E_{\gamma }\approx E_g$ estimates the photon energy from the emitting material's band gap. Quantum well confinement or impurity transitions can change it. The 1994 blue light-emitting diode used zinc-doped indium gallium nitride, emitting below its near-edge transition.^[ref]

The measured forward terminal electric potential difference $V_f$ is also not fixed by $E_g/q$, where $q$ is the elementary charge. It depends on electric current, temperature, contacts and series electrical resistance. Even the simple Shockley diode equation with series electrical resistance has $V_f=V_j+I{R}_s$, whereas an optical transition does not acquire an extra energy $qI{R}_s$ merely because the contact drop increases. Consequently, extracting a band gap from one terminal-voltage reading is not justified.

Isamu Akasaki chose metalorganic vapour-phase epitaxy and sapphire, which tolerated hot ammonia. Large lattice mismatch hindered film growth. In 1985, Hiroshi Amano and Isamu Akasaki's group developed an aluminium nitride epitaxial buffer layer deposited before hotter gallium nitride growth. The buffer supplies initial growth sites; growing islands join into a continuous film. It improves growth without making the lattices identical. Isamu Akasaki separately credits Shuji Nakamura's 1991 gallium nitride buffer.^[ref]

The 1986 growth paper reports a vertical metalorganic vapour-phase epitaxy reactor, source gases mixed just before delivery to slanted sapphire, and subsequent gallium nitride growth over aluminium nitride. Surface microscopy, X-ray diffraction and photoluminescence tested different aspects of the result. Buffered and unbuffered growth supplied the comparison. Its reported preparation conditions should not be replaced by one universal buffer temperature: the later lecture's account of the first low-temperature trial and the paper's parameter study describe different stages of development.^[ref]

A magnesium acceptor impurity in gallium nitride accepts a valence band Electron, leaving a mobile electron hole. Hydrogen passivation of magnesium acceptors in gallium nitride suppresses this activity. Post-growth activation restores existing impurities' electrical activity; ionization of active acceptor impurities supplies mobile electron holes. Adding magnesium alone is insufficient.^[ref]

In 1989, Hiroshi Amano, Masahiro Kito, Kazumasa Hiramatsu and Isamu Akasaki obtained p-type semiconductor conduction in magnesium-doped gallium nitride using low-energy Electron beam irradiation. Hiroshi Amano recalls initially resistive samples, an unreliable hot-probe test, then Masahiro Kito's Hall effect confirmation. A junction irradiated in an M-shaped region emitted in that pattern. Treatment, carrier-sign measurement and spatial emission supplied different evidence. Earlier zinc-doped samples brightened under irradiation without becoming p-type semiconductors: brightness alone did not prove the carrier sign.^[ref]

Shuji Nakamura, Takashi Mukai, Masayuki Senoh and Naruhito Iwasa's 1992 thermal-activation paper established another route using annealing in nitrogen. Their companion study compared already conducting films heated in nitrogen with films heated in ammonia: the latter became highly resistive again. Its hydrogen-complex explanation connected this atmosphere dependence to acceptor impurity passivation. These are thermal treatment and atmosphere comparisons, distinct from the earlier Electron beam intervention; neither observation alone images an individual hydrogen complex.^[ref][ref]

Shuji Nakamura's two-flow metalorganic chemical vapor deposition reactor, gallium nitride buffer, thermal activation and improved indium gallium nitride growth enabled bright double heterostructure devices, followed by thinner quantum well devices.^[ref]

The original 1994 paper by Shuji Nakamura, Takashi Mukai and Masayuki Senoh describes a sapphire/gallium nitride-buffer device with zinc-doped indium gallium nitride emission and aluminium gallium nitride confinement. After nitrogen annealing, etching exposed the n-side for a separate contact. At room temperature, varied forward electric currents gave emission spectra and optical-output curves alongside a current-voltage characteristic. At $20\mathrm{mA}$: $1.5\mathrm{mW}$ output, $450\mathrm{nm}$ peak wavelength, $3.6\mathrm{V}$ terminal electric potential difference. The peak stayed nearly fixed across the current series. The paper omits a complete calibrated collection apparatus; comparisons with earlier devices change several preparation details.^[ref]

Efficiency has several denominators. Specify a steady electric current $I>0$, positive terminal electric potential difference $V_f$, and a simplified narrow emission spectrum with photon energy $E_{\gamma }$. Assume at most one radiative photon per injected Electron and electron hole pair. Let ${\eta }_{\mathrm{inj}}$ be the fraction of the electrical pair-supply rate $I/q$ reaching the active layer, ${\eta }_{\mathrm{rad}}$ the fraction of those pairs recombining radiatively, and ${\eta }_{\mathrm{ext}}$ the fraction of internally emitted photons that escape. Then counting the successive events givesDefine internal quantum efficiency here conditionally on pairs reaching the active layer: ${\eta }_{\mathrm{IQE}}={\eta }_{\mathrm{rad}}$. The internal photon yield per electrical pair is instead ${\eta }_{\mathrm{inj}}{\eta }_{\mathrm{IQE}}$. Stating this convention matters when another definition folds injection into internal quantum efficiency. The external quantum efficiency and wall-plug efficiency areThese are photon-count and energy-flow identities for the declared model. For a broad spectrum, replace $E_{\gamma }$ by the mean escaping photon energy, weighted by photon number, when computing optical power.

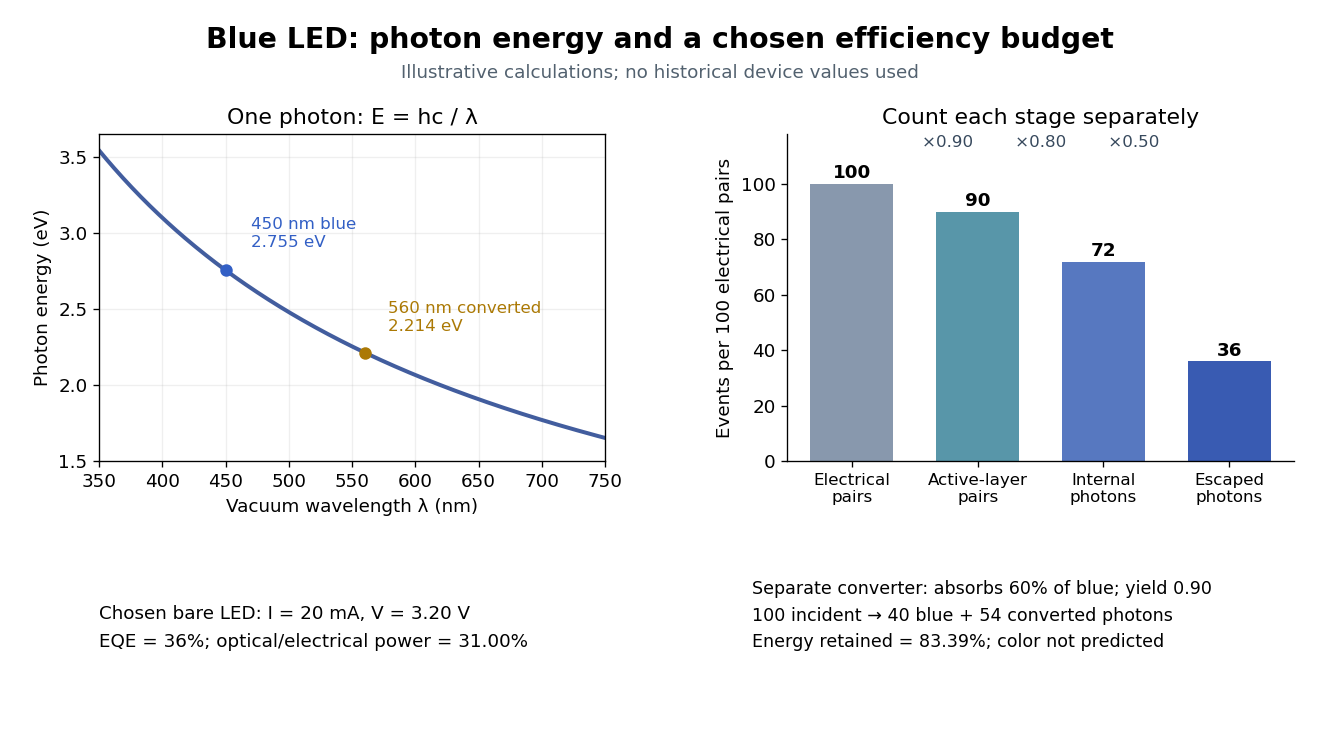

A stipulated example chooses $I=20\mathrm{mA}$, $V_f=3.20\mathrm{V}$, $\lambda =450\mathrm{nm}$, ${\eta }_{\mathrm{inj}}=0.90$, ${\eta }_{\mathrm{IQE}}=0.80$ and ${\eta }_{\mathrm{ext}}=0.50$. For every 100 electrical pairs, 90 reach the active layer, 72 emit internally, and 36 photons escape. Thus ${\eta }_{\mathrm{EQE}}=0.36$, not $0.80$. Using $q=1.602176634\times 10^{-19}\mathrm{C}$ givesThe dimensional analysis is transparent: $A/C={\mathrm{s}}^{-1}$, $J/s=\mathrm{W}$, and $\mathrm{CV}=\mathrm{J}$. The optical and electrical efficiencies differ because $E_{\gamma }/q=2.75520\mathrm{V}$ differs from the chosen $V_f$.

The factors suggest different improvements. Better confinement can reduce injection leakage; suppressing nonradiative recombination raises the radiative fraction; improving light extraction efficiency helps already-emitted photons escape. A photon trapped by total internal reflection has already passed the radiative step and can still be lost through absorption. Improving extraction therefore need not change the internal radiative fraction.

Shuji Nakamura's lecture cautions that why indium gallium nitride emits efficiently despite many defects was not completely settled in that account.^[ref]

As an independent consistency check on the 1994 reported values, treating its broad spectrum as monochromatic at the $450\mathrm{nm}$ peak givesThis agrees at the quoted precision with the reported $2.7\%$. Its optical/electrical power ratio is instead $1.5\mathrm{mW}/(20\mathrm{mA}\times 3.6\mathrm{V})=2.0833\%$. The first estimate uses a peak in place of a photon-number-weighted mean, so agreement is a consistency check rather than an exact reanalysis of the measured spectrum.

For the convention used in light-emitting diode efficiency, the internally generated photon rate divided by the rate of Electron and electron hole pairs reaching the emitting layer. Its denominator must be stated when comparing measurements.

The rate of escaping photons divided by the electrical pair-supply rate $I/q$ in a light-emitting diode. This counts photons rather than comparing optical and electrical power.

The fraction of internally emitted photons that escape a light-emitting diode across the specified optical boundary. Collection by a particular detector adds another factor unless the measurement accounts for all escaping light.

The emitted optical power divided by electrical input power. For the bare-device calculation in light-emitting diode efficiency, $P_{\mathrm{elec}}=I{V}_f$; a complete lamp also consumes power in its driver. Luminous efficacy, measured in lumens per watt, additionally weights the spectrum by human visual sensitivity and is a different quantity.

An additive color display mixes separate red, green and blue emitters. A phosphor-converted white light-emitting diode converts some blue photons to longer-wavelength light in a phosphor, mixing it with unconverted blue to produce perceived white. Hiroshi Amano distinguishes display and phosphor-lighting applications.^[ref]

To isolate conversion losses, suppose a converter receives 100 blue photons at ${\lambda }_b=450\mathrm{nm}$, absorbs a fraction $a=0.60$, and has fluorescence quantum yield $\Phi =0.90$: 0.90 converted photons per absorbed blue photon. Stipulate that every converted photon has ${\lambda }_c=560\mathrm{nm}$, that unabsorbed blue is transmitted, and that both outputs escape without further losses. The output is then 40 blue and 54 converted photons. The total photon yield is $0.94$, while the retained optical energy fraction isThe lower energy of each converted photon matters even if $\Phi =1$. Combining this stipulated converter with the preceding chosen light-emitting diode gives $P_{\mathrm{after}}=16.5430\mathrm{mW}$ and an overall optical/electrical power ratio $0.258485$. These chosen narrow lines and photon counts illustrate conversion accounting; they do not establish a white appearance, color quality or luminous efficacy. Those require the full spectrum and a model of human visual sensitivity.
